Desktop label printer

CAB XC Q

Two-color printing on all materials wound on rolls

Print widths up to 105.7 and 162.6 mm
Heating energy adjustable separately for each printhead
With ribbon-saving mechanism for printhead 1
Continuous print image when cutting without retraction
Optimized printing between individual print jobs

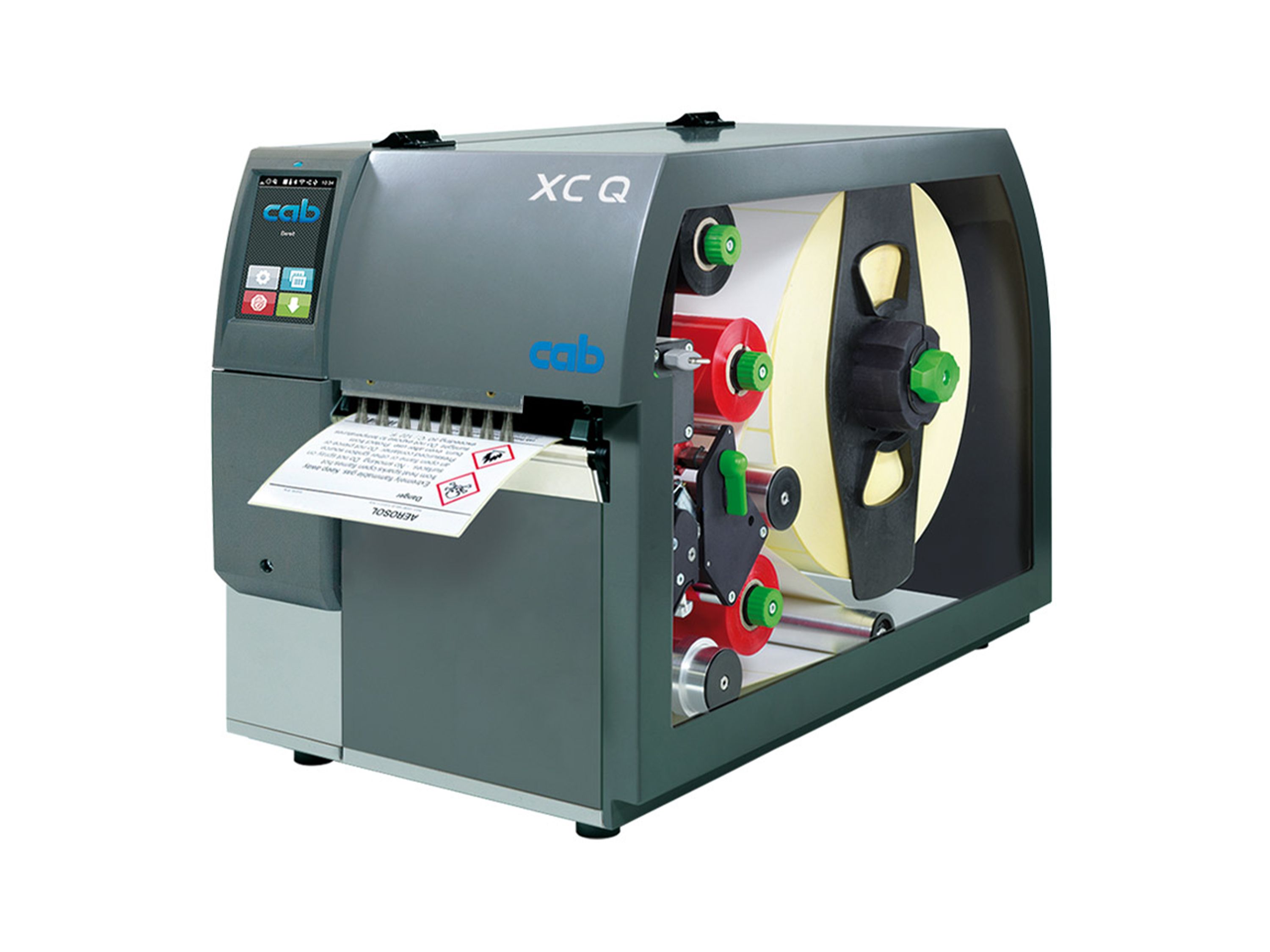

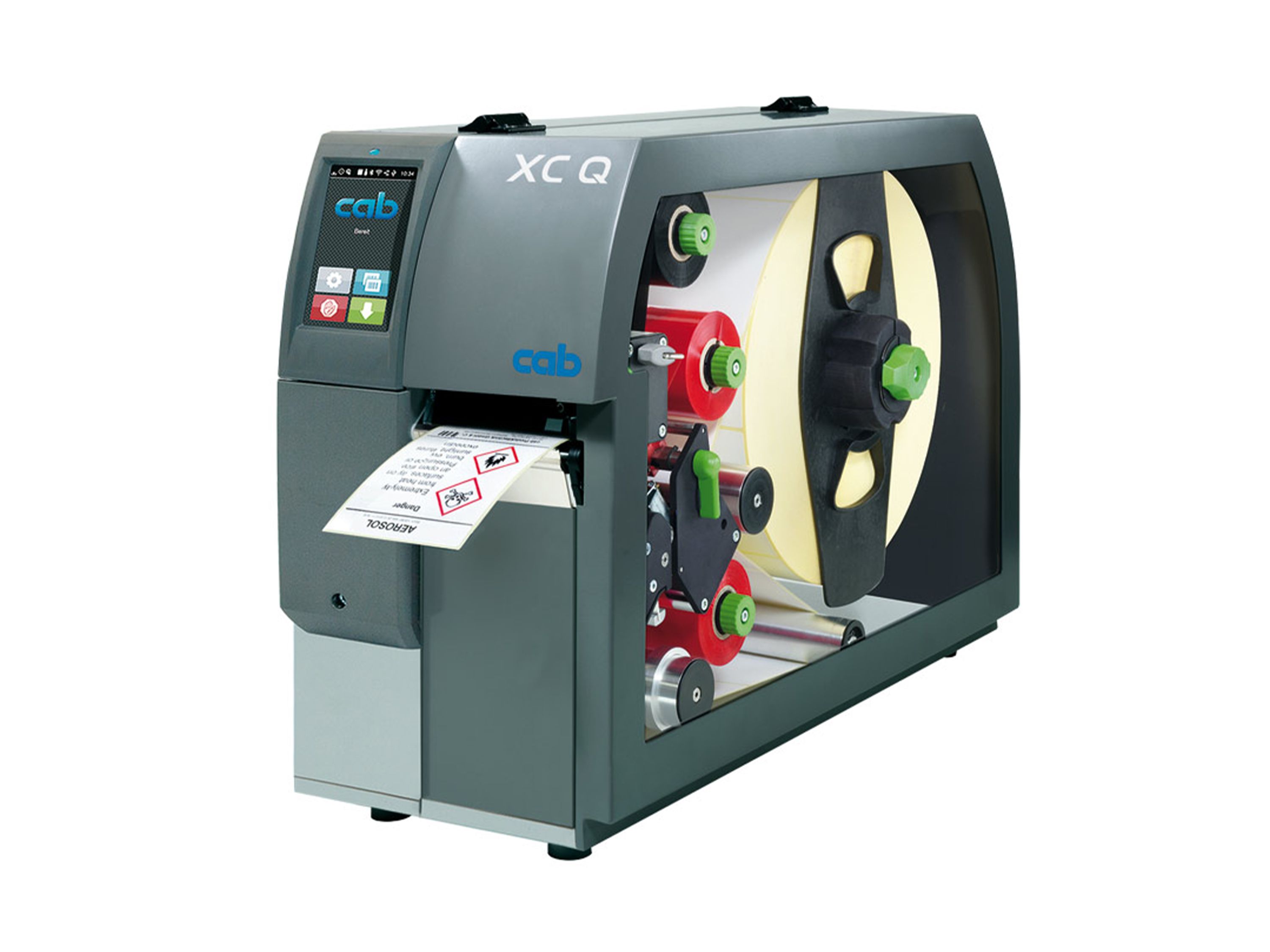

The cab XC Q is a high-quality industrial label printer that stands out for its flexibility and efficiency. It features two printheads arranged in series that can print labels in two colors in a single pass. This makes it particularly suitable for printing, for example, hazardous substance labels in-house. If this is not always required, it is also possible to print with only one printhead while the other is lifted via the menu.

XC Q offers high print quality, fast production speeds, and a robust design that operates reliably even in demanding environments. With various print widths and resolutions, it is versatile—ideal for complex labels, barcodes, and QR codes. The XC Q is easy to operate, features user-friendly interfaces, and durable printheads that simplify maintenance and operation. This makes it an ideal solution for demanding industrial label printing applications.

In this process, the printhead is lifted and the ribbon is stopped while the material advances. This reduces the consumption of thermal transfer ribbon, which leads to significant cost savings, especially for long print jobs with partially printed labels.

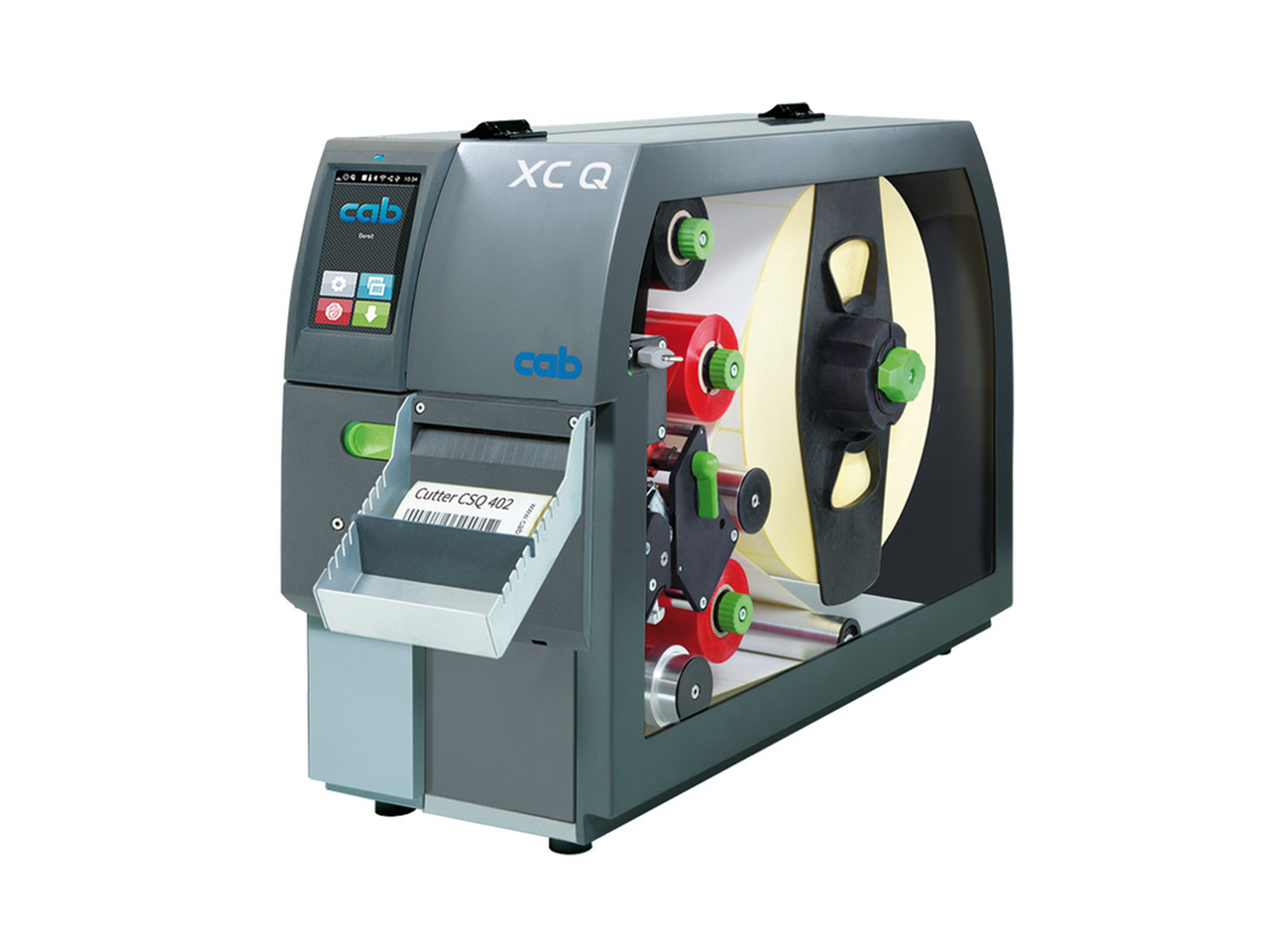

Practical accessories can be easily plugged or screwed onto the printer, including SD memory card, USB stick, WLAN stick, or I/O interface plug. In addition, there are external rewinders with built-in power supply and cutters that can cut paper, cardboard, textile, and plastic materials.

Options for special functions

Technical specifications

Printing specifications

Printing process

Thermal transfer, Thermal direct

Print width

162.6 mm

Printhead resolution

300 dpi

Print speed up to

150 mm/sec

Printhead technology

Flathead

PDF direct printing

Print media

Material width (labels and liner material)

24 - 180 mm

Ribbon

Ribbon width

25 - 170 mm

Core diameter

25.4 mm

Maximum length

450 linear meters

Winding

Inside (standard) Outside (standard)

Hardware

Display

Touchscreen LCD colour display

Flash memory expansion as an option

–

SD memory card slot

USB memory stick slot

Interfaces

RS232, Ethernet IPv4, Ethernet IPv6, USB host dual, Bluetooth 4.1, Applicator port, WLAN 802.11 a/b/g/n/ac (retrofit option)

Software

Emulations

ZPL

Programming language

J-Script

Physical aspects

System dimensions (HxWxL)

395 x 358 x 554 mm

Weight

24 kg

Authorisations

CE, FCC, ICES-003

Ambient temperature

5 - 40°C

Rel. humidity non-condensing

10 - 85 %

Supply voltage

100 - 240 V

Frequency

50 - 60 Hz
