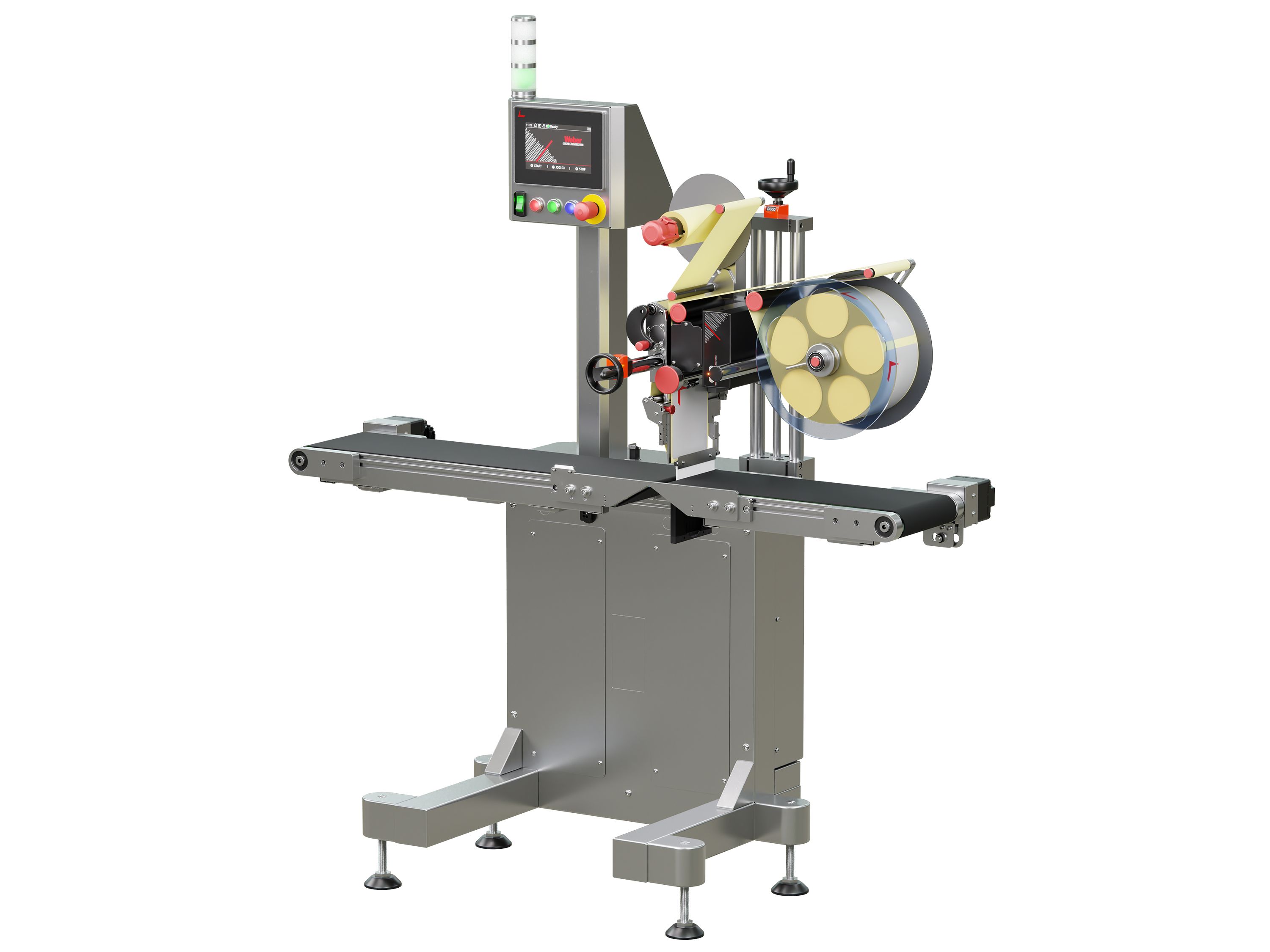

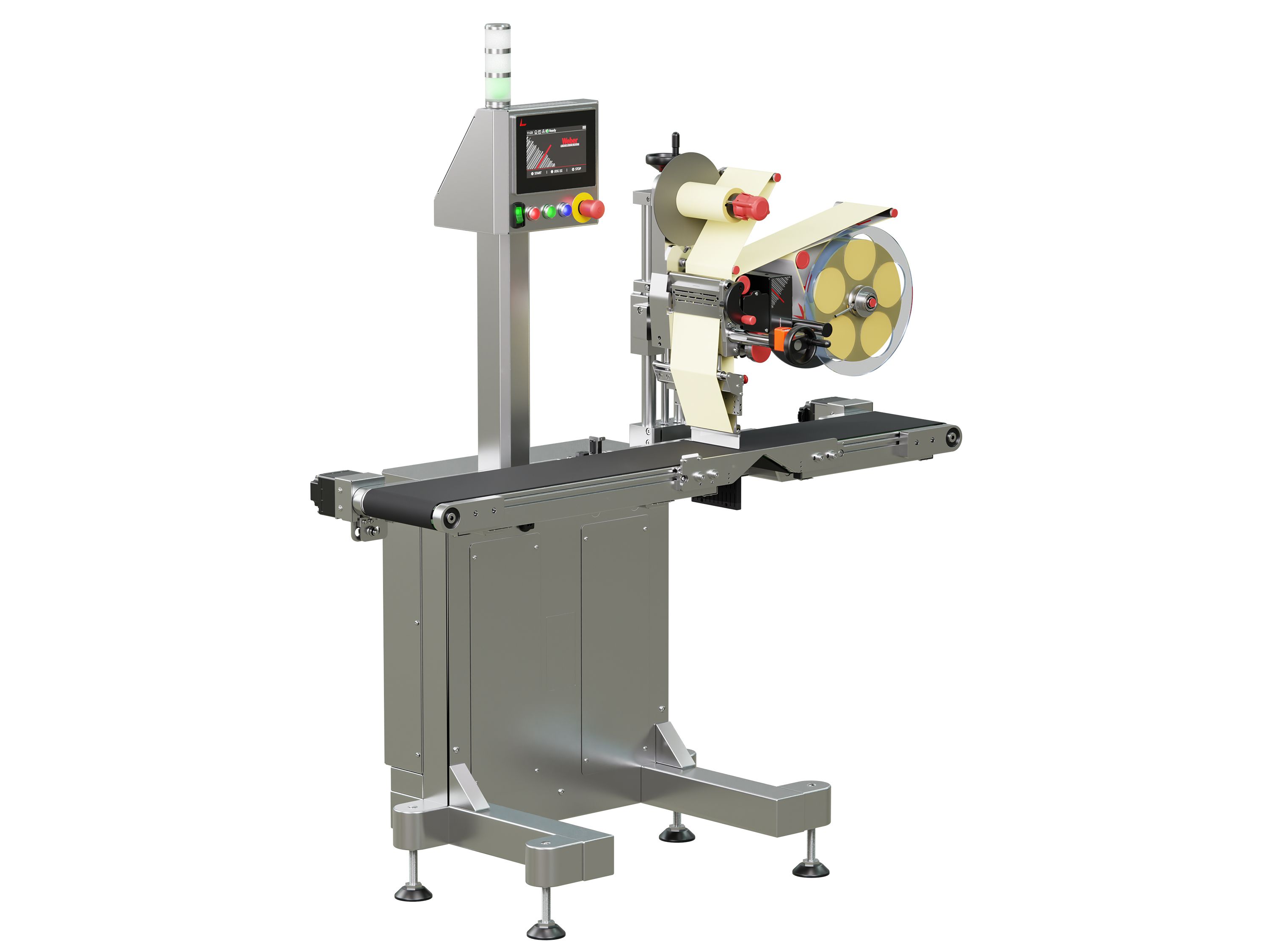

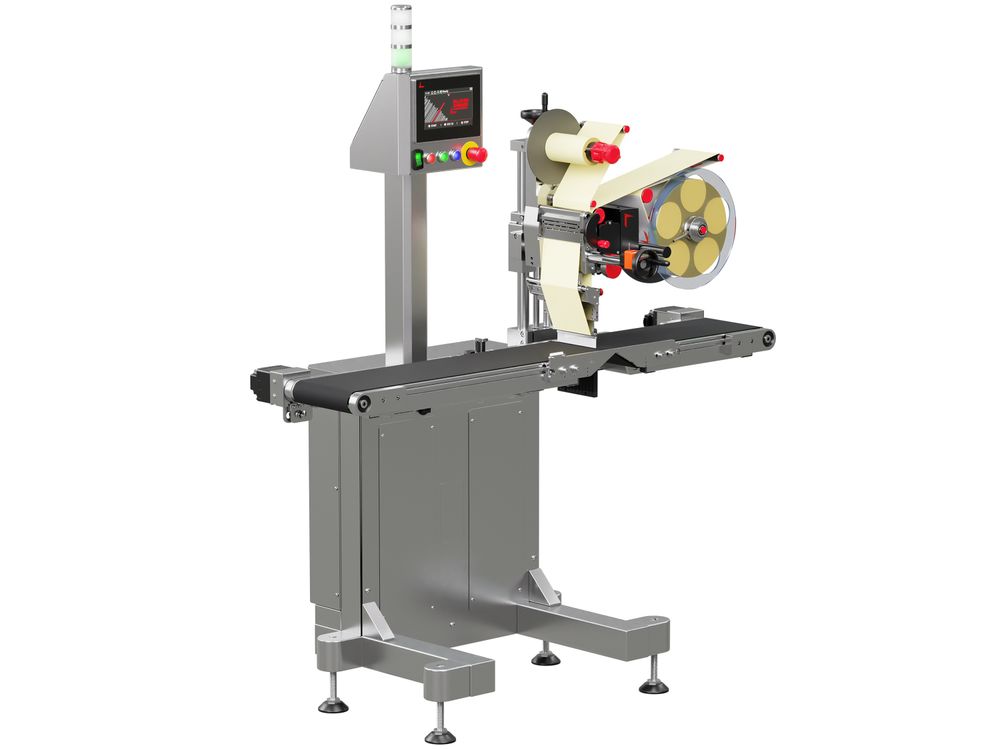

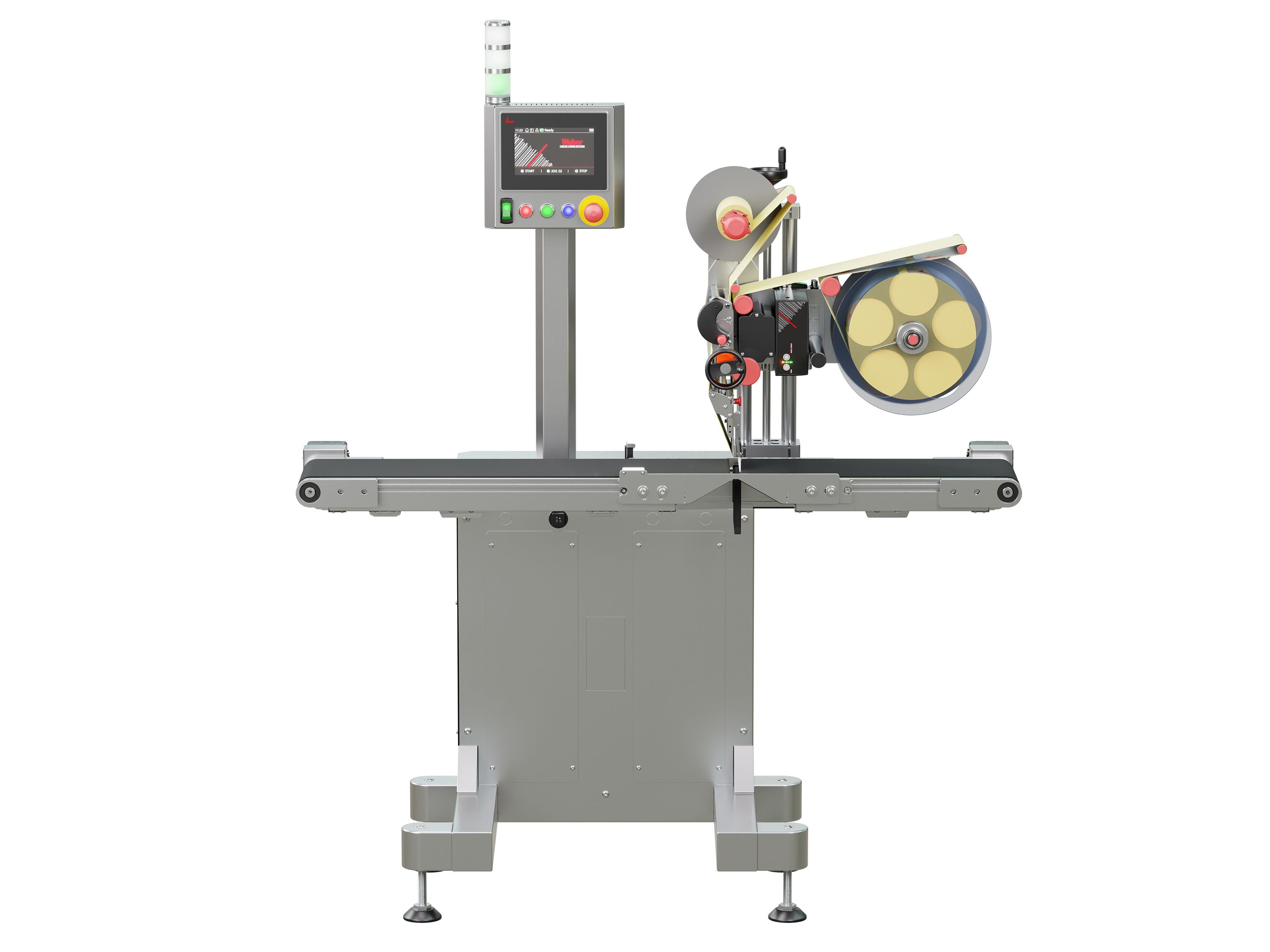

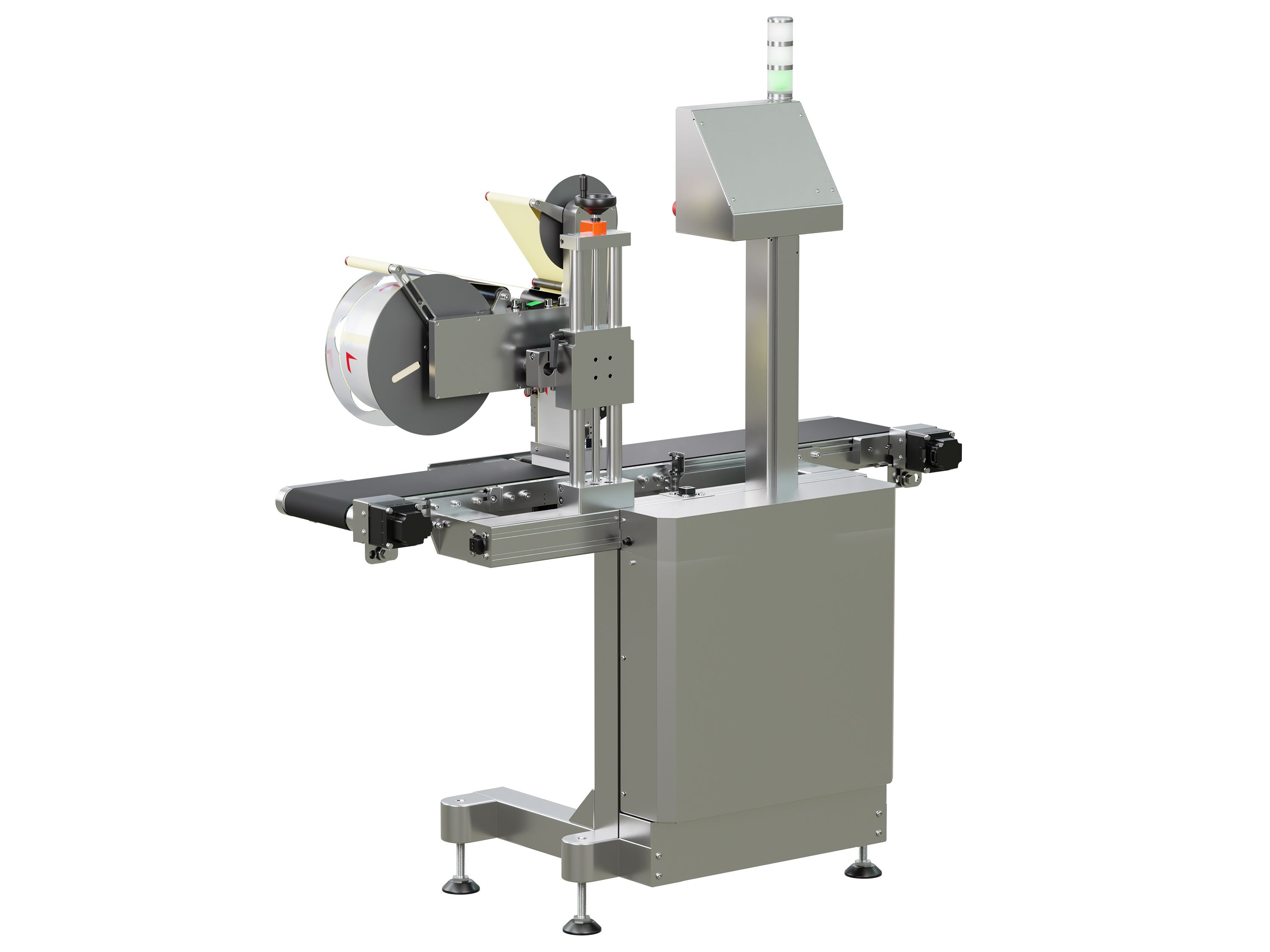

Automatic labeling machine

Geset 218

3-sided seal labeling for products using the C-wrap process

  • 1 label per product
  • Compact, easy to integrate design
  • Expandable with printing technologies for variable data
  • Label size min. 20 x 25 mm, max. 135 x 300 mm
  • Labels up to 300 products/min

Developed for easy operation and system integration

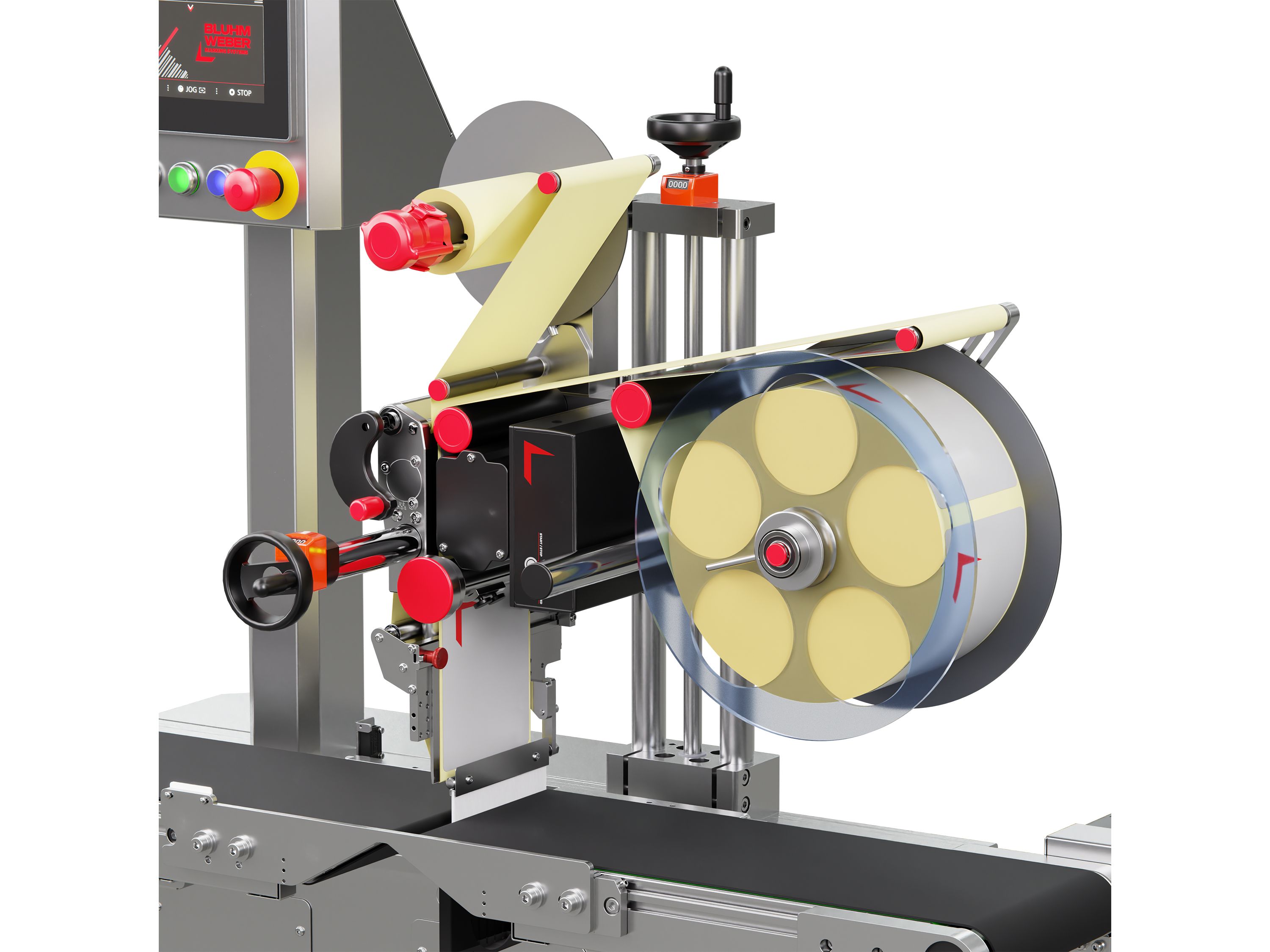

The CE-compliant Geset 218 labeling system has been specially developed for maximum user-friendliness and easy integration into existing production lines. The modular system labels products reliably using the C-wrap process. The integrated conveying system ensures a consistently stable product flow in the labeling process. Labeling is carried out by an Alpha HSM high-speed label applicator. Thanks to the central touch display and near-field operation, controlling is intuitive - ideal even for less trained personnel. Fast roll and format changes reduce downtimes and increase flexibility. Product and label-dependent parameters can be saved and called up directly. The compact construction with integrated controller housing, plug-in components and clear design saves space and simplifies maintenance. The system can also be fully remotely maintained for fast and efficient support. With various interfaces, it can be seamlessly integrated into modern production environments.

Applications

Labeling system Geset 218 C-Wrap label on cinnamon rolls
Labeling system Geset 218 C-Wrap label on chocolate box

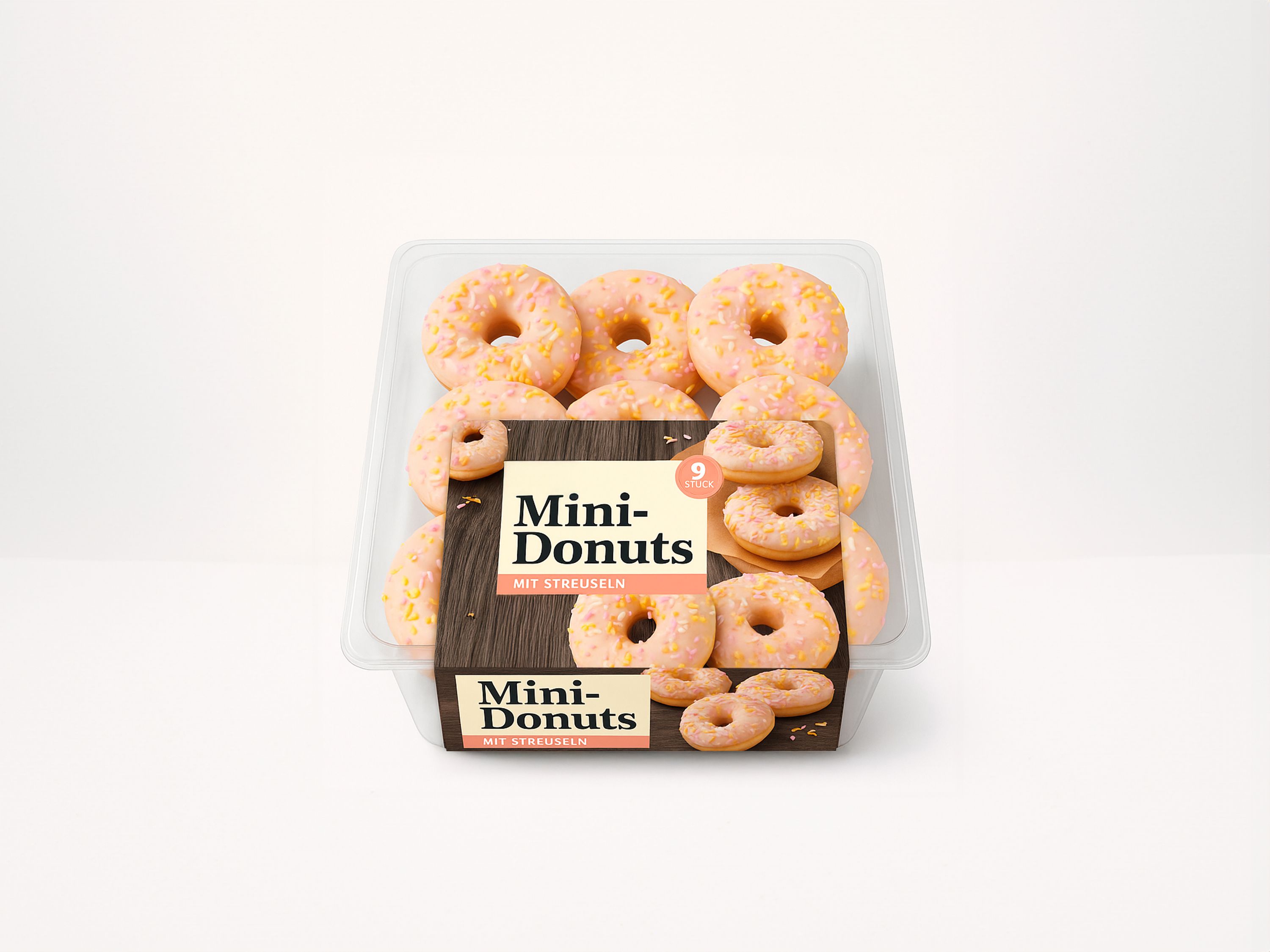

Labeling system Geset 218 C-Wrap labels on donuts
Labeling system Geset 218 C-Wrap on cauliflower
Labeling system Geset 248 C-Wrap label on sushi

Special features

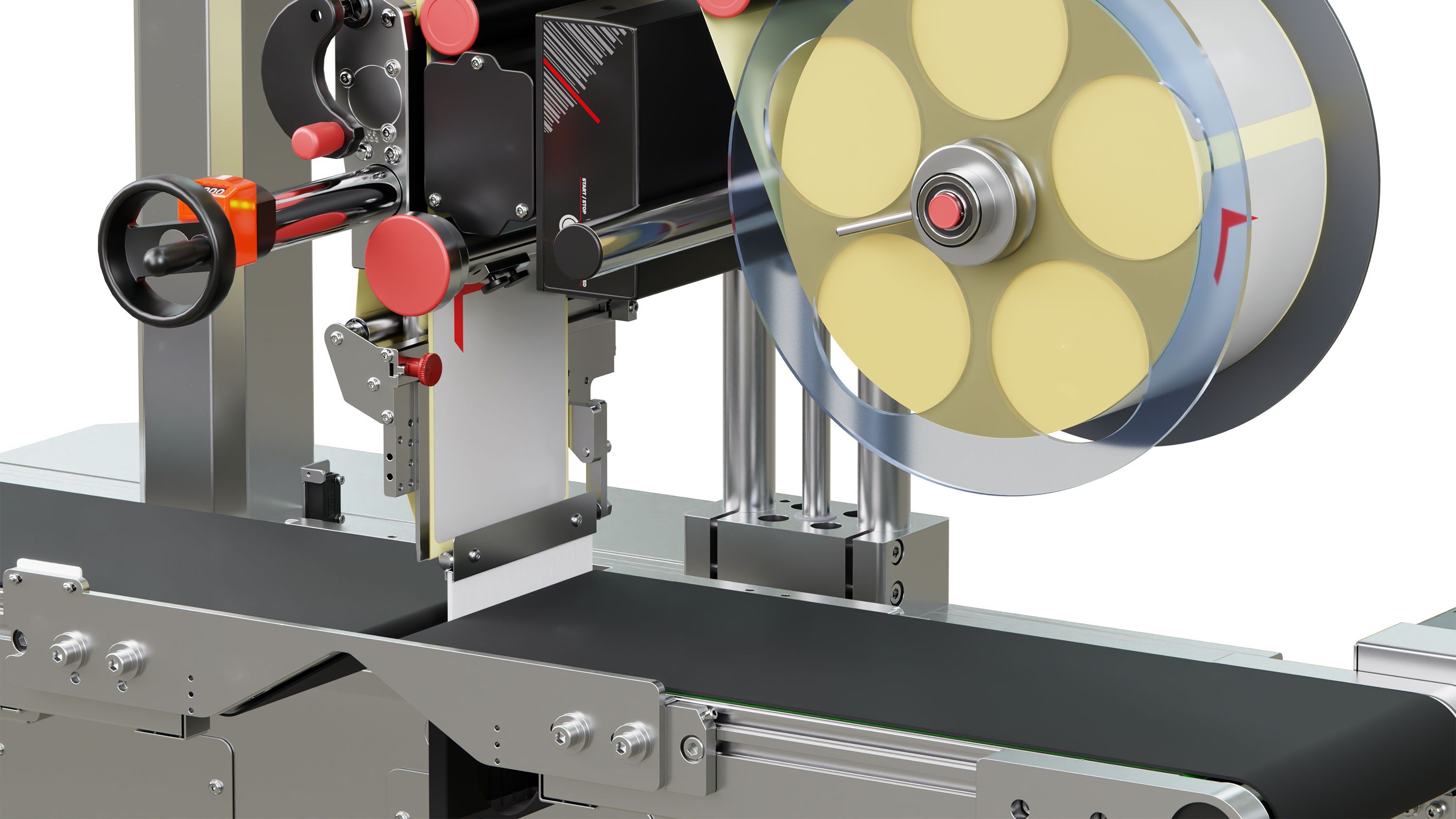

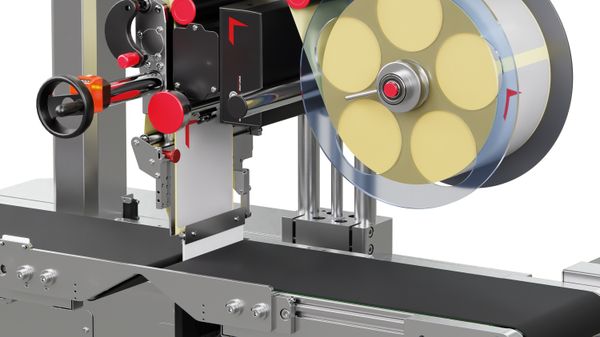

Geset 218 detail – seal labeling (C-wrap)

C-wrap process for packaging in food, pharma & Co.

The system labels packaging such as cartons, thermoformed trays, boxes and similar products. In the C-wrap process, the label is placed in a C-shape around one side edge of the product so that it encloses the front, top and bottom without gaps and adheres evenly. It is suitable for applications in the food, pharmaceutical, healthcare and homecare industries. Ideal for seal closure and as a tamper-evident closure. All parameters can be stored product-specifically and called up with high accuracy - ideal for changing products and small batches.

Label printed with Markoprint X1JET HP Standard inkjet printer

Optionally expandable with printing technologies

If variable data such as best-before date or batch number is to be printed on the labels before application, the system can be easily expanded. Special mountings for direct thermal transfer printers and inkjet printers are included in the module scope and are available immediately. This allows you to add additional coding to your high-quality labels in a highly efficient, legible and precise manner during labeling. We would be happy to advise you on the right device for your needs.

Control cabinet with IP54 and stainless steel design optional

The controller housing can optionally be replaced with a control cabinet with IP54 ingress protection - to protect against splashing water during cleaning. A stainless steel version of the system is also available, which increases the corrosion resistance of sensitive components such as the motor and conveyor belt in very humid and demanding environments.

Technical specifications
Technical values
Labeling system function
C-Wrap
Product speed up to
30 m/min
Label width
20 - 135 mm
Label length
25 - 300 mm
Label position
Front side on both sides & top side, C-Wrap
Positioning accuracy
2 mm
Equipment
Product transport (standard)
Belt
Product management
Standard
Optional special equipment
TTO print unit, X1 coder, Stainless steel version
HMI
HMI version
Touch display
Physical aspects

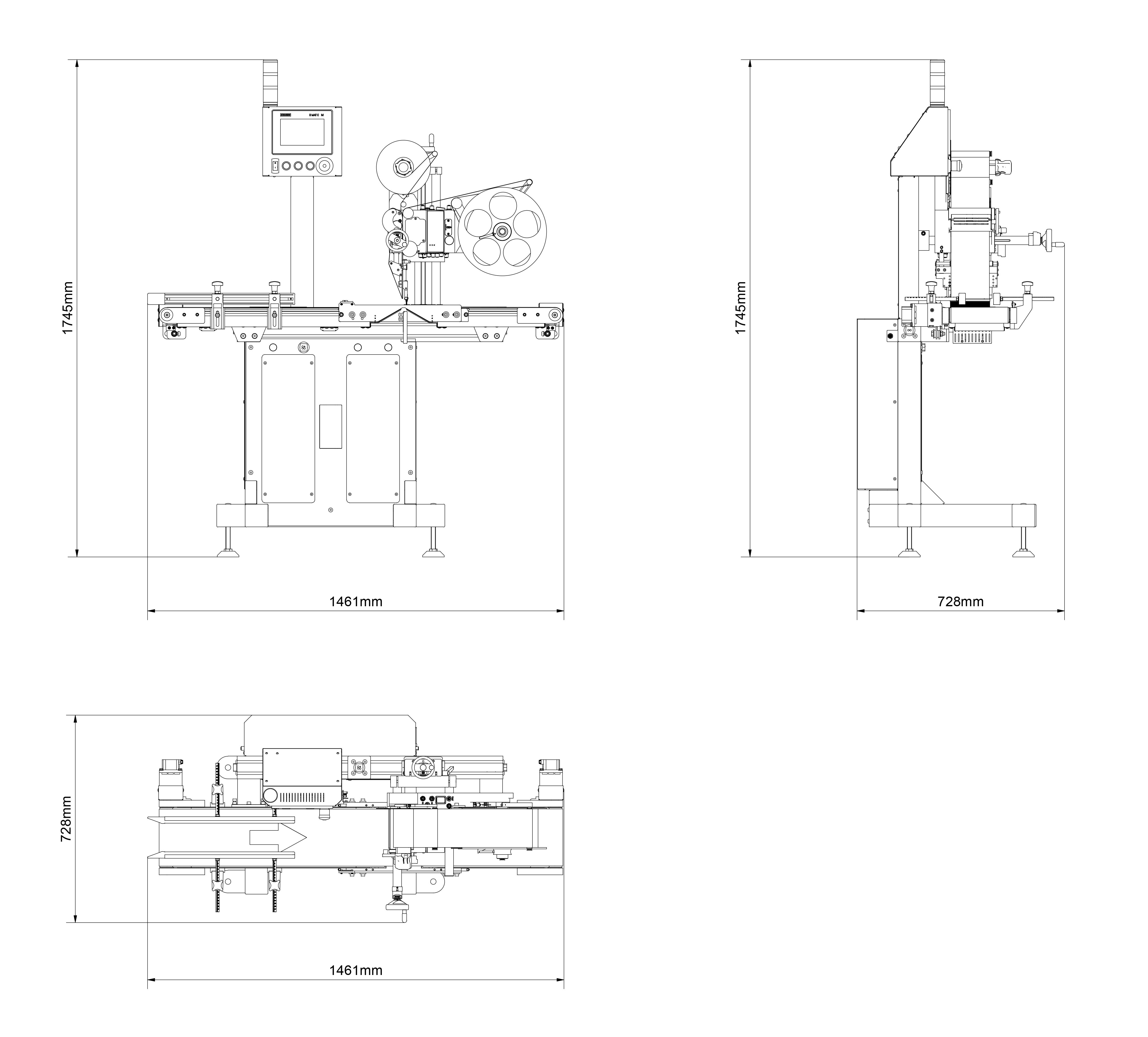

Dimensions system
1745 mm x 728 mm x 1461 mm
Approvals
CE, UKCA
Ambient temperature
10 - 30°C
Connections
Supply voltage
230 - 230 V
Frequency
50 - 50 Hz
Compressed air connection
6 bar
