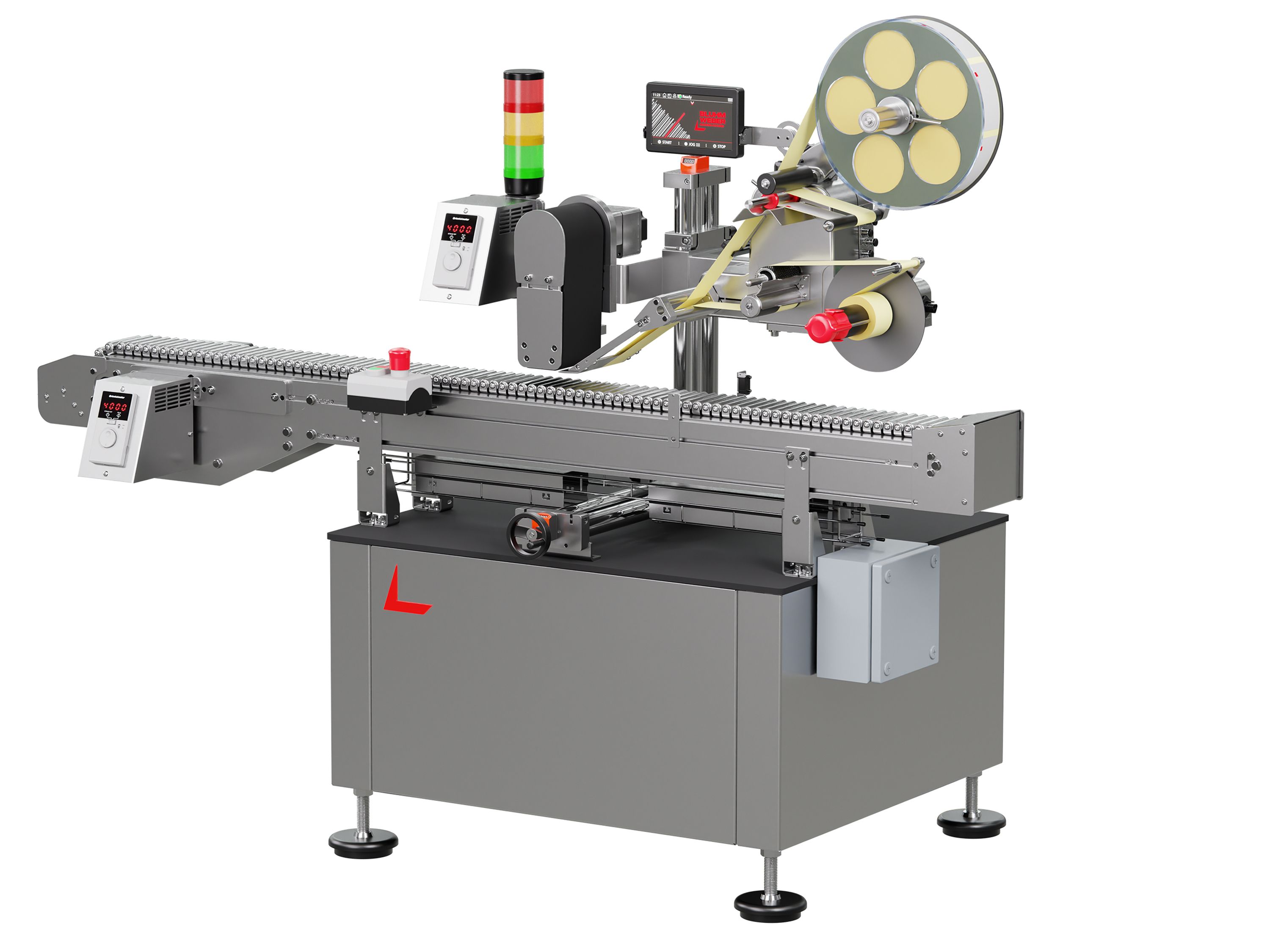

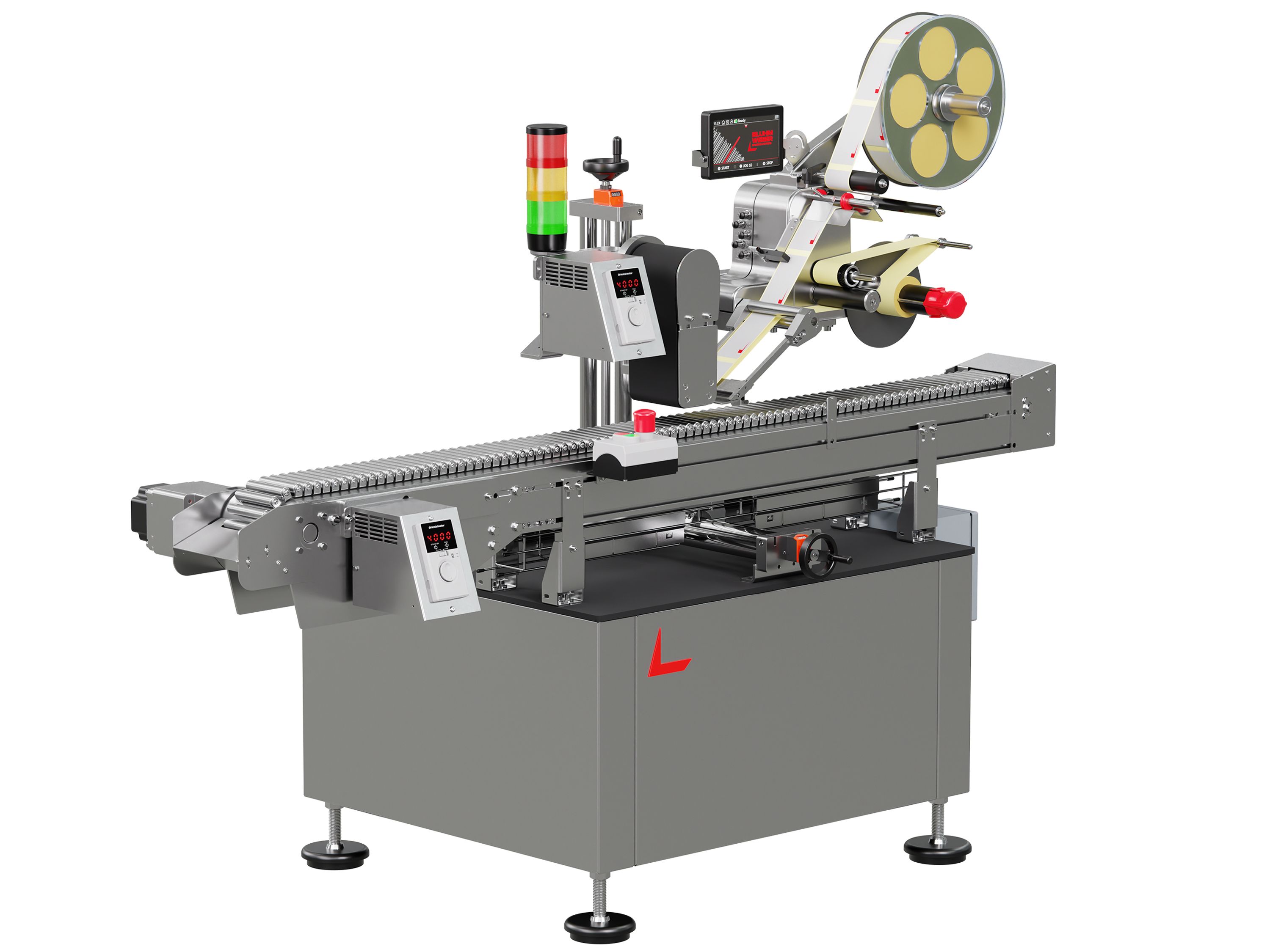

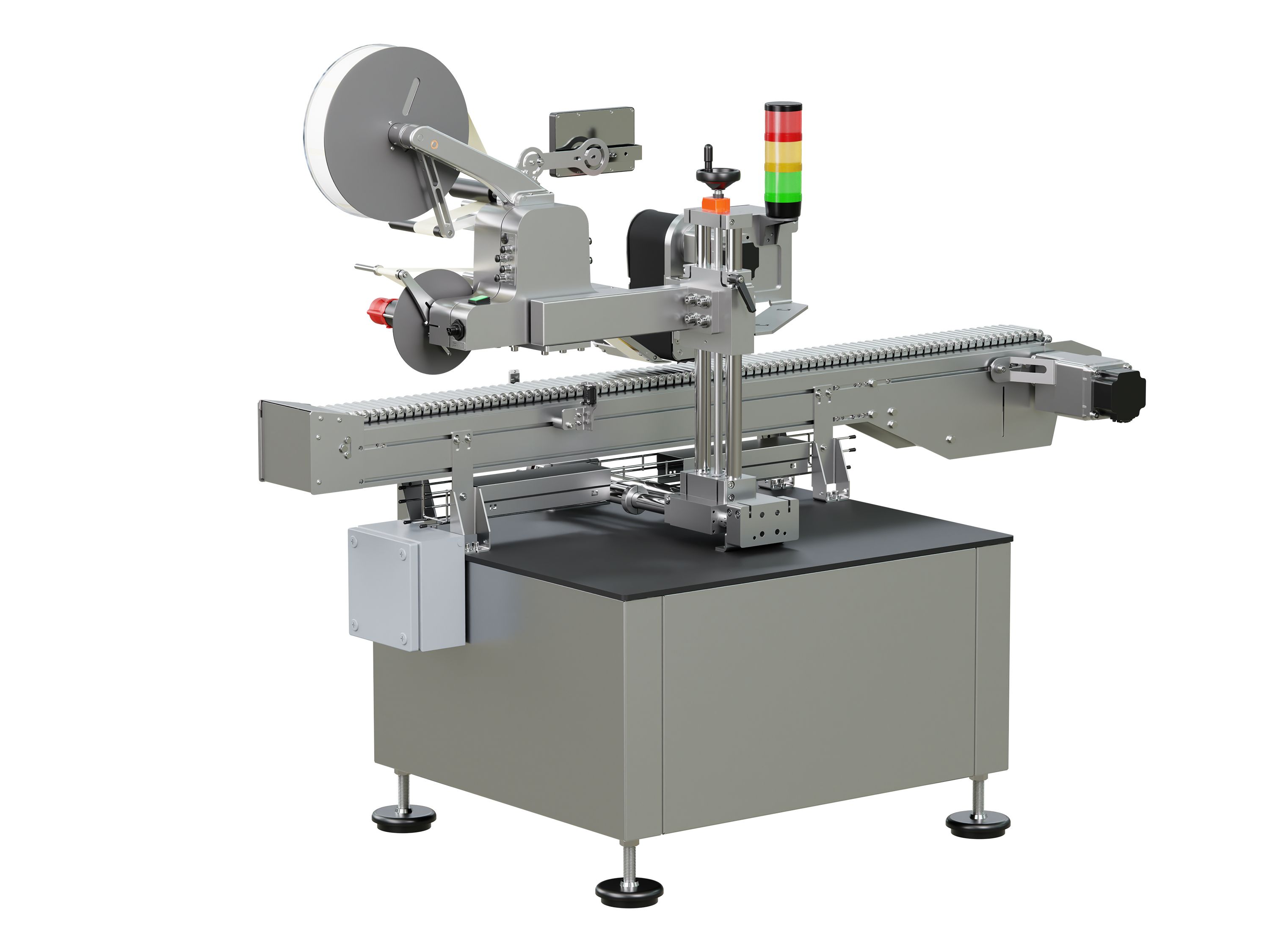

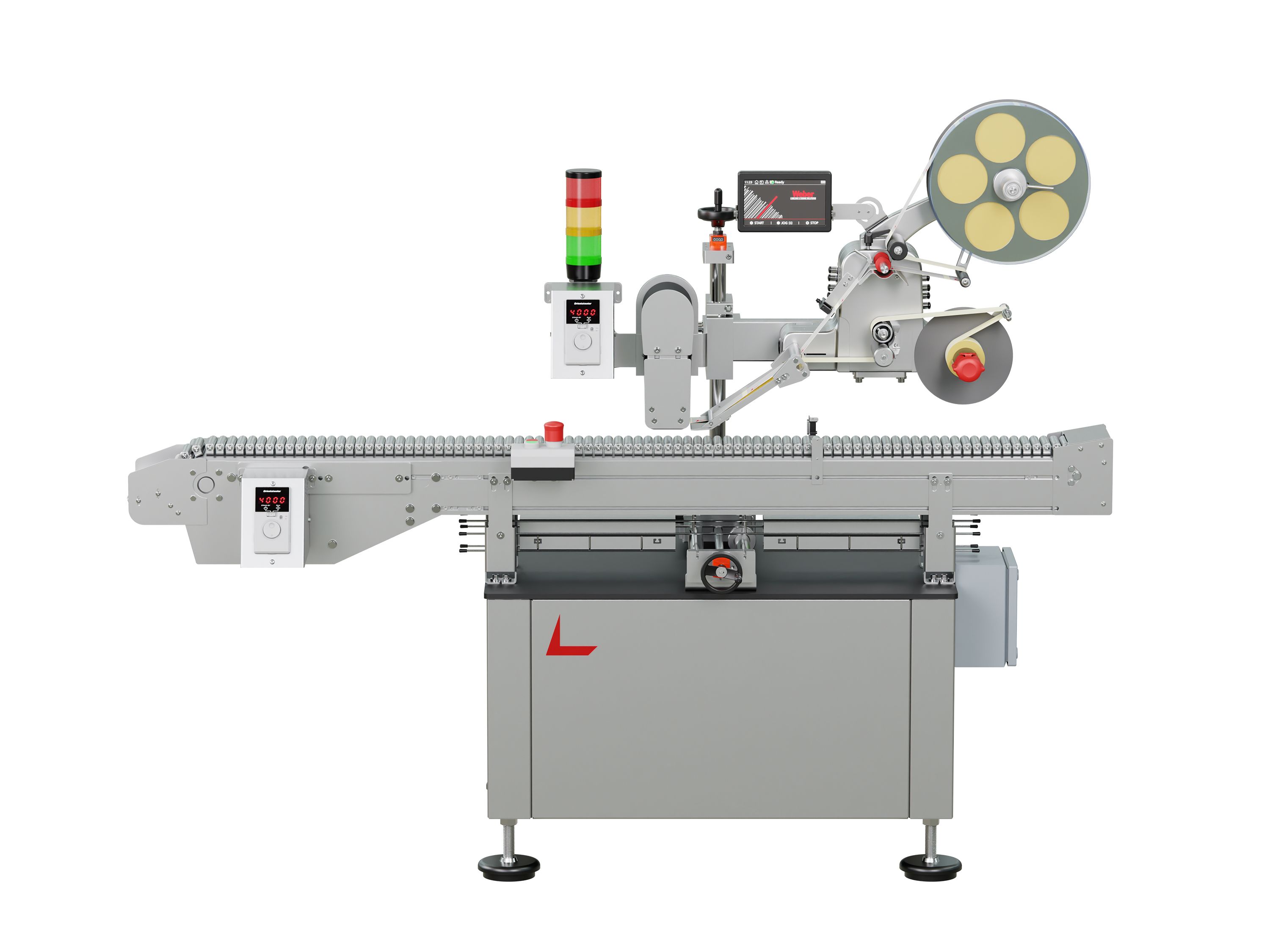

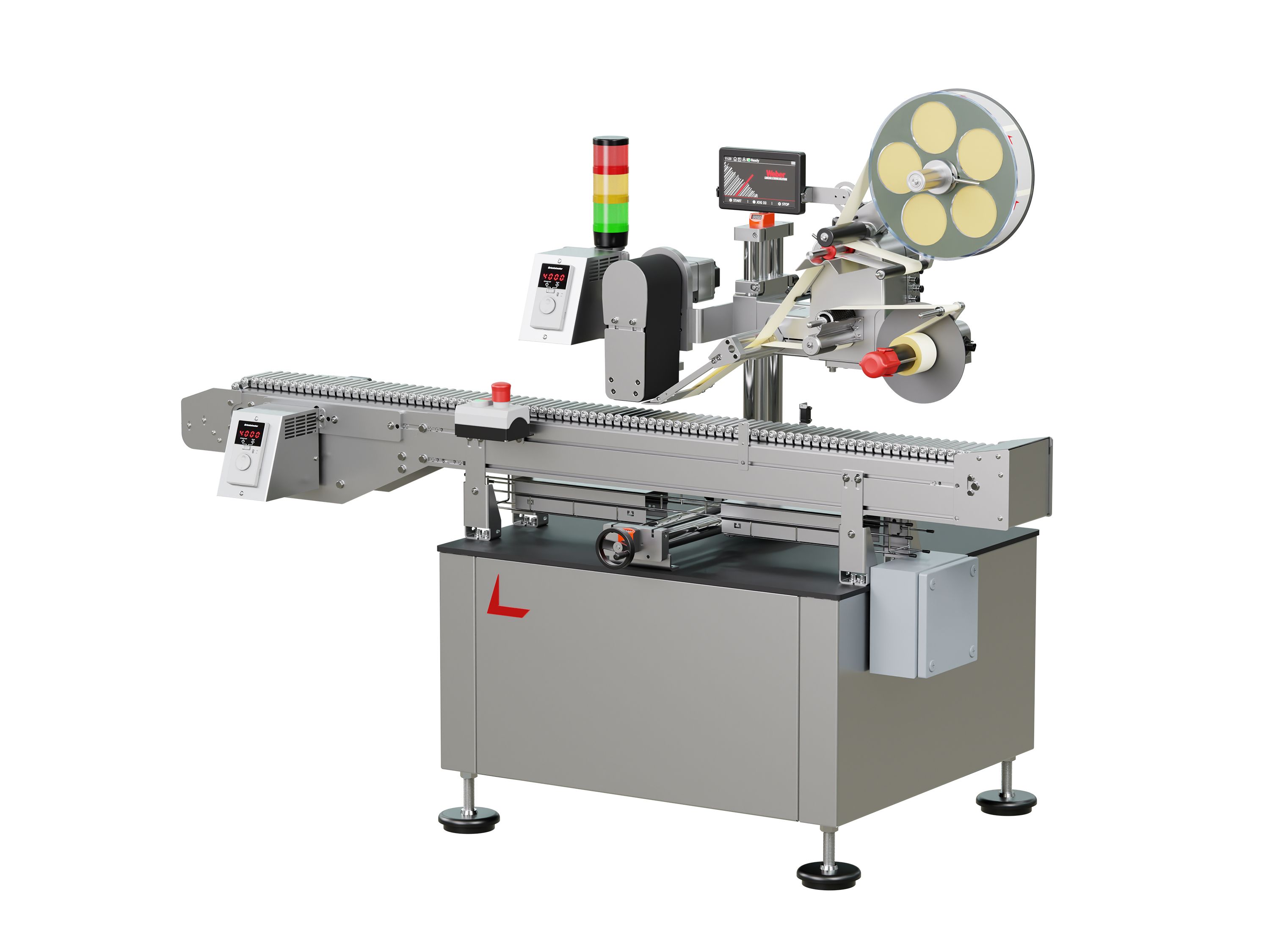

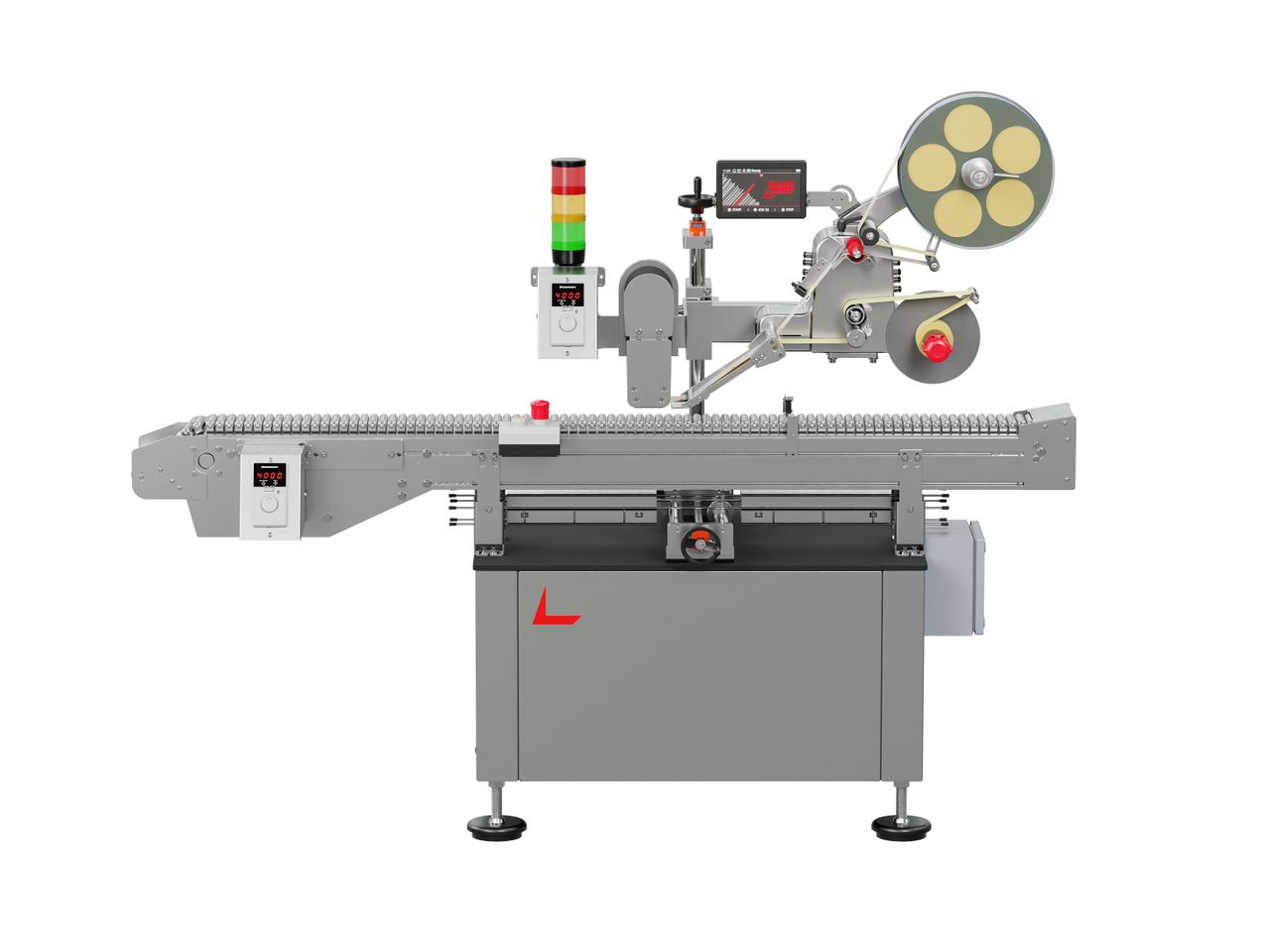

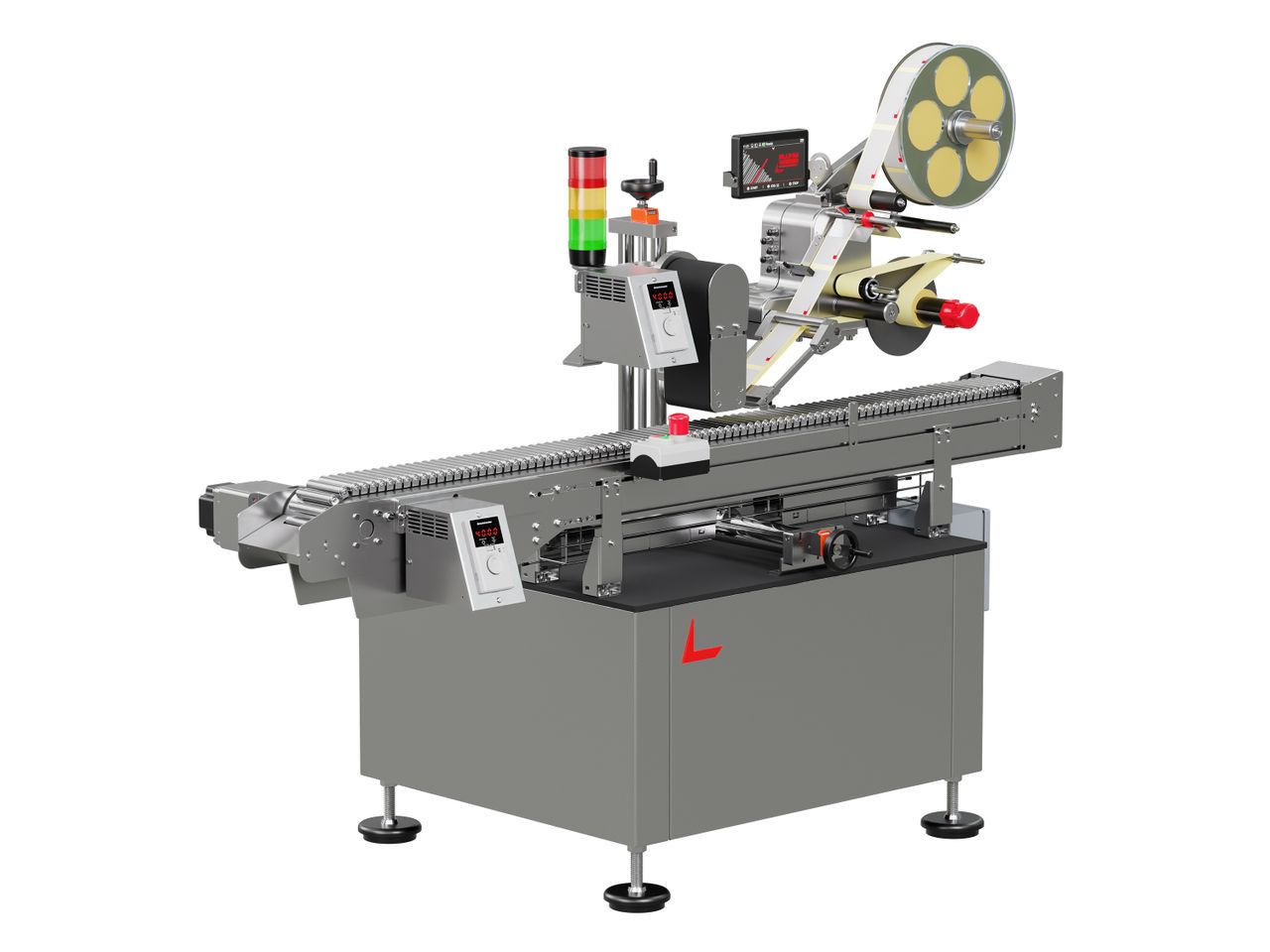

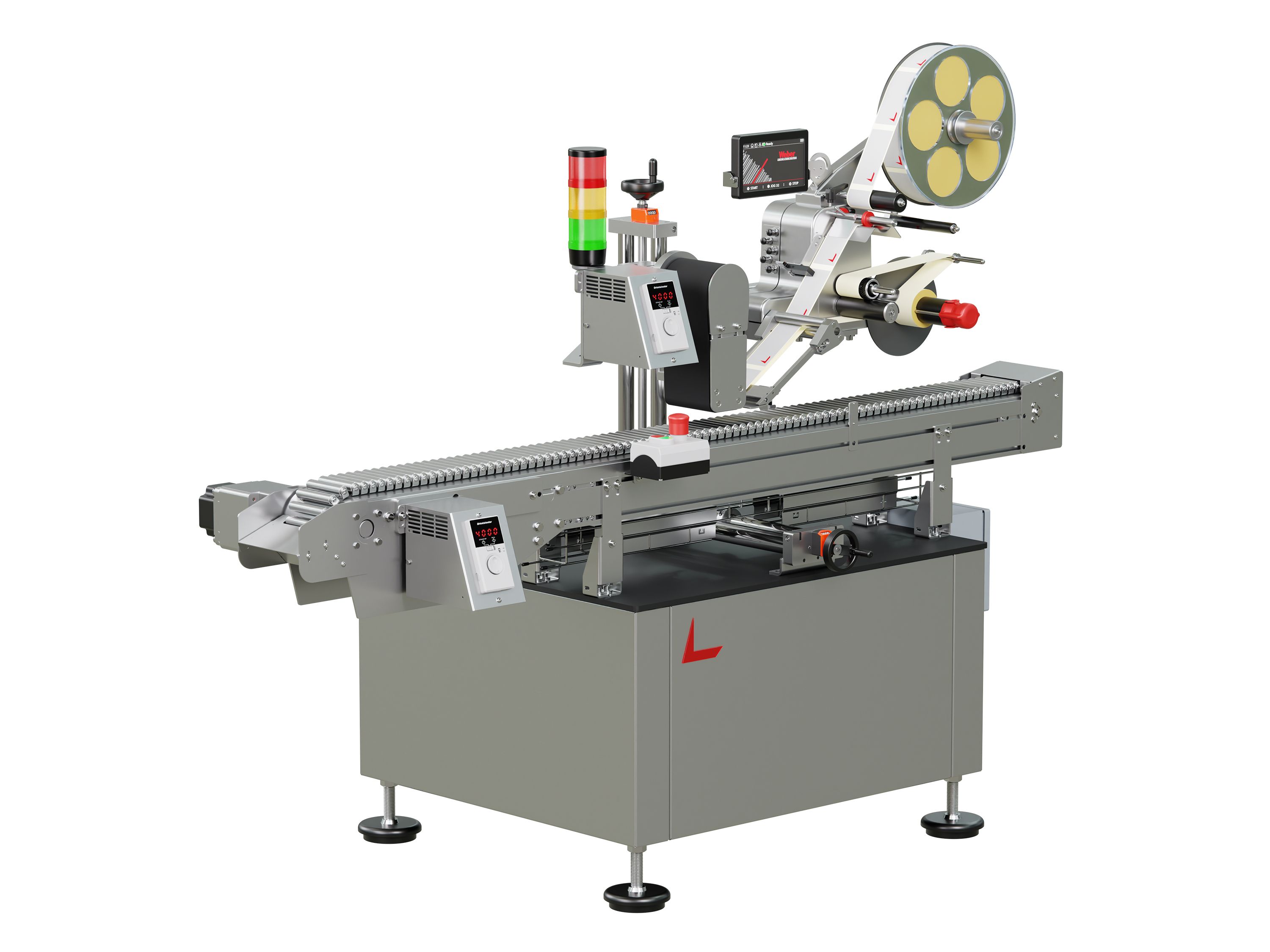

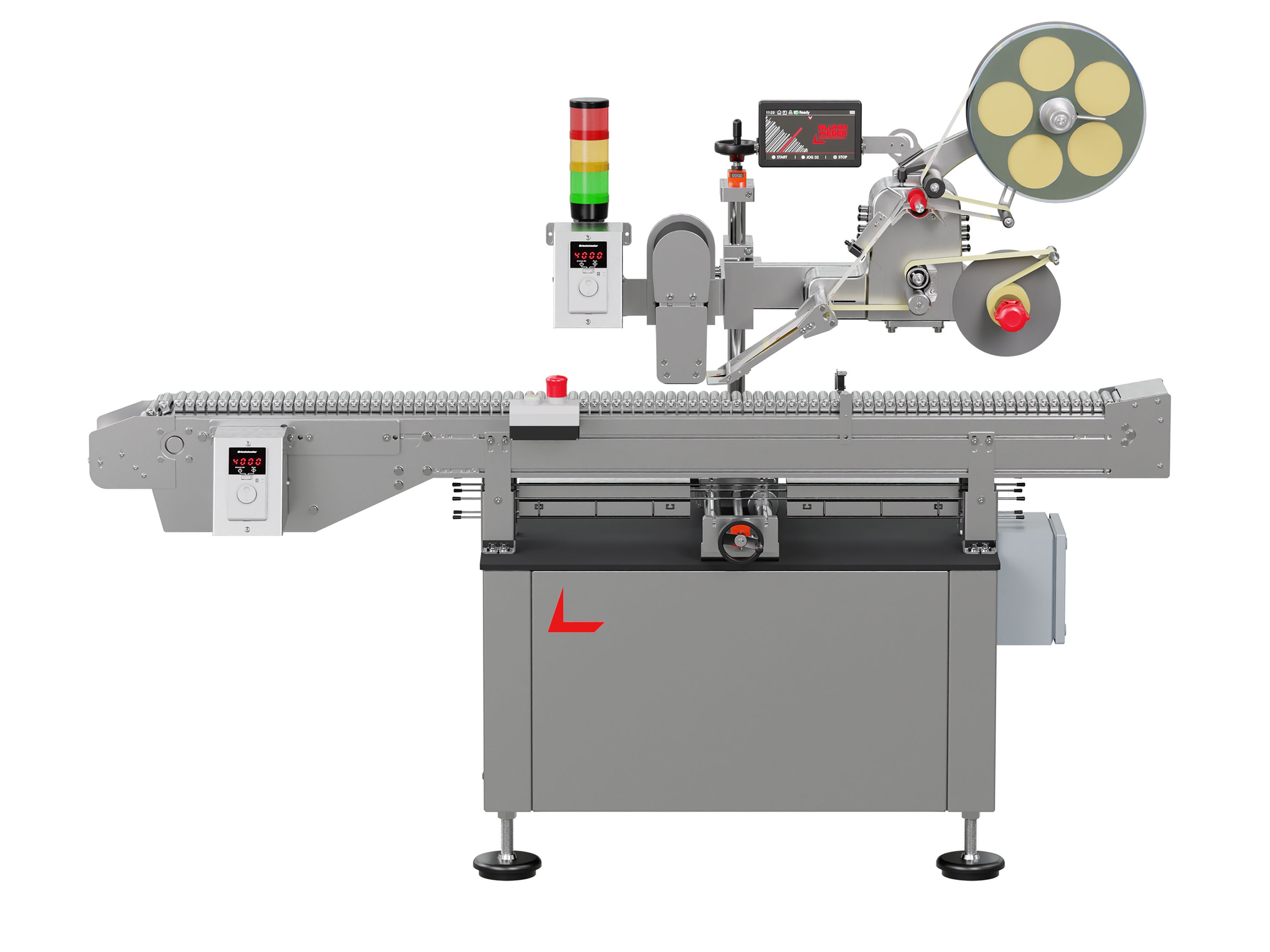

Automatic labeling machine

Geset 225

Wrap-around labeling of cylindrical, horizontal products with up to 2 labels - with alignment

  • Labeling of horizontally guided products on the lateral surface
  • Compact, easy to integrate design
  • Expandable with printing technologies for variable data

Developed for easy operation and system integration

The CE-compliant Geset 225 labeling system has been specially developed for maximum user-friendliness and easy integration into existing production lines. The modular system labels cylindrical packaging all around the lateral surface. The products are transported on a prism roller conveyor, aligned and precisely labeled according to customer requirements. Labeling is carried out by an Alpha HSM high-speed label applicator. Thanks to the central touch display and near-field operation, controlling is intuitive - ideal even for less trained personnel. Fast roll and format changes reduce downtimes and increase flexibility. Product and label-dependent parameters can be saved and called up directly. The compact construction with integrated controller housing, plug-in components and clear design saves space and simplifies maintenance. The system can also be fully remotely maintained for fast and efficient support. With various interfaces, it can be seamlessly integrated into modern production environments.

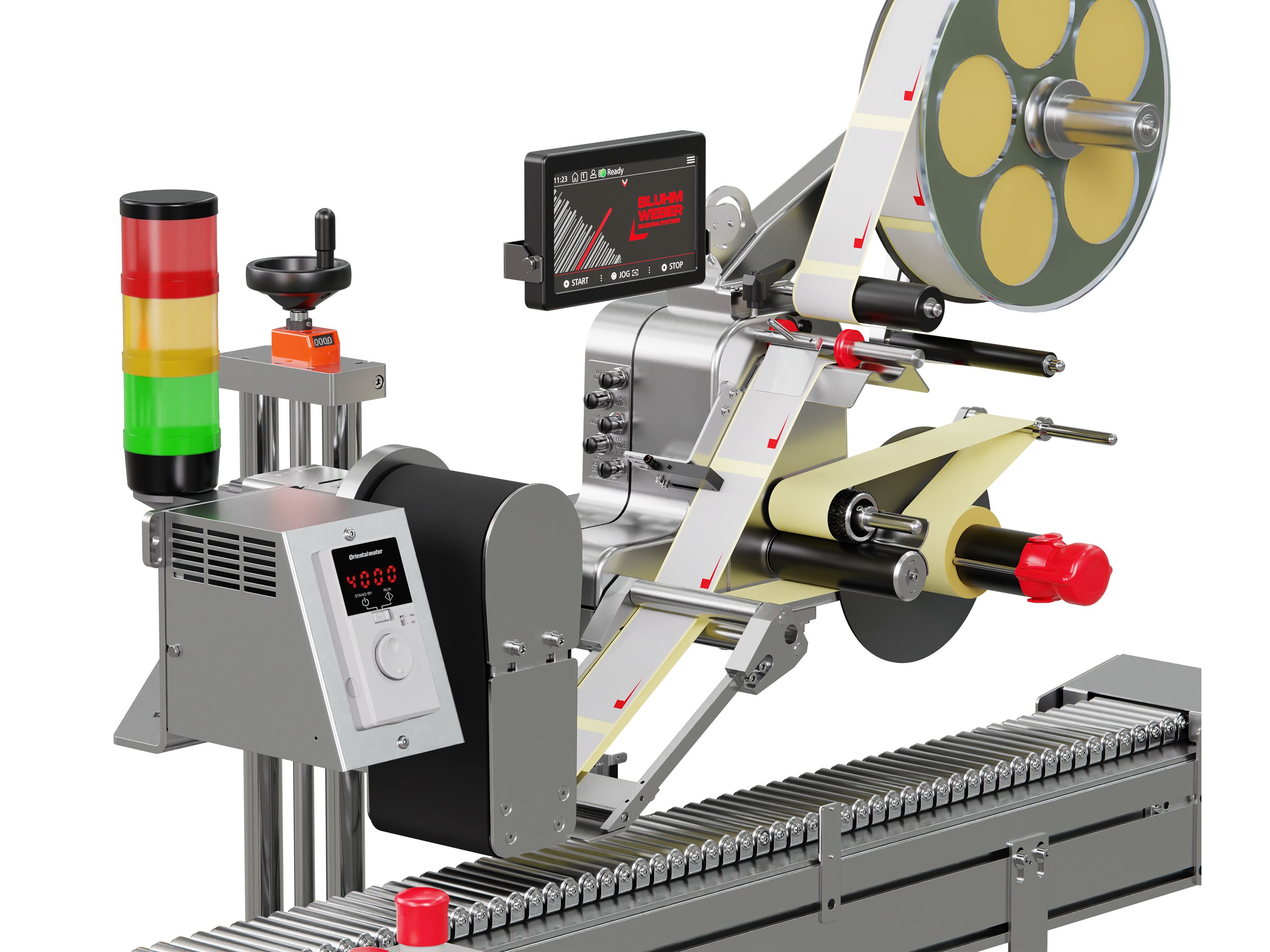

Geset 225 detail labeling

Applications

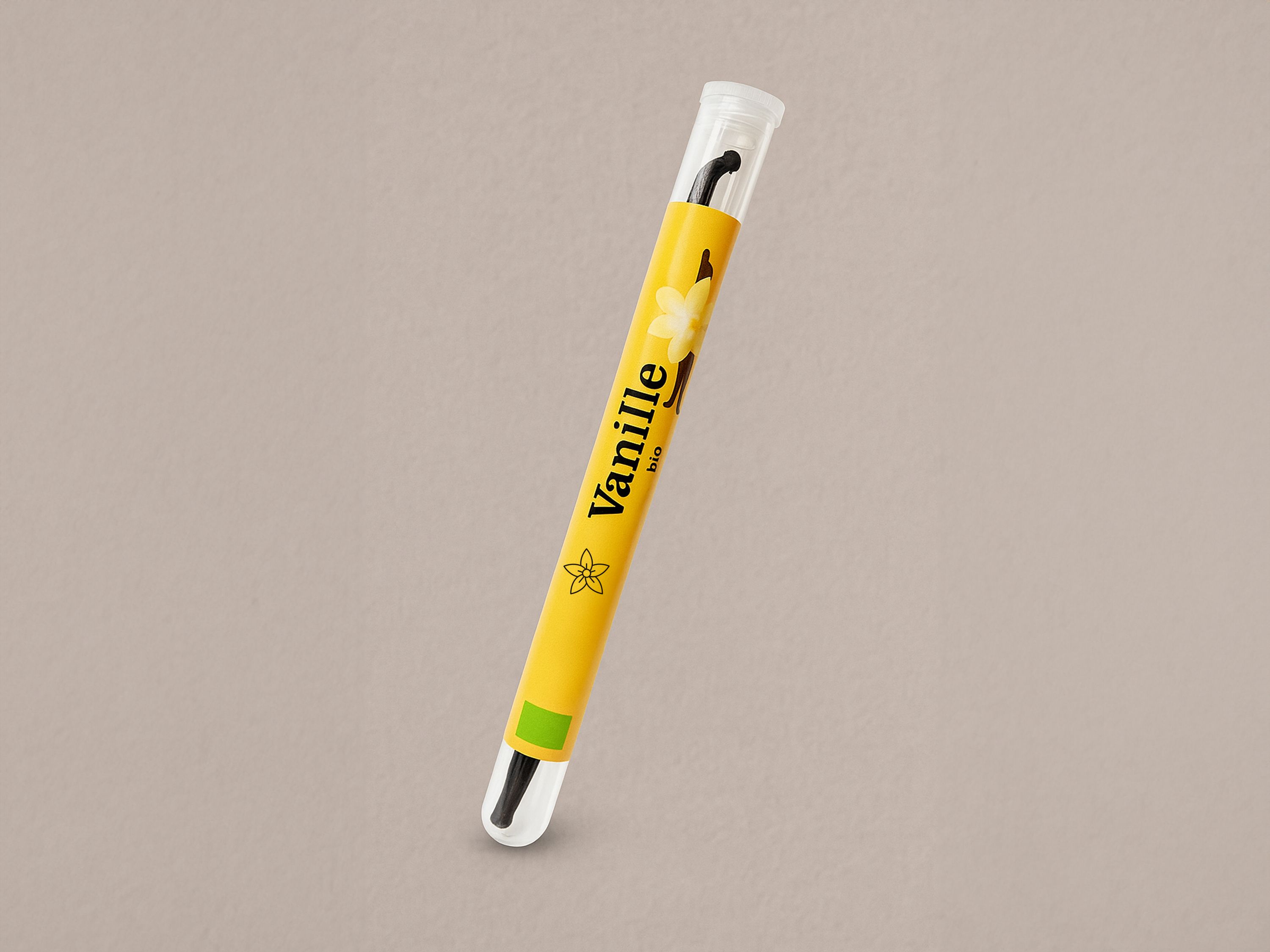

Labeling system Geset 225 label on vanilla pods

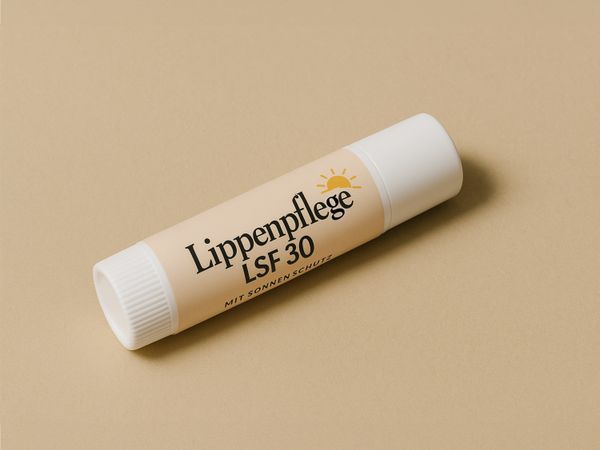

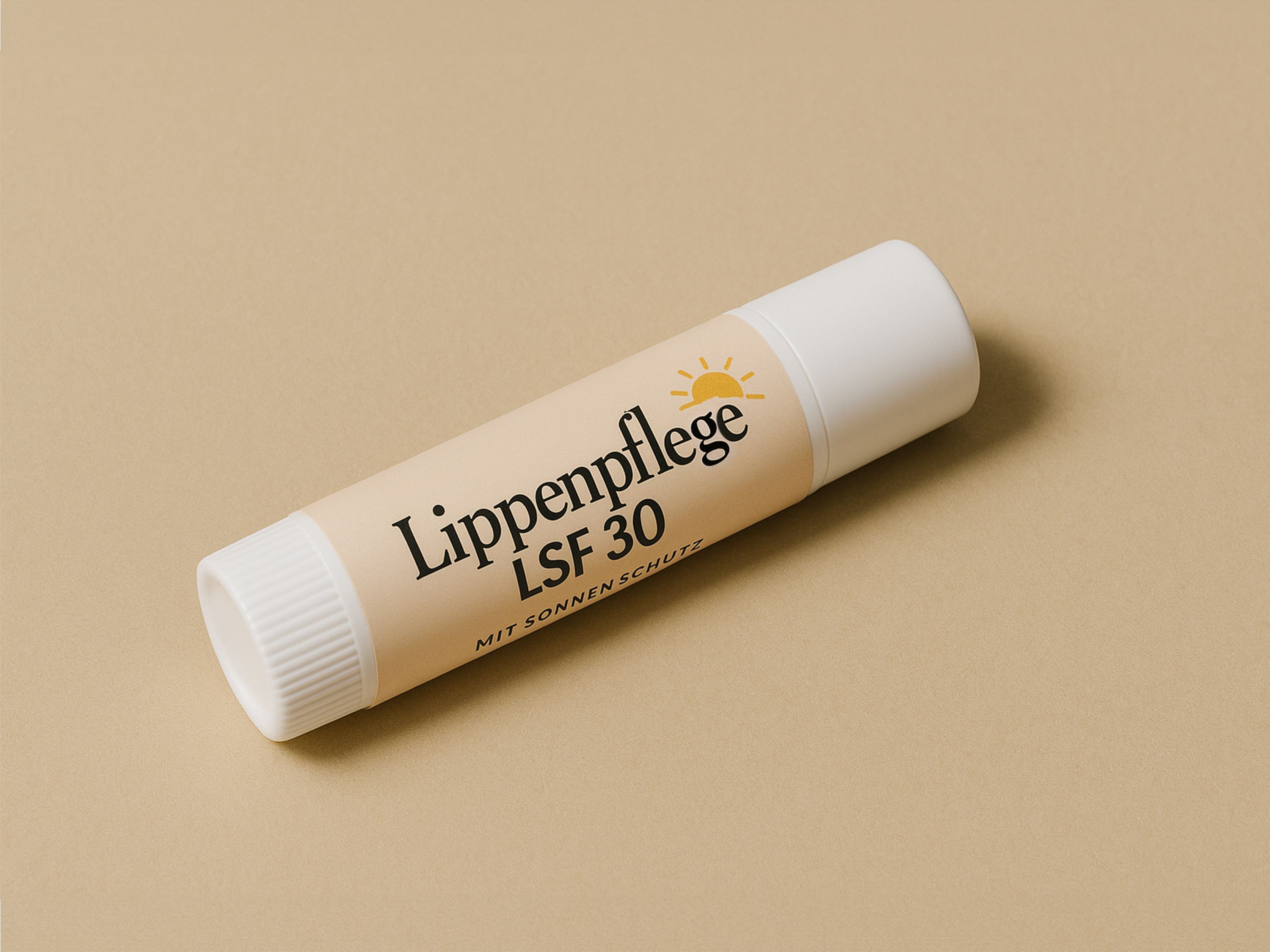

Labeling system Geset 225 label on lip care

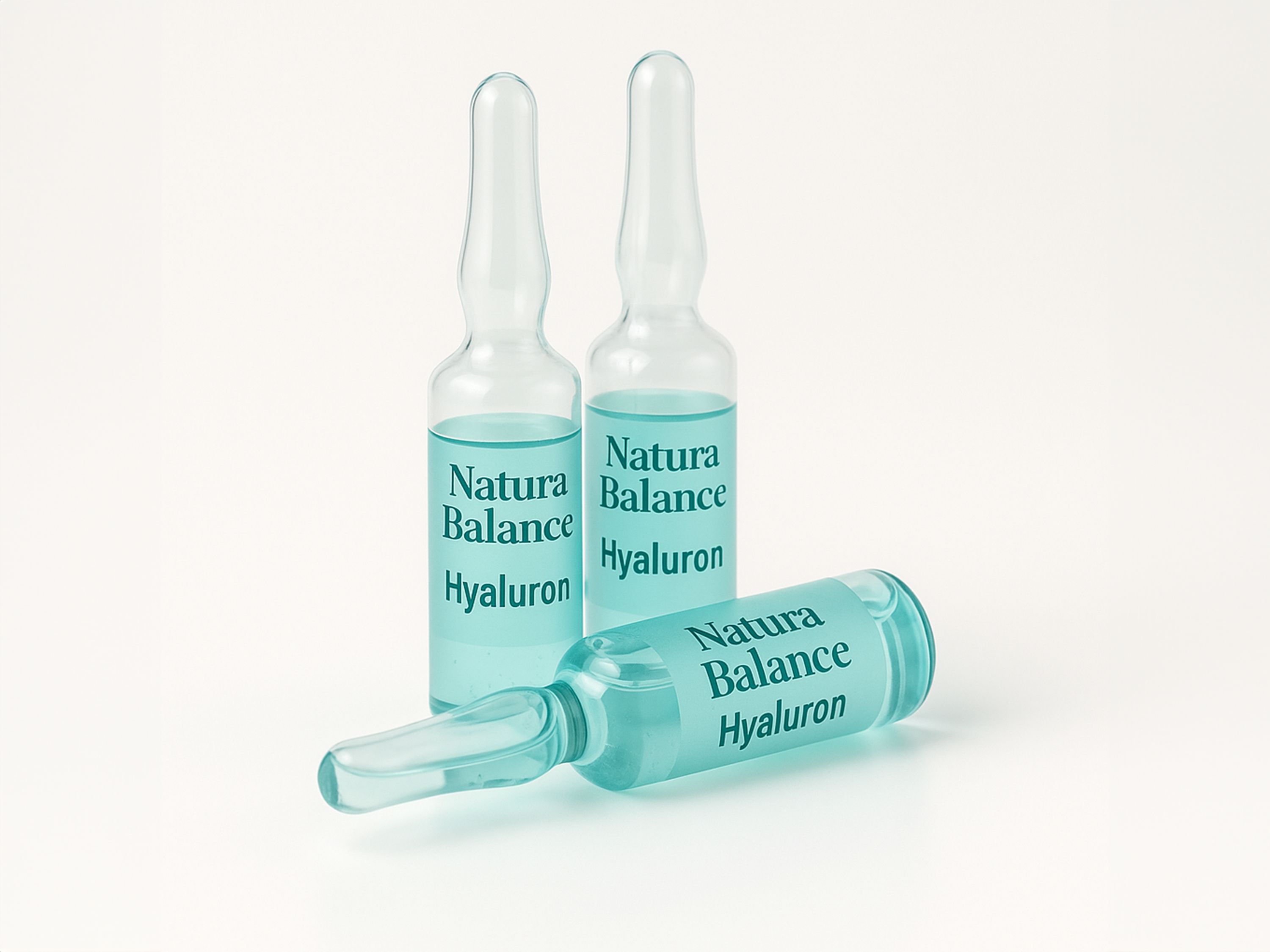

Labeling system Geset 225 label on ampoules

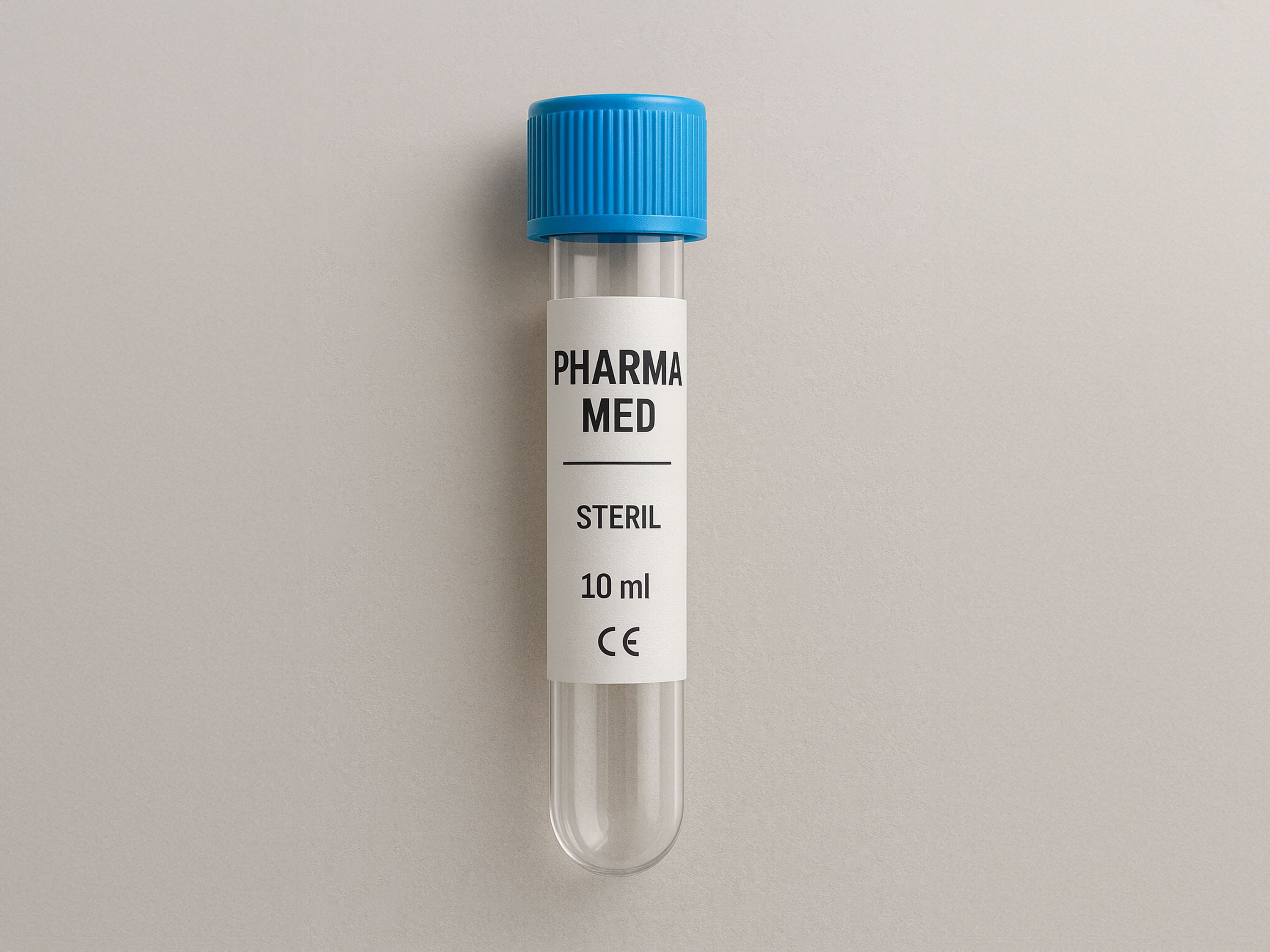

Labeling system Geset 225 label on pharma vacuum tubes

Special features

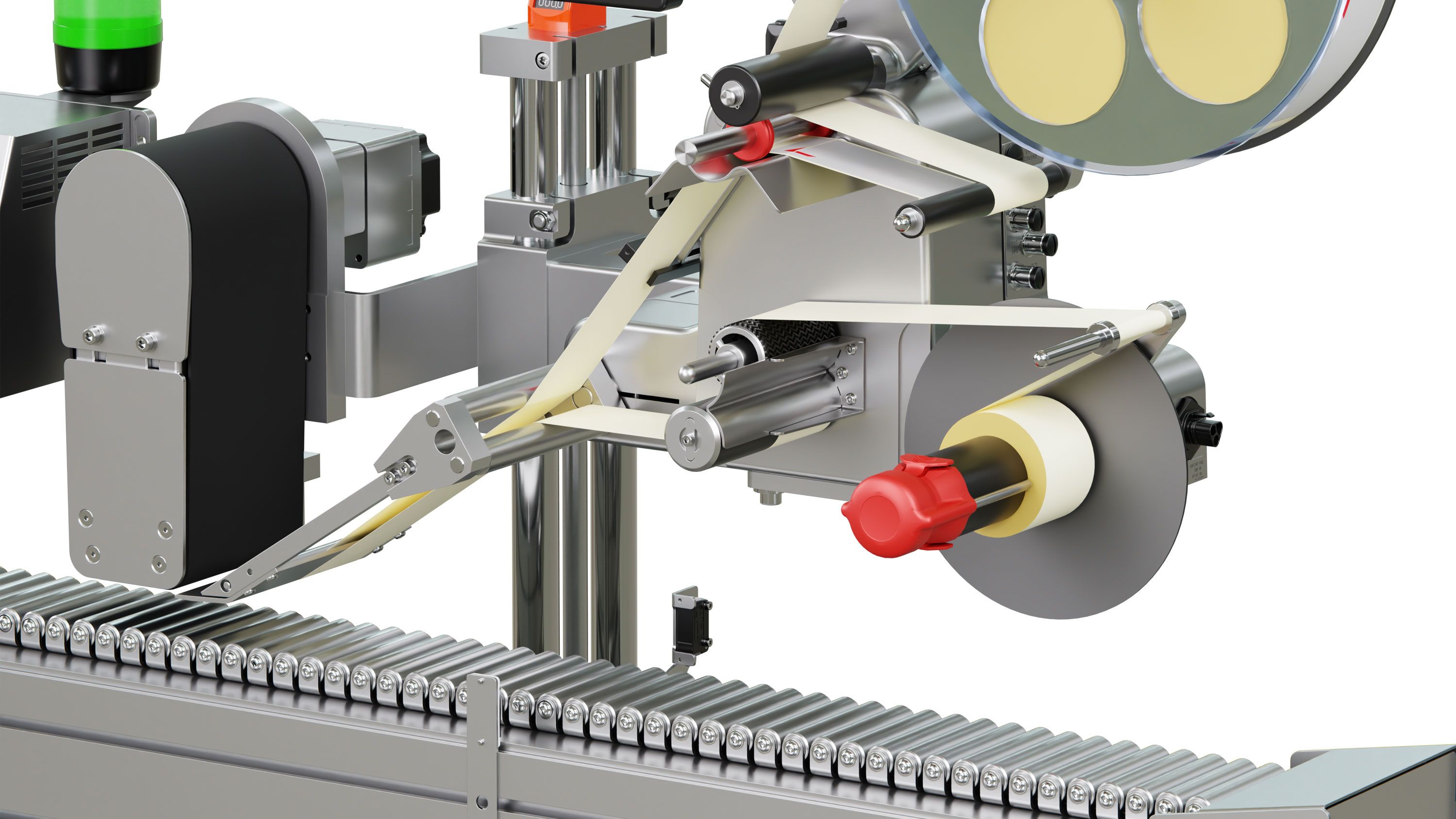

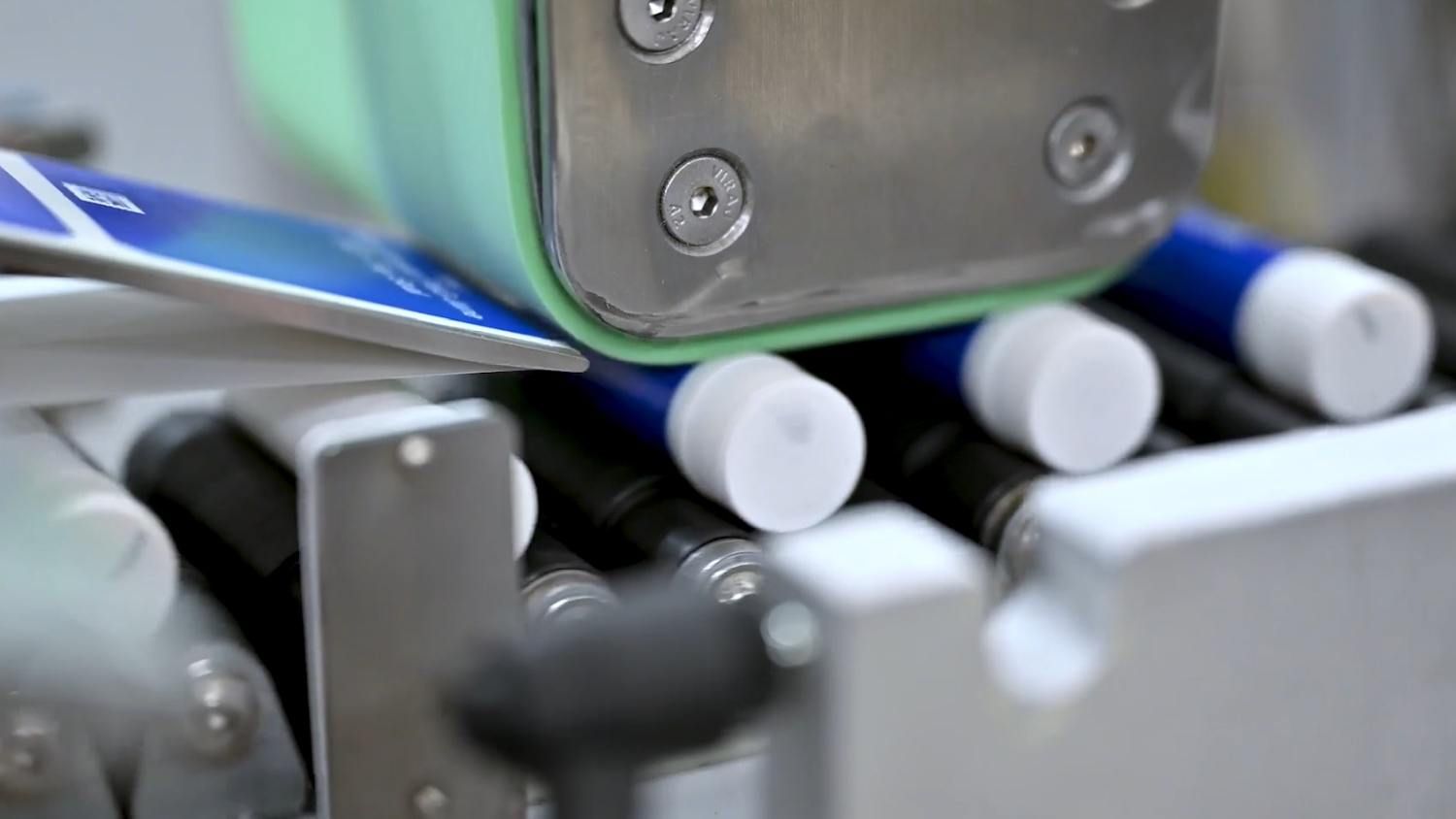

Geset 225 detail – label applicator

For cylindrical products in food, pharma & Co.

The system labels products such as cosmetics or ampoules that cannot be processed on the stand. It is suitable for the food and pharmaceutical industries, for example, if the label needs to be aligned with the object. All labeling parameters can be stored product-specifically and called up with high accuracy - ideal for changing products and small batches.

Label printed with Markoprint X1JET HP Standard inkjet printer

Optionally expandable with printing technologies

If variable data such as best-before date or batch number is to be printed on the labels before application, the system can be easily expanded. Special mountings for direct thermal transfer printers and inkjet printers are included in the module scope and are available immediately. This allows you to add additional coding to your high-quality labels in a highly efficient, legible and precise manner during labeling.

Control cabinet with IP54 optional

The controller housing can optionally be replaced with a control cabinet with IP54 ingress protection - to protect against splashing water during cleaning. This provides additional protection for the machine against dust and enables clean, maintenance-friendly installation with improved hygiene and a longer service life for the system in harsh environments.

Technical specifications
Application data
Label position
Circumference cylindrical product
Label application rate max.
300 1/min
Product speed up to
30 m/min
Positioning accuracy (+/-)
2 mm
Label roll diameter max.
300 mm
Product item
Product dimensions max. (H×W×L)
250 x 100 mm
Product dimensions min. (H×W×L)
20 x 10 mm
Features
Optional special equipment
TTO print unit, Markoprint X1 Printer, Stainless steel version
Product transport
Roller conveyor
Product management
yes
HMI
HMI version
Touch display
Physical aspects

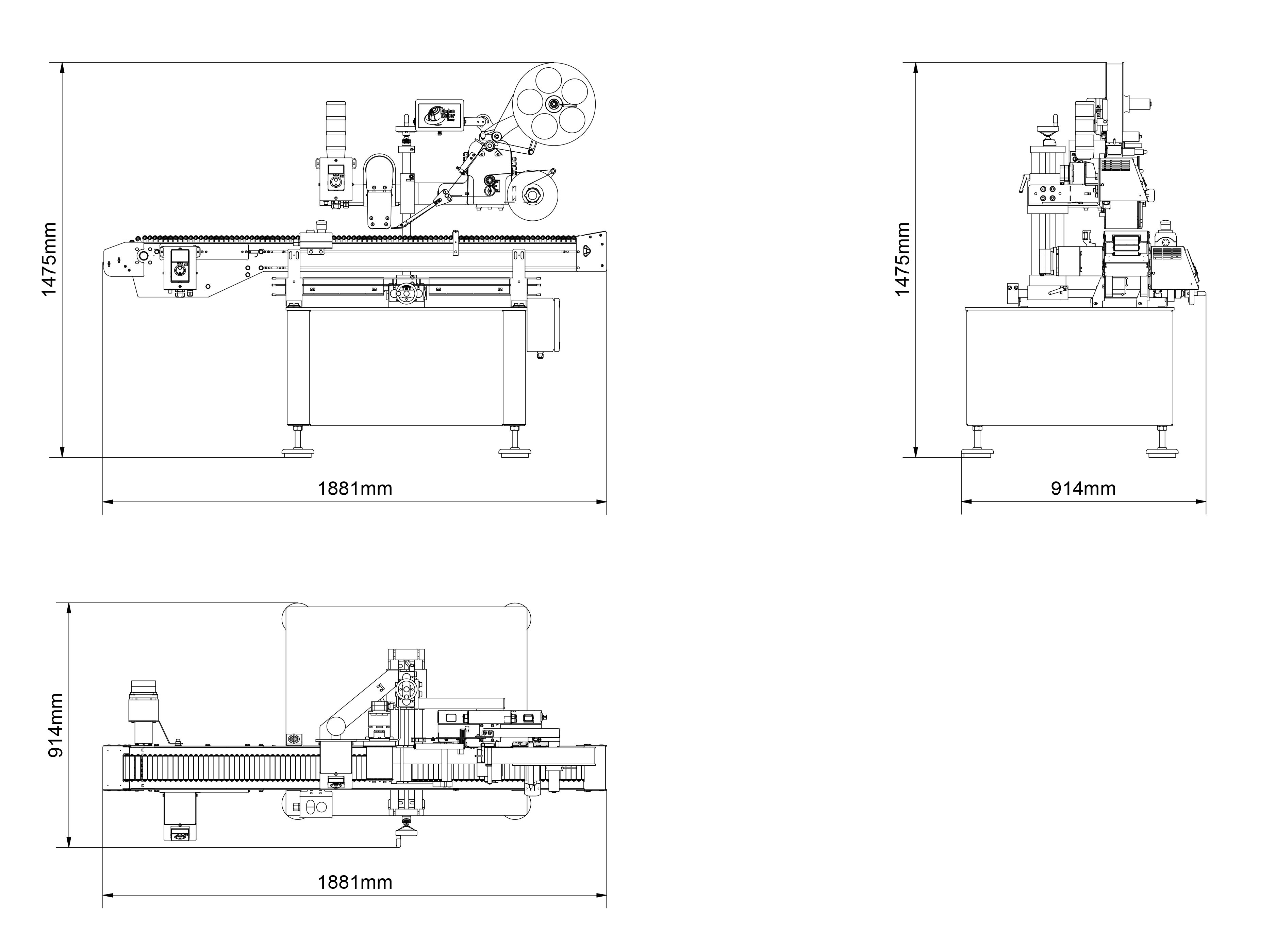

System dimensions (HxWxL)
1475 x 914 x 1881 mm
Approvals
CE, UKCA
Ambient temperature
10 - 30°C
Connections
Supply voltage
230 - 230 V
Compressed air connection
6 bar
Mains frequency
50 - 50 Hz
