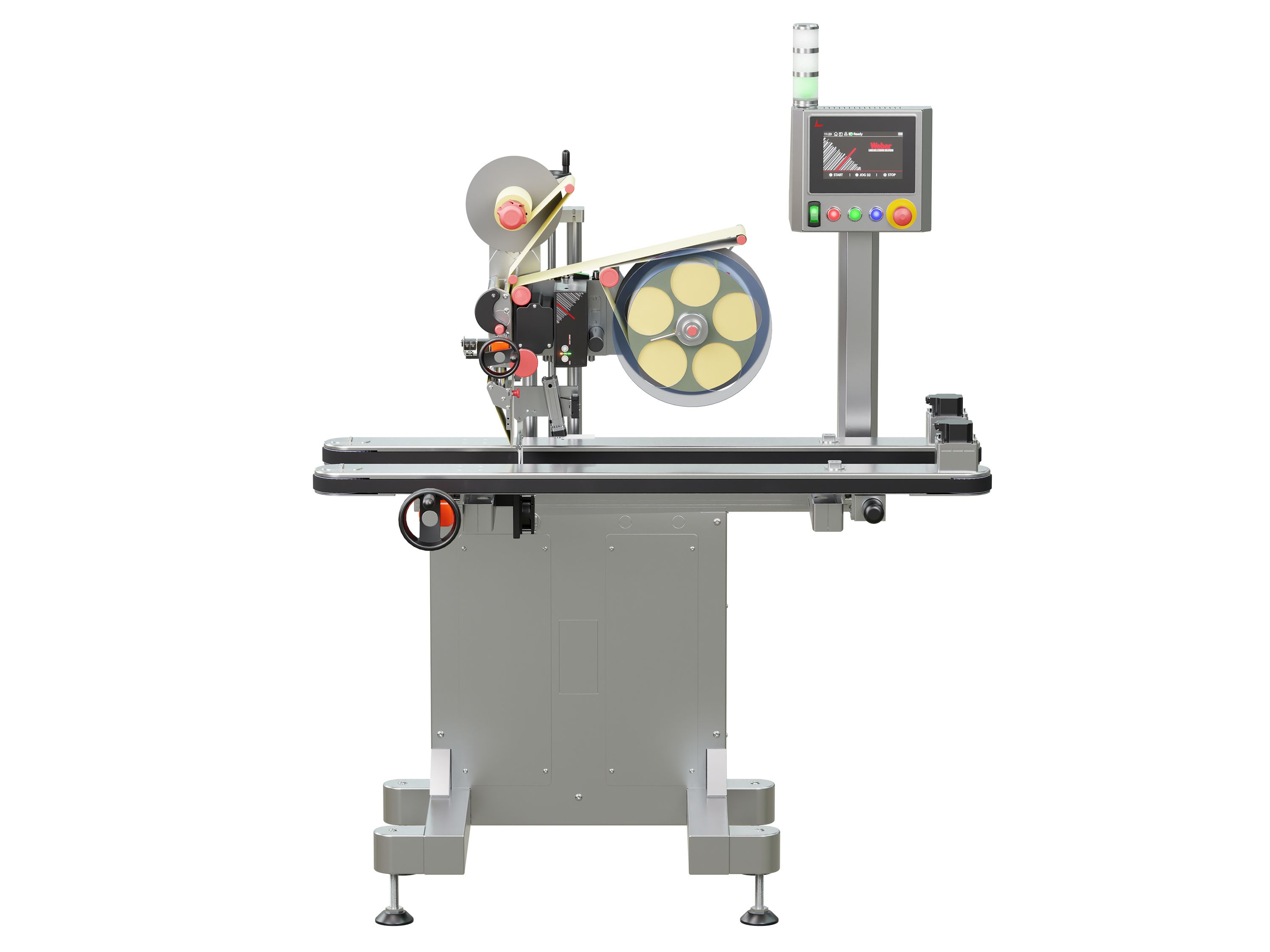

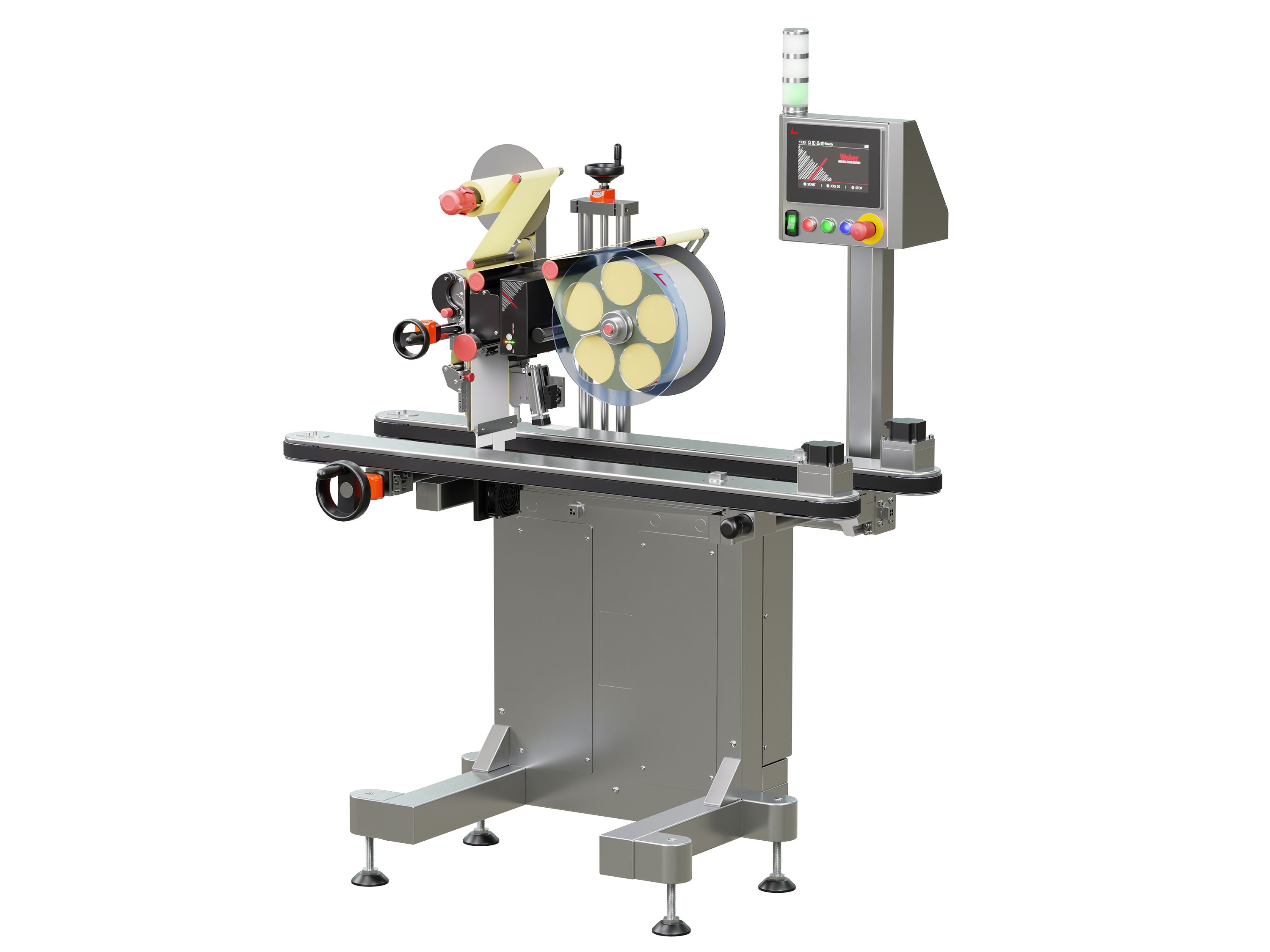

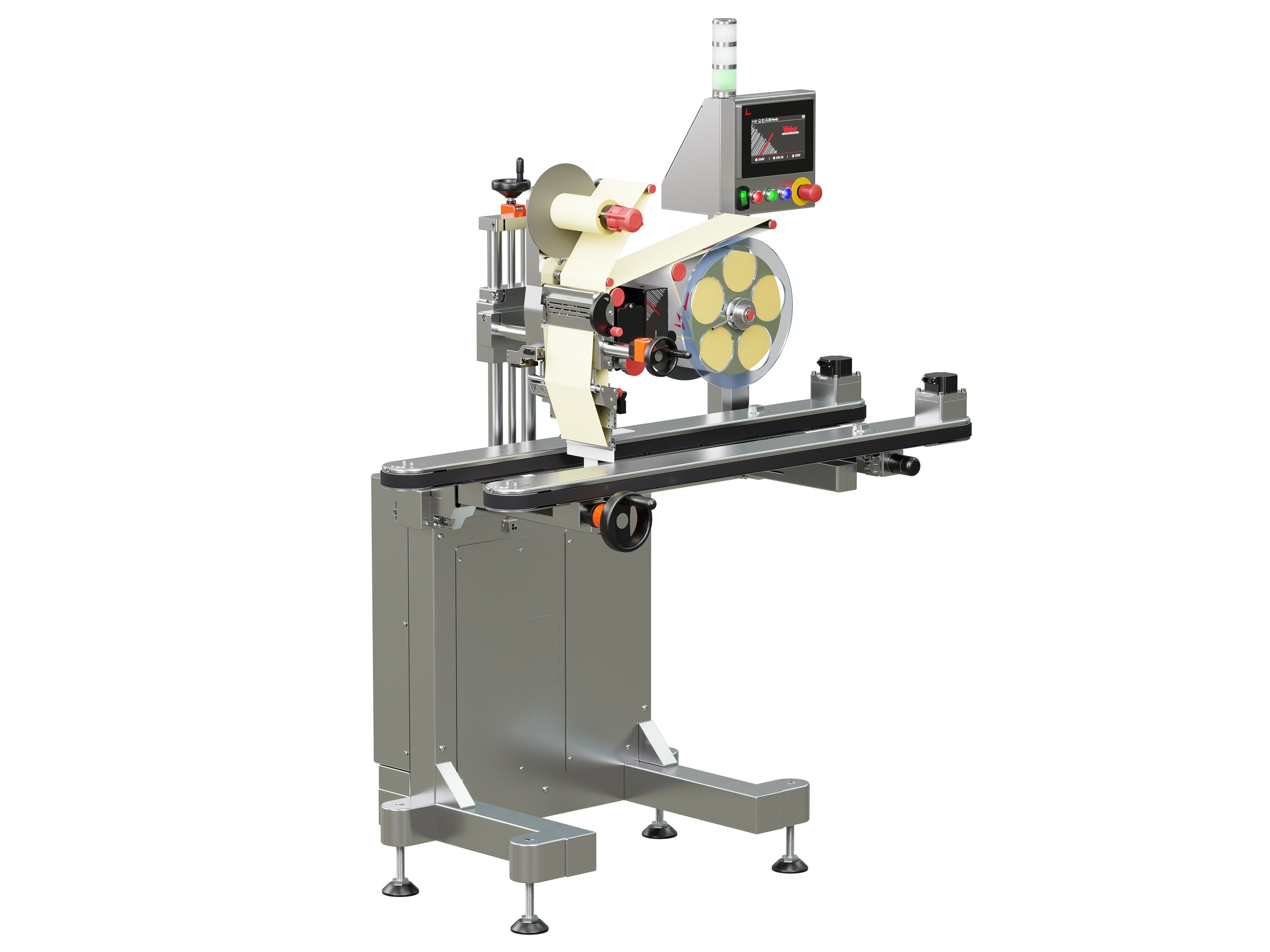

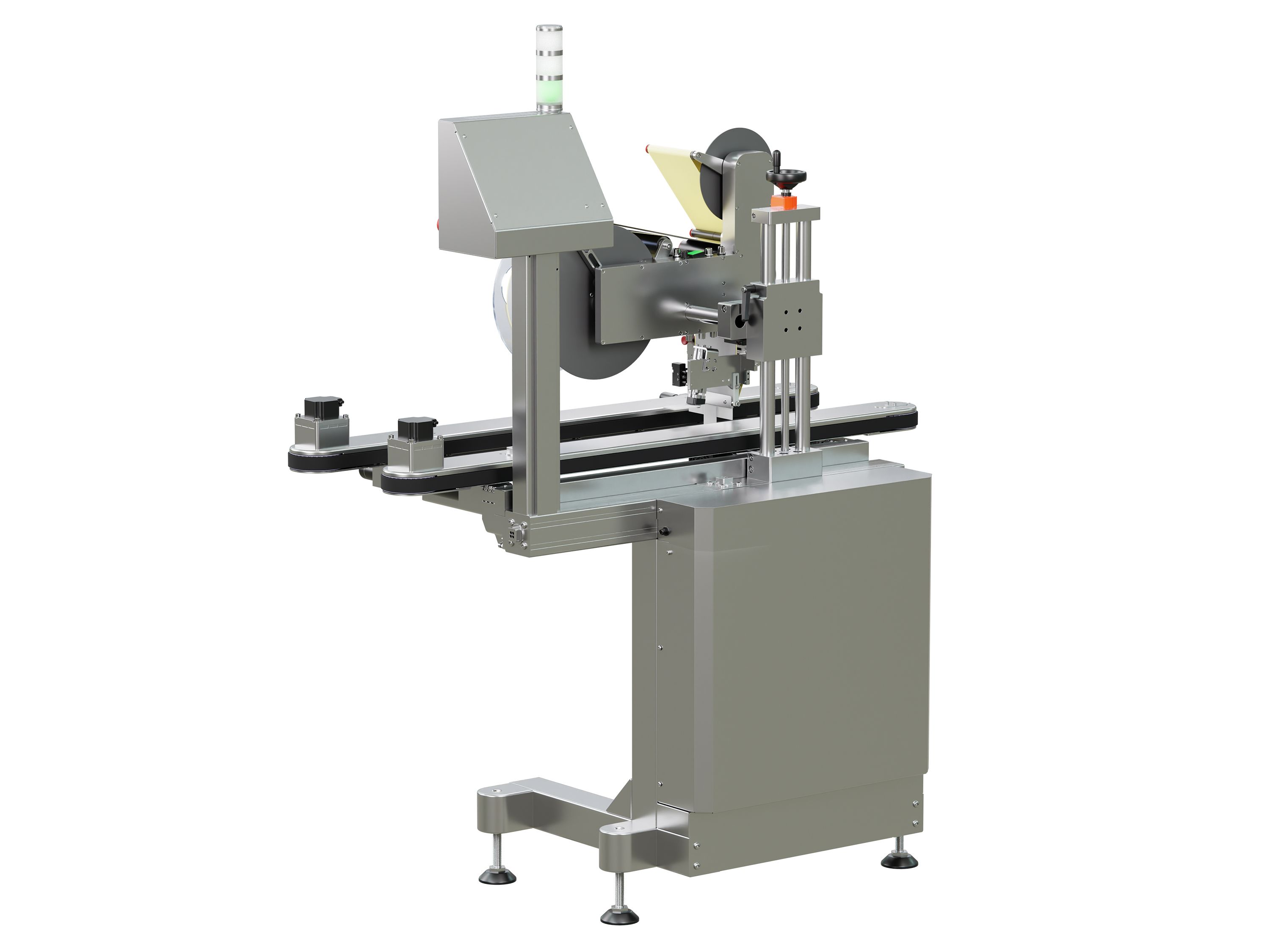

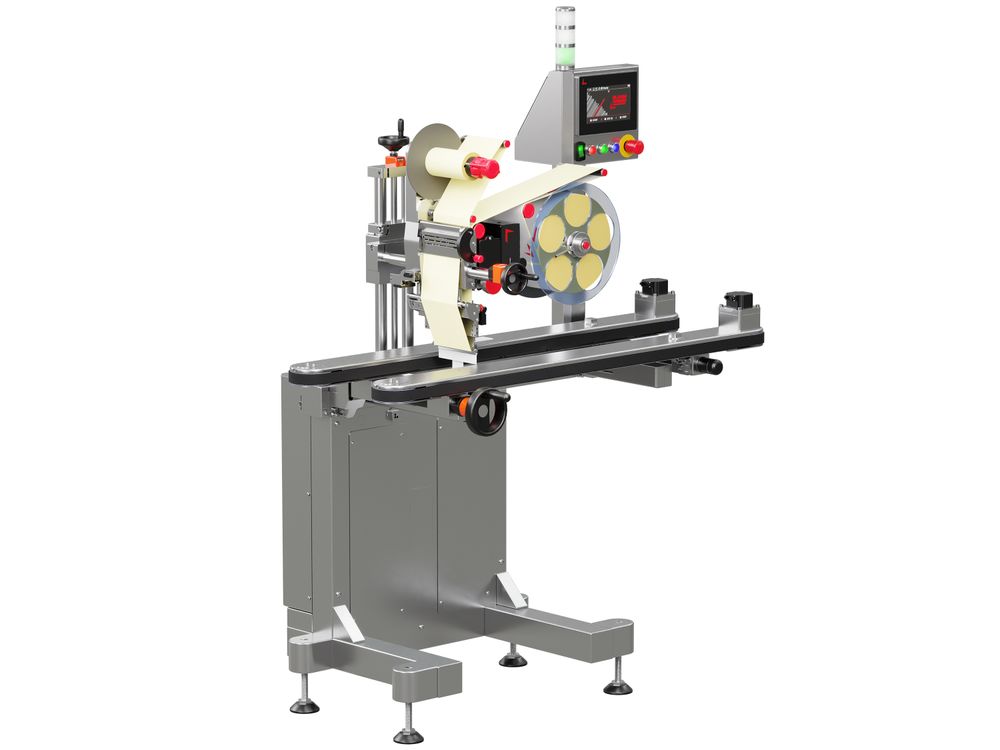

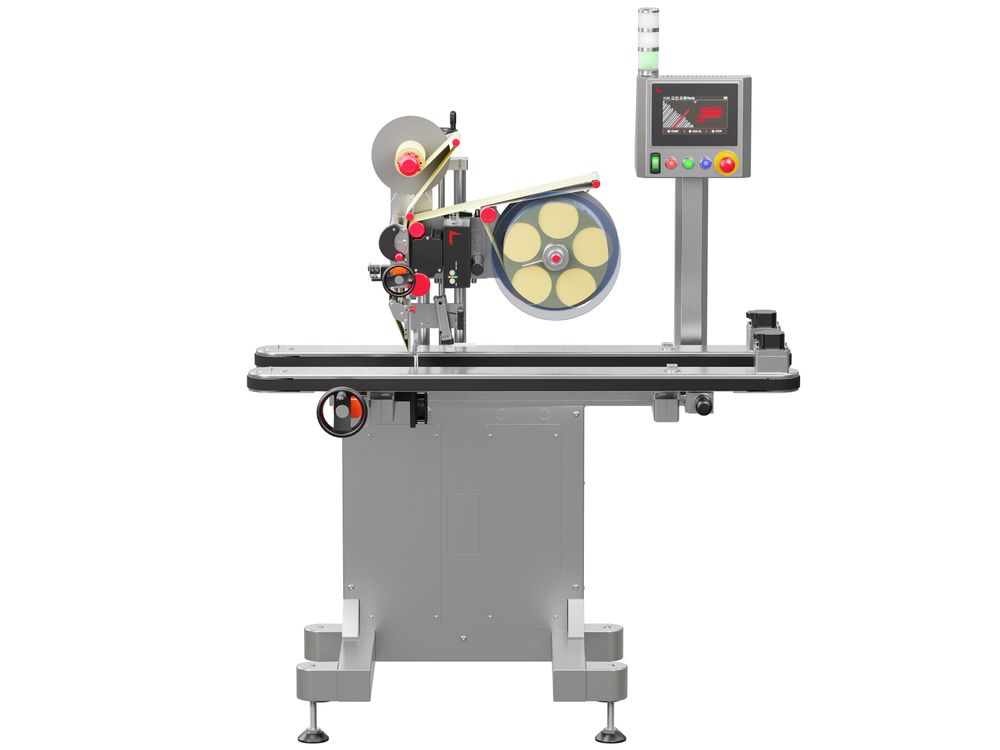

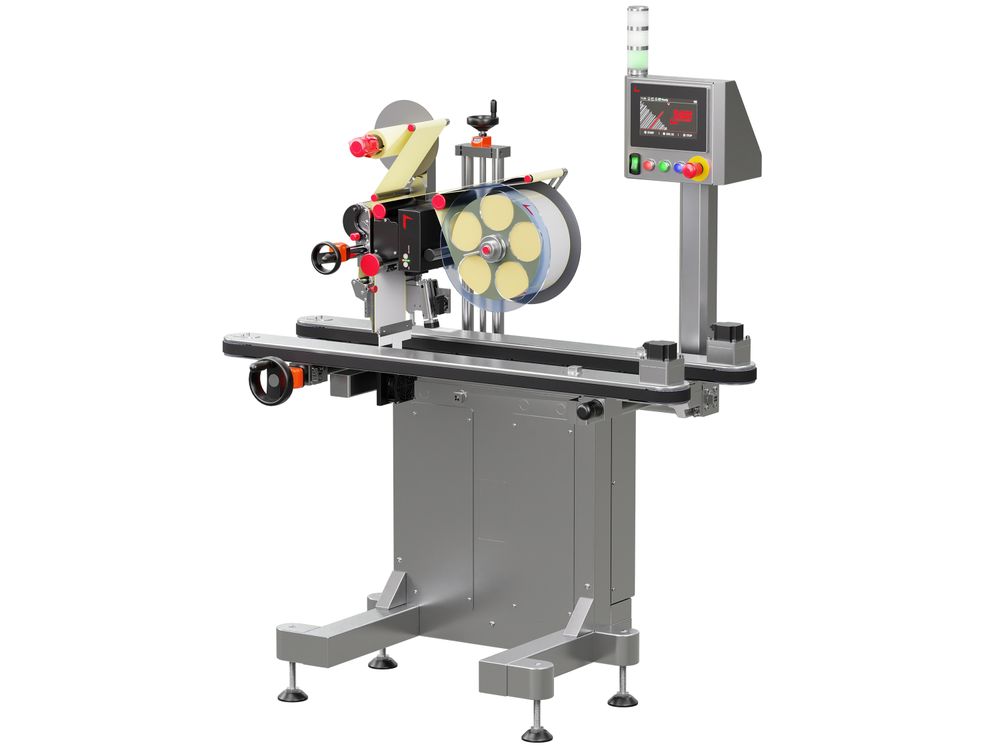

Geset 249

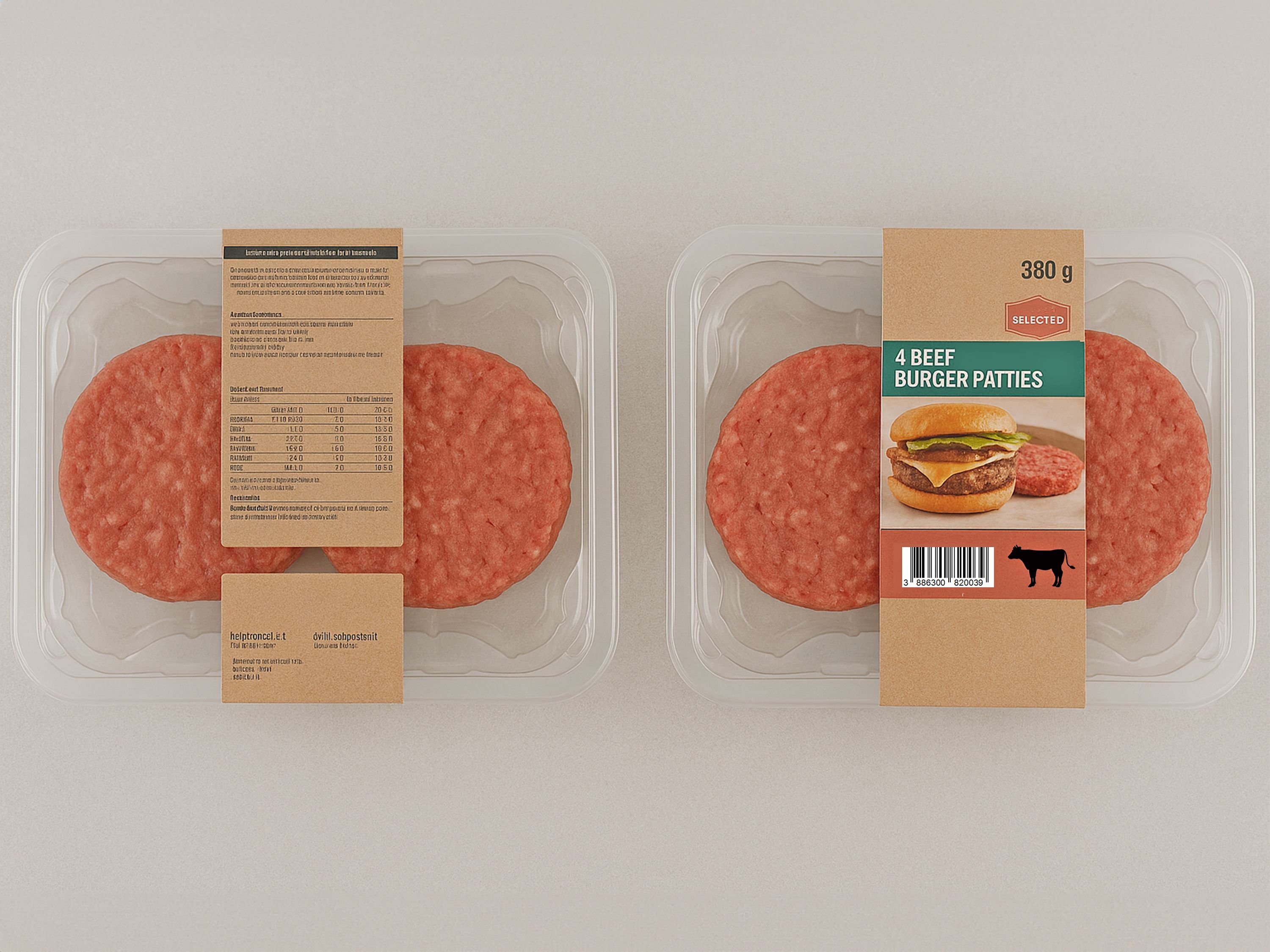

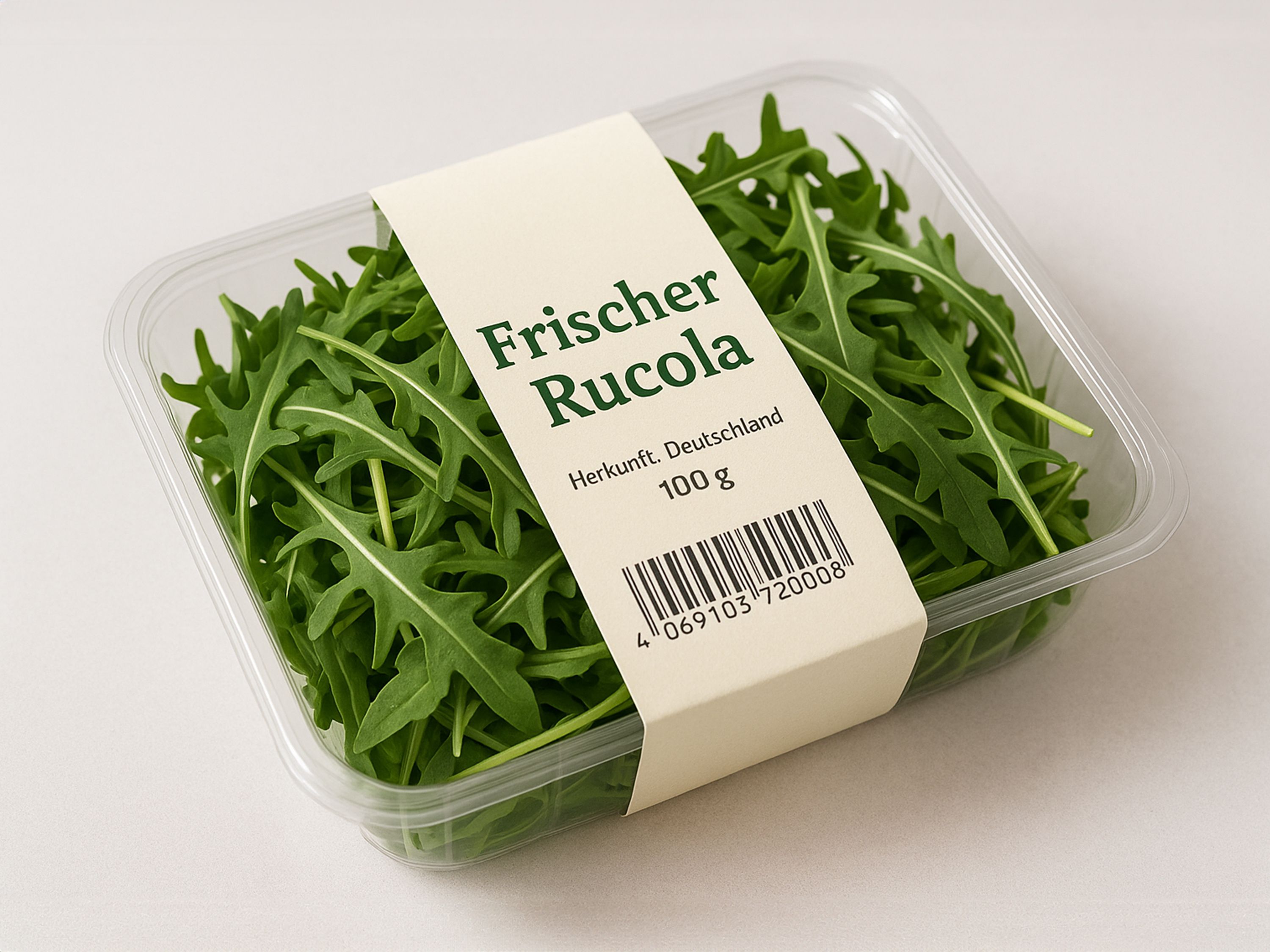

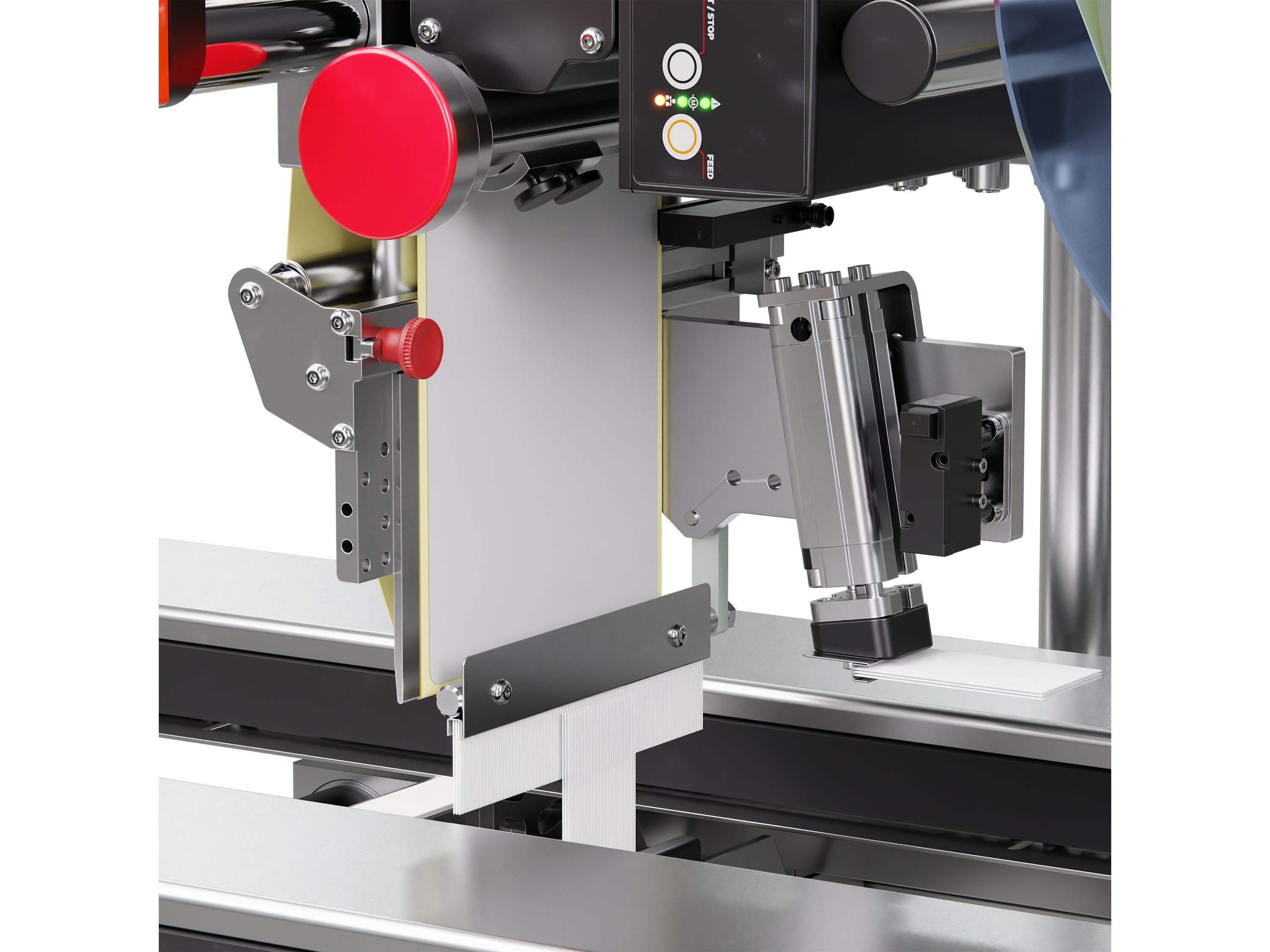

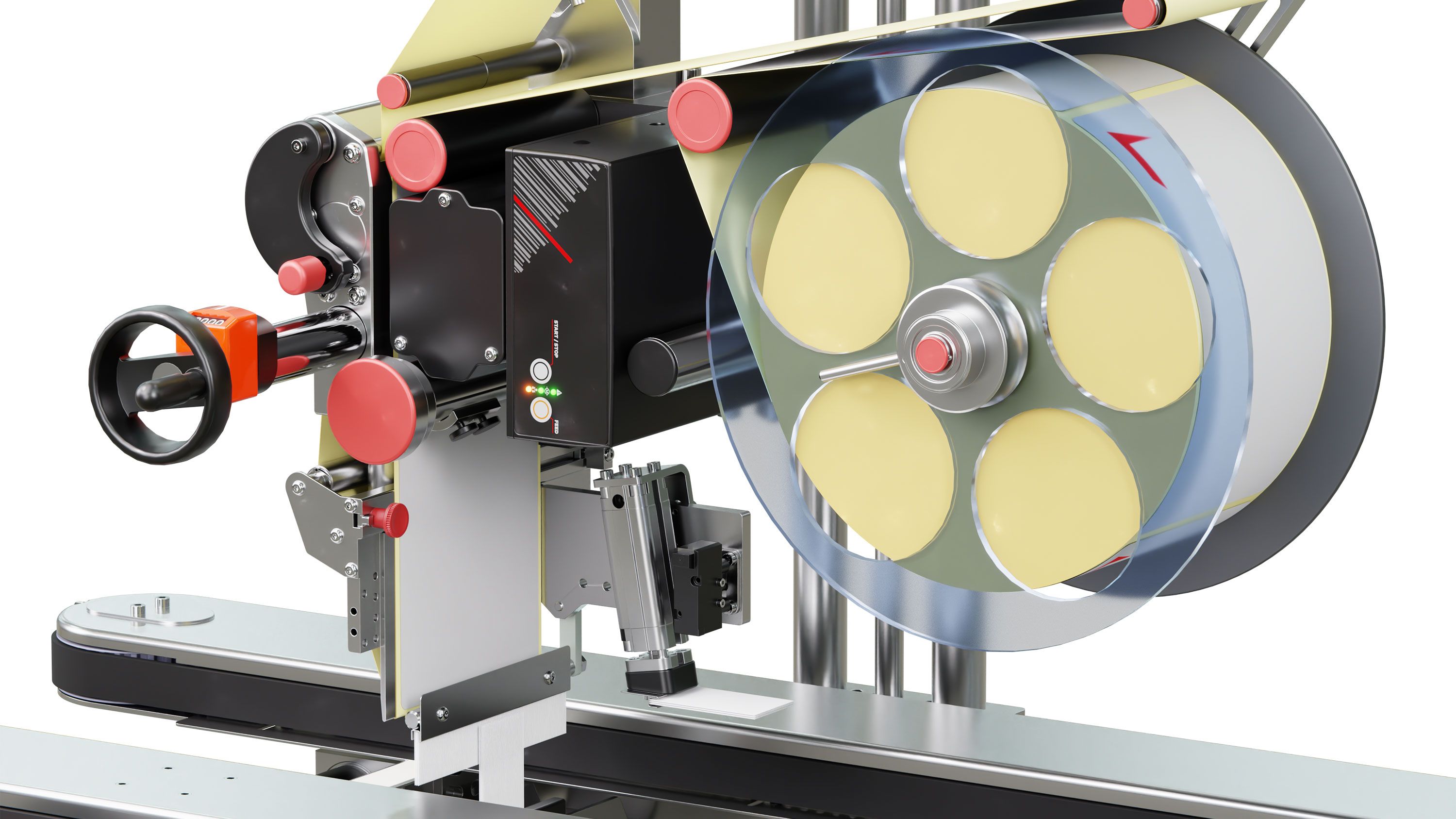

The system labels packaging such as cartons, thermoformed trays, boxes and similar products. In the D-wrap process, the label is placed in a D-shape around both side edges of the product so that it completely encloses the front, top and bottom sides and adheres without gaps. It is suitable for applications in the food, pharmaceutical, healthcare and homecare industries. Ideal for seal closure and as a tamper-evident closure. All parameters can be stored product-specifically and called up with high accuracy - ideal for changing products and small batches.

If variable data such as best-before date or batch number is to be printed on the labels before application, the system can be easily expanded. Special mountings for direct thermal transfer printers and inkjet printers are included in the module scope and are available immediately. This allows you to add additional coding to your high-quality labels in a highly efficient, legible and precise manner during labeling.

The controller housing can optionally be replaced with a control cabinet with IP54 ingress protection - to protect against splashing water during cleaning. A stainless steel version of the system is also available, which increases the corrosion resistance of sensitive components such as the motor and conveyor belt in very humid and demanding environments.

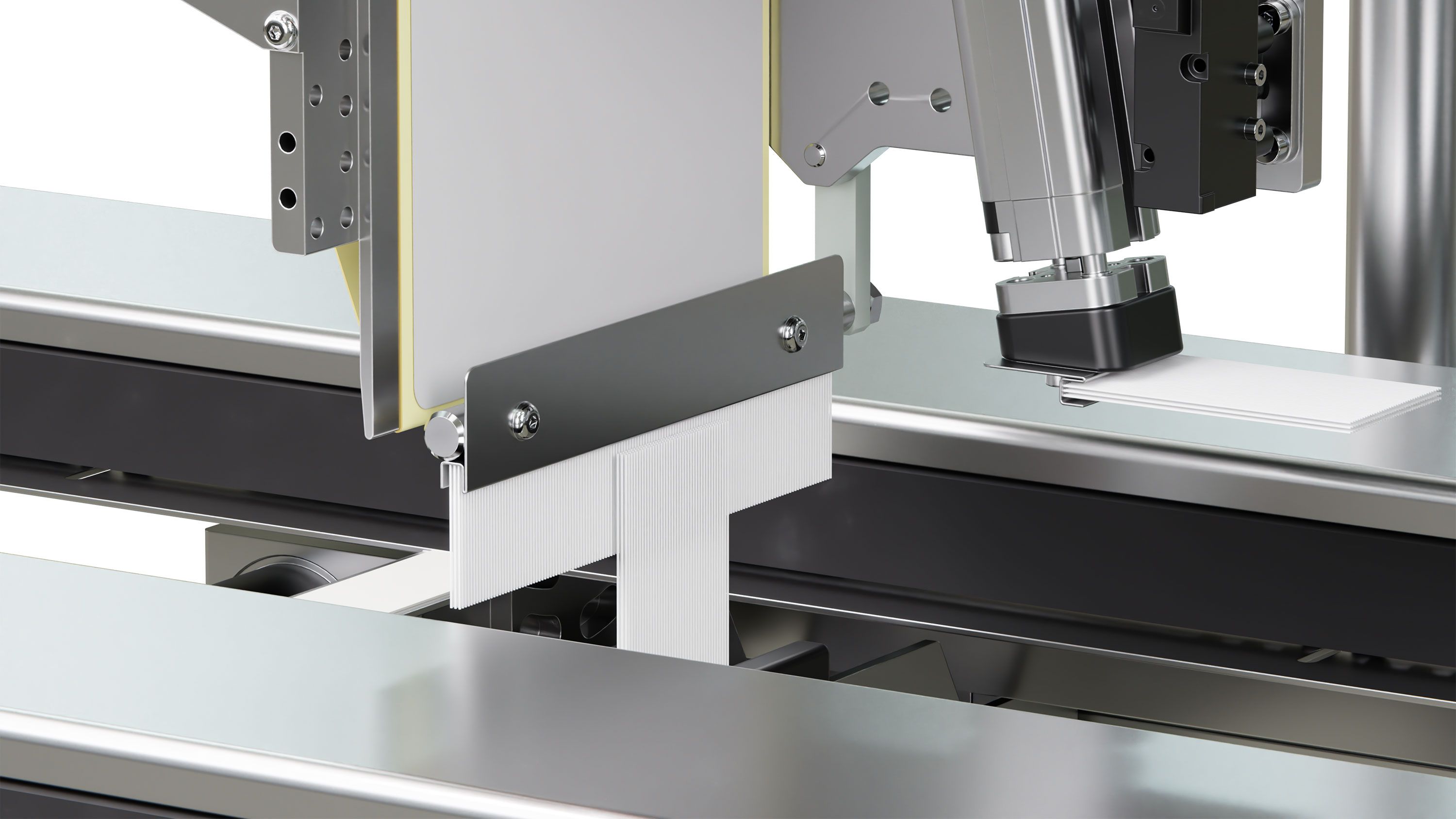

The Geset systems of the 24x series are equipped with special clamp belts that guide products precisely and securely through the labeling process. Especially for light, unstable, or irregularly shaped containers, the side belts ensure exact fixing and centering. However, clamp belts can also be advantageous for other products, particularly when highly precise labeling is required. At the same time, the clamp belts allow gentle product transfer to upstream and downstream systems when products, due to their nature, need to be directly “picked” or gripped by the conveyor technology.
