Markoprint integra go

Industrial inkjet printer

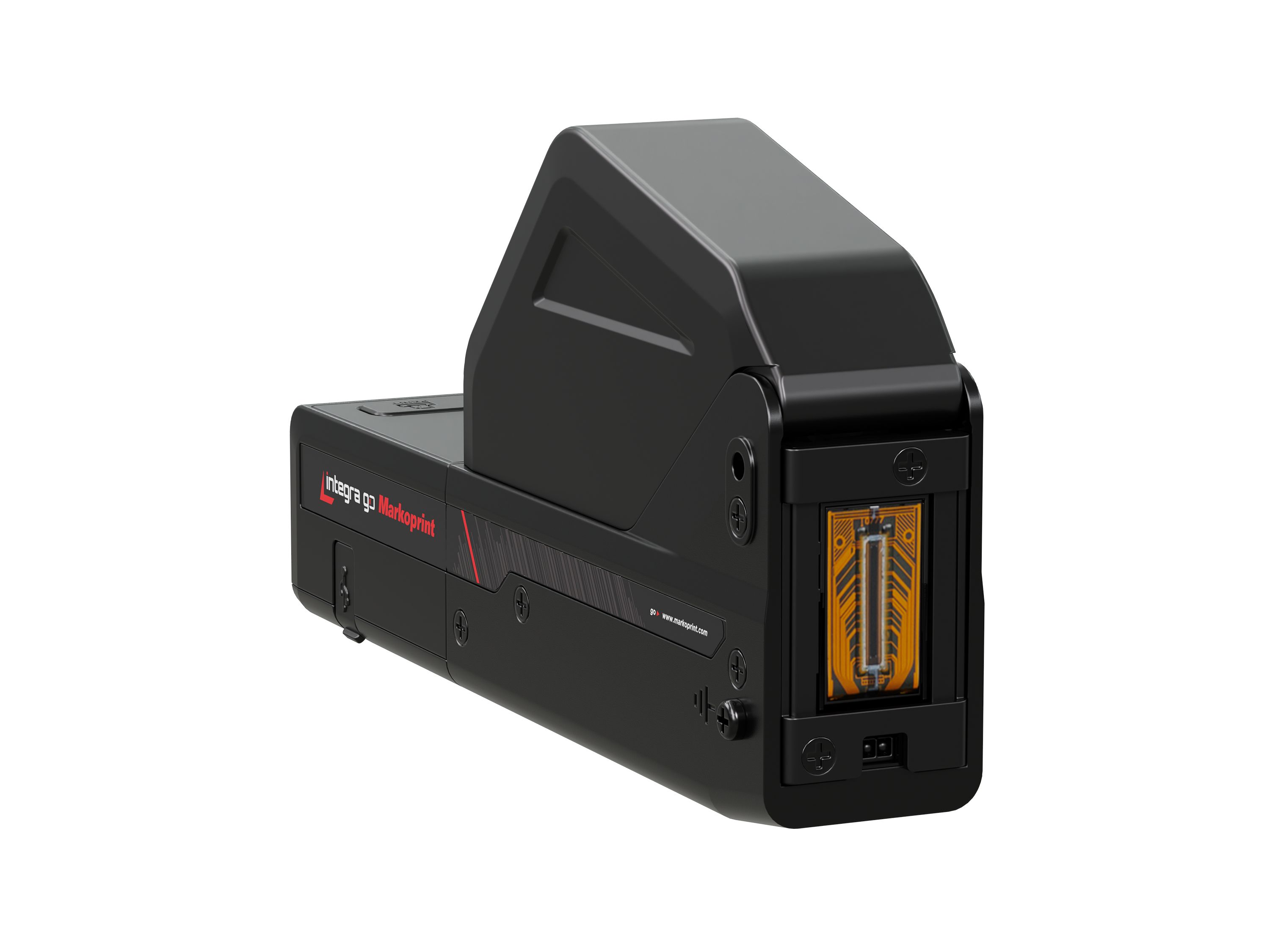

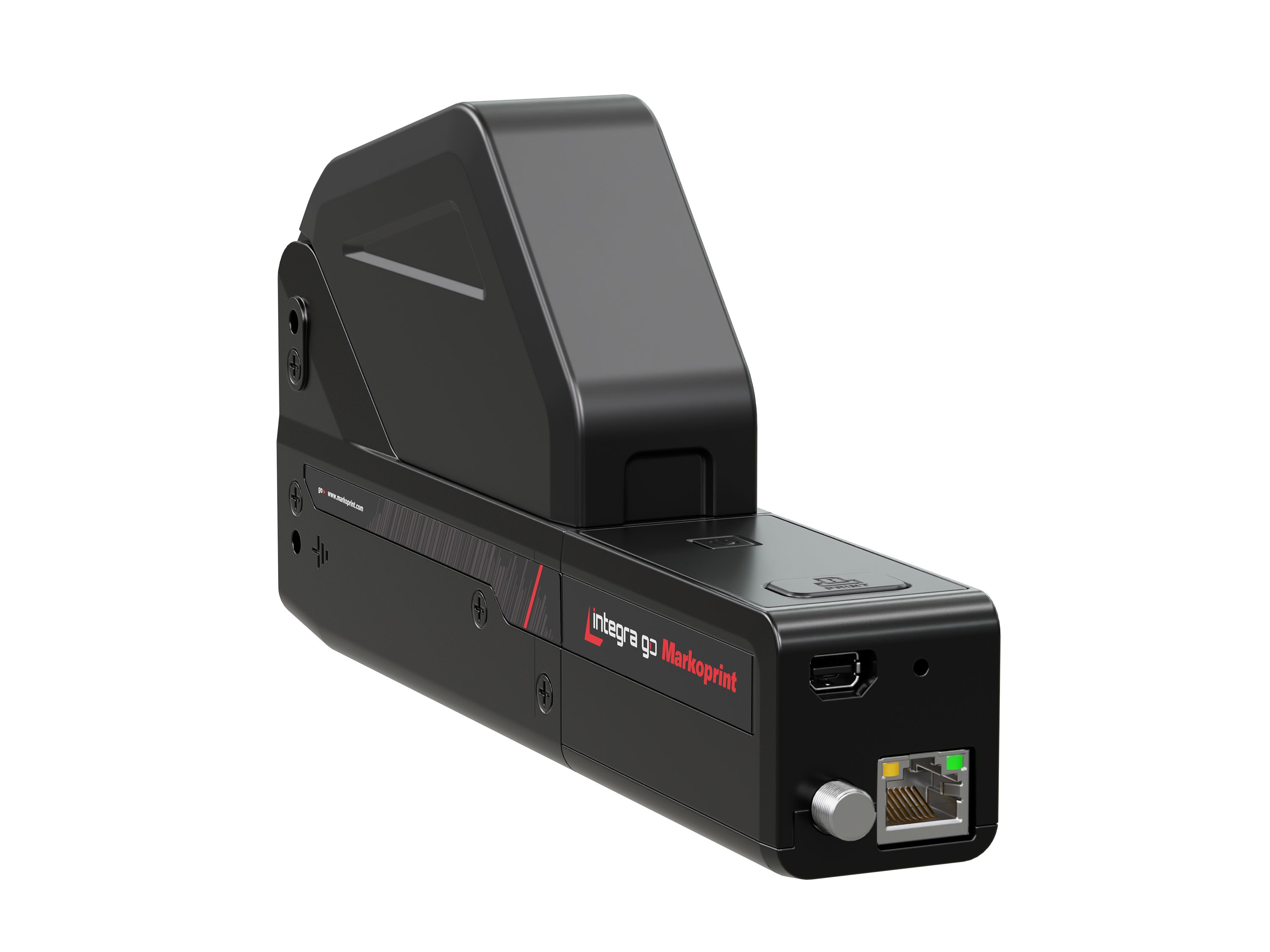

Markoprint integra go

Compact system with automatic product detection, extended print height and Wi-Fi for wireless integration

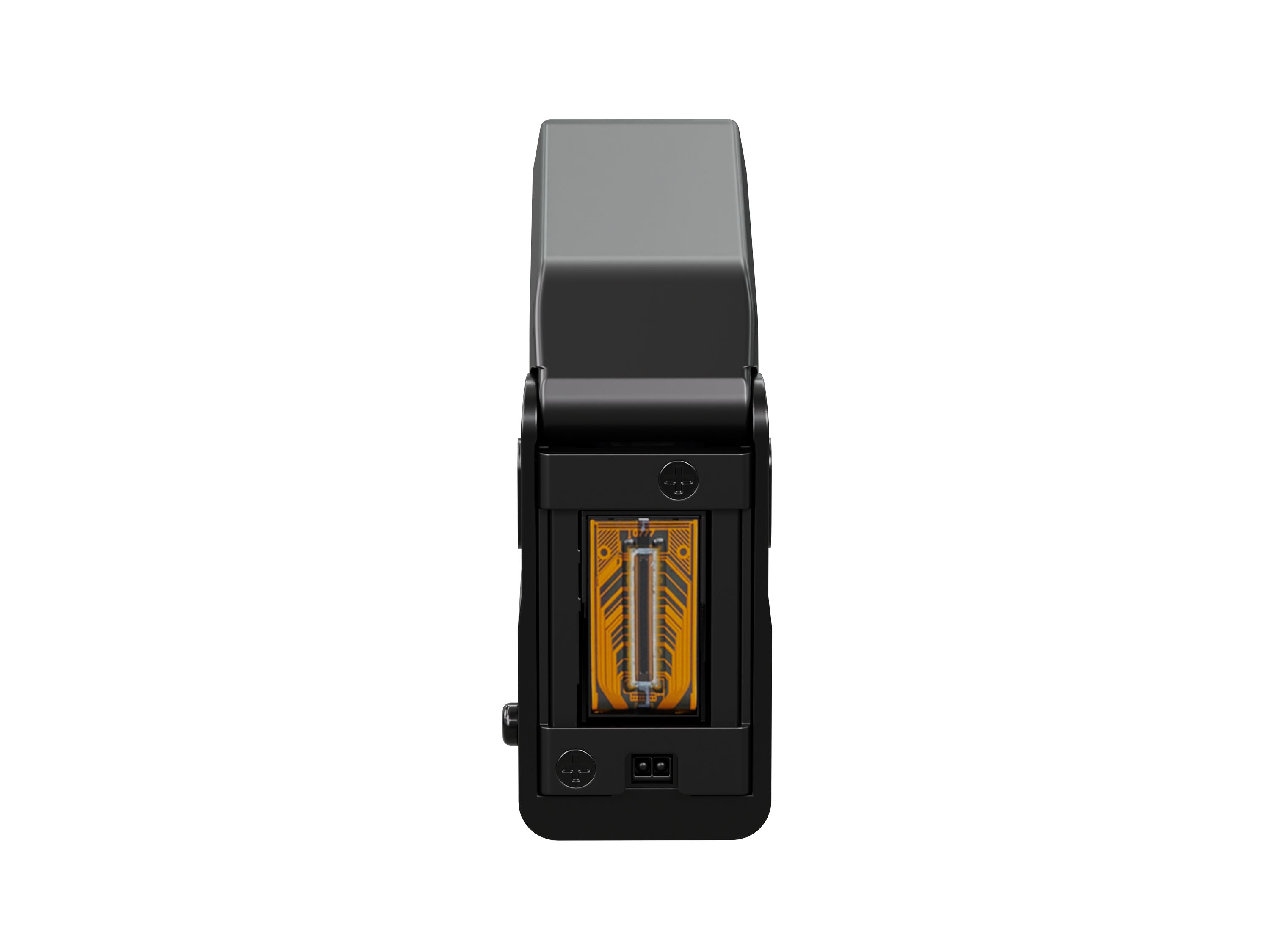

Compact: printhead and print controller in one housing
Print height up to 25.4 mm, print resolution 600 dpi
Achieves print speeds up to 60 m/min
Flexible use via Wi-Fi
For absorbent and non-absorbent surfaces

The Markoprint integra go is a compact inkjet printer for industrial applications that offers maximum flexibility and precision. Thanks to its Wi-Fi function, the thermal inkjet printer can be integrated wirelessly into existing production environments without additional software. The intuitive one-button operation makes it easy to use even for untrained staff. Up to three predefined print layouts with texts, logos, barcodes, or serial numbers can be retrieved at the push of a button.

The cartridge technology allows a print height of 25.4 mm and ensures maintenance-free operation: with each ink change, a new printhead is automatically installed, eliminating the need for cleaning and servicing. Two ink types – water-based or solvent-based – deliver razor-sharp results on both absorbent and non-absorbent materials. Automatic ink identification optimizes the settings independently and reliably prevents drying out during print pauses.

Beverage packaging board printed with Markoprint inkjet printers

Markoprint integra go with intuitive one-button control

The intuitive one-button control makes printing with the Markoprint integra go easy, even for untrained staff. At the push of a button, up to three different stored print texts including fonts, serial numbers, barcodes, or logos can be retrieved. The print data is transferred to the device beforehand via USB stick or Ethernet directly from the company network. Print layouts can be created quickly and easily using the Markoprint integra Command Software.

The integrated Wi-Fi function enables flexible and wireless use of the system. No additional software installation is required, as the user-friendly web interface can be accessed directly in any standard browser. This allows the printer to be integrated quickly and easily into existing workflows.

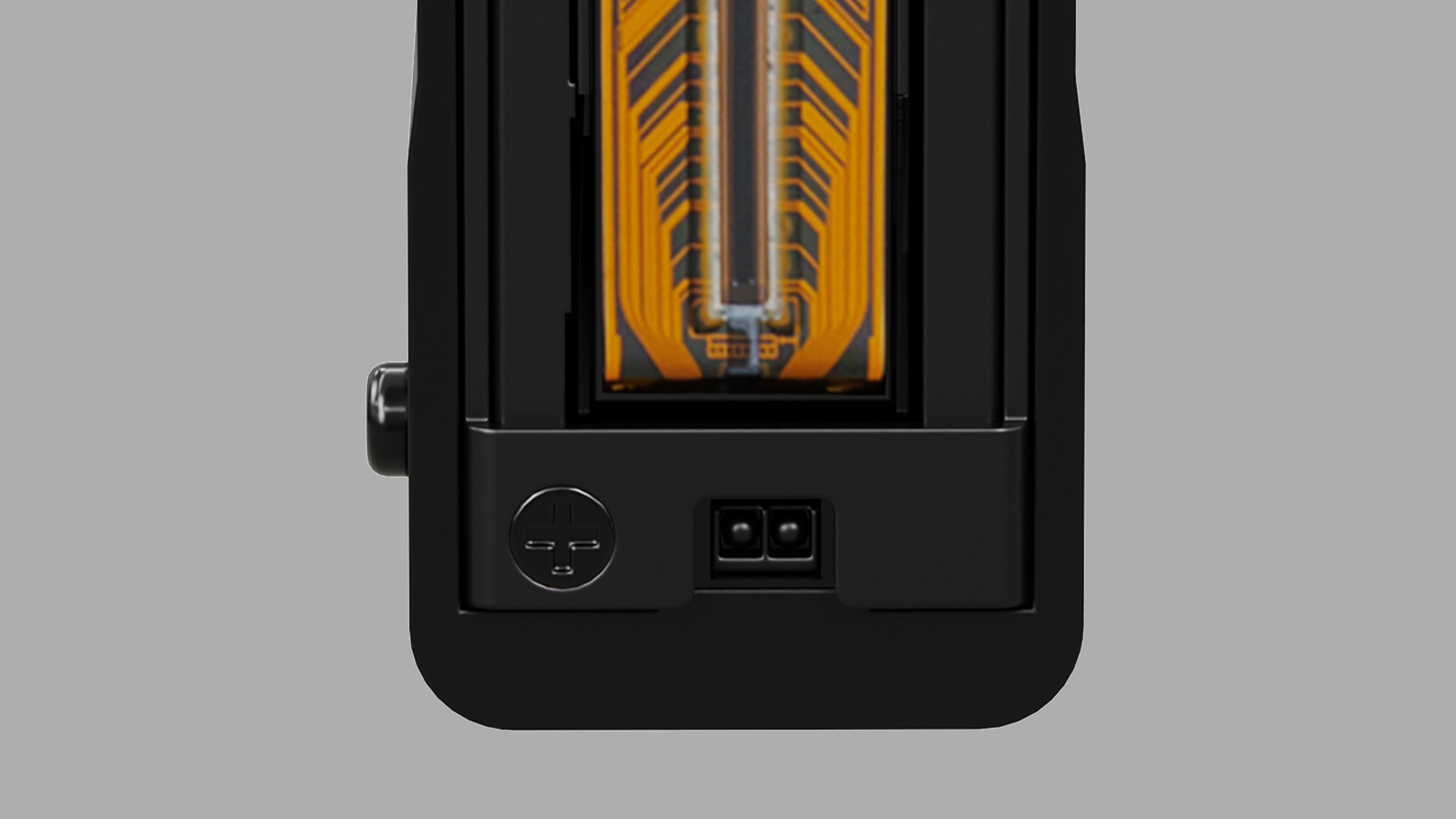

Markoprint integra go with integrated photo sensor

The integrated photoelectric sensor for product detection enables automatic and precise triggering of the printing process. It reliably detects each product as it passes by and ensures that printing takes place exactly in the right position. This prevents misprints, optimizes the production process, and guarantees consistently high print quality – even at high speeds and with varying product distances.

Technical specifications

Printing specifications

integra go

Printer type

Thermal Ink Jet (TIJ)

Supported printing technology

Vertical print resolution up to

integra go

600 dpi

Print speed up to

integra go

60 m/min

Recommended distance printhead to product

integra go

1 mm

Orientation

From left to right, From right to left

Function

Top printing, Lateral printing

Number of printheads up to

Maximum number of production lines

Printable content

integra go

Barcodes, 2D codes, Text fields, BMP graphics, Counter, Time indication, Date field, Date offset, Input of variables, Logos

Barcodes

integra go

EAN 8, EAN 13, UPC-A, UPC-E, Code 39, Code 128, GS1 DataMatrix, DataMatrix, QR code, GS1 QR Code

PDF direct printing

–

DBPrint

integra go

–

Spitting

integra go

–

Interpreter software

integra Command

Ink

Colour

Black

Composition

Solvent-based, Water-based

Hardware

integra go

Display

no display

Internal sensor

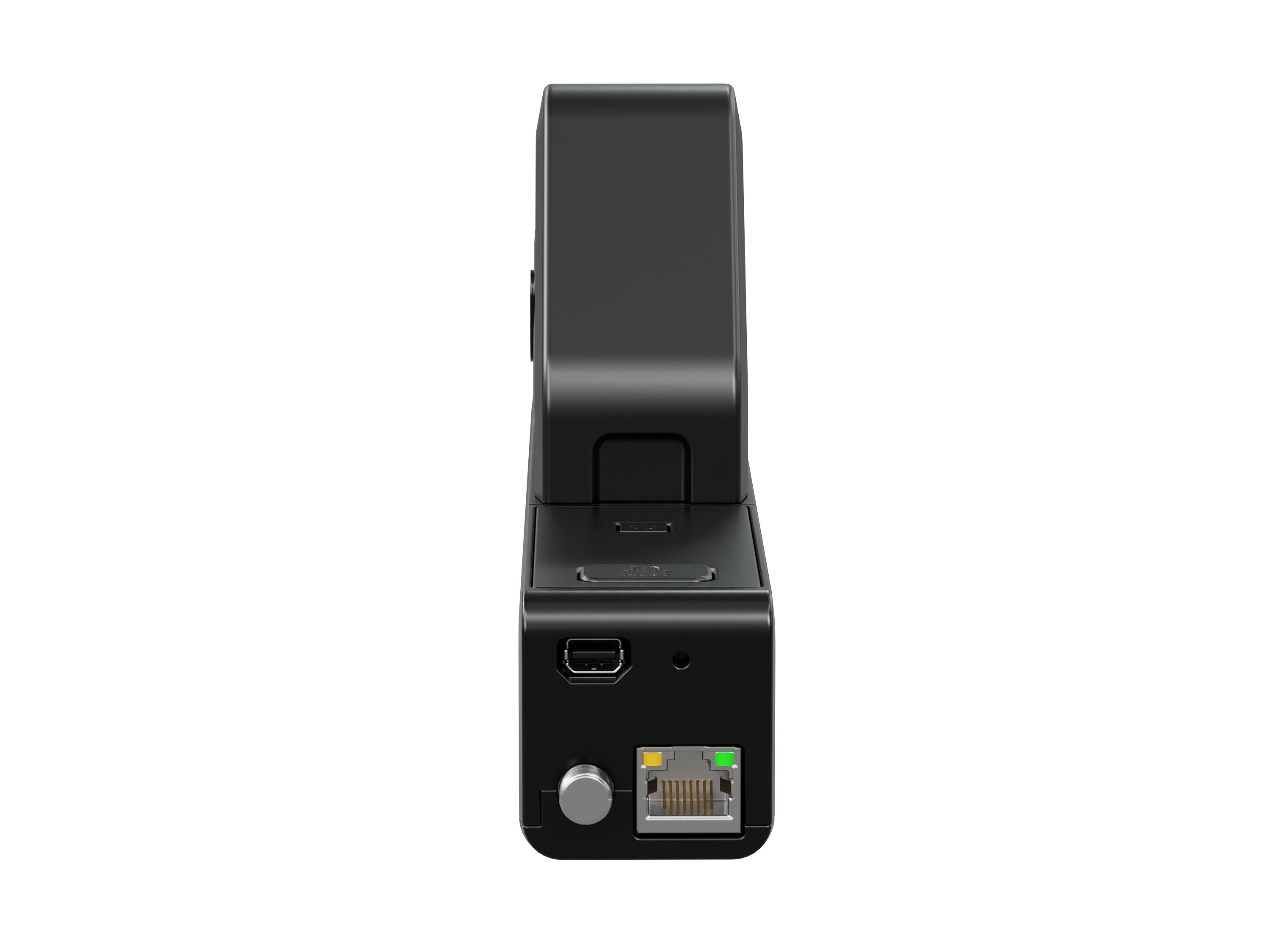

interfaces

Ethernet (TCP/IP)

USB memory stick slot

PCMCIA slot

–

Flash memory expansion as an option

–

SD memory card slot

–

WIFI

integra go

Physical aspects

System dimensions (HxWxL)

73.3 mm x 38.5 mm x 204.5 mm

Weight

0.32 kg

IP ingress protection

IP 40

Authorisations

Rel. humidity non-condensing

10 - 90 %

Ambient temperature

5 - 40°C

Supply voltage

100-230 V

Mains frequency

50-60 Hz

Amperage

3.2 A
