Industrial inkjet printer

Markoprint IP-JET

Specialist for particularly harsh environments and high hygiene requirements

  • Developed for use in wet areas and dusty environments (IP65)
  • Additional splash-proof connections (IP67)
  • Optimised for vertical forming, filling and closing machines (VFFS)
  • Print height up to 12.7 mm, print resolution 600 dpi
  • Achieves print speeds of up to 180 m/min
  • For absorbent and non-absorbent surfaces

For productions with high dust generation and wet areas

The Markoprint IP-JET HP has been specially developed for use in industrial environments with high levels of dust and wet areas and the associated high hygiene requirements. Unlike comparable printers, the printhead and connectors are so well protected that they do not need to be covered or dismantled for wet cleaning. This makes the thermal inkjet printer with HP cartridge technology very suitable for use in the food, pharmaceutical and chemical industries.

A large selection of water- and solvent-based HP inks allows the labeling of almost all absorbent and non-absorbent surfaces. The Markoprint IP-JET HP prints texts such as best-before dates and batch numbers, 1D barcodes, 2D codes and graphics in high resolution and delivers brilliant print results on products and packaging. Paper, varnished carton, foils and plastics are labelled in a smudge-proof, legible and durable manner.

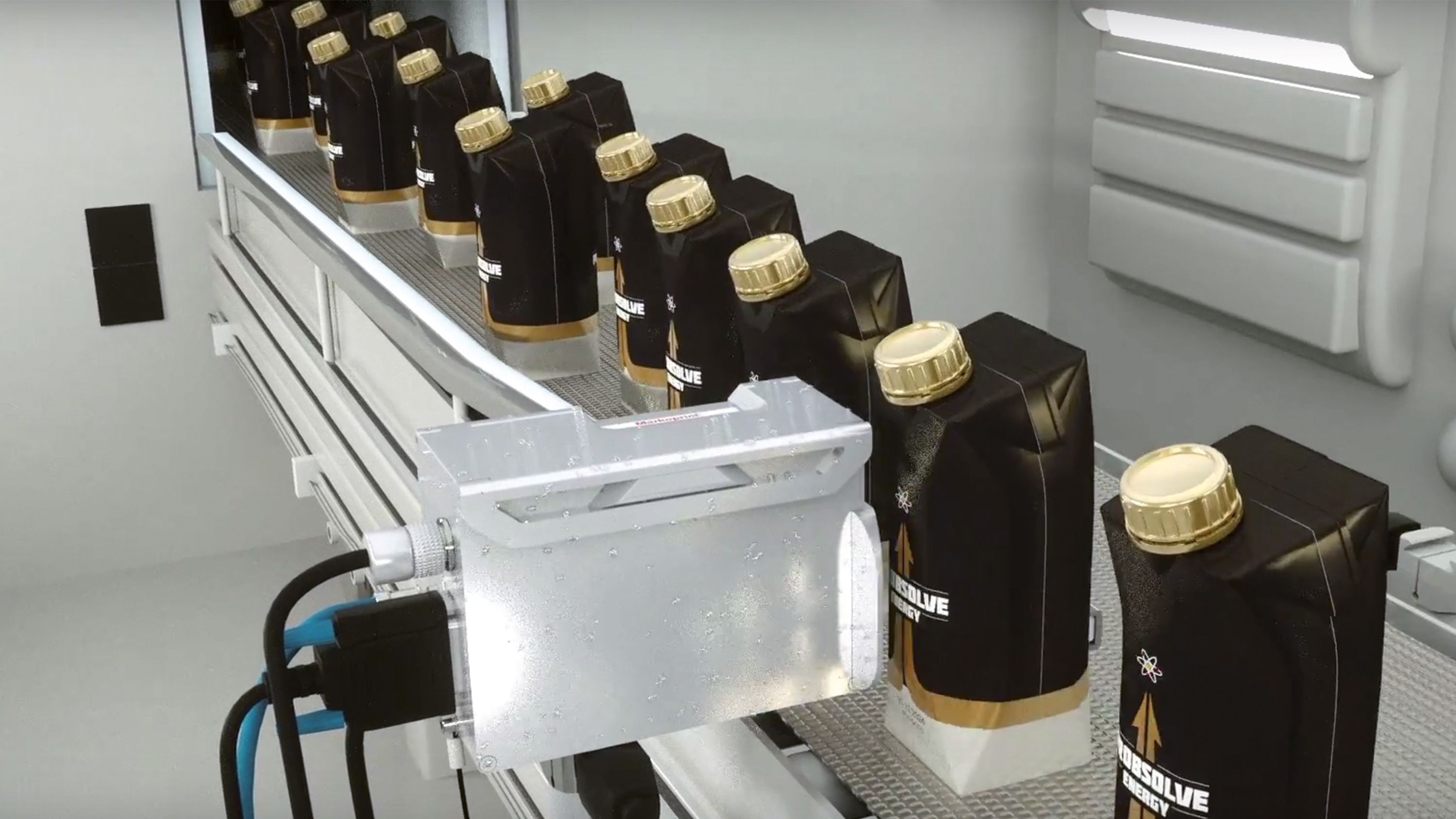

Markoprint IP-Jet HP inkjet printer on the production line

Applications

Folding carton for pharmaceuticals printed with Markoprint inkjet printer
Foil packaging for food printed with Markoprint inkjet printers
Beverage packaging board printed with Markoprint inkjet printers
Folding carton printed with Markoprint inkjet printer

Special features

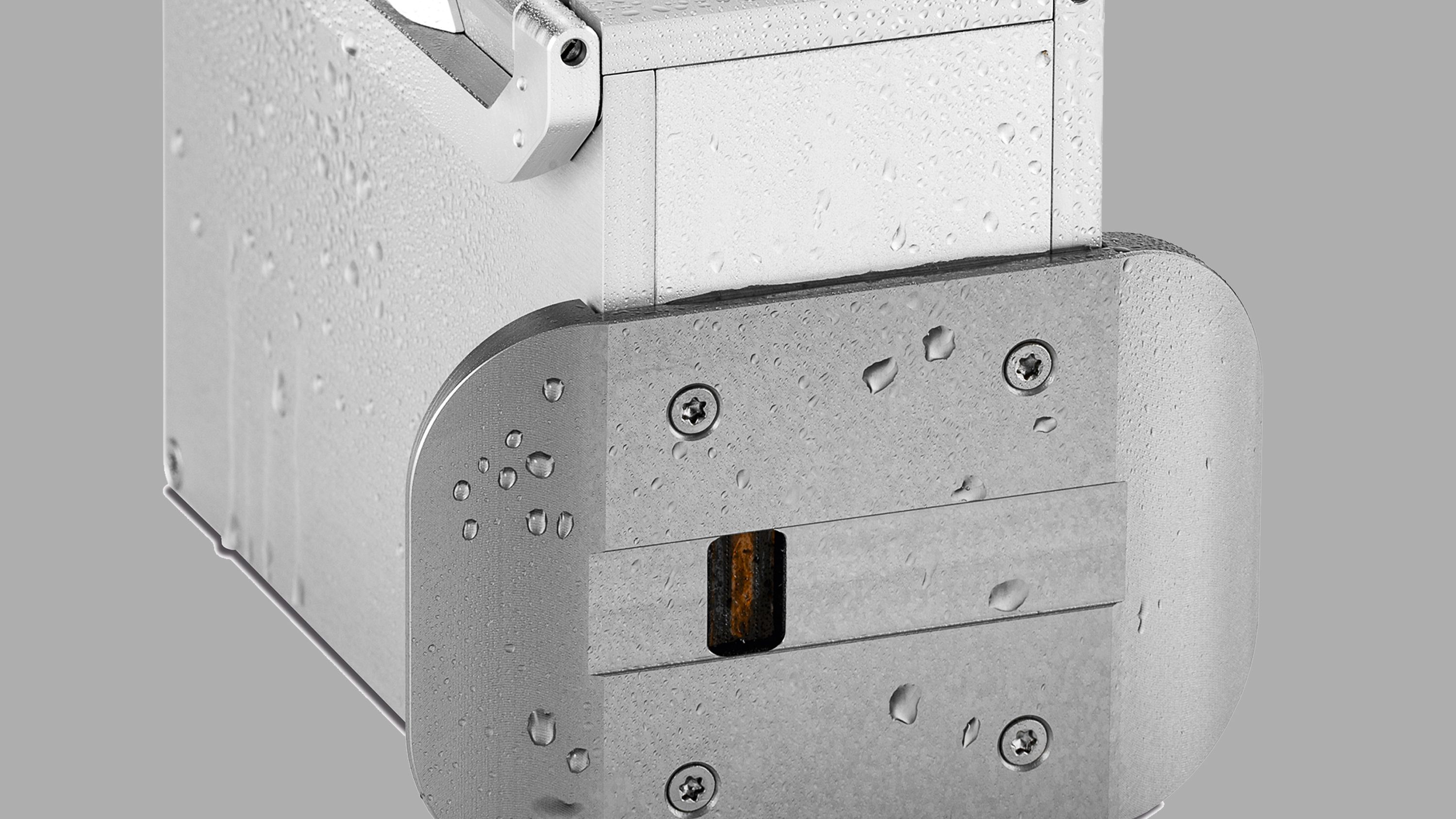

The Markoprint IP-JET features double IP protection

Double IP protection

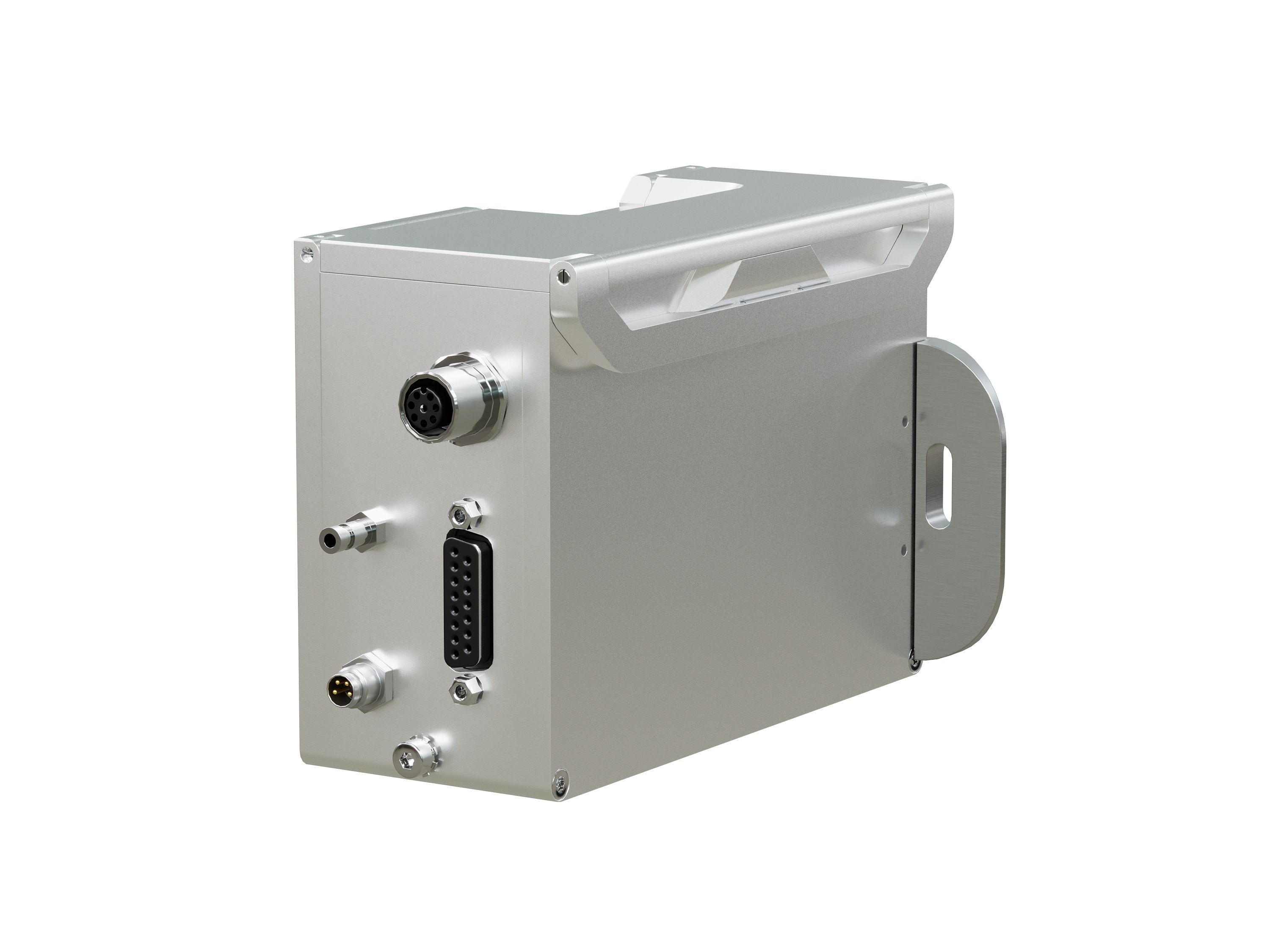

Thanks to its high IP65 protection rating, the inkjet printer is completely dust-tight and reliably protected against water jets. A closed cover combined with a special overpressure connection ensures that neither moisture nor dust particles can enter the device. Power is supplied via a robust power supply unit with a waterproof M8 connector, while the external interfaces are equipped with IP67 connectors for maximum safety.

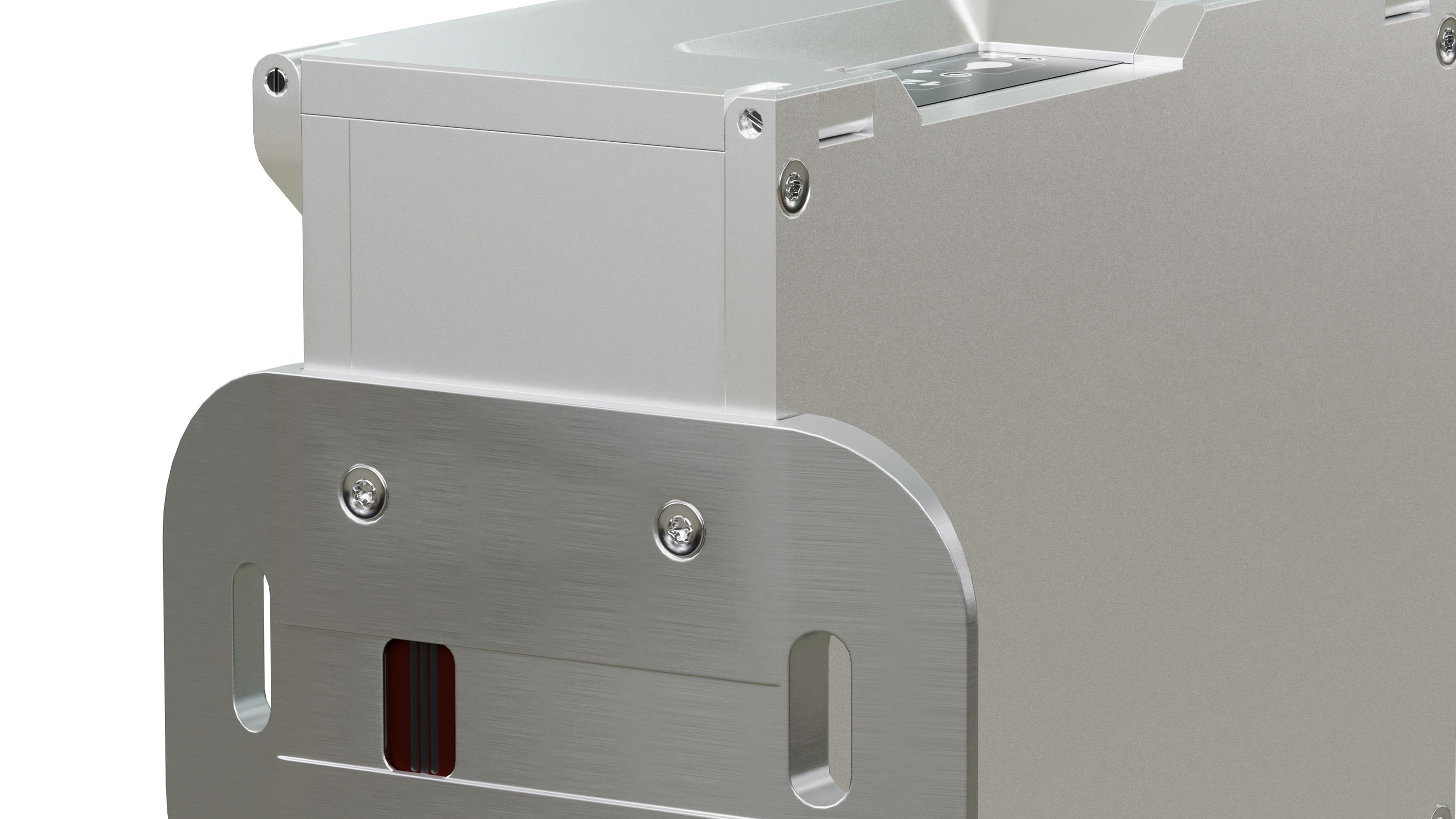

The Markoprint IP-Jet combines printhead and controller in one housing

Compact unit: Printhead and control unit

The printhead and control unit are combined in the space-saving enclosure, which makes integration into production systems easy. The intuitive 3-key operation with LED indicators is easy and safe to use, even for untrained employees.

Markoprint IQ Supplies

Smartcard technology controls ink type and fill level

The smart card technology of the ink cartridges ensures consistently good prints. A chip identifies the current ink type and automatically sets the corresponding parameters. There is no need to switch over manually when changing the ink. The ink level is also recorded and displayed in real time. This enables controlled cartridge replacement and prevents unplanned production downtimes. Thanks to the Click'n Print cartridge holder, ink changes are quick and easy.

Markoprint Coding Score

Clear performance levels for flexible and scalable printing solutions

The specially developed Coding Score makes it easier to select and configure Markoprint printing systems. The performance levels – PRINT, BASIC, ADVANCED, PRO, and ULTIMATE – are clearly defined, easy to compare, and vary depending on the system. This creates transparency in decision-making and ensures investment security in a marking solution that can be flexibly expanded at any time. New requirements for production, efficiency, or sustainability can be easily integrated, securing consistently powerful and economical processes.

Technical specifications
Printing specifications
Pro
Ultimate
Printer type
Thermal Ink Jet (TIJ)
Supported printing technology
HP
Print height
Pro
1 mm - 12.7 mm
Ultimate
1 mm - 12.7 mm
Vertical print resolution up to
Pro
600 dpi
Ultimate
600 dpi
Print speed up to
Pro
90 m/min
Ultimate
180 m/min
Recommended distance printhead to product
Pro
1 mm
Ultimate
1 mm
Orientation
From left to right, From right to left
Function
Lateral printing, Top printing
Number of printheads up to
1
Maximum number of production lines
1
Printable content
Pro
Fields of action, Input of variables, Date offset, Date field, Time indication, Counter, BMP graphics, Text fields, 2D codes, Barcodes
Ultimate
Fields of action, Input of variables, Date offset, Date field, Time indication, Counter, BMP graphics, Text fields, 2D codes, Barcodes
Barcodes
Pro
more on request, UPC-E, UPC-A, QR code, GS1 Databar, GS1 DataMatrix, EAN 13, EAN 8, DataMatrix, Code 128, Code 39, Code 2 out of 5
Ultimate
more on request, UPC-E, UPC-A, QR code, GS1 Databar, GS1 DataMatrix, EAN 13, EAN 8, DataMatrix, Code 128, Code 39, Code 2 out of 5
Fonts
Customized fonts, All Windows fonts
PDF direct printing
DBPrint
Pro
Ultimate
Spitting
Pro
Ultimate
Interpreter software
integra Command
Software requirements
Processor with at least 1 GHz, Interface for connecting the printing device, PC mouse or touchscreen, DirectX 9 or higher with WDDM 1.0 driver, Min. 30 GB hard disk space, 2 GB for 32-bit or 4 GB for 64-bit, Windows 7, 8, 10
Ink
Colour
Blue, Yellow, Green, White, Red, Black, UV-visible, UV-curing
Composition
Solvent-based, Water-based
Hardware
Pro
Ultimate
Display
no display
Internal sensor
Shaft encoder signal
Frequency max.150 kHz, Switching threshold 7 V, 24 V voltage, Push-pull or NPN
interfaces

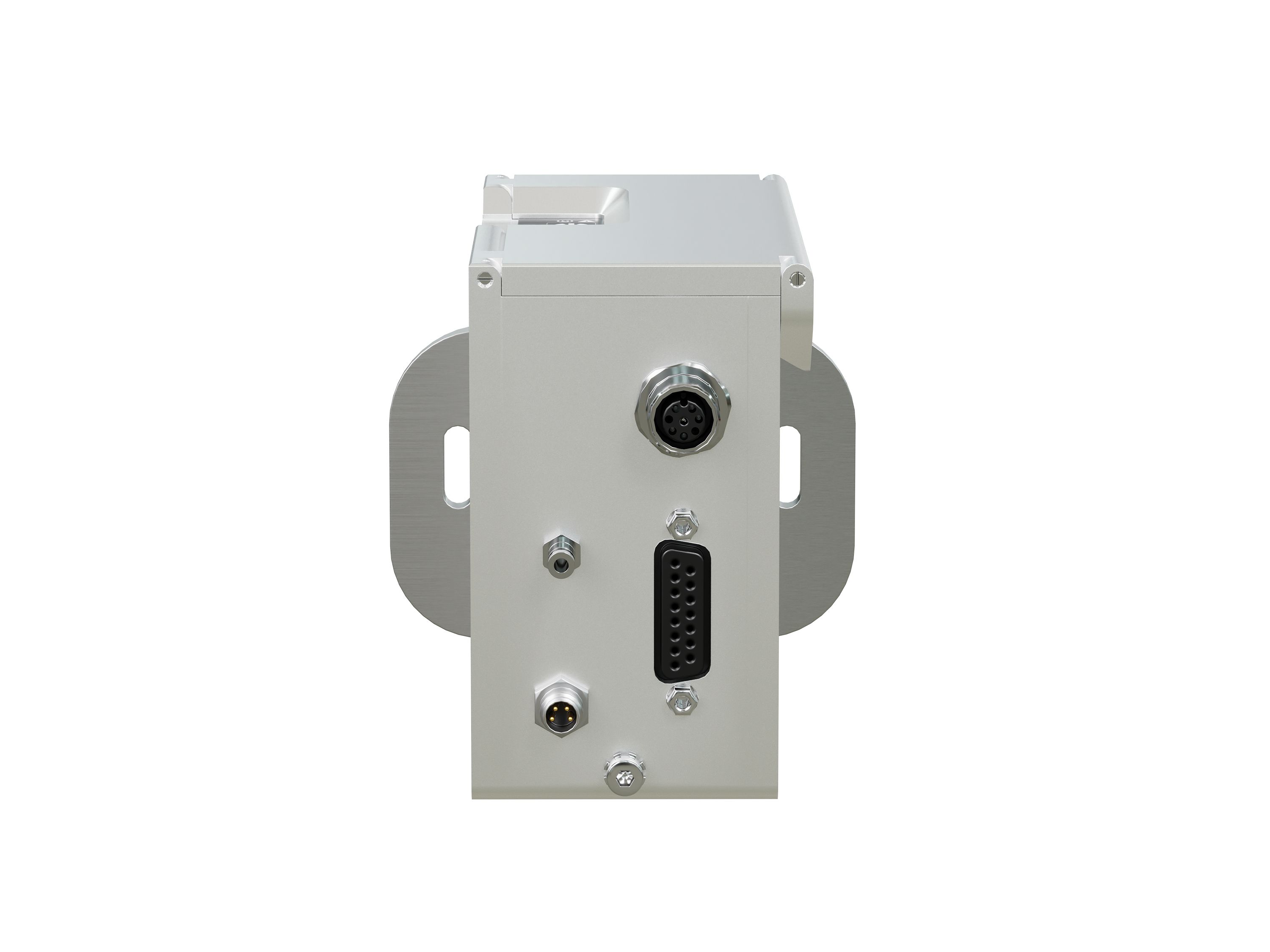

Ethernet (TCP/IP), RS-232, 15-pin SUB-D (connection shaft encoder/sensor/inputs and outputs and optional power supply), M8 connector for mains connection
USB memory stick slot
PCMCIA slot
Flash memory expansion as an option
SD memory card slot
Status/ Alarm outputs
Pro
4
Ultimate
4
WIFI
Pro
Ultimate
Physical aspects
System dimensions (HxWxL)
102 mm x 98 mm x 143 mm
Weight
1.1 kg
IP ingress protection
IP 65
Authorisations
CE
Rel. humidity non-condensing
10 - 90 %
Ambient temperature
5 - 40°C
Supply voltage
90-240 V
Mains frequency
50-60 Hz
Amperage
1.25 A
