Desktop label printer

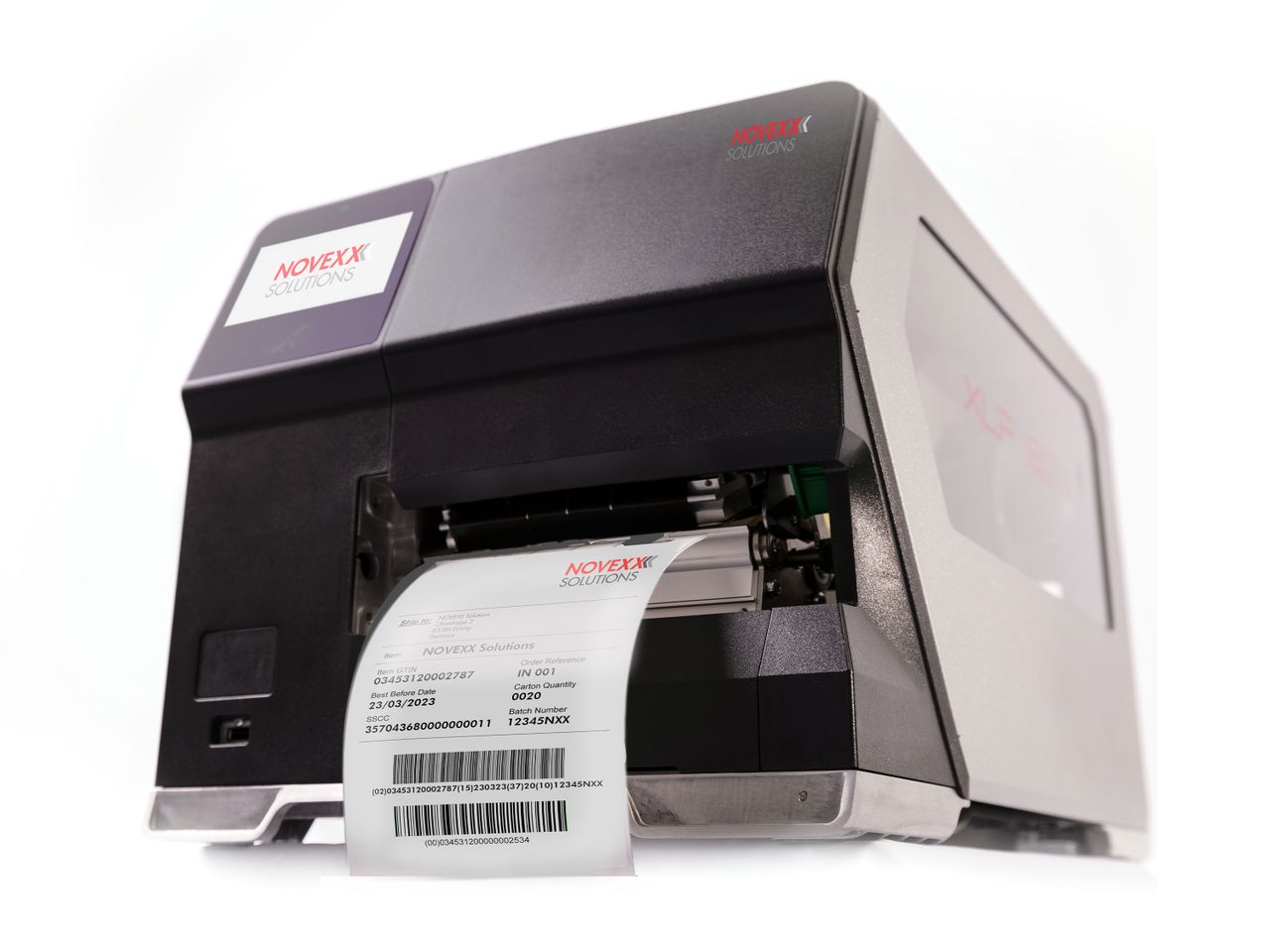

Novexx XLP 60x

High-performance printers for any industrial printing challenge

  • High print speeds up to 400 mm/s
  • Excellent 300-dpi print quality
  • Ribbon mandrel for constant ribbon tension
  • Web interface for remote access via PC, tablet, and smartphone
  • Configurable interfaces
  • 100% tool-free maintenance

Industrial label printing without limits

The Novexx Solutions XLP 60x is a powerful industrial label printer specifically designed for demanding applications in production, logistics, and warehousing. With its robust construction and reliable printing technology, the XLP 60x delivers high print quality and speed to efficiently produce large volumes of labels. The device supports a wide variety of label materials and sizes, making it extremely versatile.

Thanks to state-of-the-art thermal transfer or direct thermal printing technology, the printer produces sharp, clear print results that meet even demanding labeling requirements. Intuitive operation and easy maintenance ensure smooth workflows. In addition, the XLP 60x offers extensive interface options to ensure seamless integration into existing production processes and to meet the latest digital requirements.

With its durable construction, it is ideally suited for continuous use in industrial environments. Overall, the Novexx Solutions XLP 60x is the ideal solution for companies that rely on reliable, efficient, and high-quality labeling.

Special features

Maximum user-friendliness

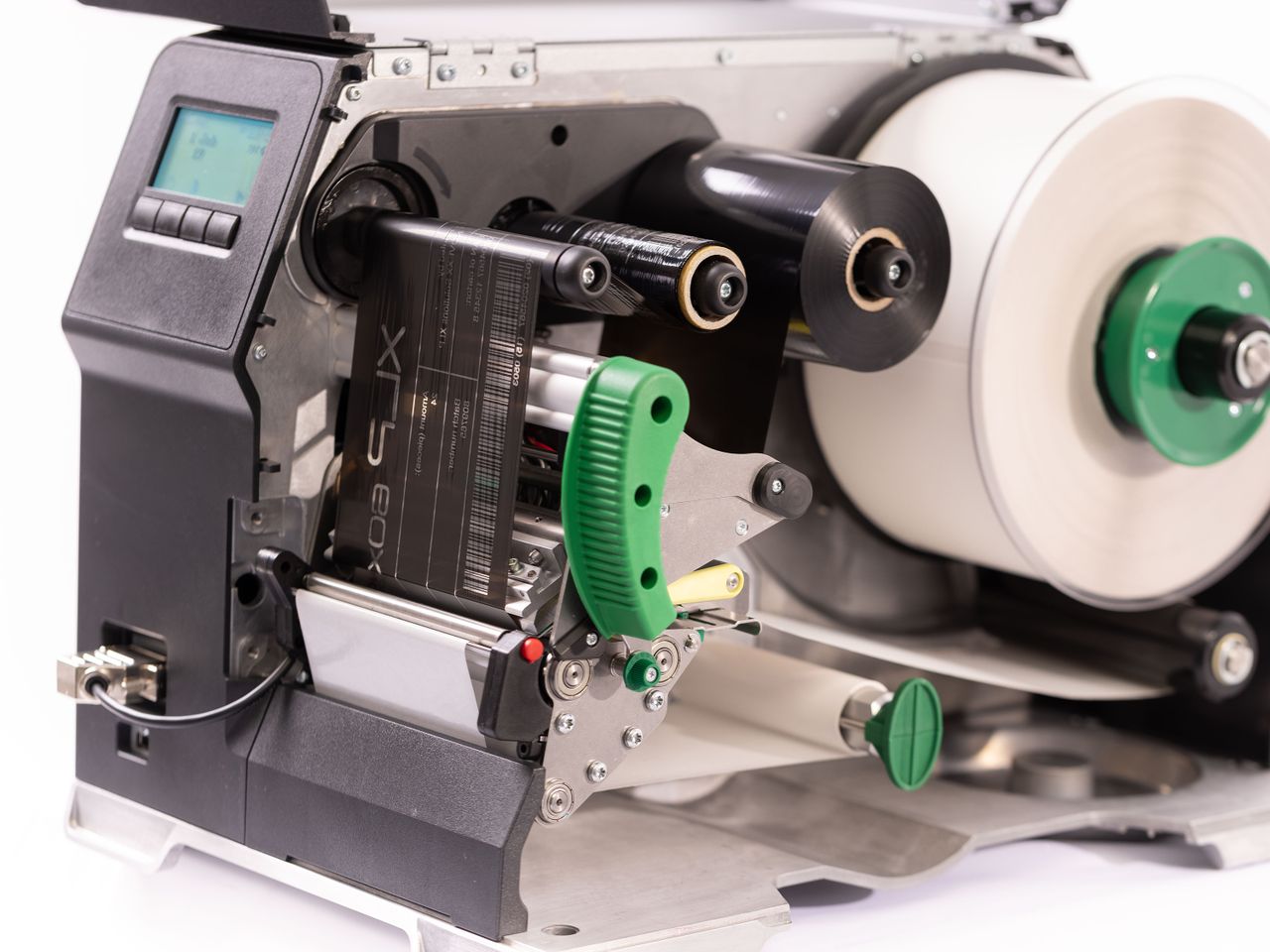

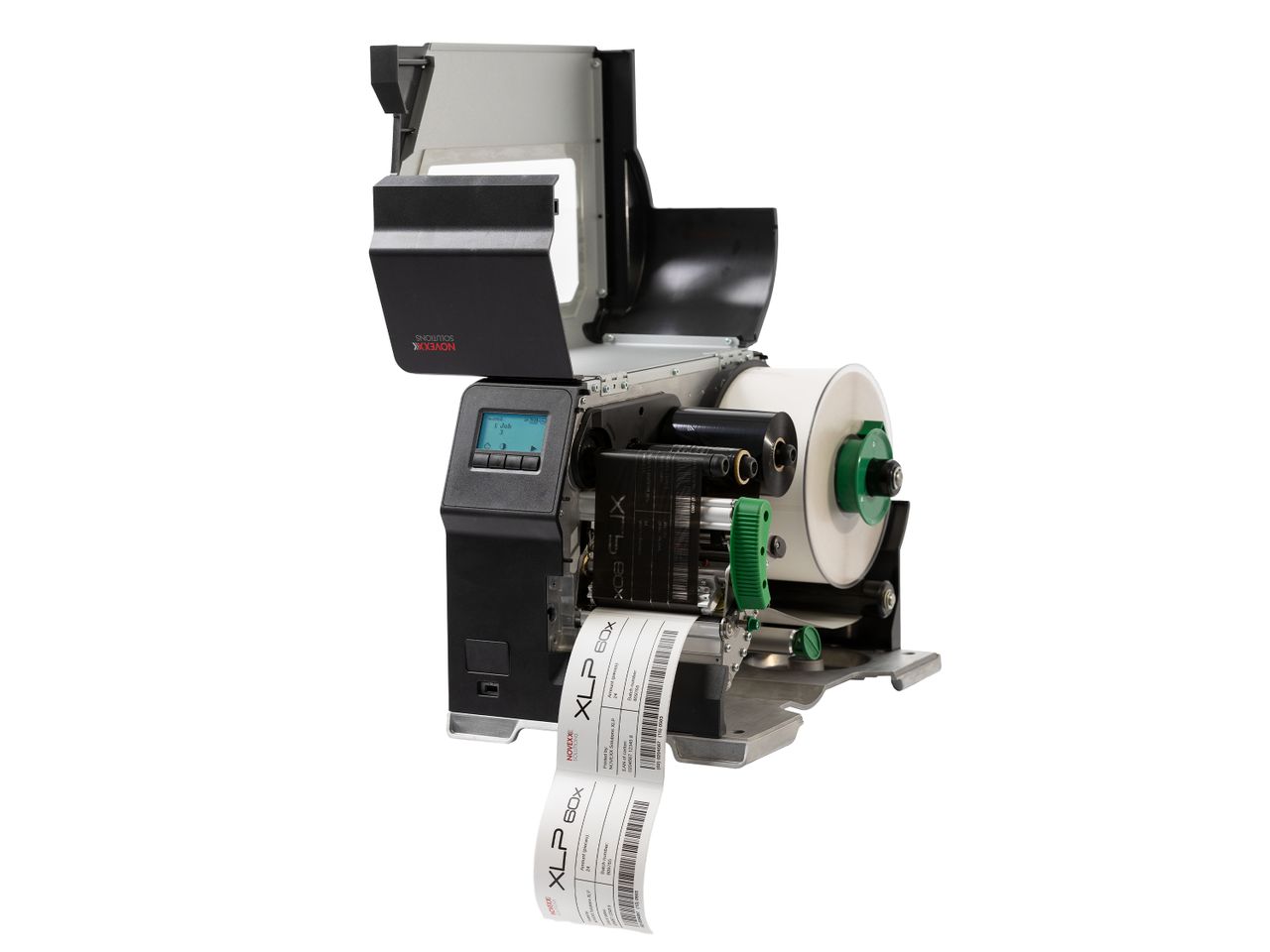

The choice between two different displays with intuitive navigation, fast and convenient switching of label and ribbon materials, and completely tool-free maintenance provide maximum operator comfort. In addition, the open print module makes cleaning extremely easy.

More sustainability and long service life

The ribbon save function ensures that only the ribbon required for printing is used. The result is less waste and fewer chemicals, lower costs, and a longer printhead service life. Industrial robustness together with large ribbon capacity ensures maximum uptime and increased productivity.

Smart printing

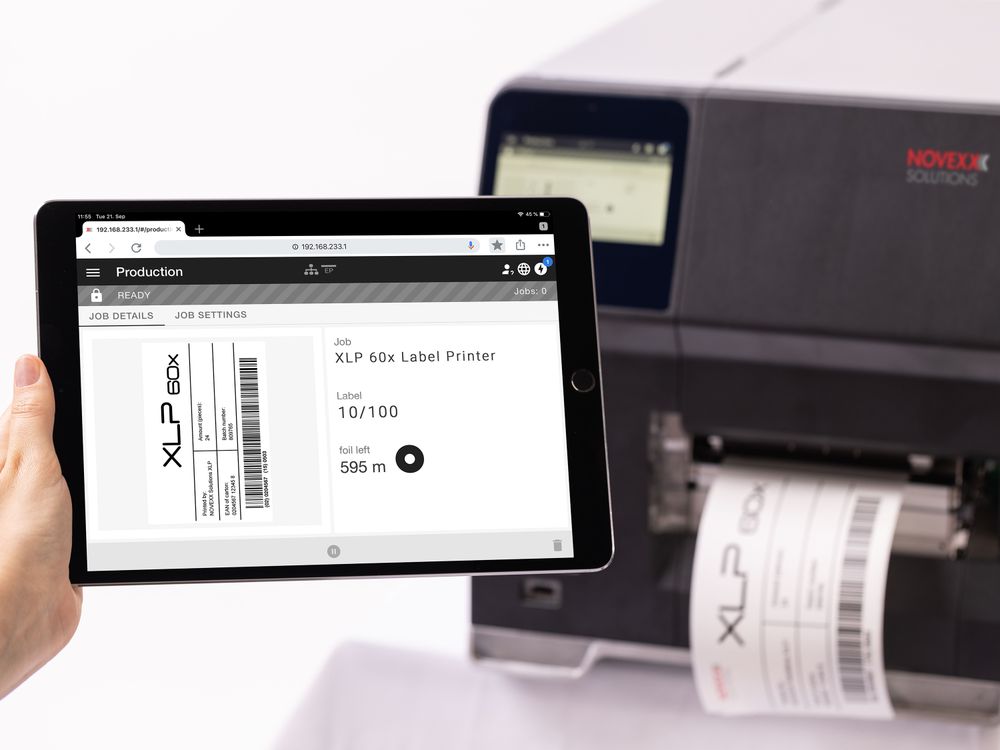

The XLP 60x meets the latest digital requirements: The web interface enables remote access and configuration from any PC or mobile device, such as a smartphone or tablet. Optional I/O boards provide multiple interfaces for any type of automated printing and application tasks.

Various options for special applications

To meet a wide range of requirements, the XLP 60x can be ordered with a variety of options, including a cutting function, an external rewinder, and a compressed-air-free applicator for semi-automatic labeling of products with sensitive surfaces and varying product heights.

Technical specifications
Printing specifications
Printing process
Thermal transfer, Thermal direct
Print width
160 mm
Printhead resolution
300 dpi
Print speed up to
400 mm/sec
Printhead technology
Near Edge
PDF direct printing
Print media
Material width (labels and liner material)
15 - 185 mm
Ribbon
Ribbon width
25 - 164 mm
Core diameter
25.4 mm
Maximum length
600 linear meters
Winding
Inside (standard) Outside (standard)
Hardware
Display

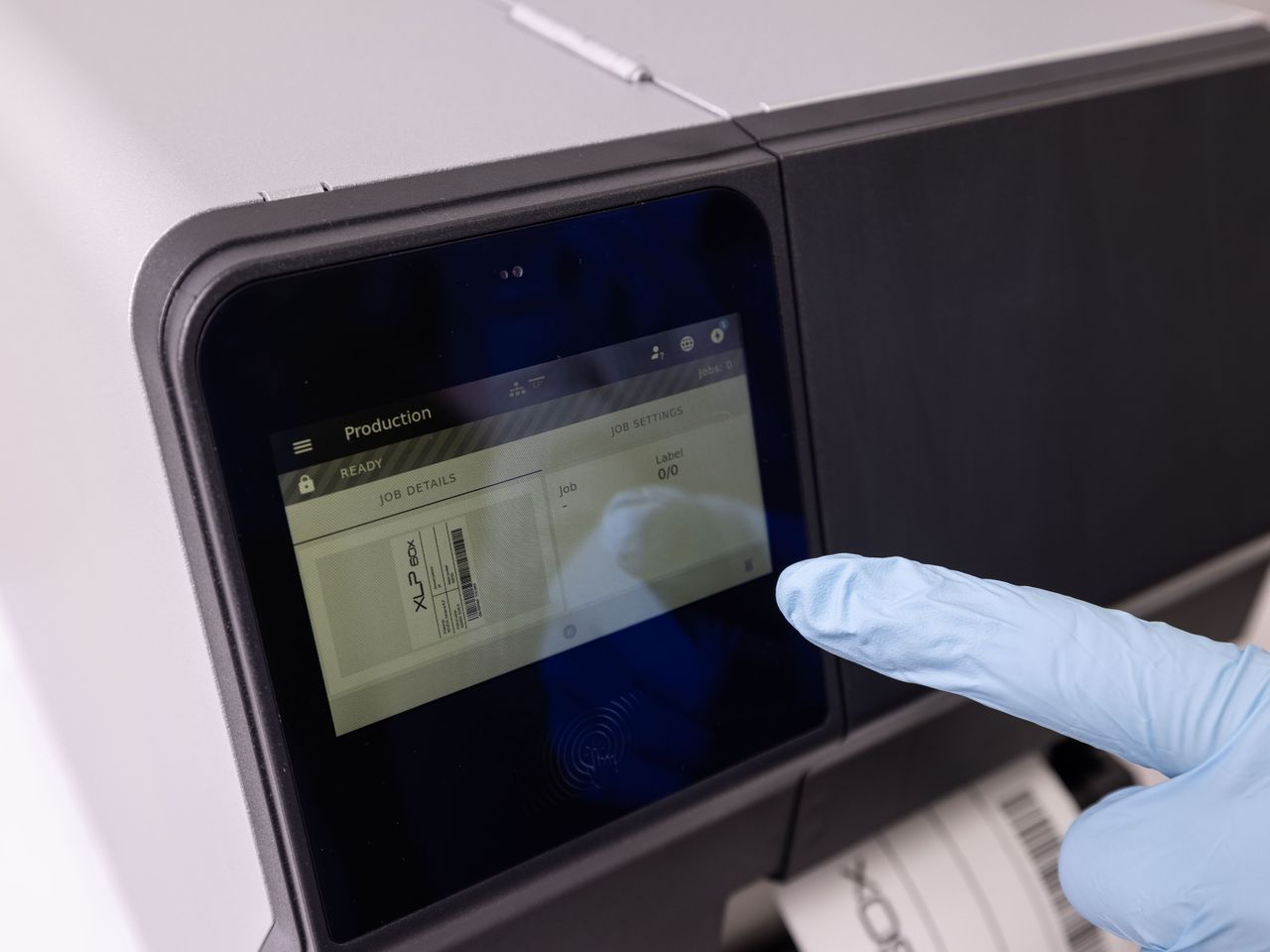

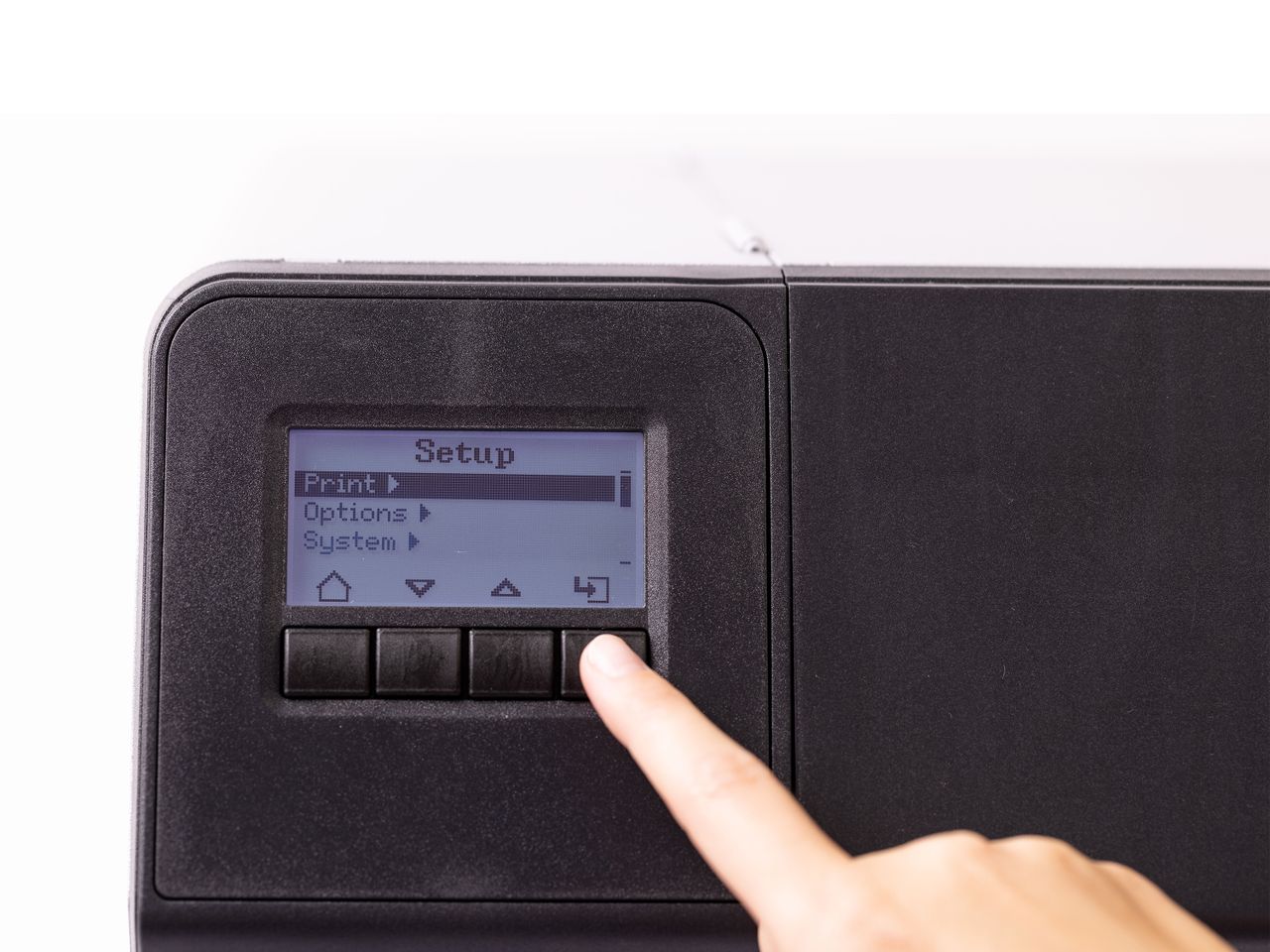

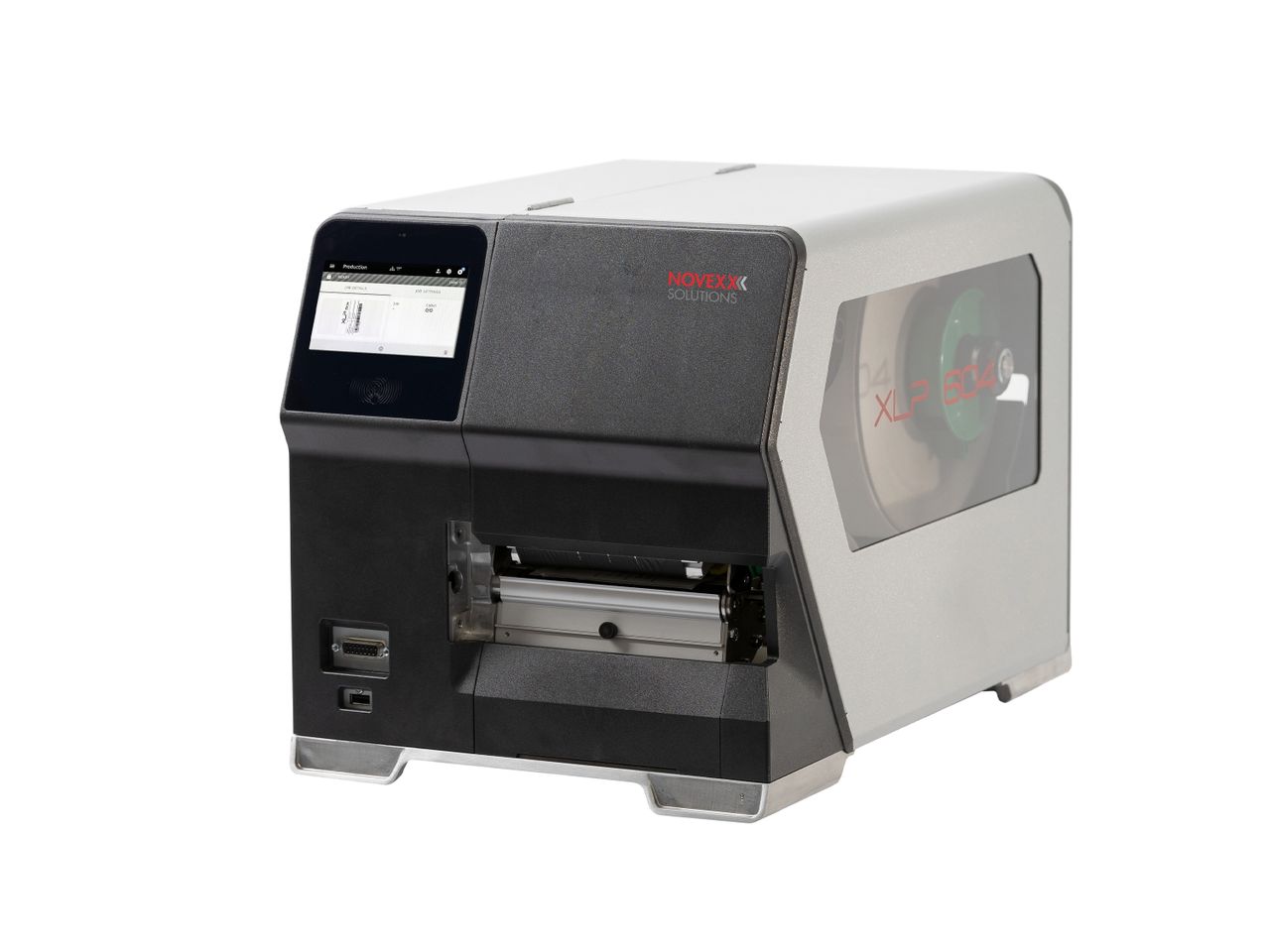

128x64 Dot LCD + RGB backlight Optional 4.3" high-resolution TFT touch display
ROM / flash memory
2 GB pSLC
Flash memory expansion as an option
SD memory card slot
USB memory stick slot
Interfaces

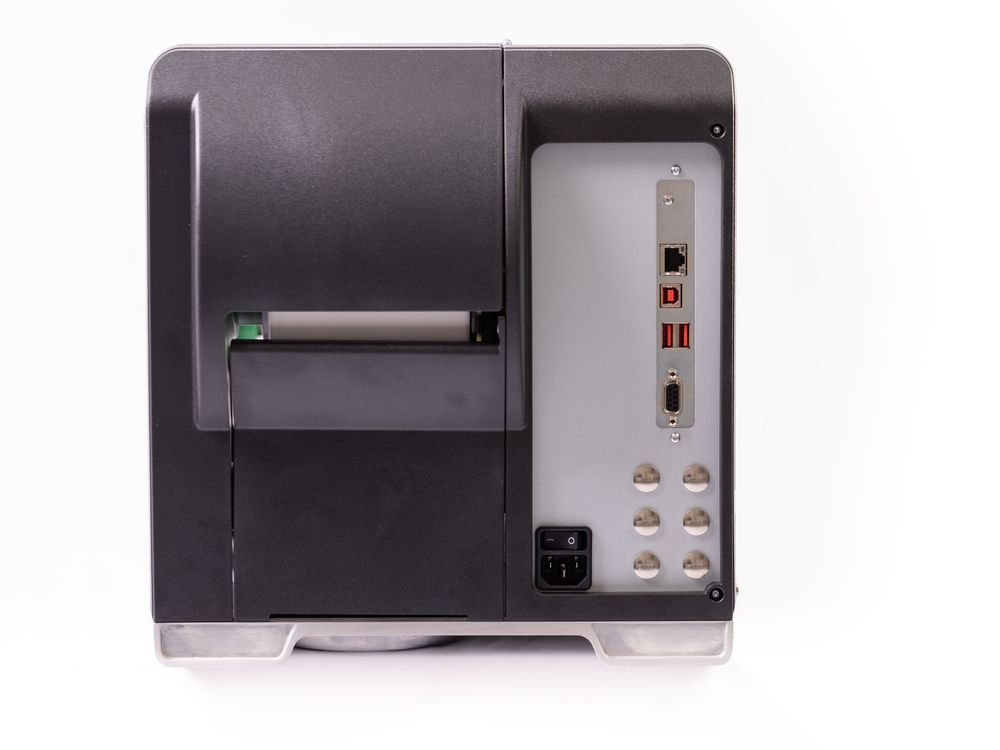

RS232, Ethernet IPv4, Ethernet IPv6, USB host dual, Applicator port, WLAN 802.11 a/b/g/n/ac (retrofit option)
Software
Programming language
Easyplug
Physical aspects
System dimensions (HxWxL)
330 x 377 x 496 mm
Weight
19.6 kg
Authorisations
CE
Ambient temperature
5 - 40°C
Rel. humidity non-condensing
20 - 85 %
Frequency
50 - 60 Hz
