Desktop label printer

SATO CLNX Plus

Smart, durable printers for the harshest environments

  • High print speed up to 254 mm/s
  • Plug-and-play installation and extended continuous operation

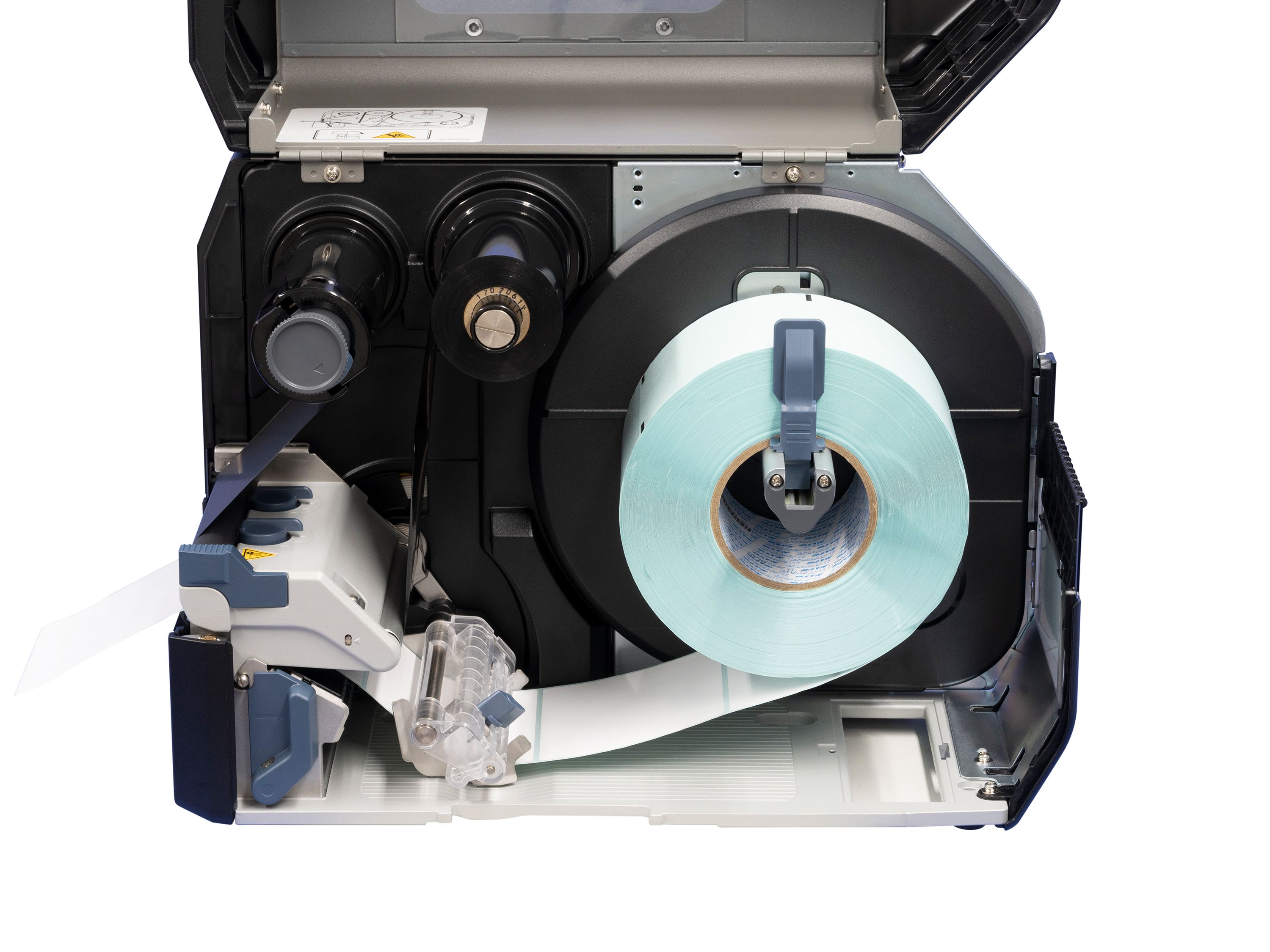

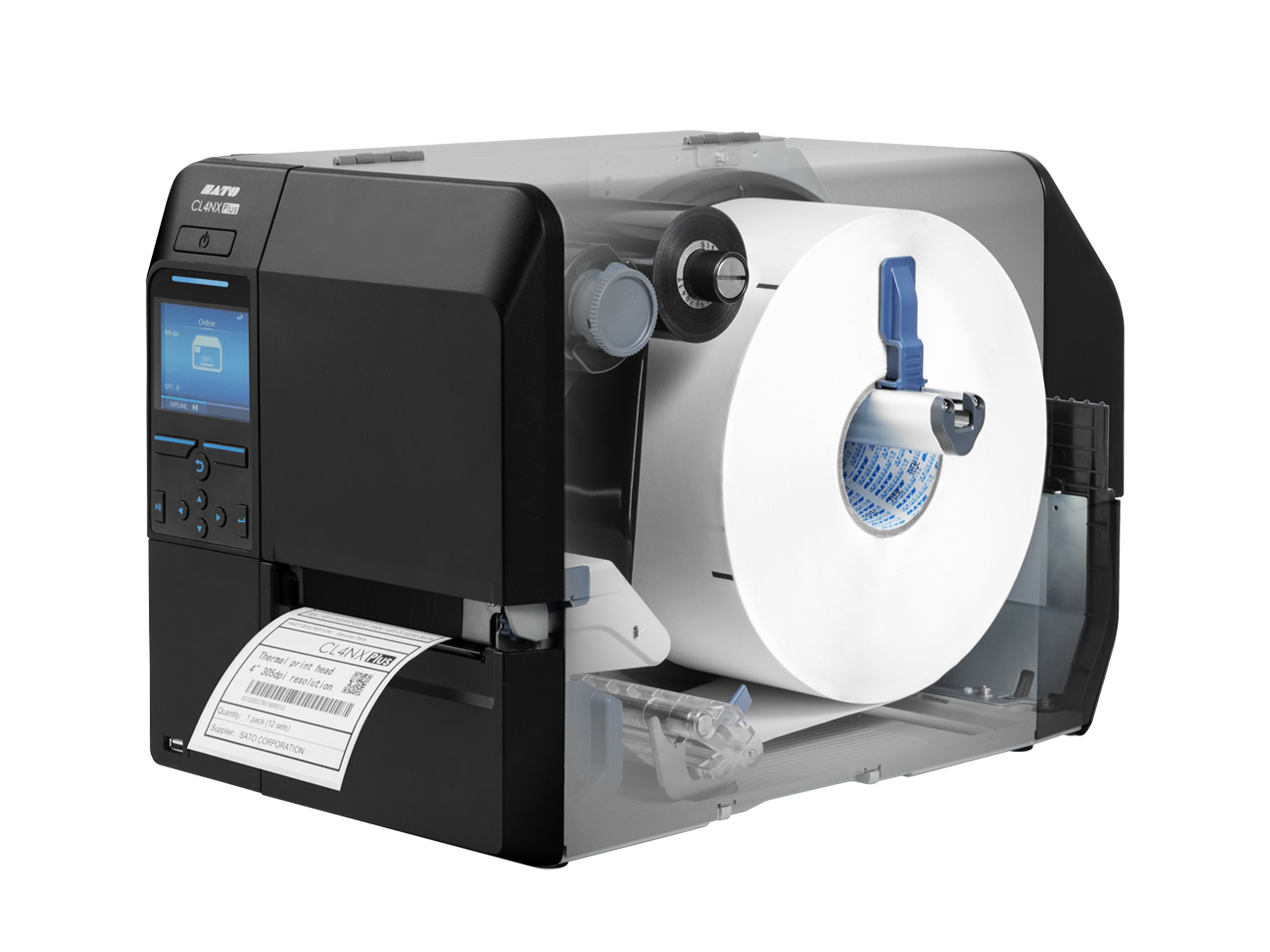

  • 80% higher media capacity
  • Best-in-class ribbon core

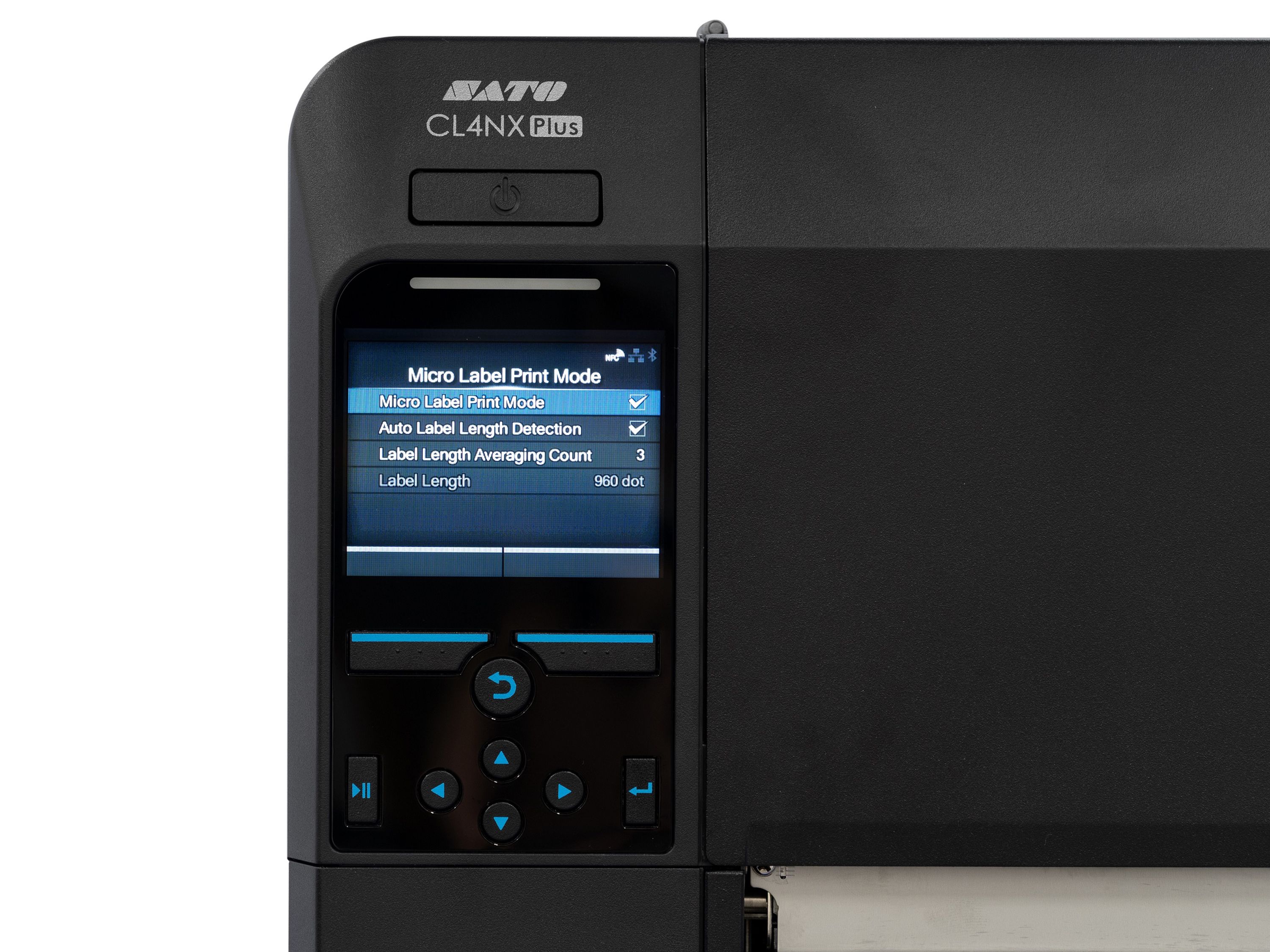

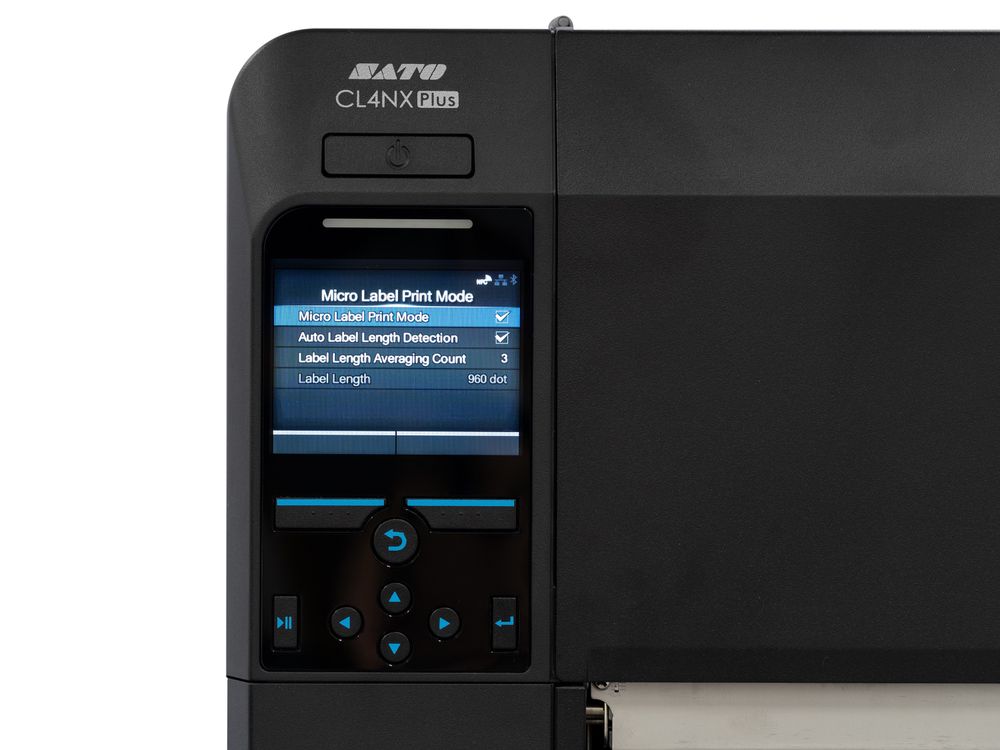

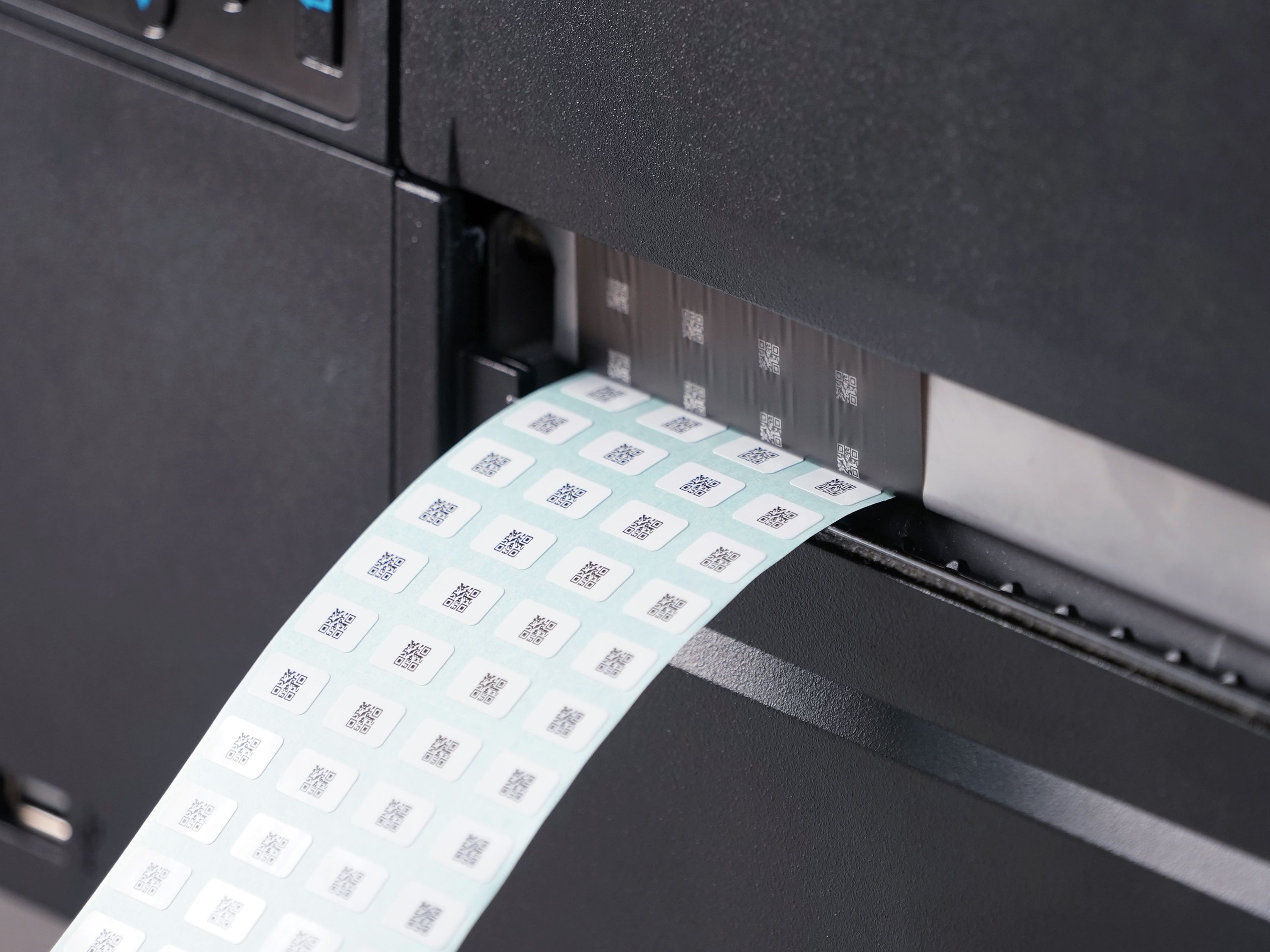

  • Increased precision for micro-label printing
  • Available as a 4-inch or 6-inch printer

Trailblazing industrial printers from SATO

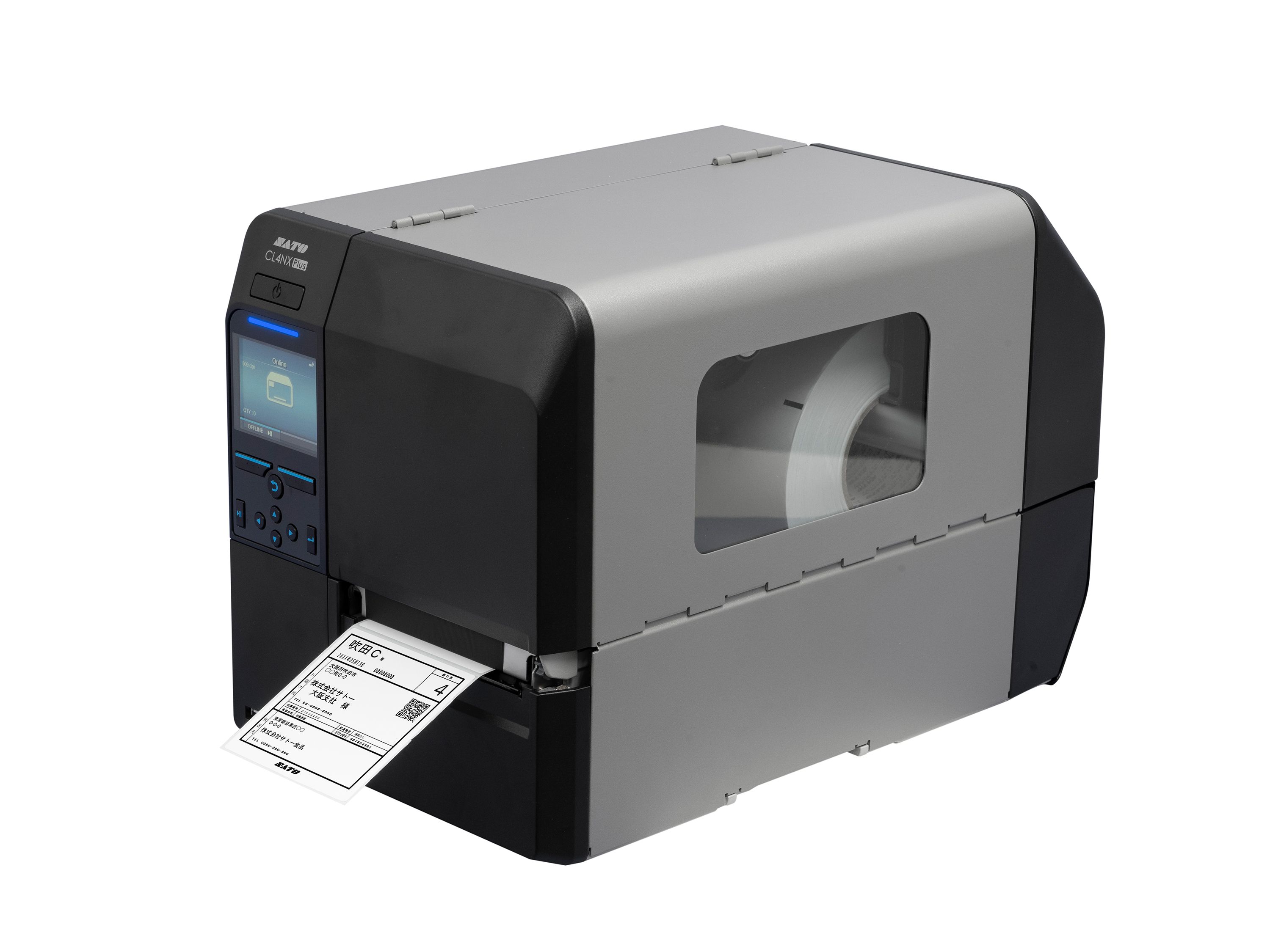

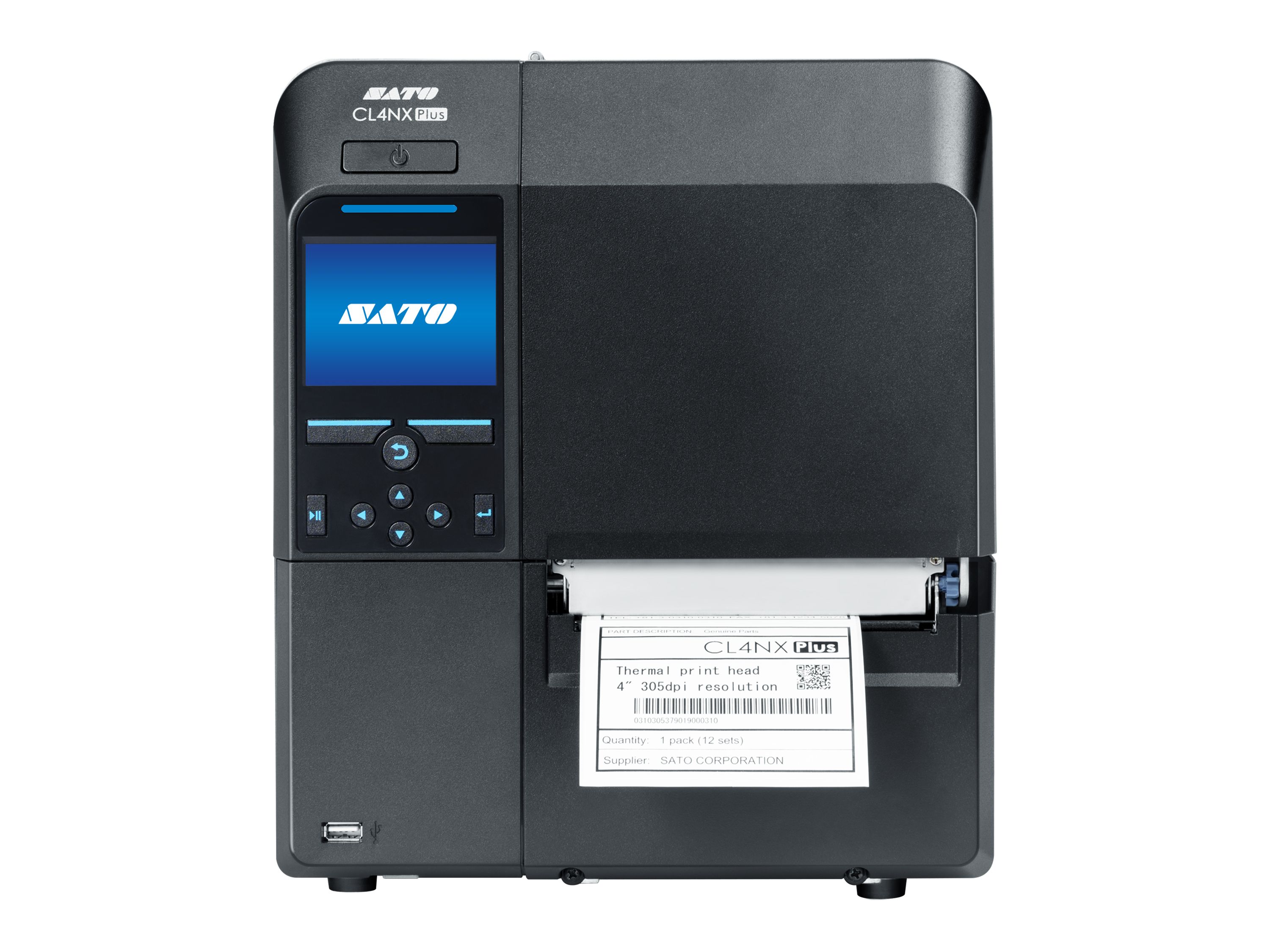

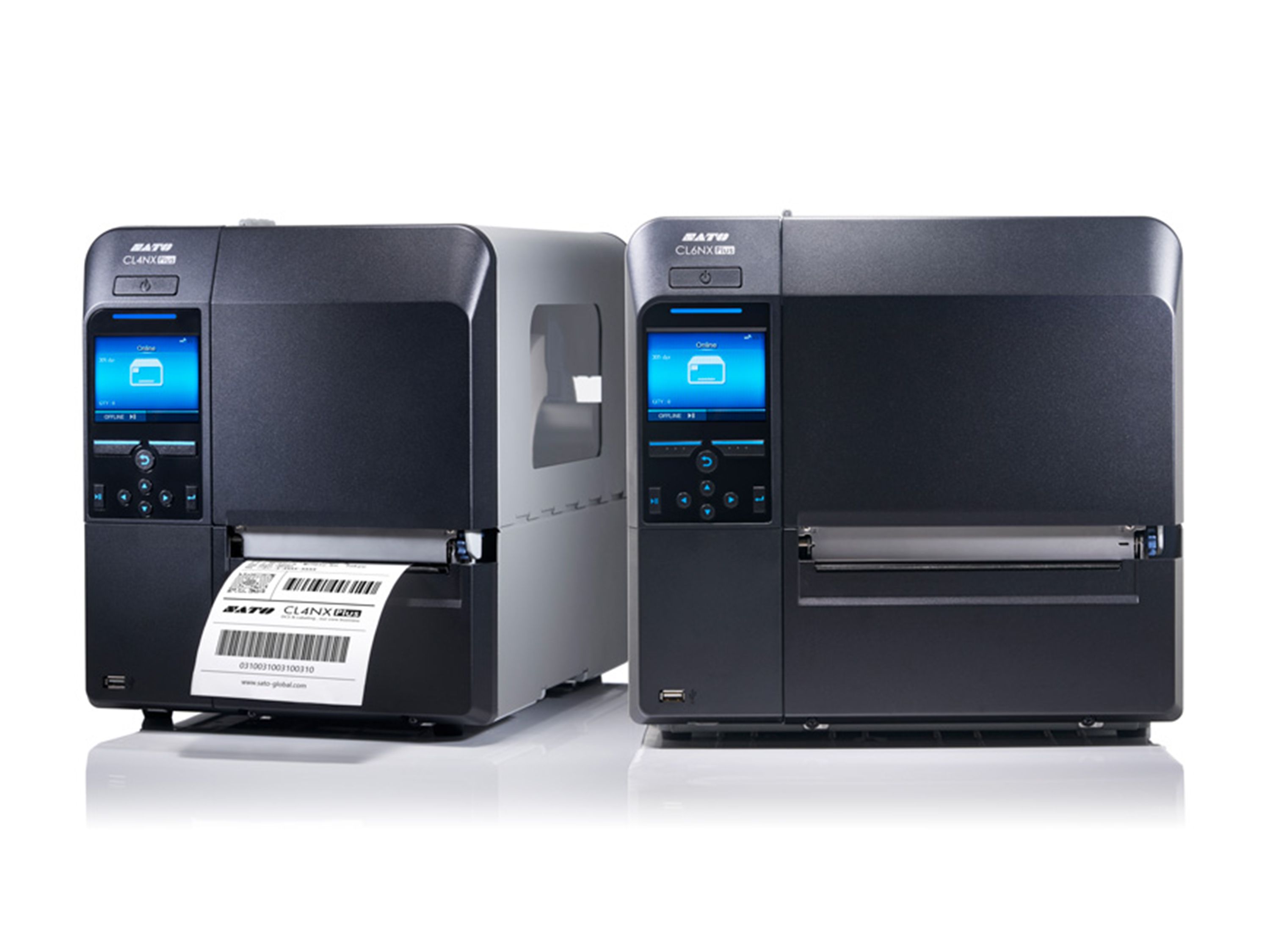

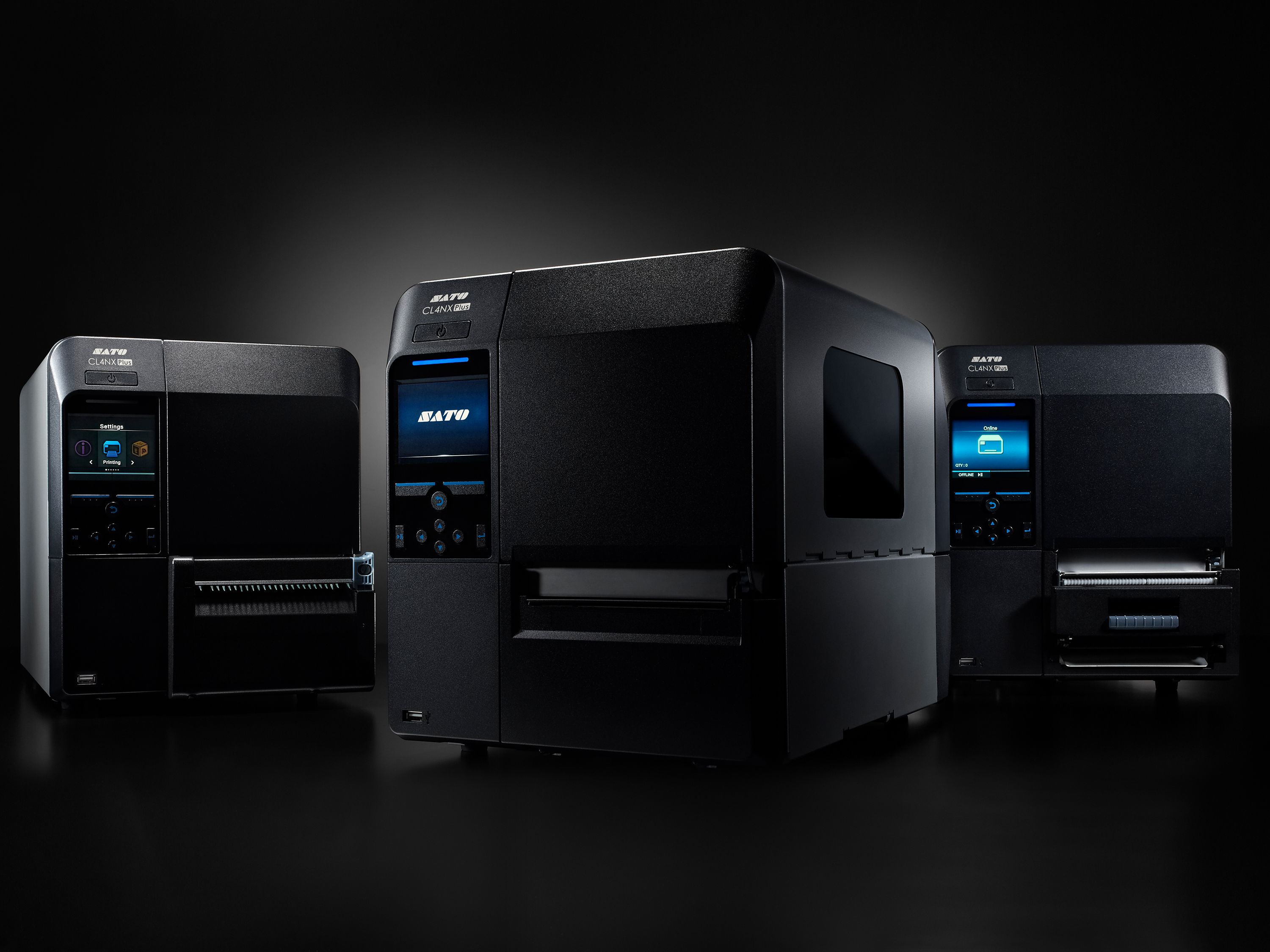

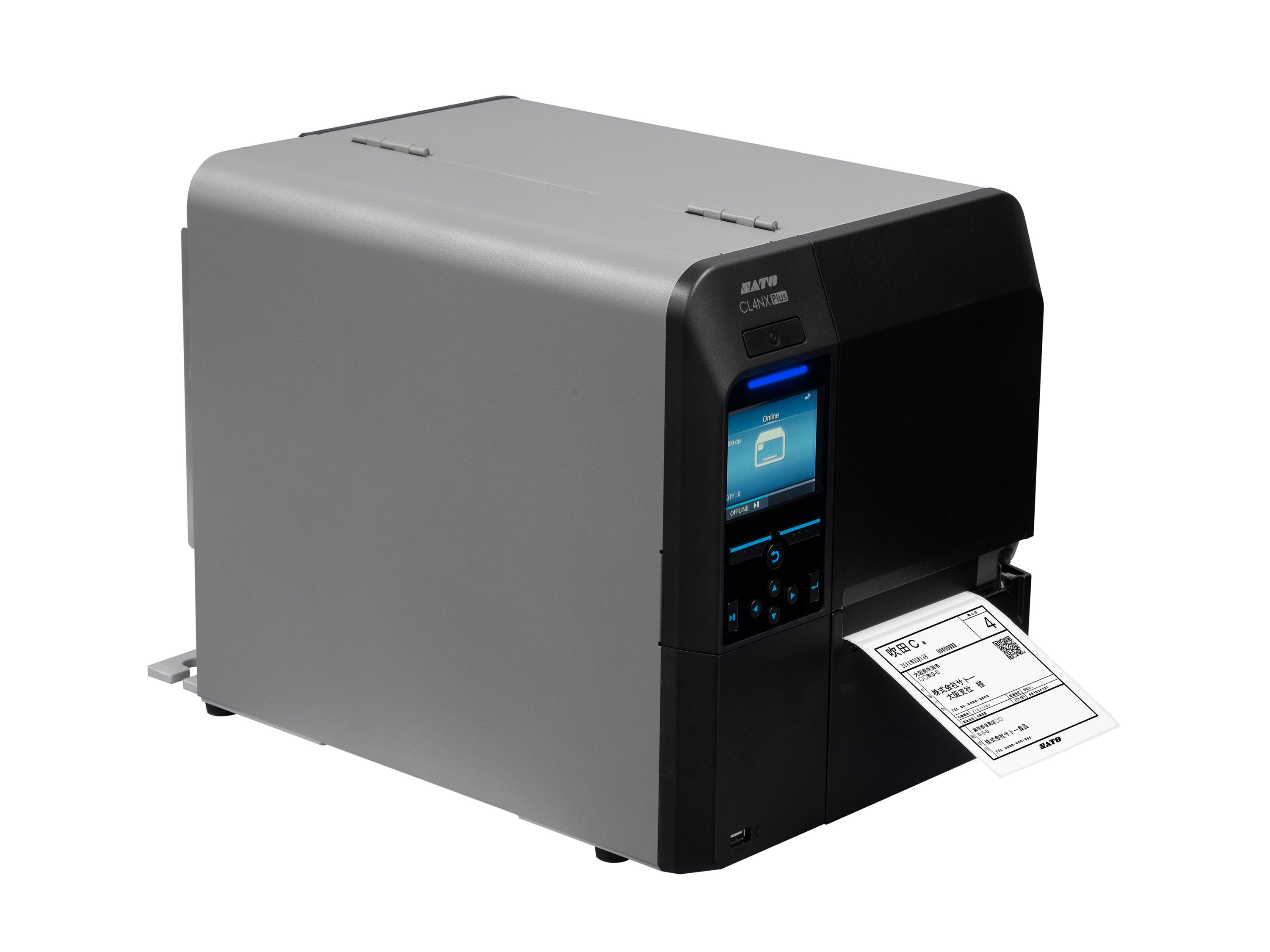

The SATO CL4NX Plus and CL6NX Plus industrial label printers are powerful solutions for demanding labeling tasks in production, logistics, and warehousing. Both models feature a rugged design, high print quality, and reliability.

The CL4NX Plus offers a print width up to 104 mm, while the CL6NX Plus handles even larger label formats up to 168 mm. With state-of-the-art thermal transfer and direct thermal technology, they deliver sharp, clear prints that impress even with complex designs. The intuitive interface and simple operation enable quick setup and maintenance, boosting productivity.

Both printers are equipped with extensive interfaces to ensure seamless integration into existing systems. They are extremely durable and designed for continuous use in industrial environments. The models support a wide variety of label materials and sizes, making them highly flexible.

With their advanced features and reliability, the SATO CL4NX Plus and CL6NX Plus are ideal partners for companies that rely on efficient, high-quality, and long-lasting labeling.

Special features

Real added value meets exclusive design

The device also shines with a color display and easy-to-follow video tutorials, which can be replaced with your own videos. Thanks to expanded media options, even smaller labels than before can be used. This not only reduces costs but also increases sustainability throughout the value chain.

AEP Technology (Application Enabled Printing)

AEP is powerful built-in intelligence that lets you tailor print processes to greatly simplify labeling and reduce operating costs. The technology supports smart-label printing by offering direct connection for input devices such as scanners, keyboards, and scales and enables autonomous printing without a PC or additional software. This results in faster label printing, fewer errors, and increased productivity.

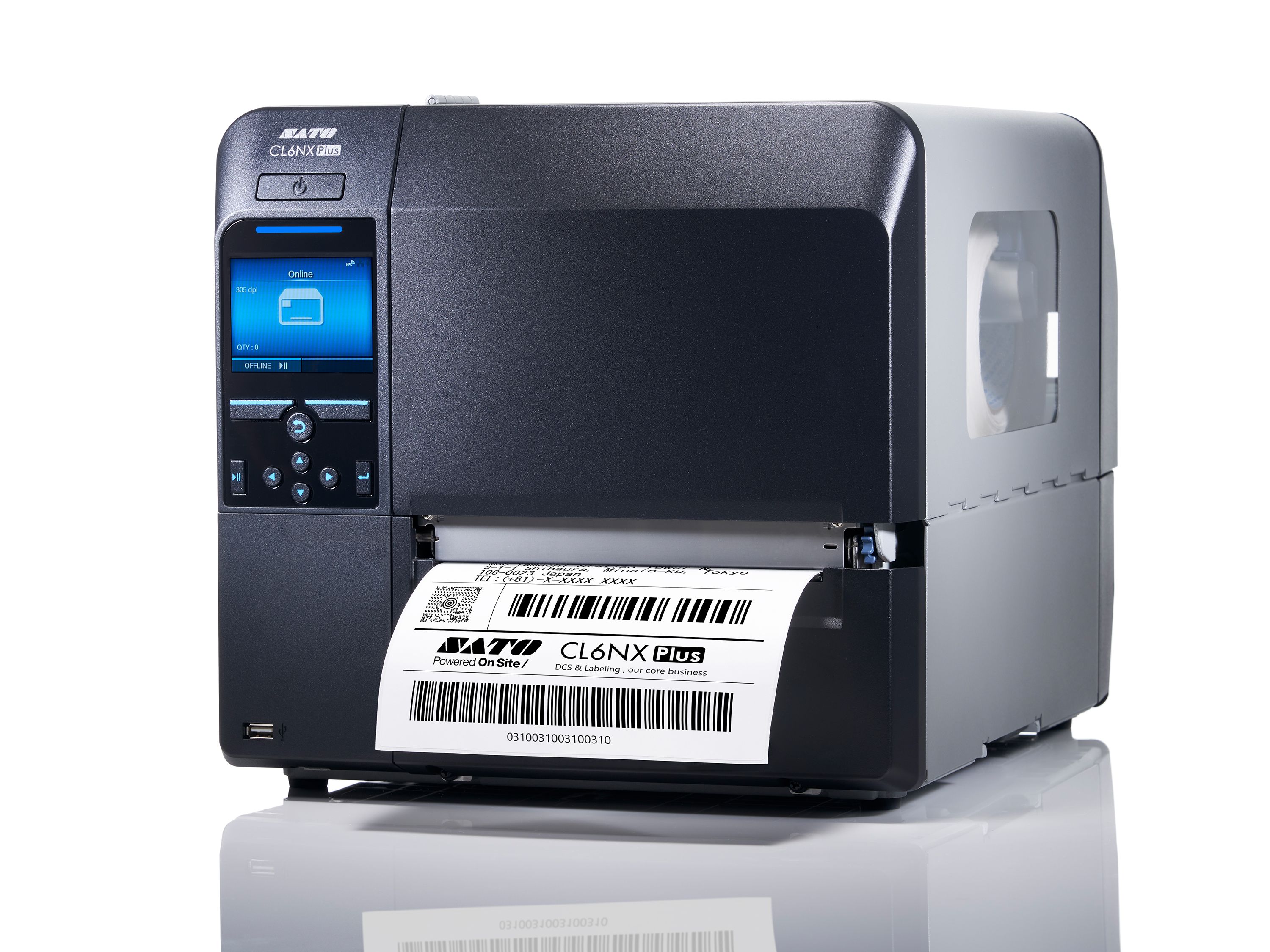

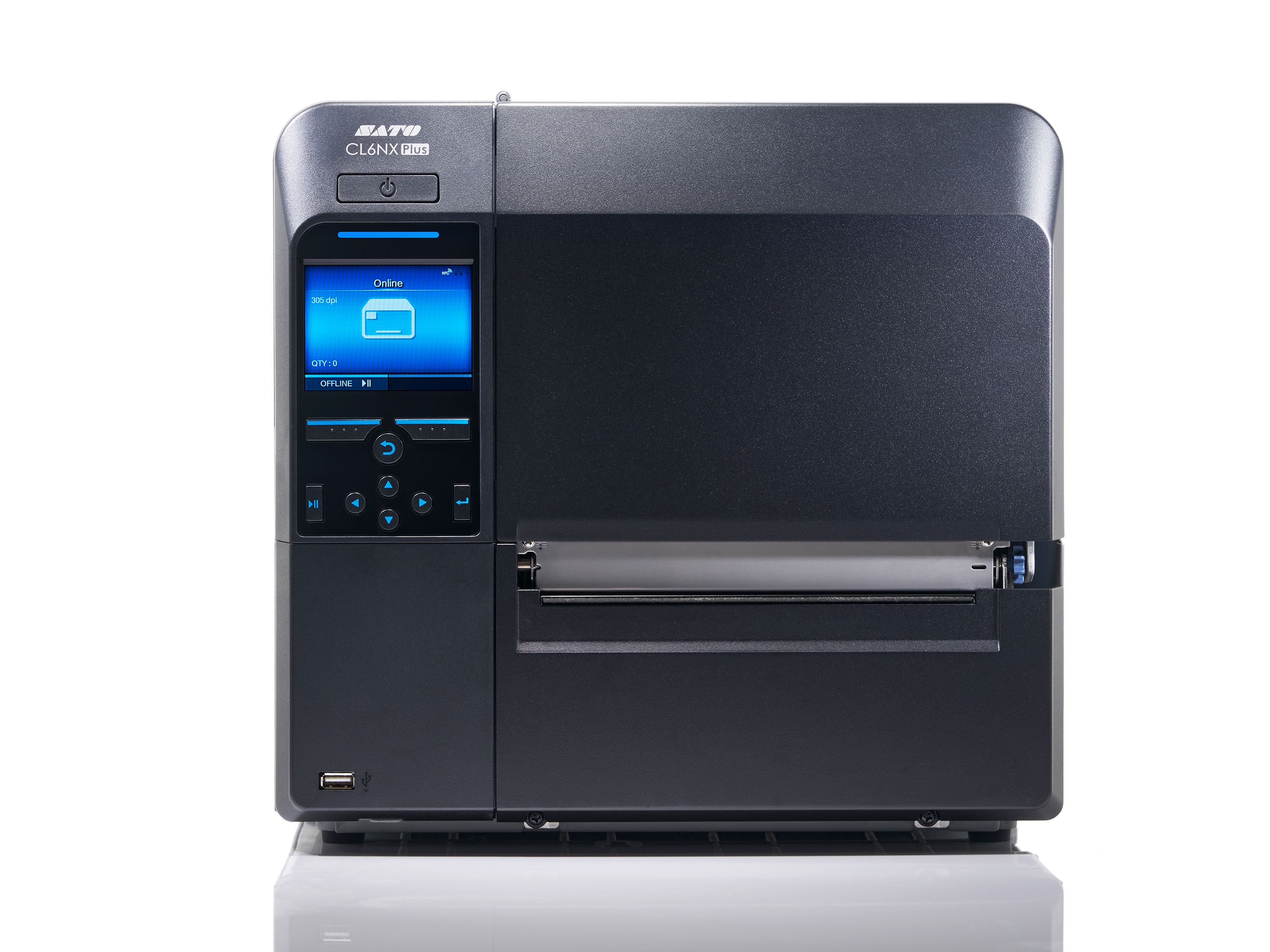

Groundbreaking 6-inch thermal printer CL6NX Plus

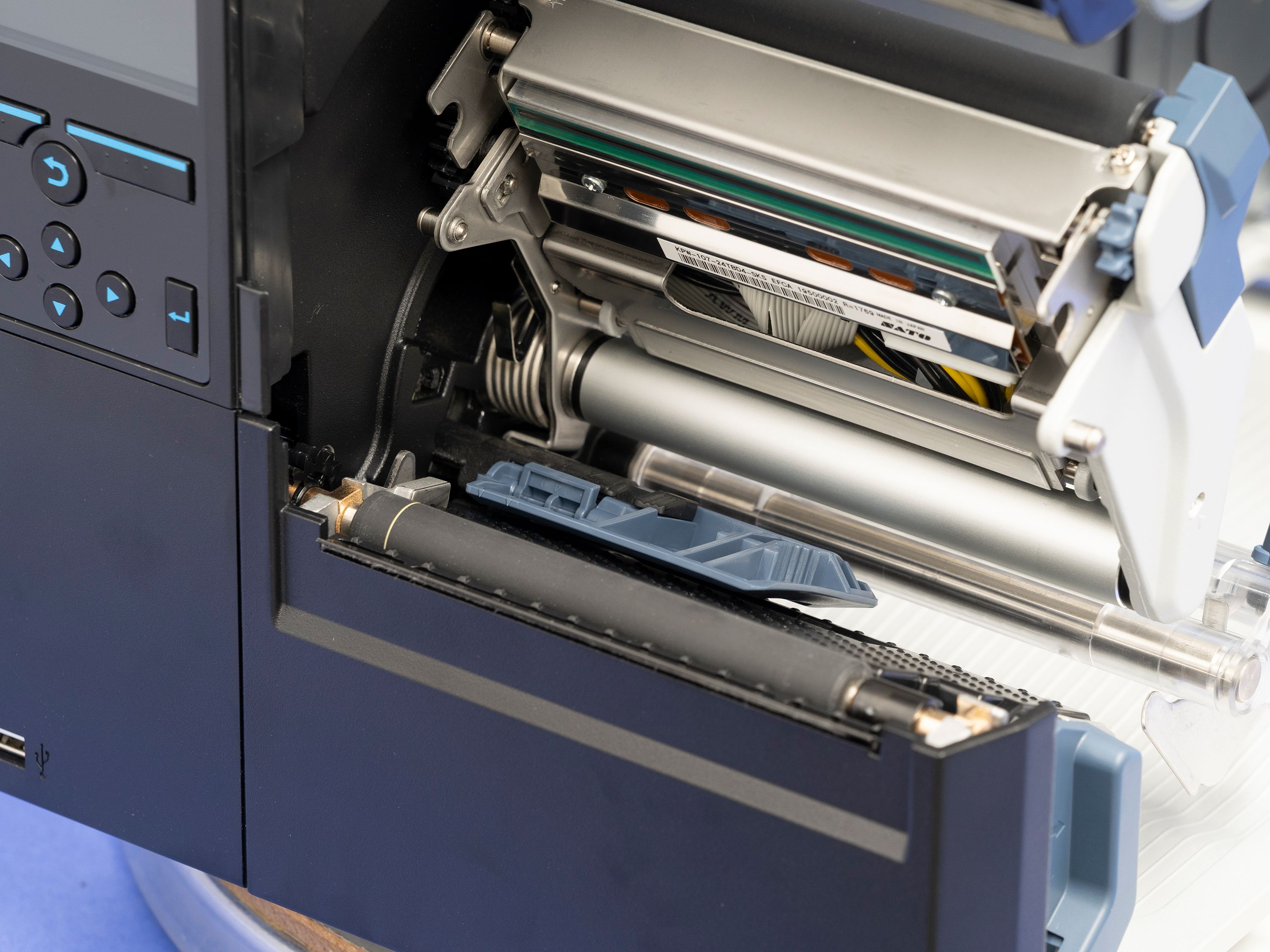

The new CL6NX Plus with improved print accuracy, intelligent printhead, and RFID capability provides customers on site with the performance and service they need to significantly boost efficiency. This industry-leading thermal printer was engineered to enhance track-and-trace processes across the global supply chain and to meet the requirements of both moderately demanding and high-end applications.

Technical specifications
Technical values
Label length
2497 mm
Printing process
Thermal transfer and thermal direct
Print width
167.5 mm
Printhead resolution
203 dpi, 305 dpi, 609 dpi
Print speed up to
355
Label width
22 - 177 mm
Features
Flash memory expansion as an option
PDF direct printing
Display
TFT full colour LCD, 3.5"(320 (RGB)
Printhead technology
Flathead
Emulations
SZPL (Zebra), SDPL (Datamax), TEC, Intermec
Programming language
SATO Progr. Language
ROM / flash memory
2GB + 4 MB
SD memory card slot
Print media
Material width max (labels and liner)
177 mm
Material width min (labels and liner)
22 mm
Maximum material thickness
0.26 mm
Ribbon
Width
39.5 - 177 mm
Inner core diameter
25.4 mm
Maximum length
600 linear meters
Winding
Inside (standard) Outside (standard)
Physical aspects
Printer dimensions (HxWxL)
321 mm x 338 mm x 457 mm
Weight
20 kg
Authorisations
CE
Rel. humidity non-condensing
30 - 80 %
Ambient temperature
0 - 40°C
Supply voltage
100 - 240 V
Frequency
50 - 60 Hz
