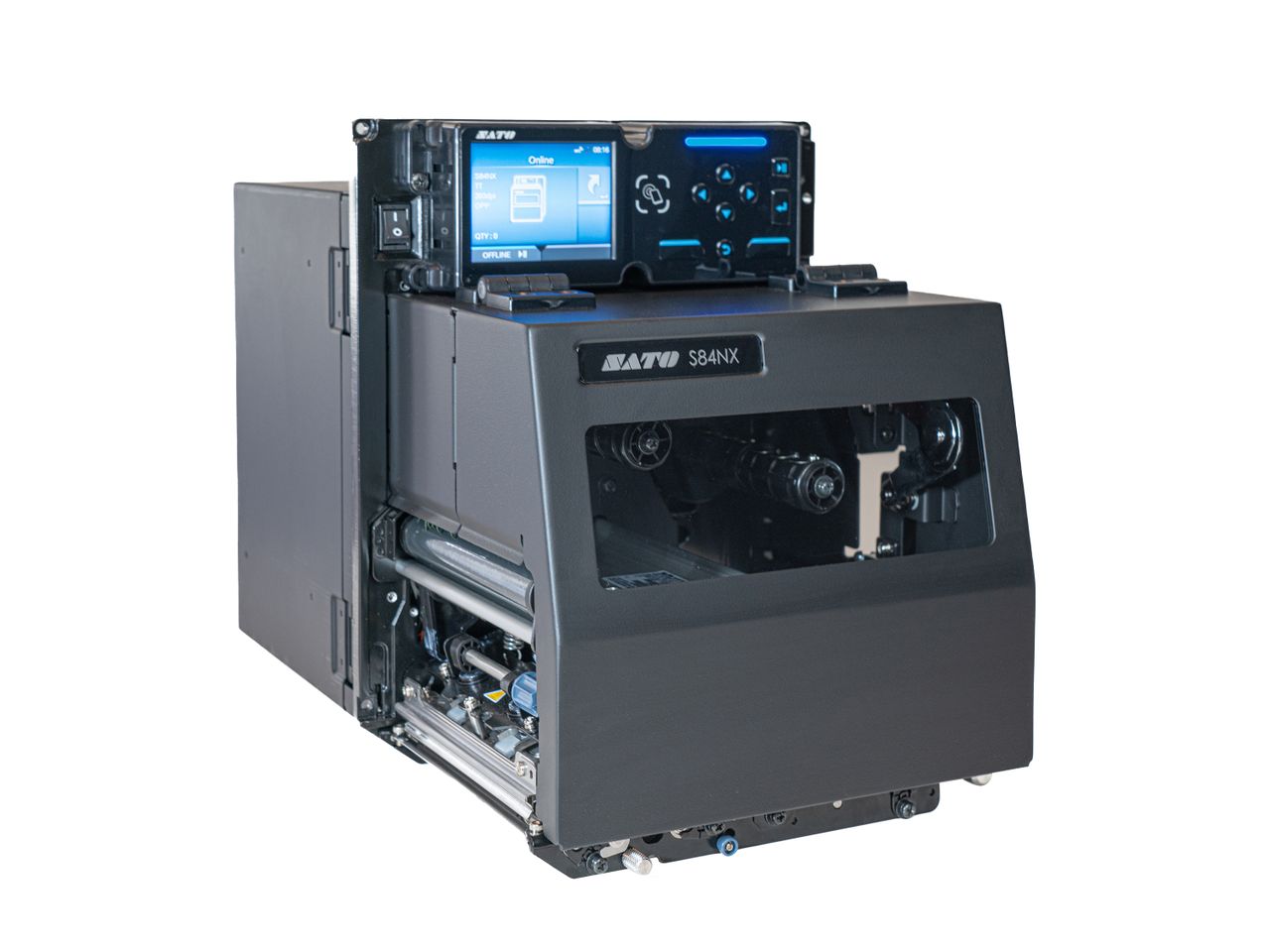

Label print engine

Sato S84NX

Precise, fast and reliable industrial printing

High print resolution up to 609 dpi
4" module - print width up to 104 mm
Fast print speed optimised for industrial requirements
Robust design for reliable 24/7 continuous operation
Easy maintenance - tool-free replacement of wearing parts
RFID option available

The SATO S84NX is a high-performance print module for industrial applications that impresses with its precision, reliability and high print speed. With a resolution of up to 609 dpi, it delivers razor-sharp labels and barcodes for use in logistics, manufacturing and retail. Thanks to its robust construction, the S84NX is designed for continuous operation under demanding conditions. The user-friendly user interface with large LCD display enables easy operation and maintenance. Flexible connection options, including USB, Ethernet and serial interfaces, facilitate integration into existing systems. In addition, innovative functions such as automatic printhead diagnostics and tool-free maintenance minimise downtime. With RFID options and intelligent remote monitoring, the SATO S84NX is a future-proof solution for efficient labeling processes.

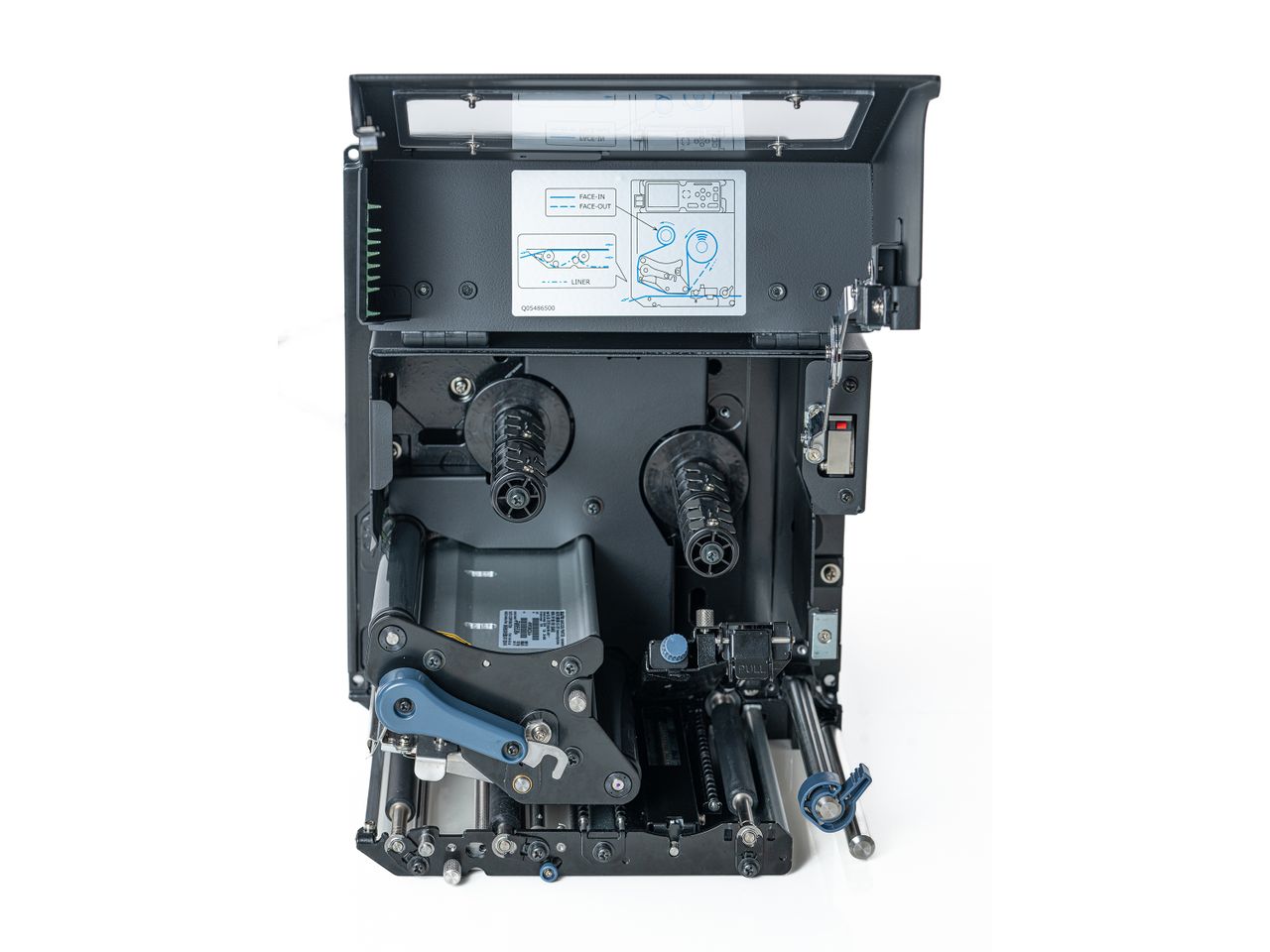

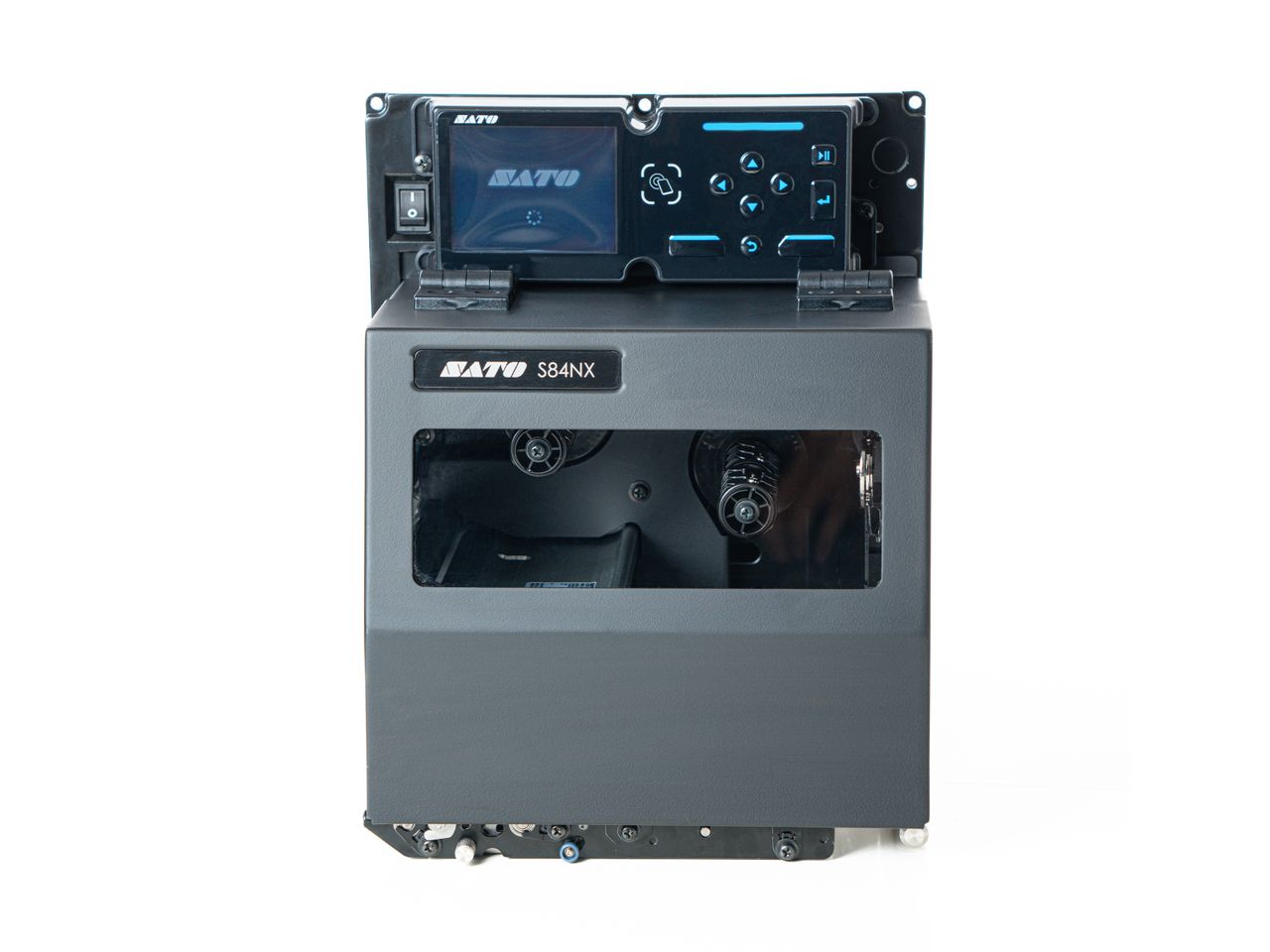

The SATO S84NX impresses with its intuitive operation via a large LCD display and multilingual support. The simple menu navigation facilitates settings, troubleshooting and maintenance work. In addition, tool-free maintenance enables the printhead and roller to be replaced quickly, minimising downtime.

With a print resolution of up to 609 dpi, the S84NX delivers razor-sharp labels and barcodes. The advanced printing technology ensures precise edges and consistent print quality, even with small fonts and complex graphics. This makes the printer ideal for applications in logistics, production and retail where precise labeling is required.

The S84NX offers flexible connection options, including USB, Ethernet and serial interfaces, to ensure seamless integration into existing systems. In addition, the printer supports modern industrial protocols and can be combined with IoT functions for remote monitoring to ensure optimal control and maintenance.

Thanks to the optional RFID function, the S84NX is ideally equipped for future requirements. RFID technology enables the efficient printing and coding of smart labels for improved traceability and inventory control. Together with intelligent diagnostic functions and a long service life, the S84NX offers a sustainable and future-proof labeling solution.

Technical specifications

Printing specifications

Printing process

Thermal transfer, Thermal direct, RFID

Print width

104 mm

Print length max.

2,500 mm

Printhead resolution

203 dpi, 305 dpi, 609 dpi

Print speed up to

406 mm/sec

Printhead technology

Flathead

PDF direct printing

Print media

Material thickness

0.05 - 0.31 mm

Ribbon

Ribbon width

25 - 128 mm

Core diameter

25 mm

Maximum length

600 linear meters for width over 39.5 mm

Winding

Inside (standard) Outside (standard)

Hardware

Display

3.5" colour TFT

Flash memory expansion as an option

–

SD memory card slot

–

USB memory stick slot

Interfaces

RS232, USB, USB host dual, Ethernet IPv4, WLAN 802.11 a/b/g/n/ac (retrofit option)

Software

Emulations

SZPL (Zebra), SDPL (Datamax), TEC, Intermec

Programming language

SBPL

Physical aspects

System dimensions (HxWxL)

300 x 245 x 408 mm

Weight

12.7 kg

Authorisations

CE

Ambient temperature

-5 - 40°C

Rel. humidity non-condensing

15 - 85 %

Supply voltage

100 - 240 V

Frequency

50 - 60 Hz
