Desktop label printer

Zebra ZD200

Reliable desktop printers with essential features

  • Print speed up to 152 mm/s
  • Affordable entry models with high-quality build
  • Wireless connectivity options
  • Large memory for fonts and graphics
  • Easy media changes and larger ribbon roll
  • Simple to install and ready to use immediately

Everything you need — at an affordable price

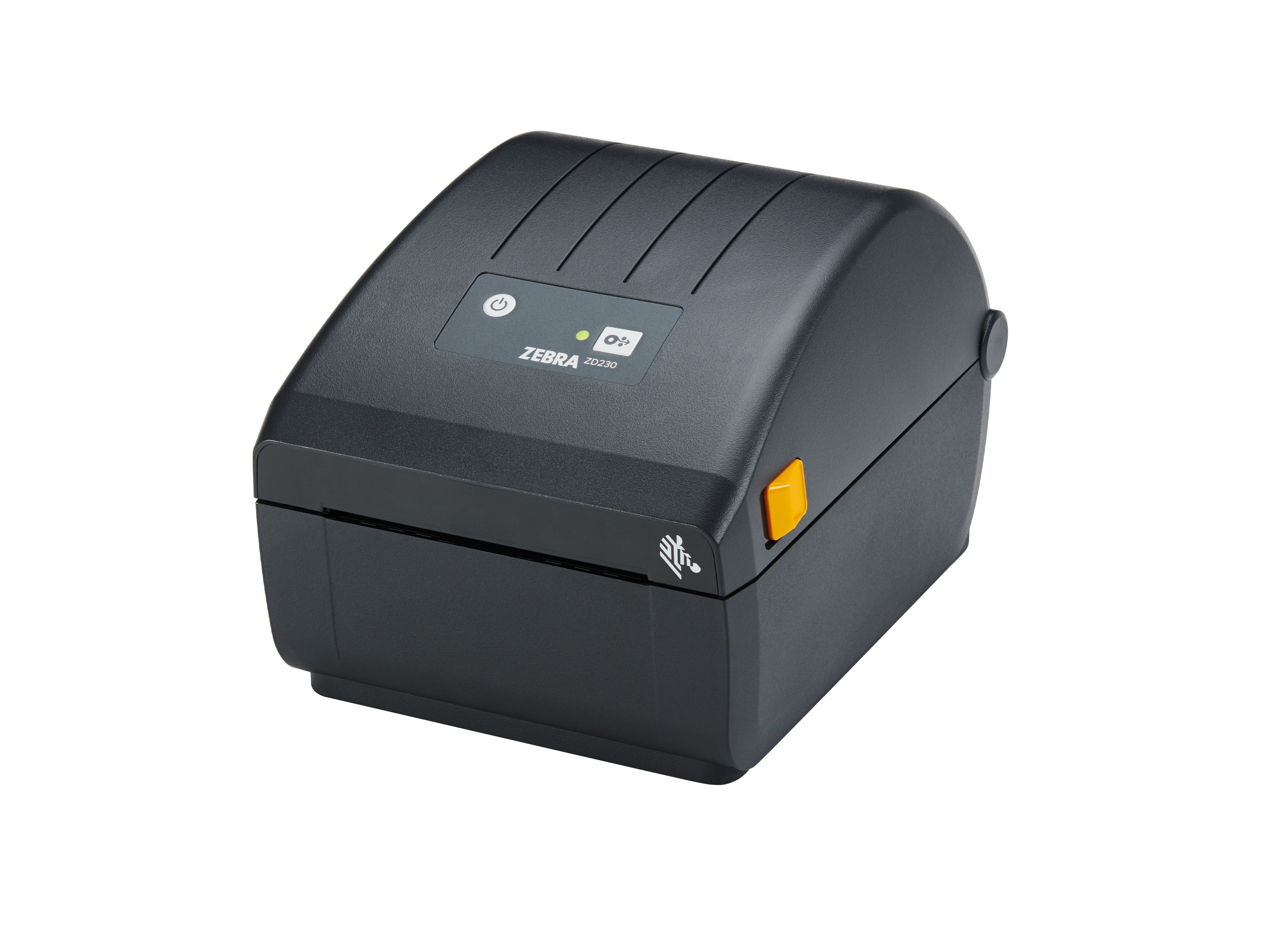

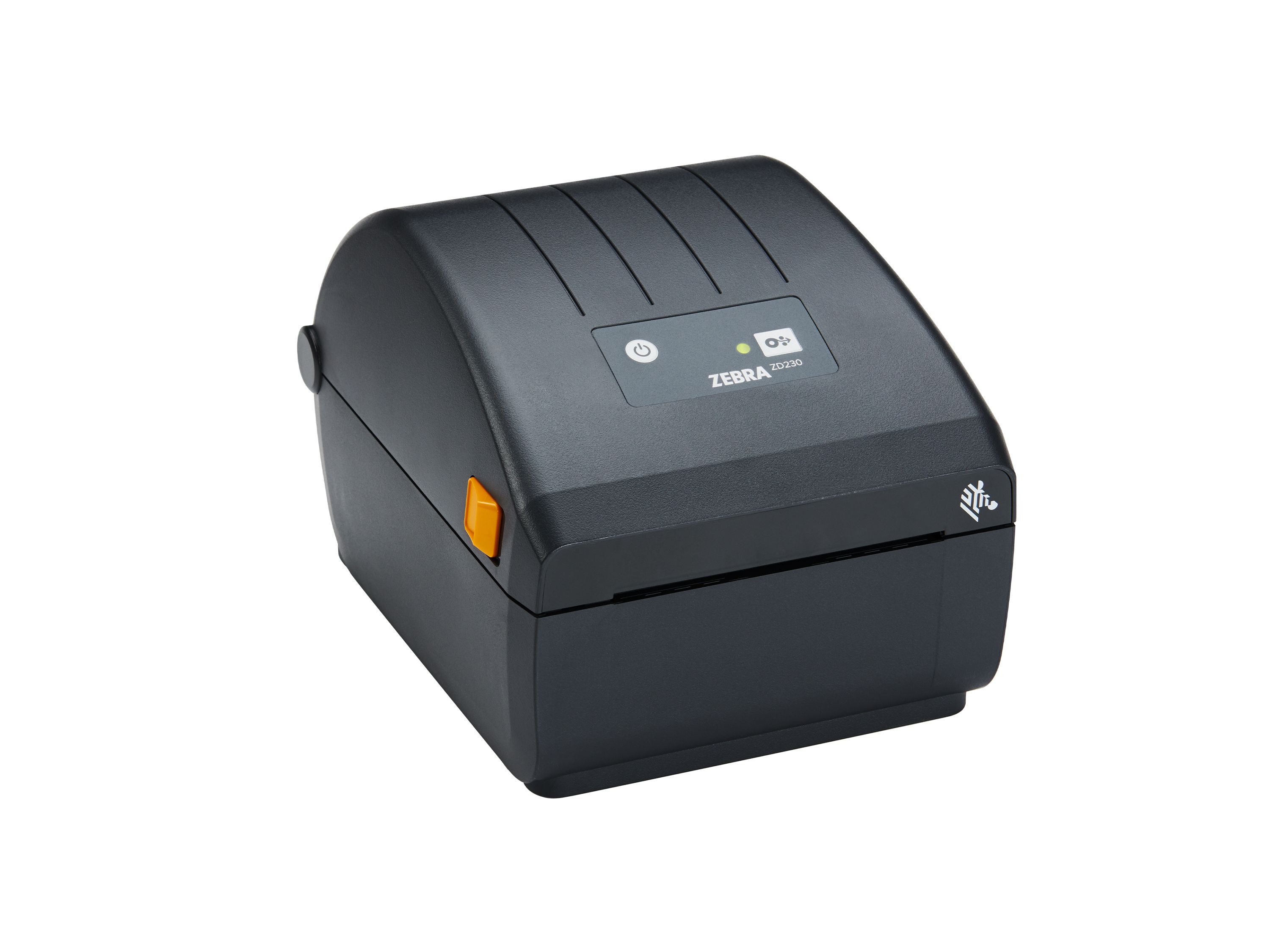

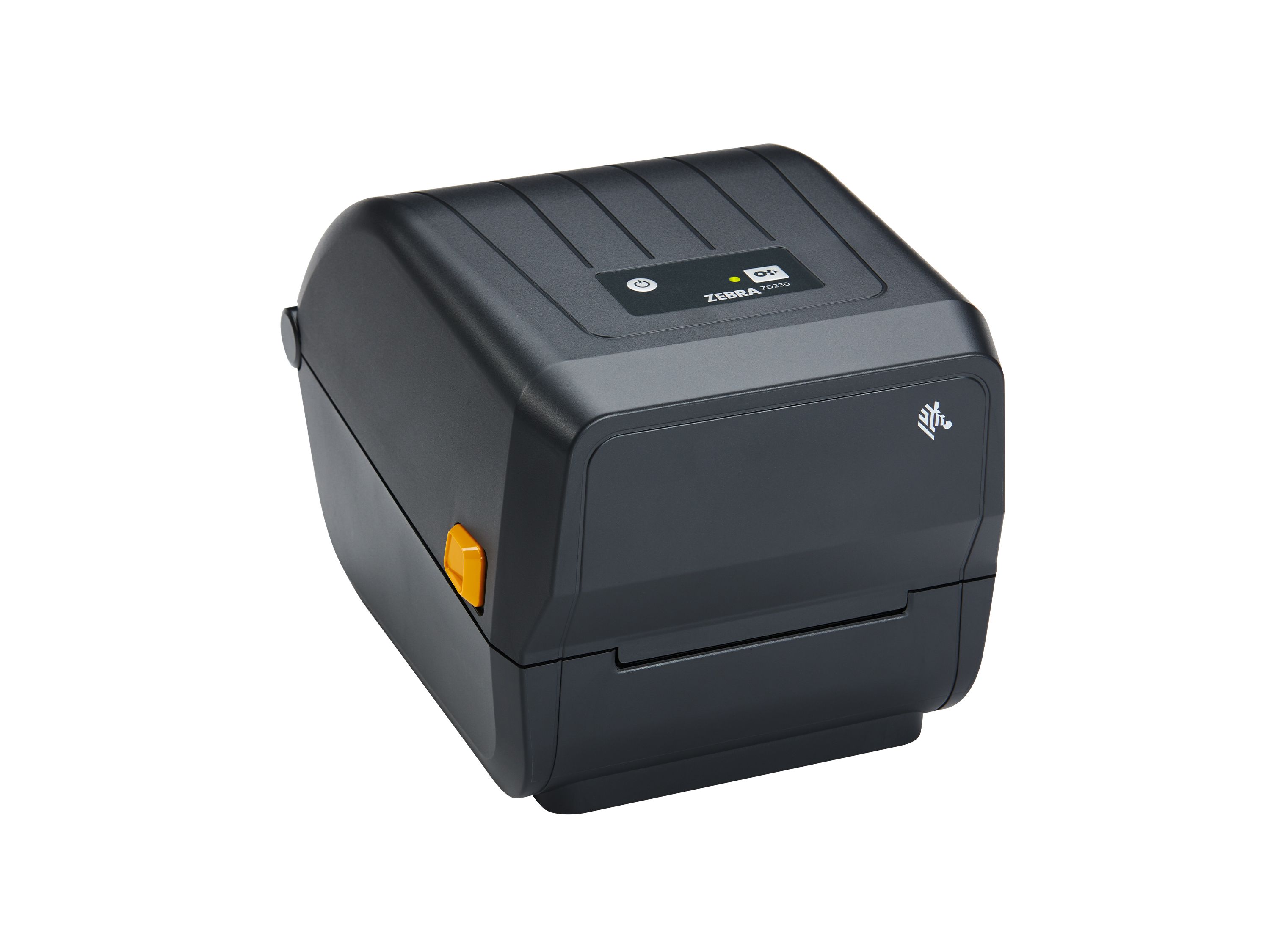

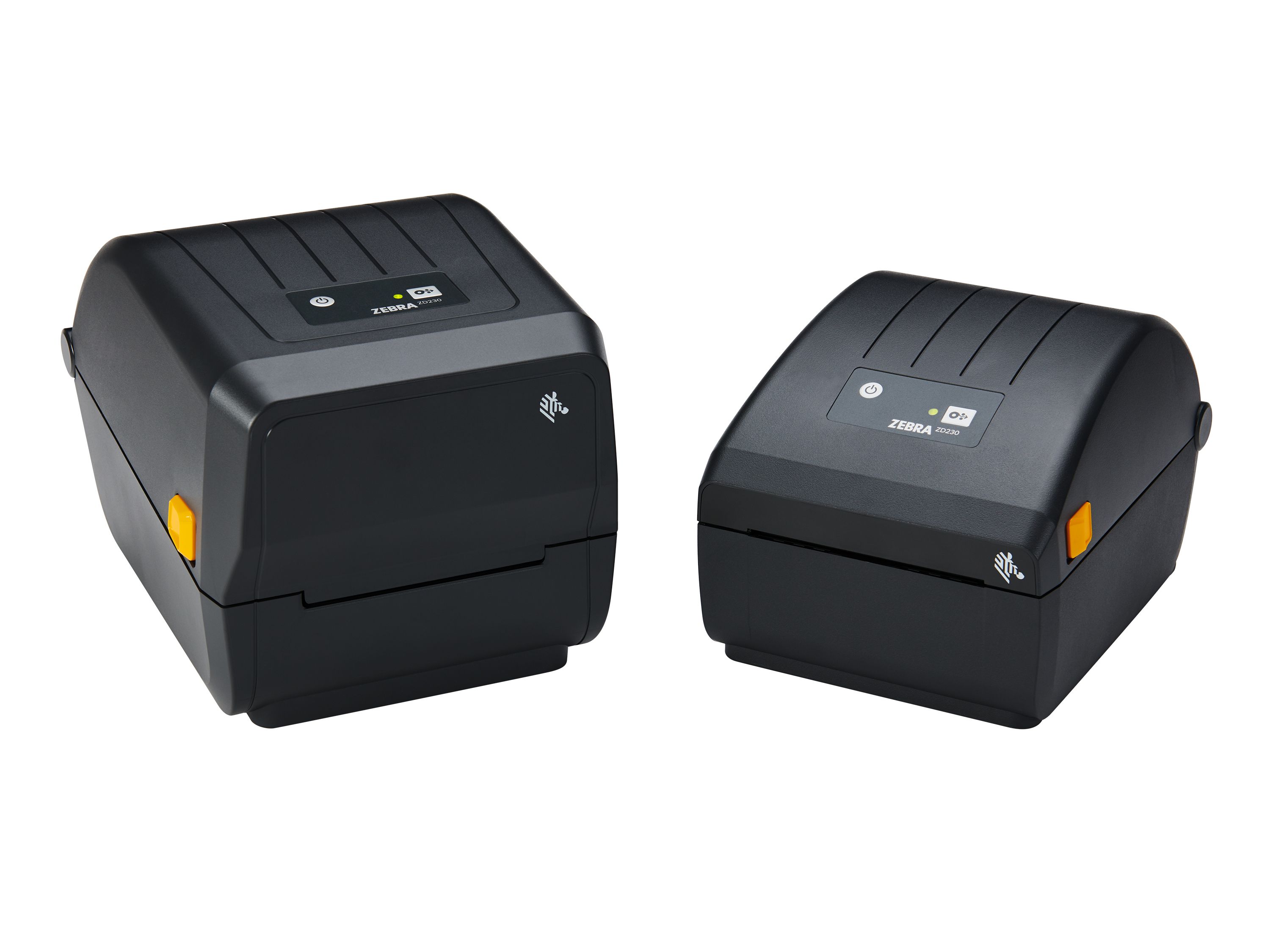

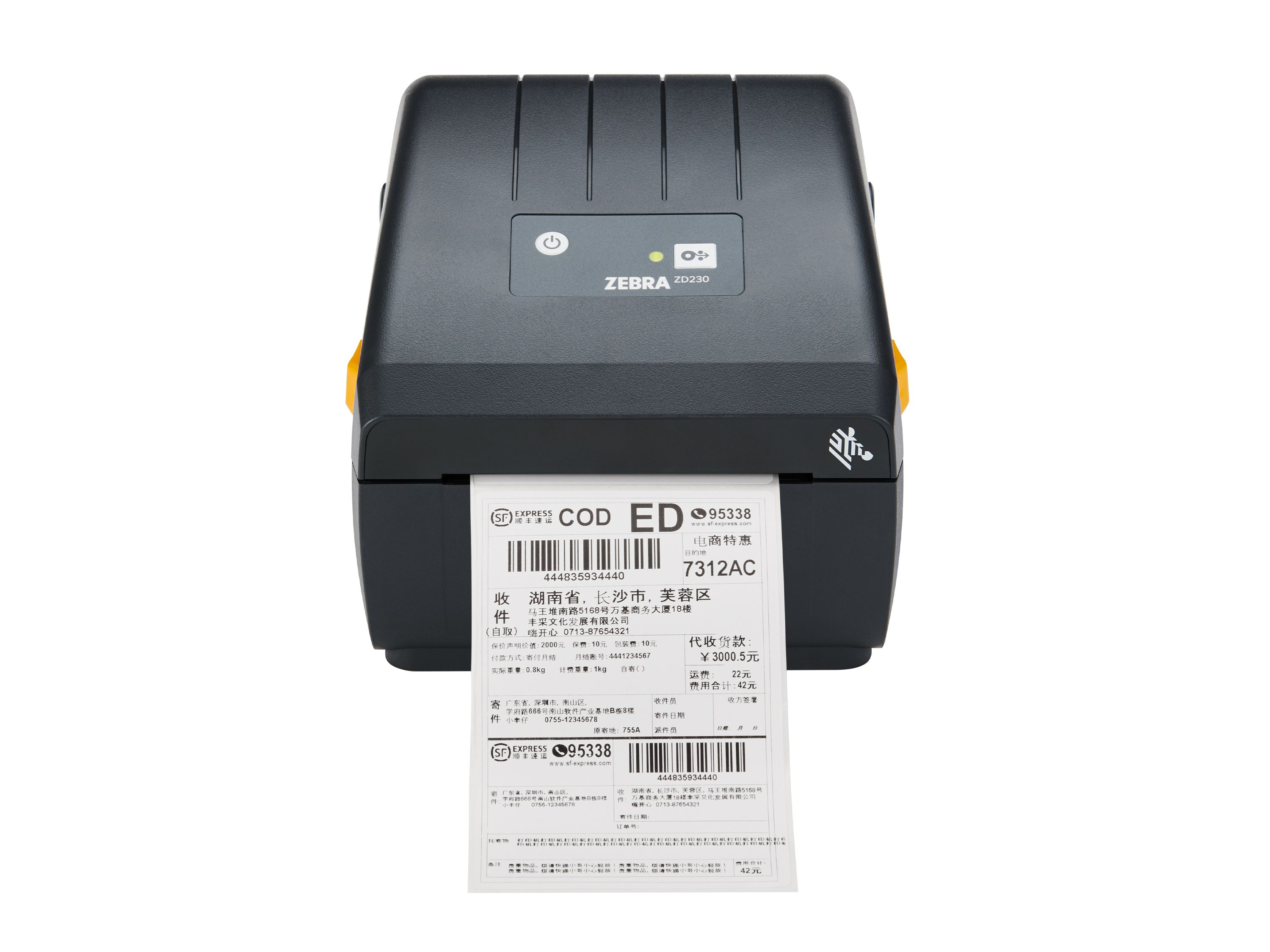

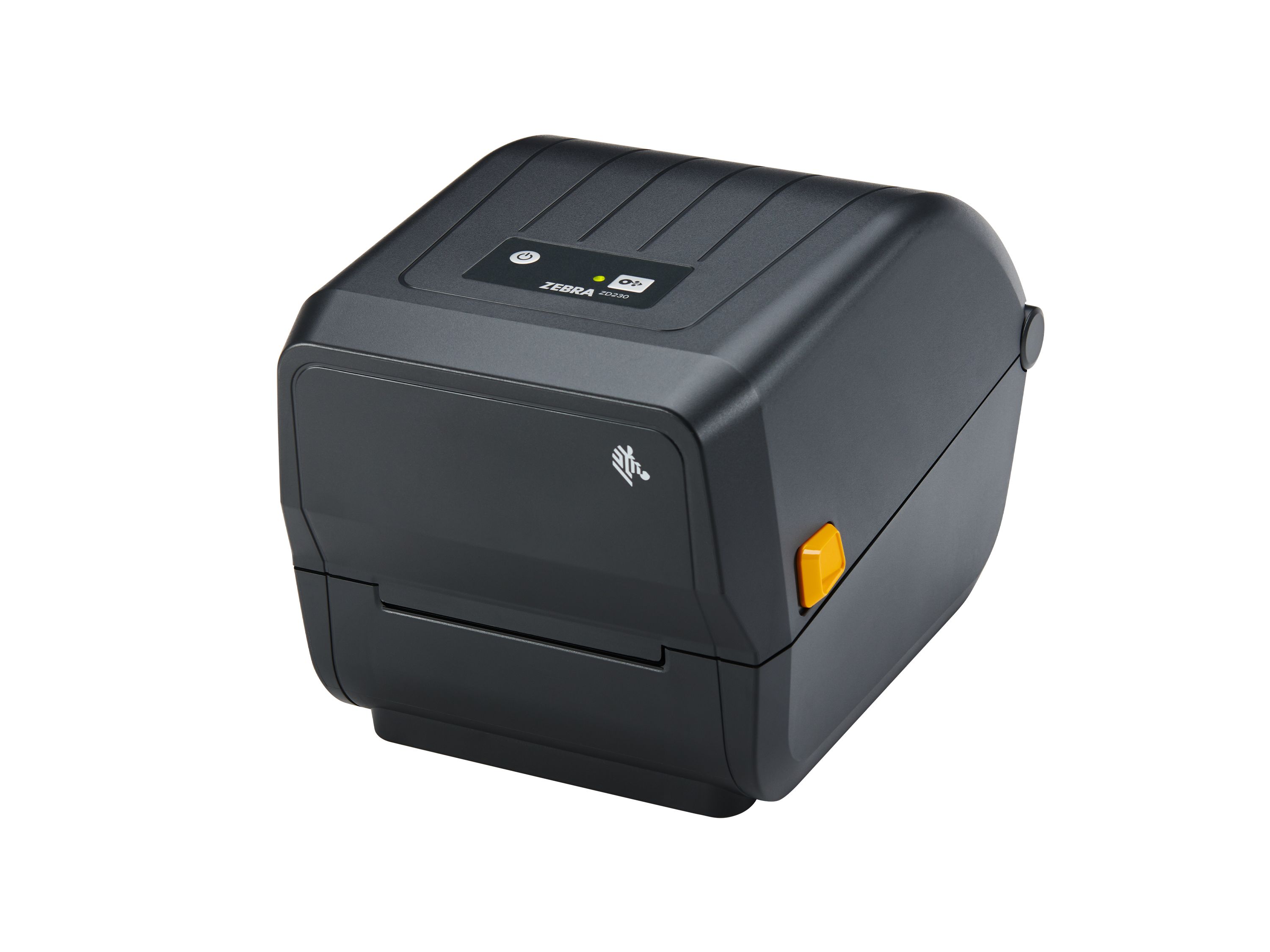

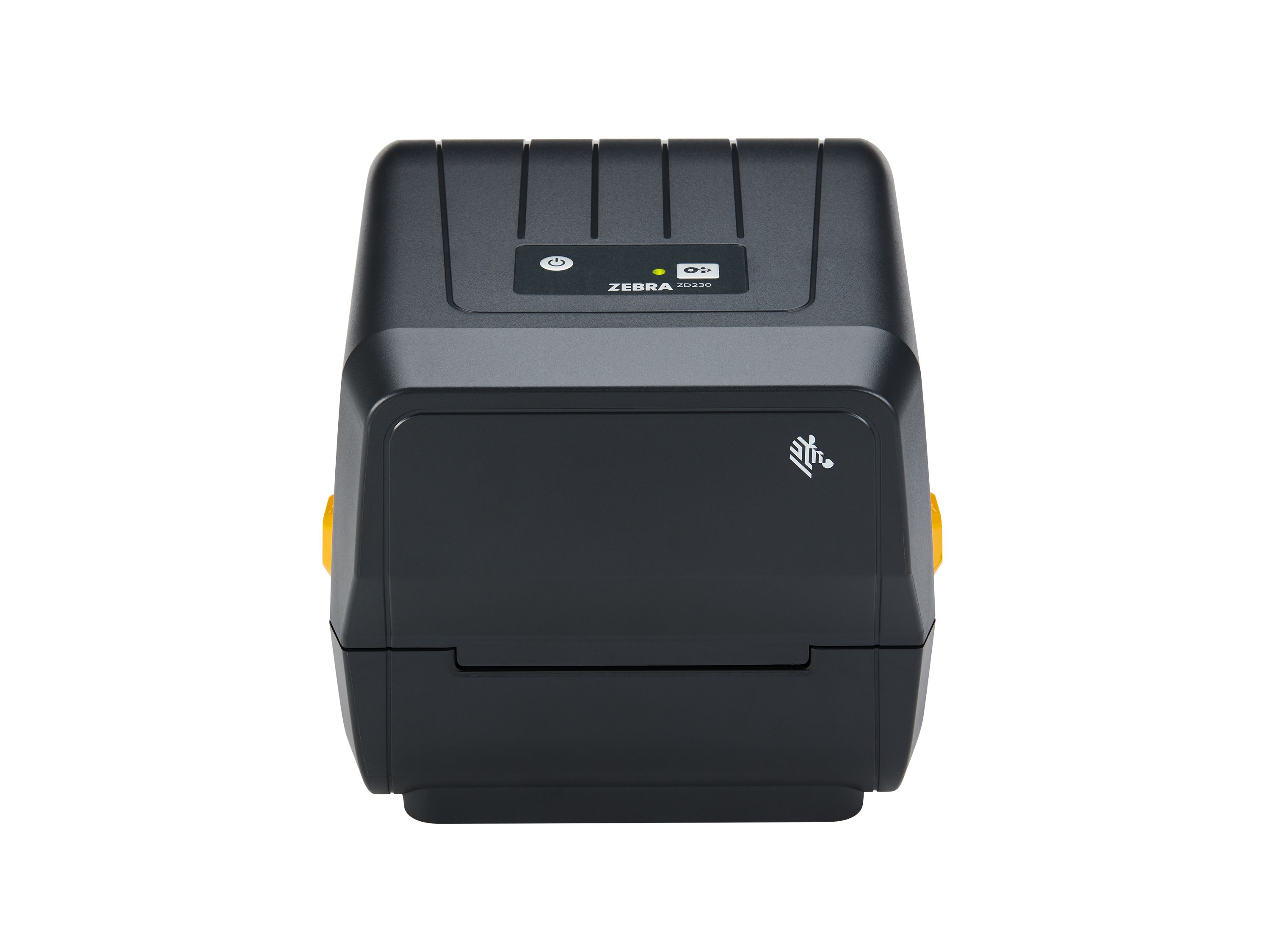

The Zebra ZD200 printer series stands for the reliable and user-friendly 4-inch printers ZD220 and ZD230, ideal for small to medium print jobs. The ZD230 features a faster print speed.

With their compact design, the printers fit perfectly into any workspace. At the same time, they offer fast print speeds, easy setup, and durable performance. The printers are ideal for use in transportation and logistics, light industry, retail, and healthcare, where they can produce a wide range of tickets, tags, badges, labels, and receipts.

The dual-wall construction delivers Zebra’s typical quality. Wireless connectivity options enable connected remote printing. Both models provide a cost-effective label printing solution that brings efficiency and quality to your daily work. You can choose between a direct thermal and a thermal transfer model, and optionally select a factory-installed label dispenser.

Applications

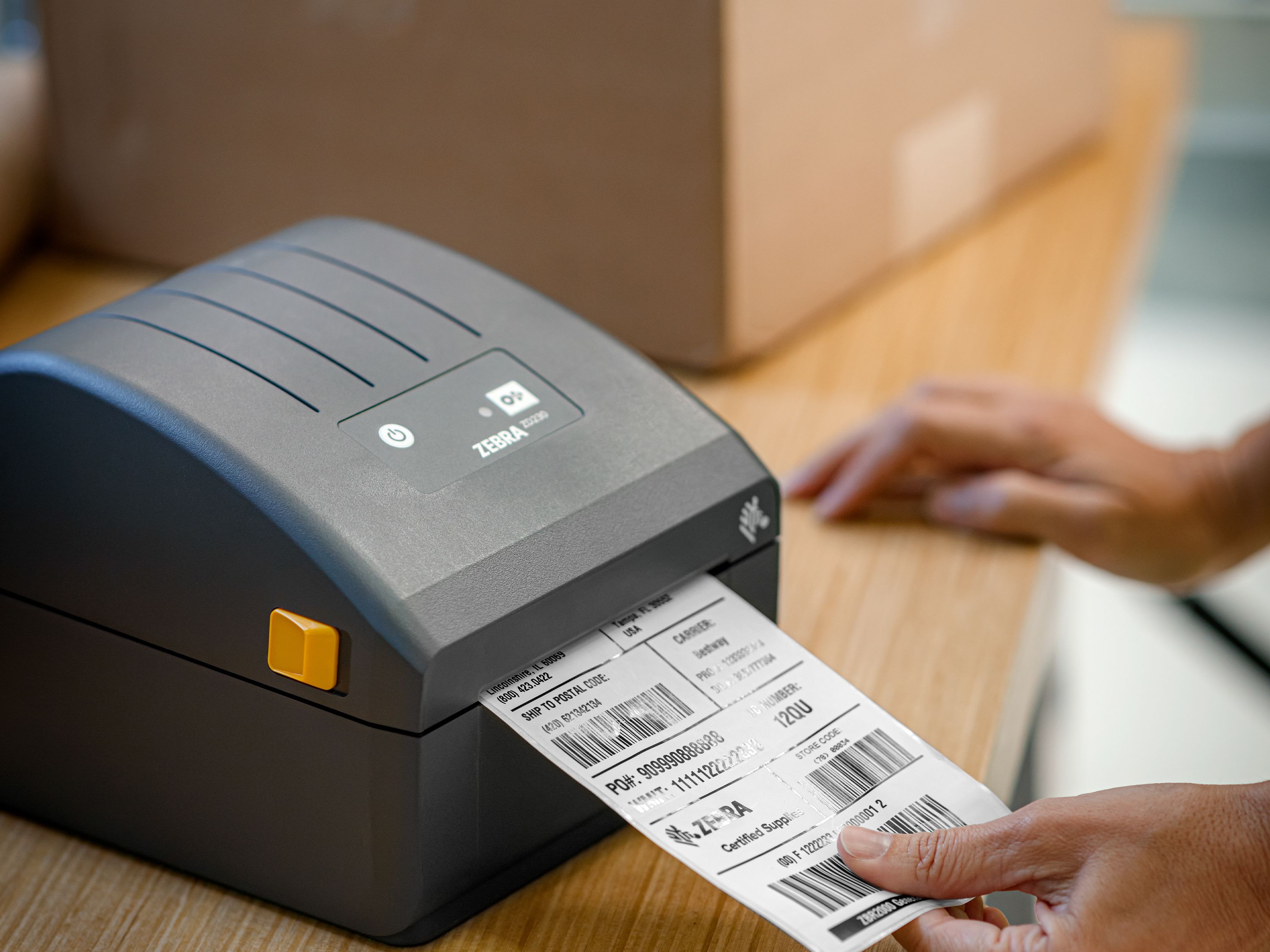

Zebra ZD230 desktop printer Application in warehouse, logistics, packing station

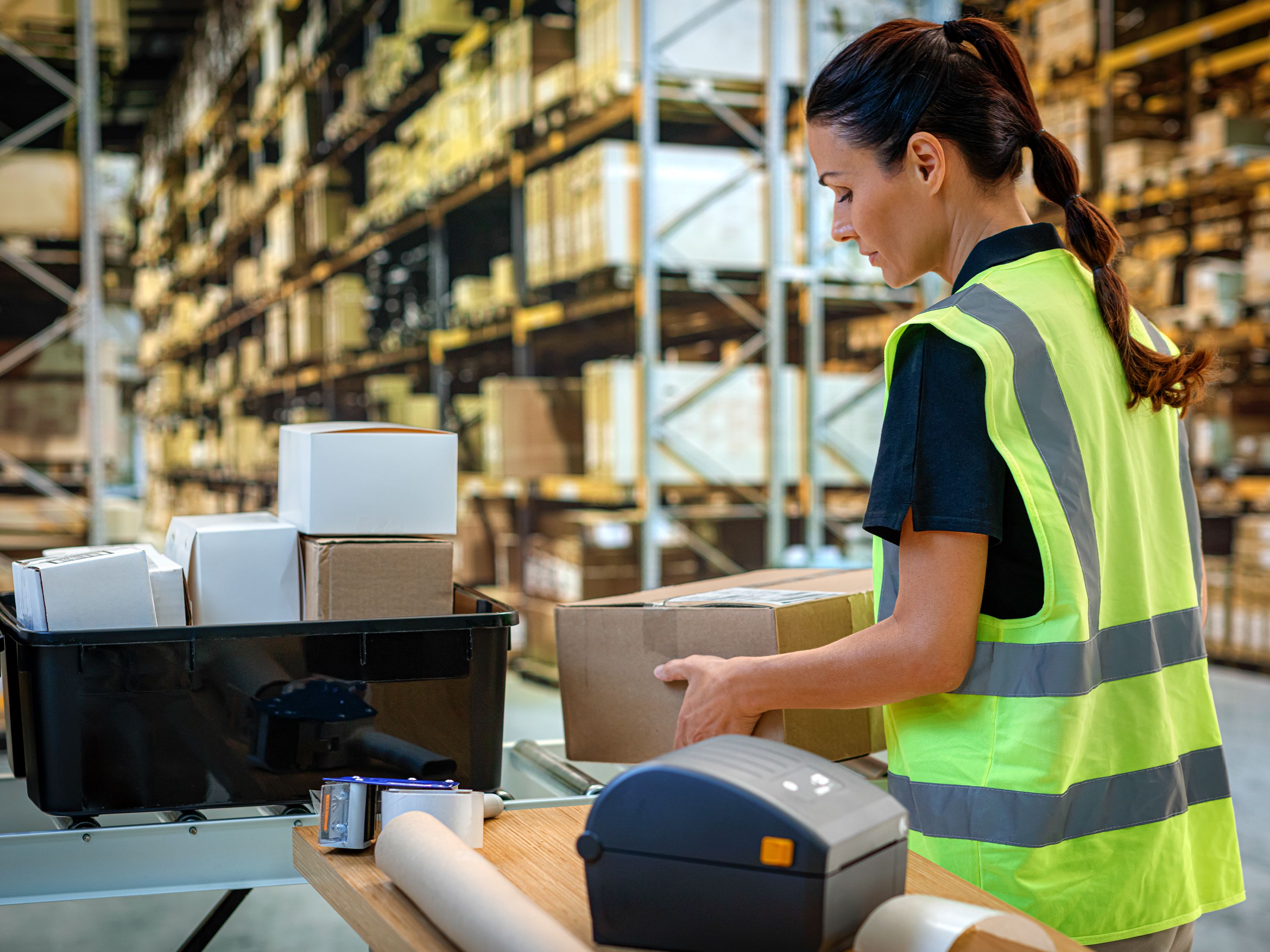

Zebra ZD230 desktop printer application in warehouse, dispatch, packing station

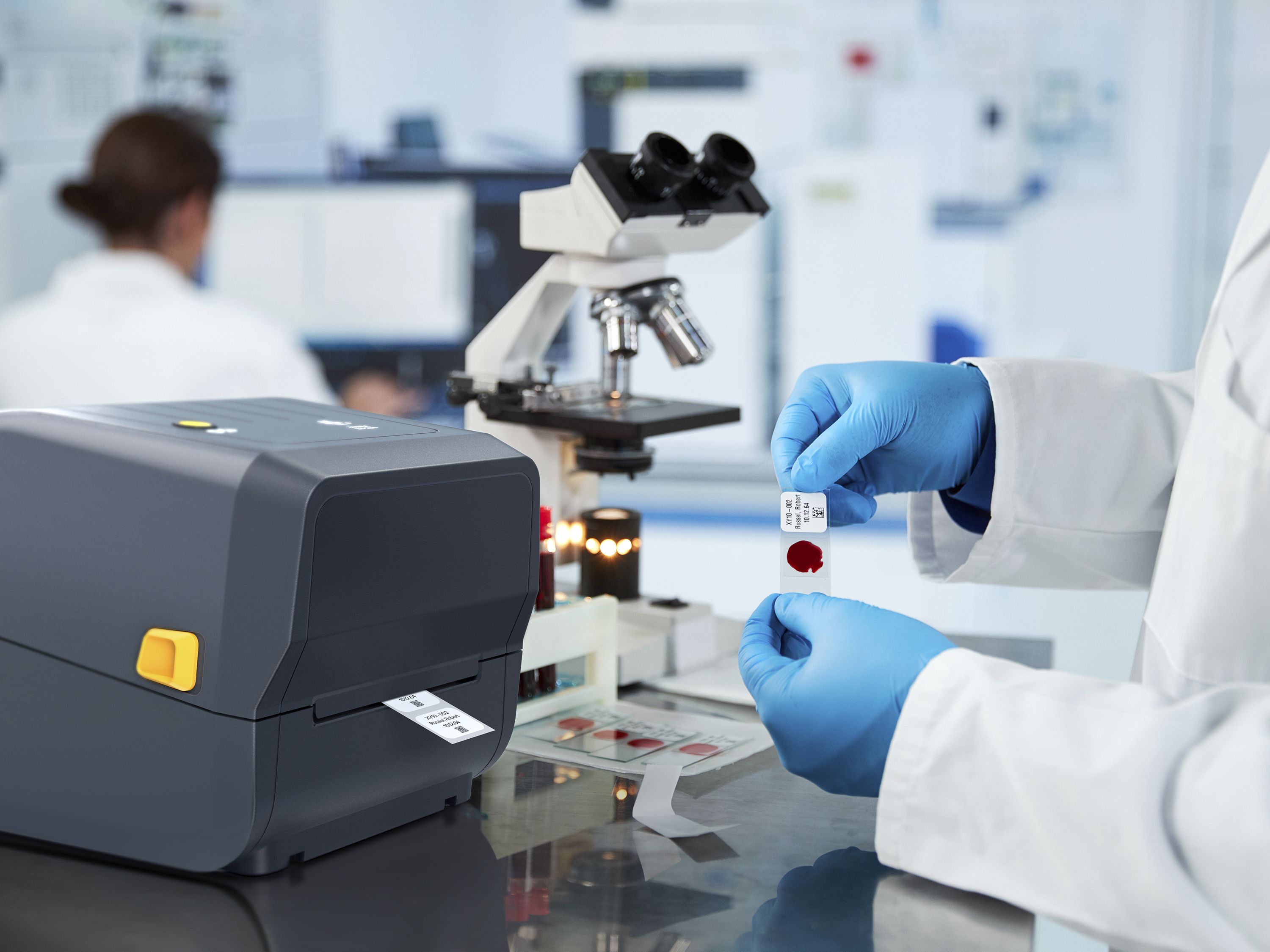

Zebra ZD230 desktop printer in the medical laboratory

Special features

Fast printing

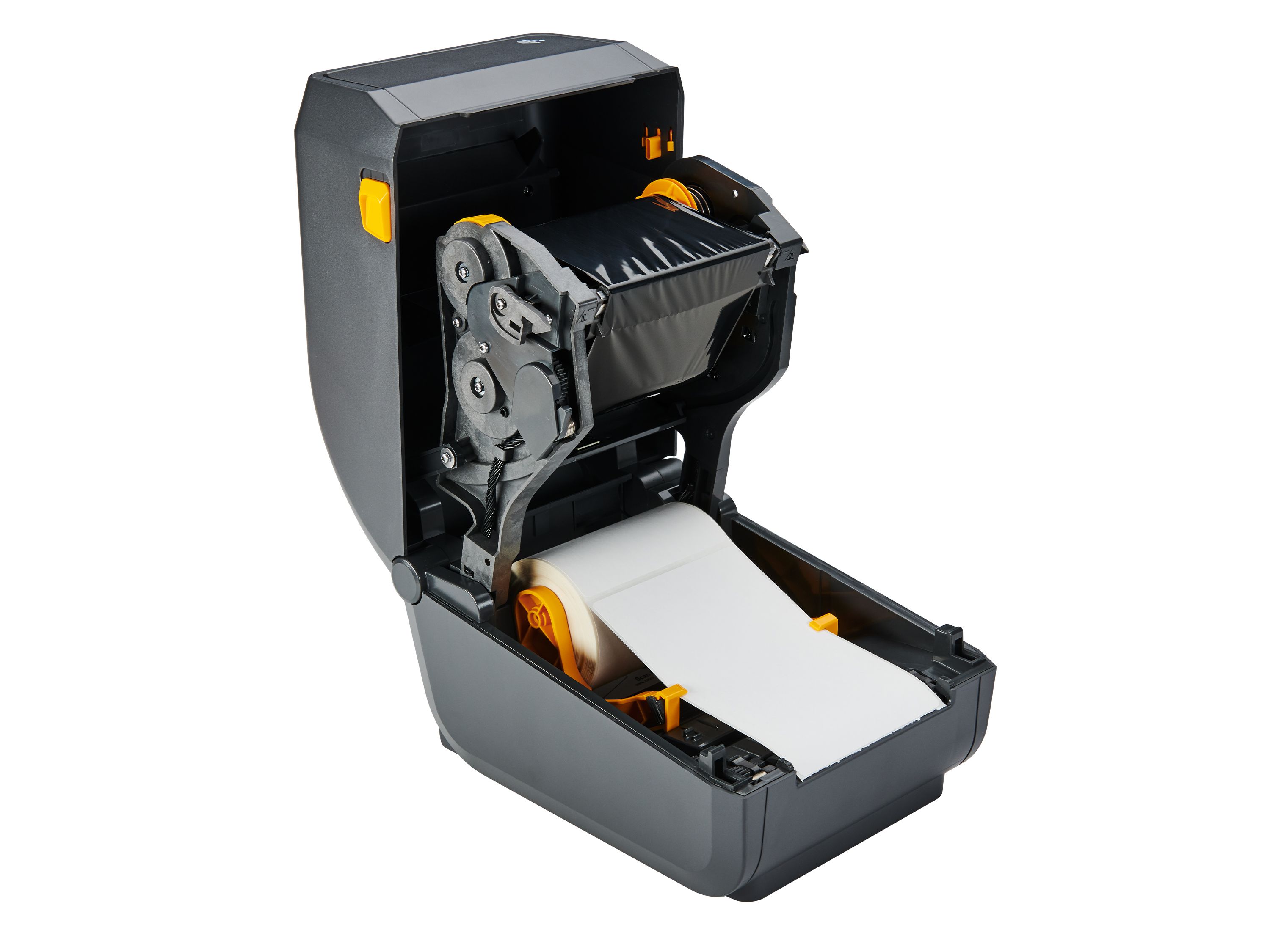

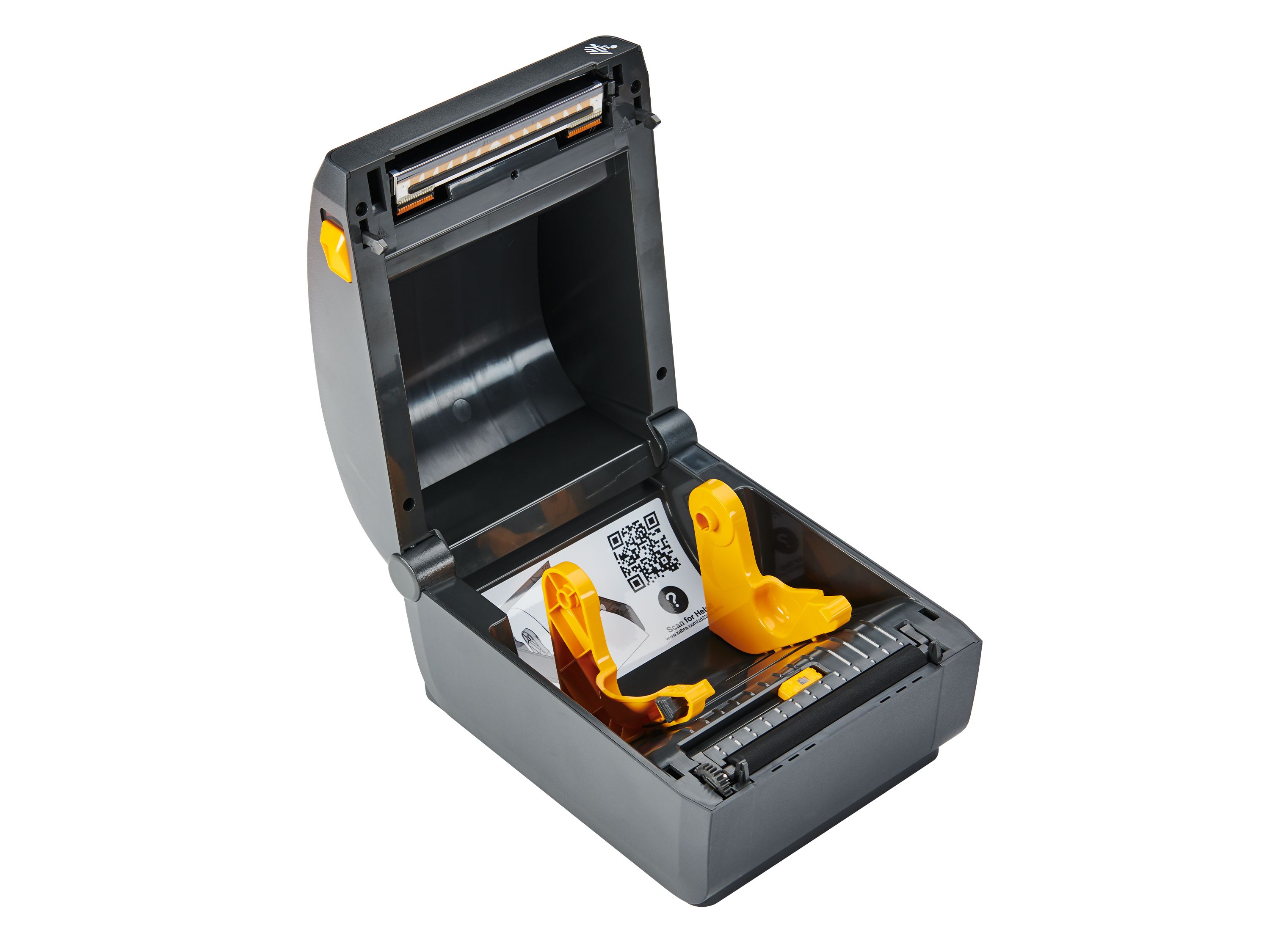

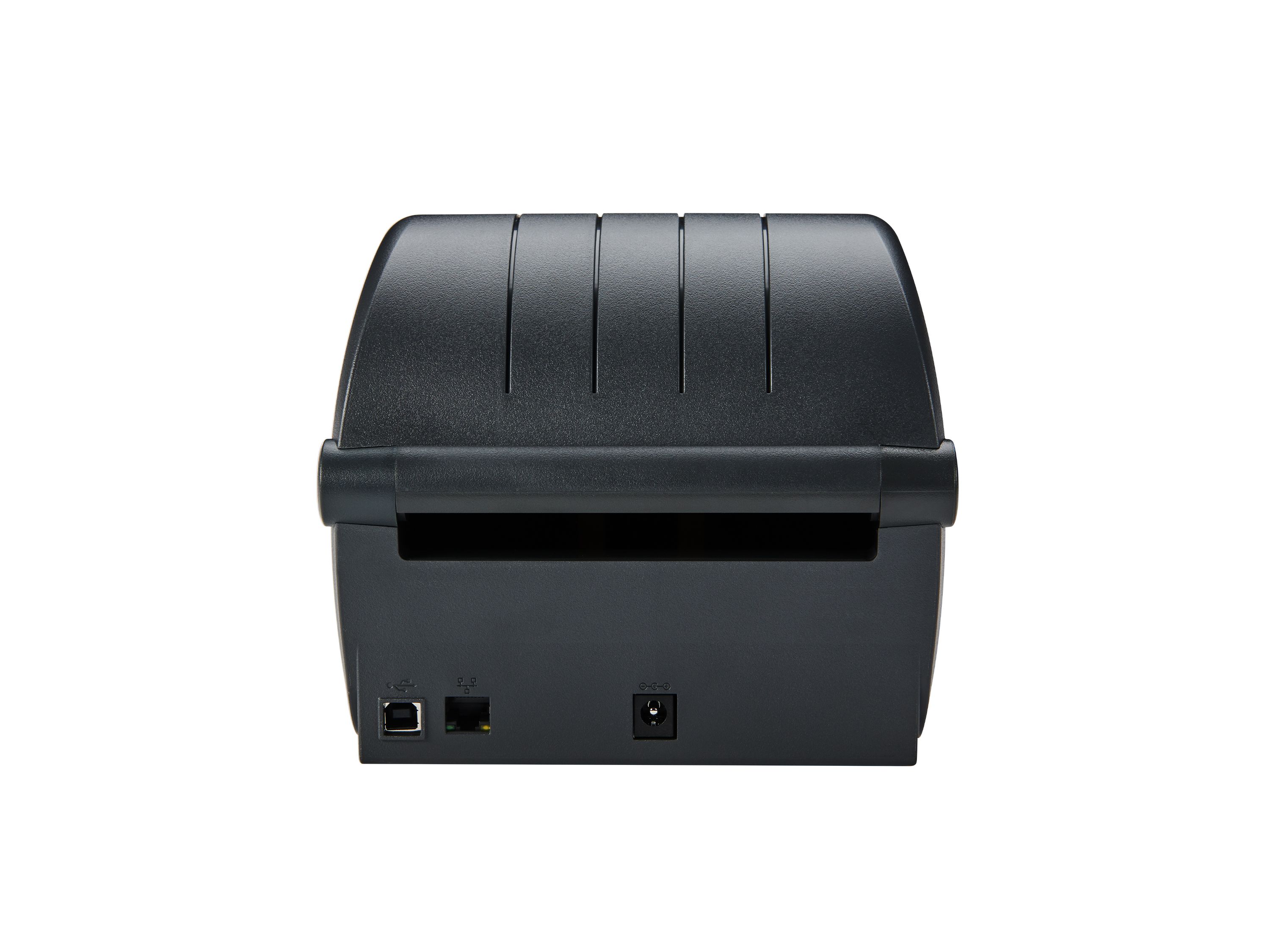

The ZD200 series models are easy to install and ready to use immediately. USB ports enable universal interoperability. You can replace legacy printers using ZPL, EPL, or another printer command language without hassle. In addition, Zebra’s OpenACCESS™ clamshell design simplifies media changes.

All features for easy operation

Large memory provides capacity for more fonts and graphics. A single LED and one feed/pause button make operation and status checking easy. Both printers feature Print DNA™ Basic, a core set of software applications and functions that enable a cost-effective and reliable printing experience.

Outstanding Zebra-approved supplies

Supplies influence many aspects of printing, from printhead life to operational efficiency. Zebra-approved supplies stand for industry-leading quality, first-class service, and many years of thermal printing expertise. They undergo rigorous testing to ensure optimized performance of your Zebra printer.

Technical specifications
Technical values
Label length
991 mm
Printing process
Thermal transfer and thermal direct
Print width
104 mm
Printhead resolution
203 dpi
Print speed up to
152
Label width
25.4 - 112 mm
Features
Flash memory expansion as an option
PDF direct printing
Display
no display
Printhead technology
Flathead
Programming language
ZPL II; EPL 2; XML; ZBI
ROM / flash memory
256 MB
SD memory card slot
Print media
Material width max (labels and liner)
112 mm
Material width min (labels and liner)
25.4 mm
Maximum material thickness
0.19 mm
Ribbon
Width
33.8 - 109.2 mm
Inner core diameter
25.4 mm
Maximum length
74 m (1/2") / 300 m (1")
Winding
Outside
Physical aspects
Printer dimensions (HxWxL)
191 mm x 197 mm x 267 mm
Weight
1,1 kg
Authorisations
CE, FCC, CCC, ICES-003
Rel. humidity non-condensing
10 - 90 %
Ambient temperature
4.4 - 41°C
Supply voltage
100 - 240 V
Frequency
50 - 60 Hz
