Desktop label printer

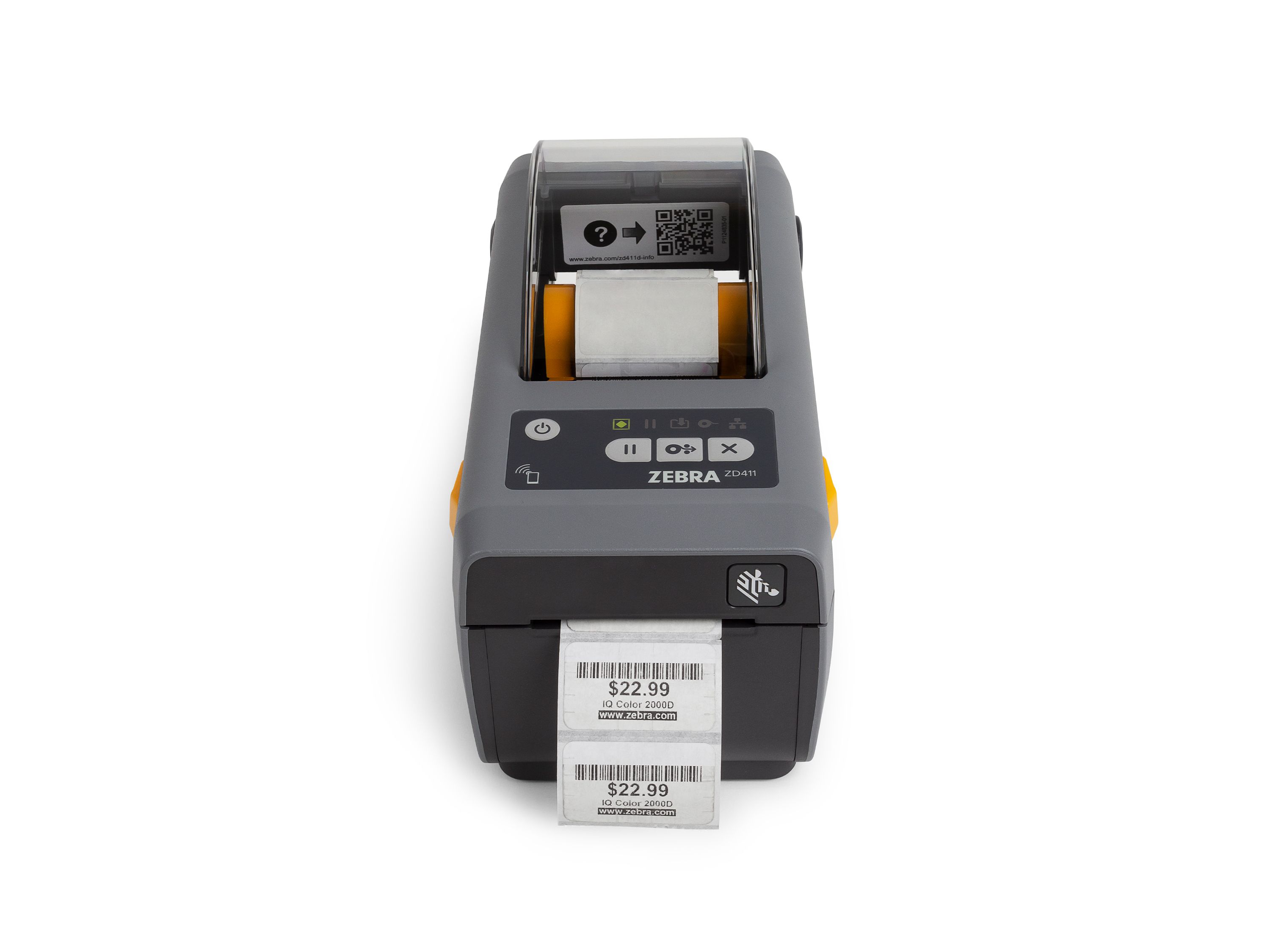

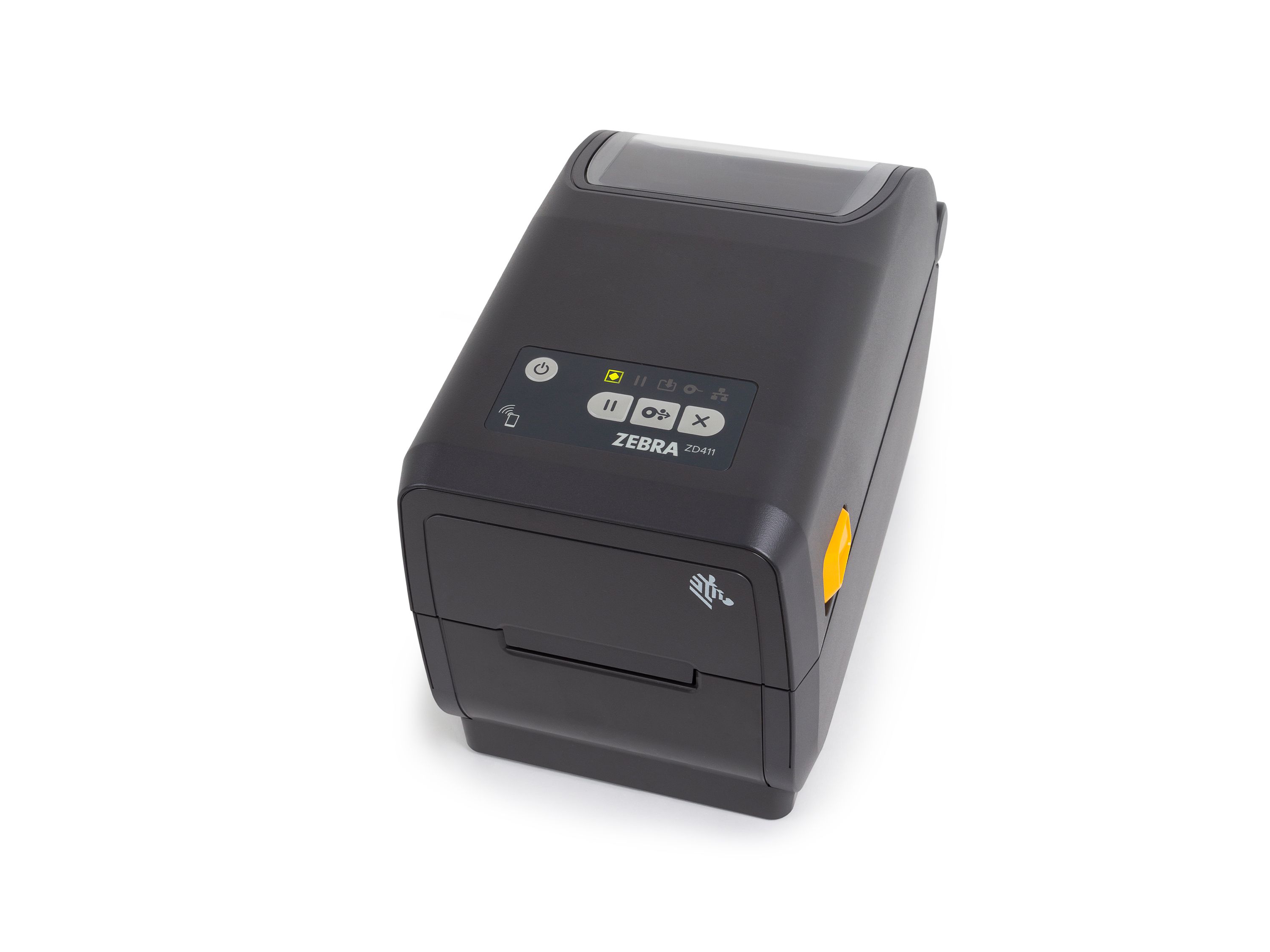

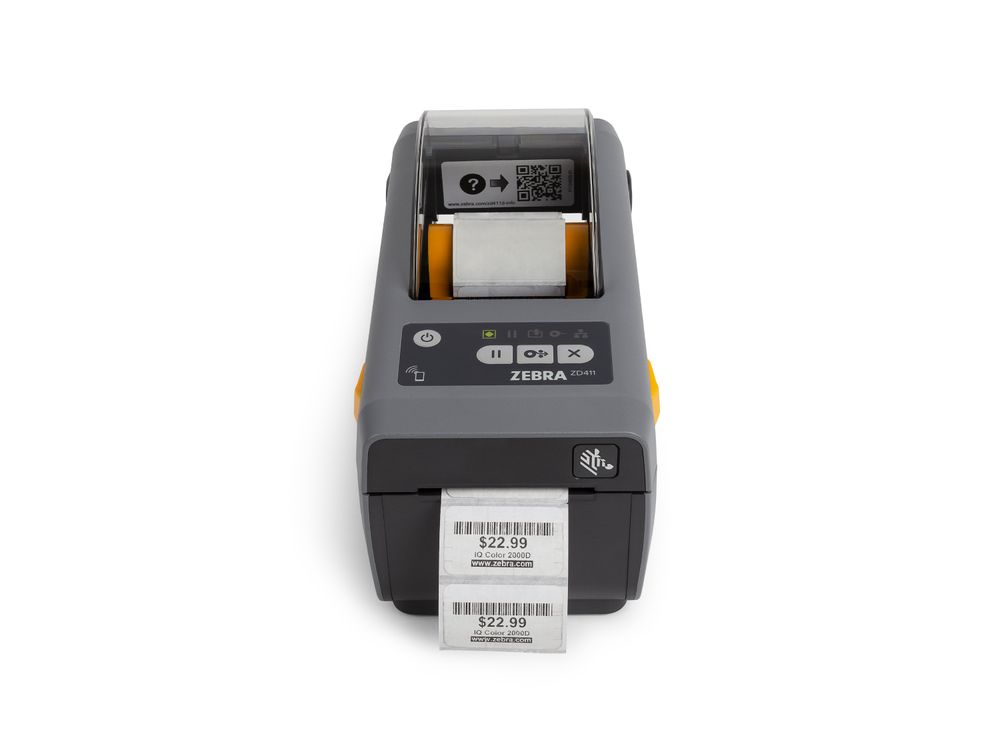

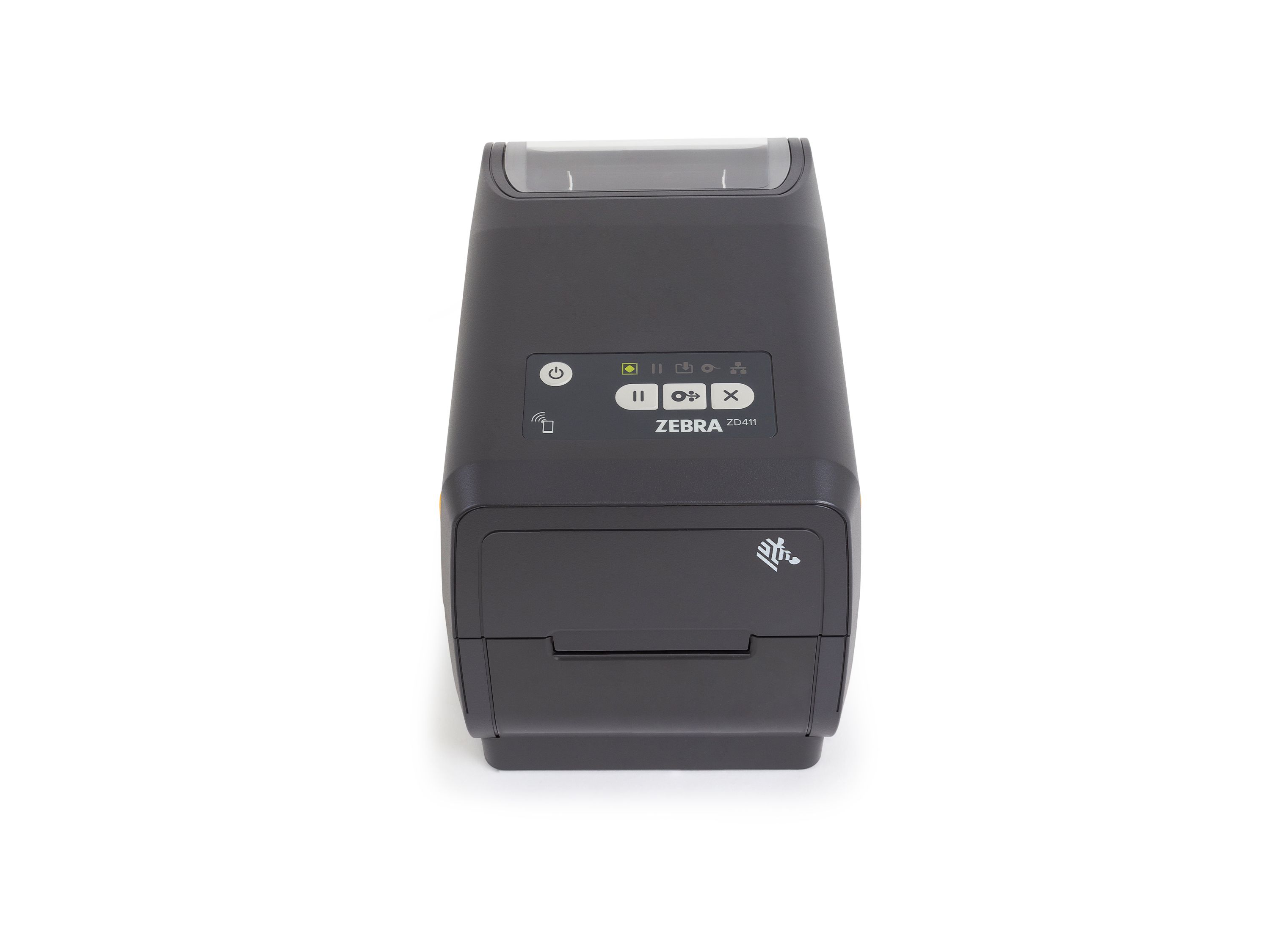

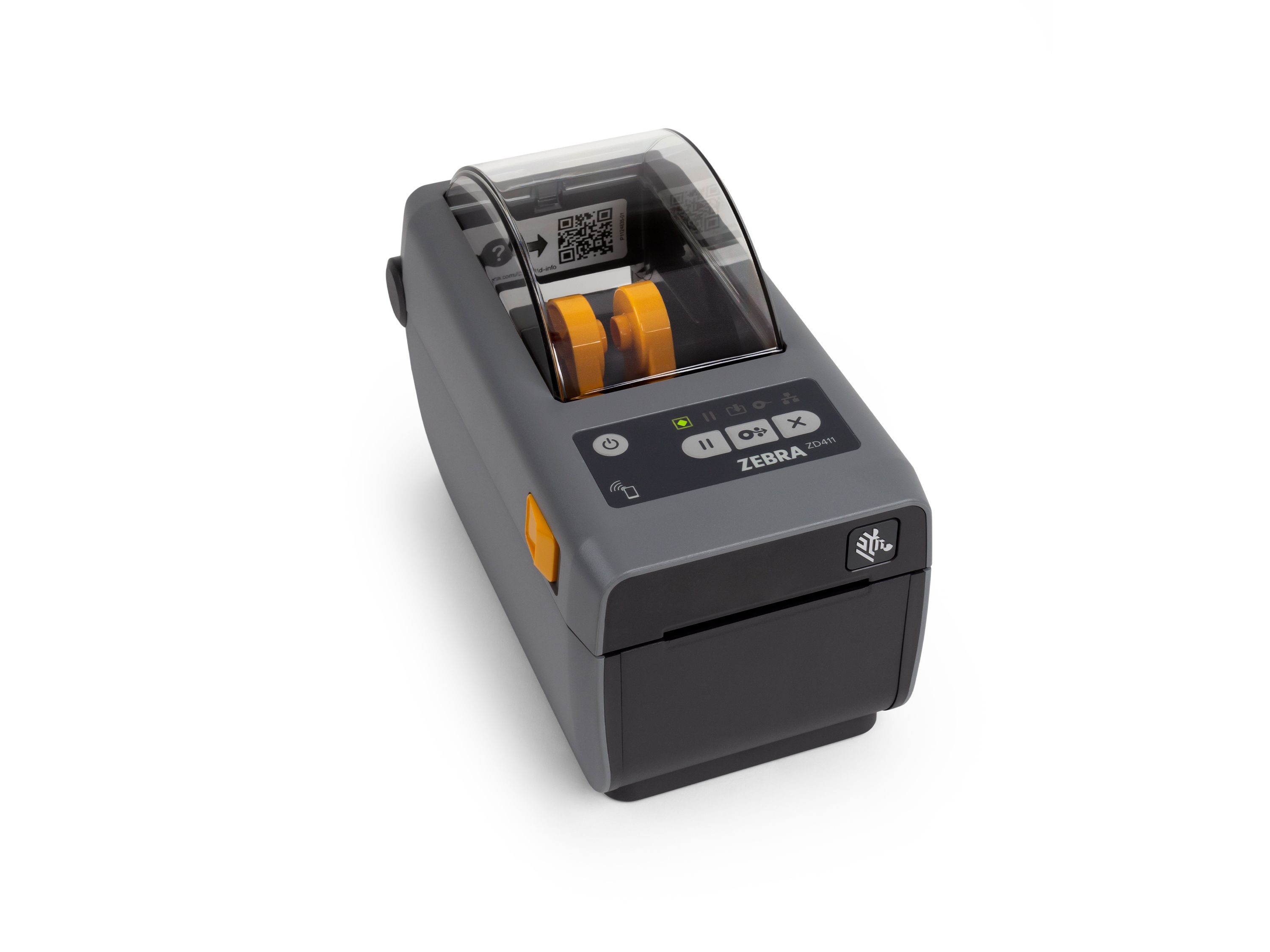

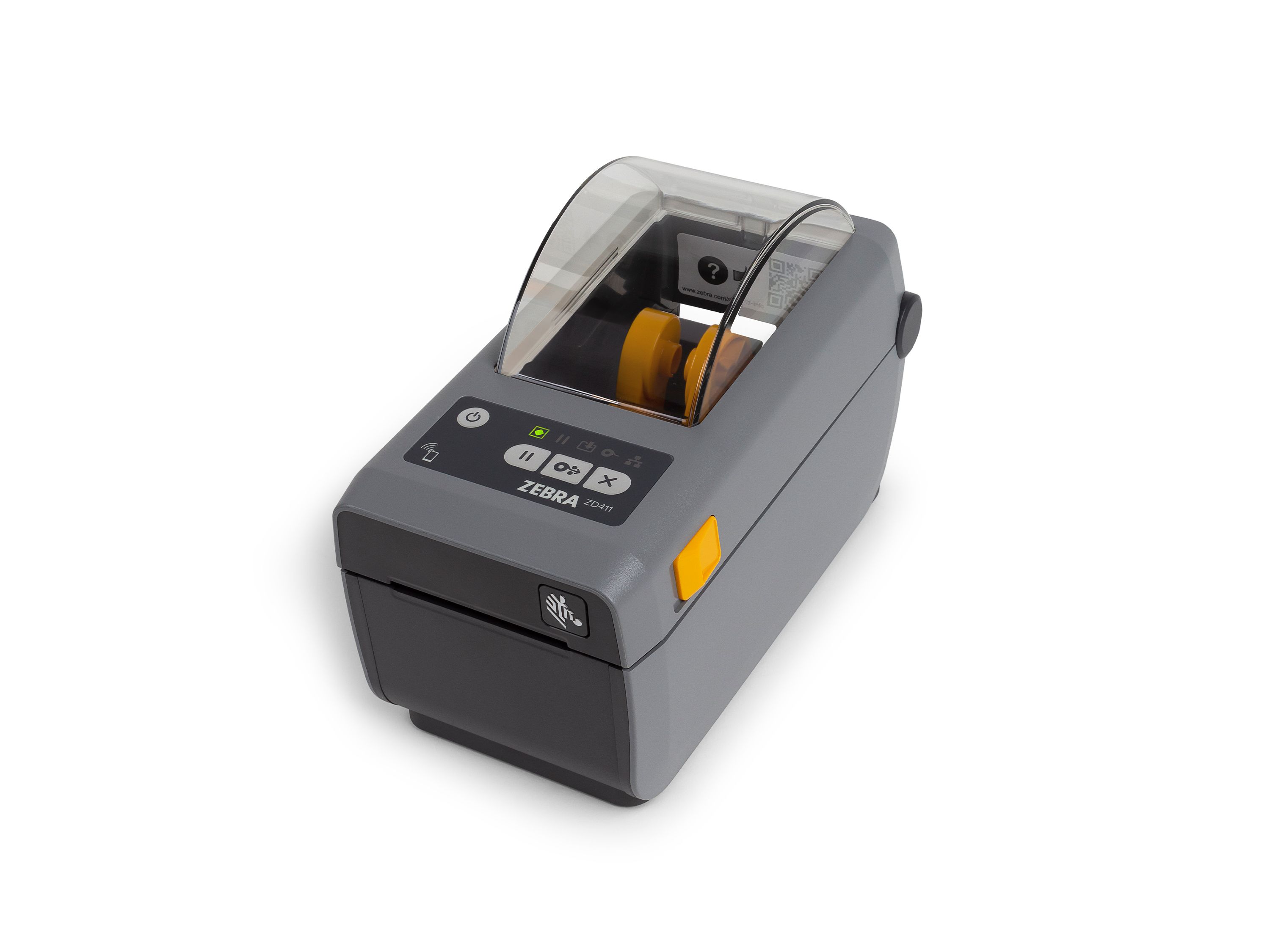

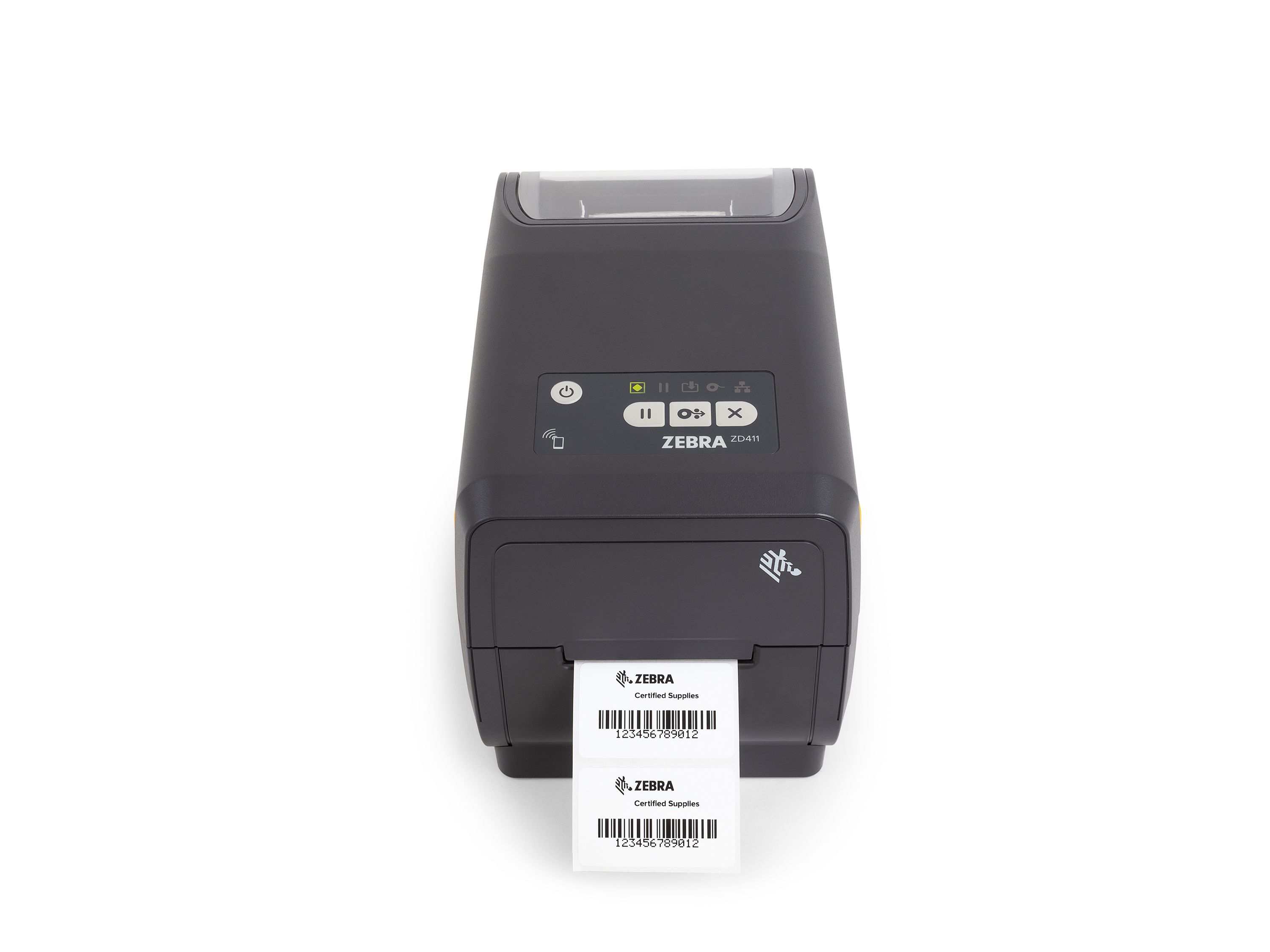

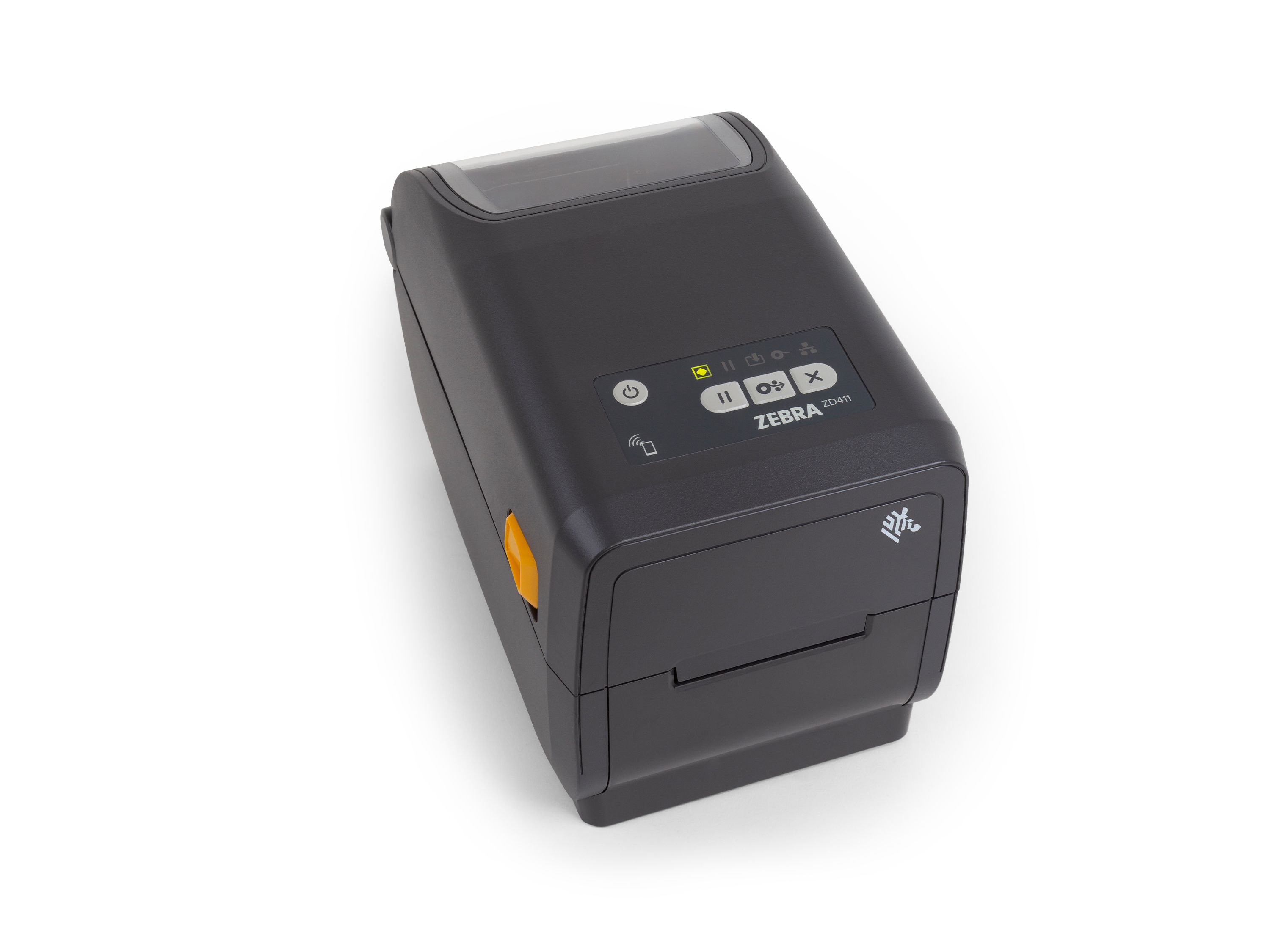

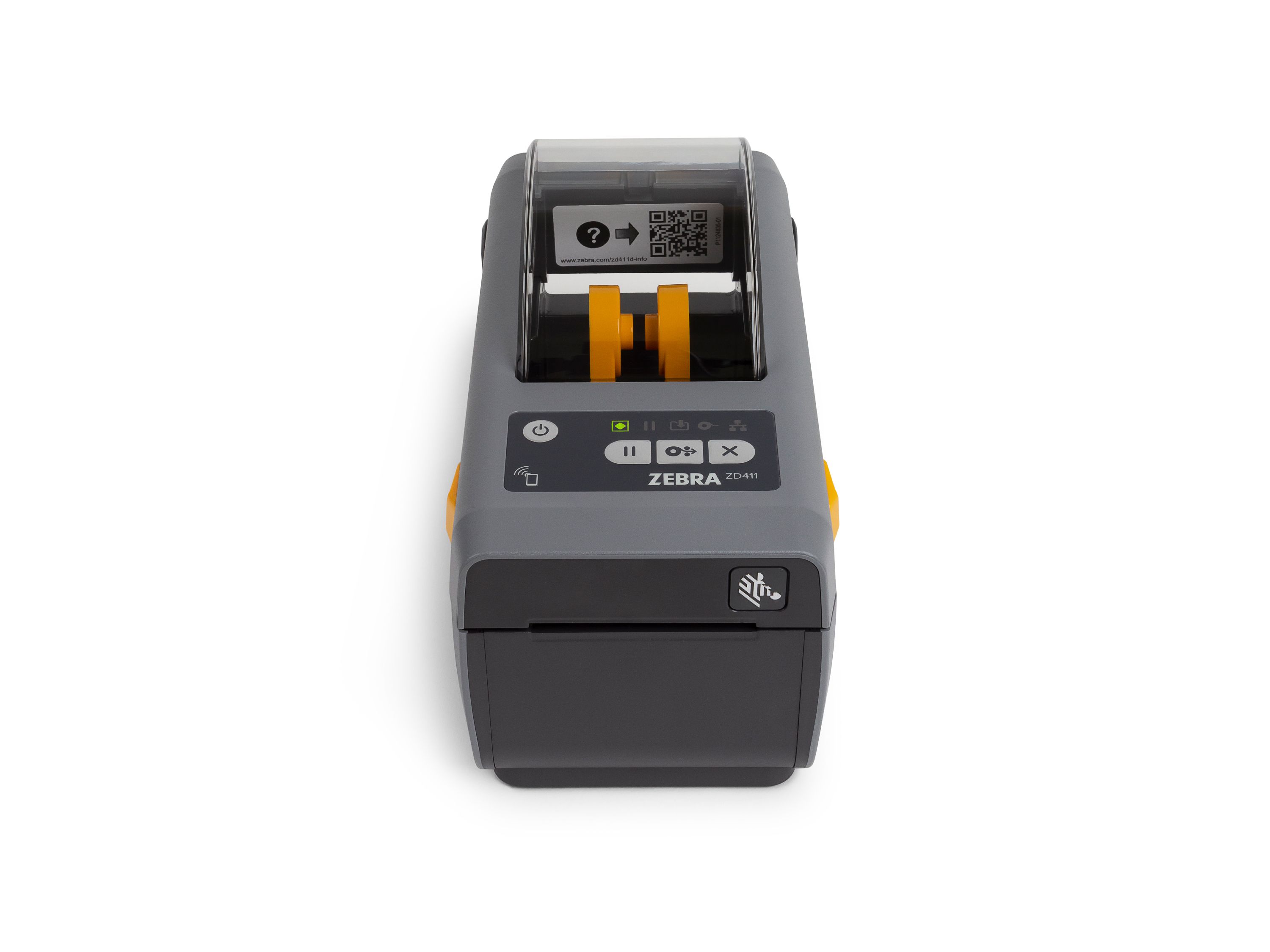

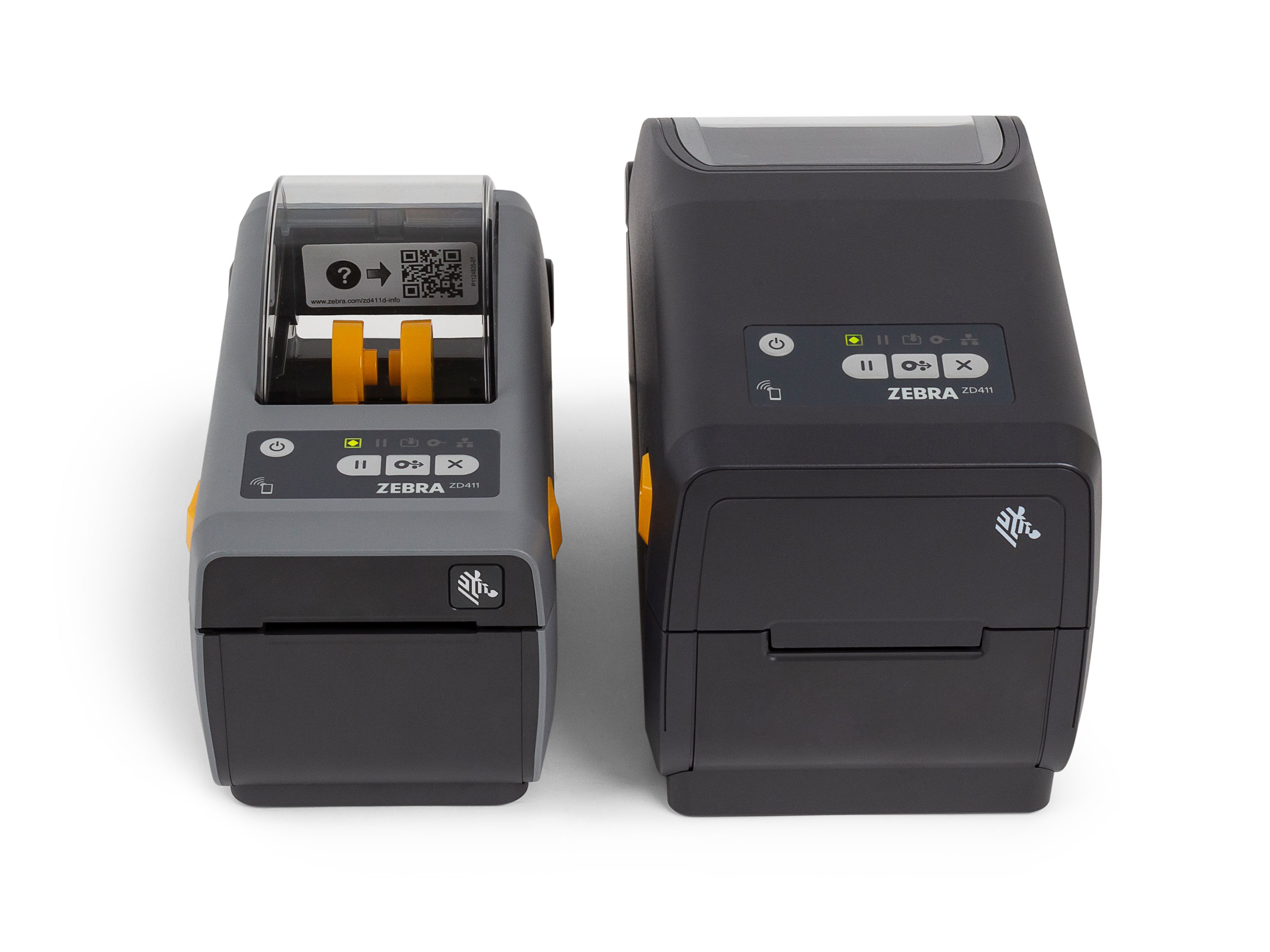

Zebra ZD411

Flexible, advanced compact printer

  • Print speed up to 152 mm/s
  • Extremely small footprint
  • Easy setup, operation, and maintenance
  • Greater flexibility thanks to movable media sensor
  • Adapts to growing business needs

Delivers quality and performance now and in the future

The Zebra ZD411 is an advanced label printer known for its versatility, reliability, and ease of use. The user-friendly color display enables simple setup and maintenance, while the robust design ensures a long service life. With its compact build, it fits perfectly in any work environment—retail, logistics, or healthcare. The ZD411 supports both thermal transfer and direct thermal printing and can print a wide variety of labels, receipts, and tickets.

The ZD400 series with Zebra DNA™ is easy to integrate and operate and can be managed on-site or remotely via a web-based dashboard. The ZD400 series evolves with technology and your business needs. It features an innovative architecture that supports future printing and new applications, keeping your workflows running optimally.

Applications

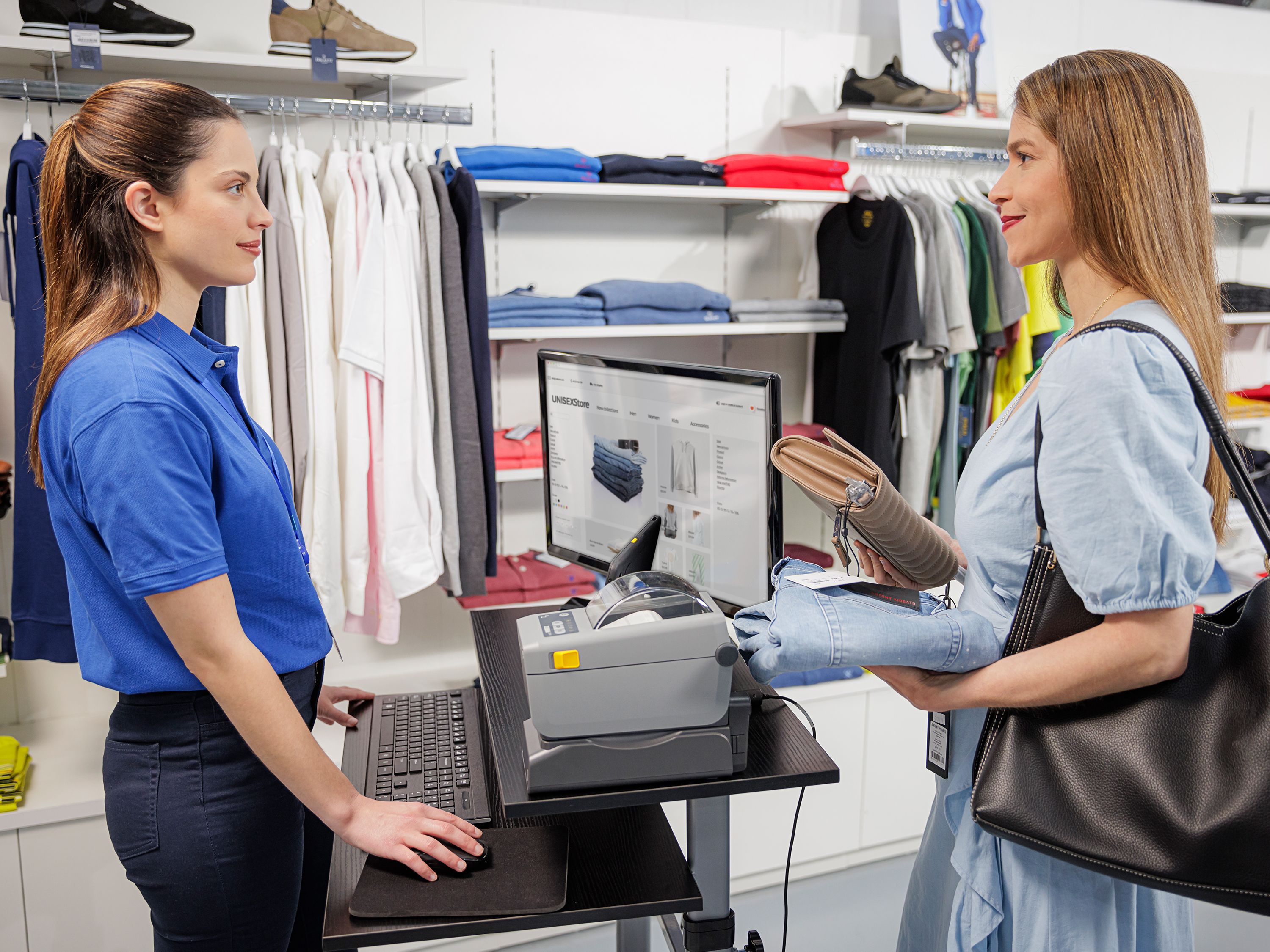

Zebra ZD411 printer for mobile checkout in the retail sector

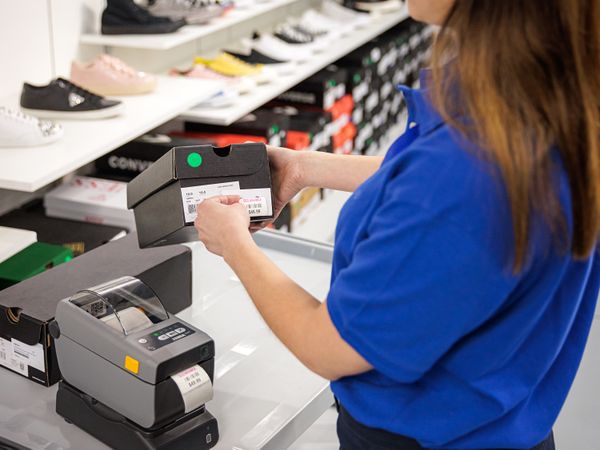

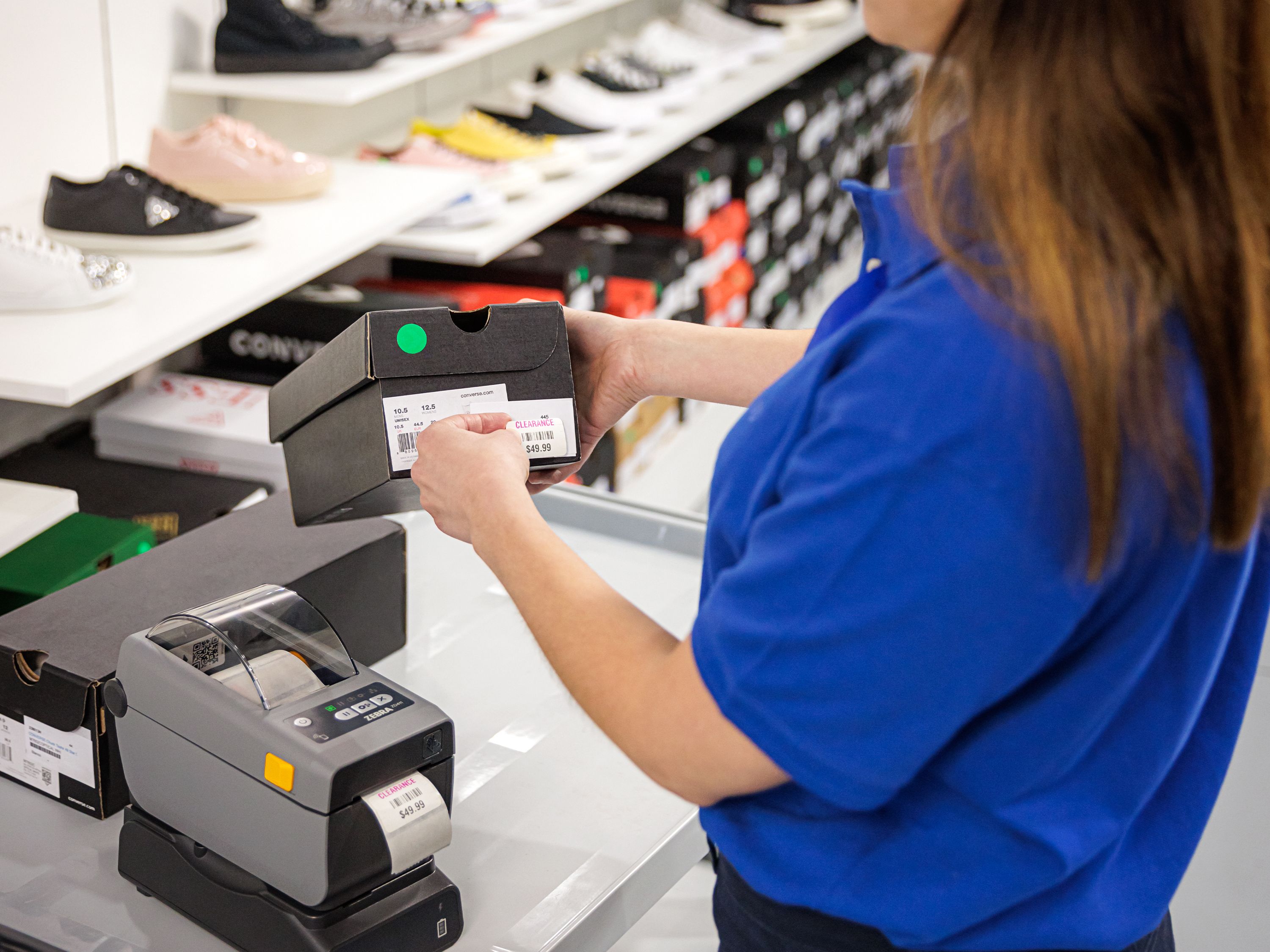

Zebra ZD411 printer for product labeling in the retail sector

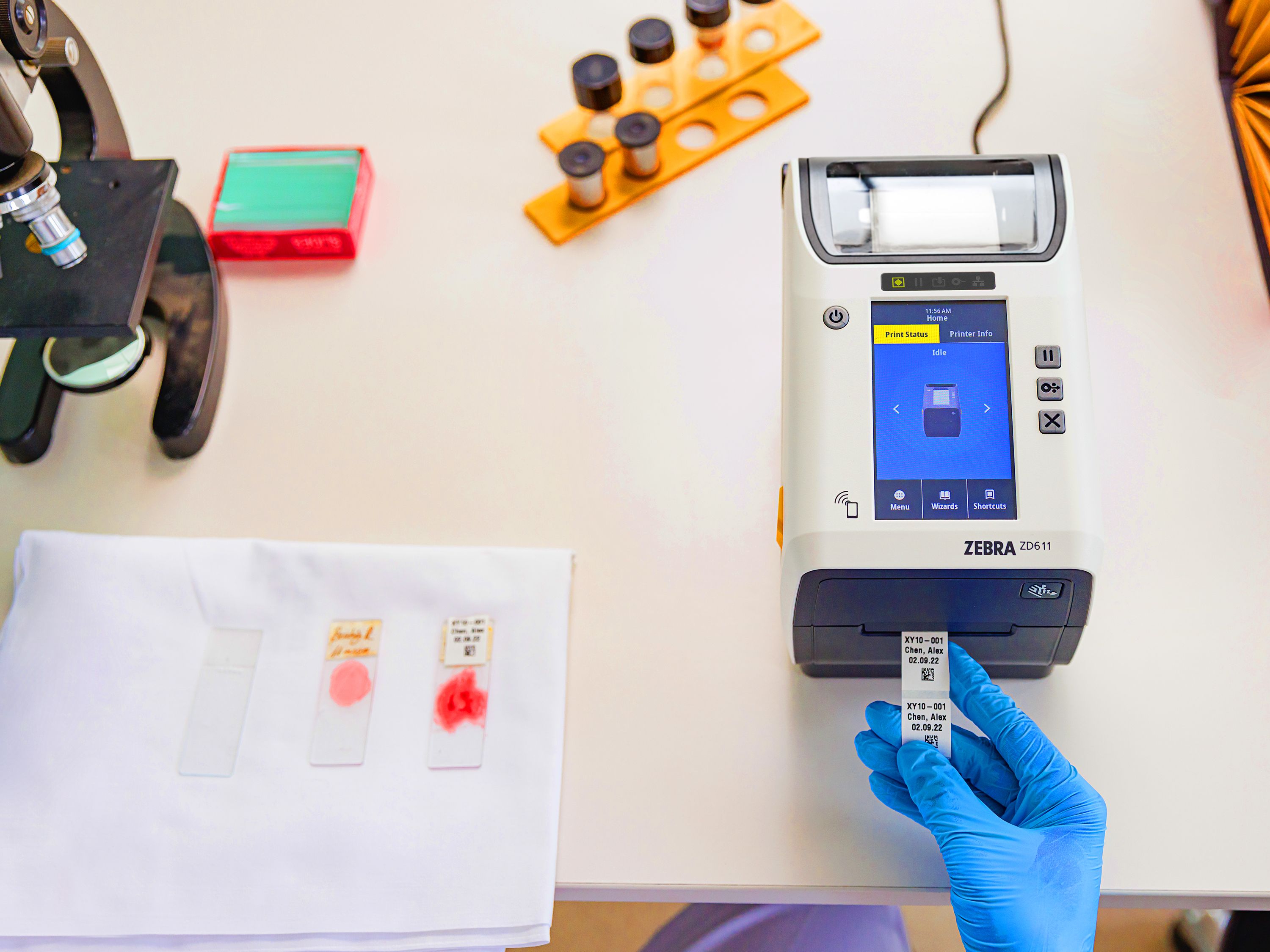

Zebra ZD611 printer for sample labeling in the medical laboratory

Special features

Faster media changes

Color-coded touchpoints and a new media-handling design enable quick media changes, keeping printers ready and work uninterrupted. The ribbon can be replaced intuitively, quickly, and effortlessly, reducing the burden on IT.

More flexibility for media and applications

The ZD411’s movable media sensor allows the use of virtually any media, providing flexibility for different applications. The 2-inch model is available in two resolutions, offers numerous configurations, and fits in practically any workspace.

Backward compatibility with existing printers

Printers in the ZD400 series integrate seamlessly into your existing fleet. You can continue using your existing label formats and applications. The printers support the EPL and ZPL languages and emulate other printer manufacturers’ languages thanks to Zebra’s printer emulations.

Networking connectivity options

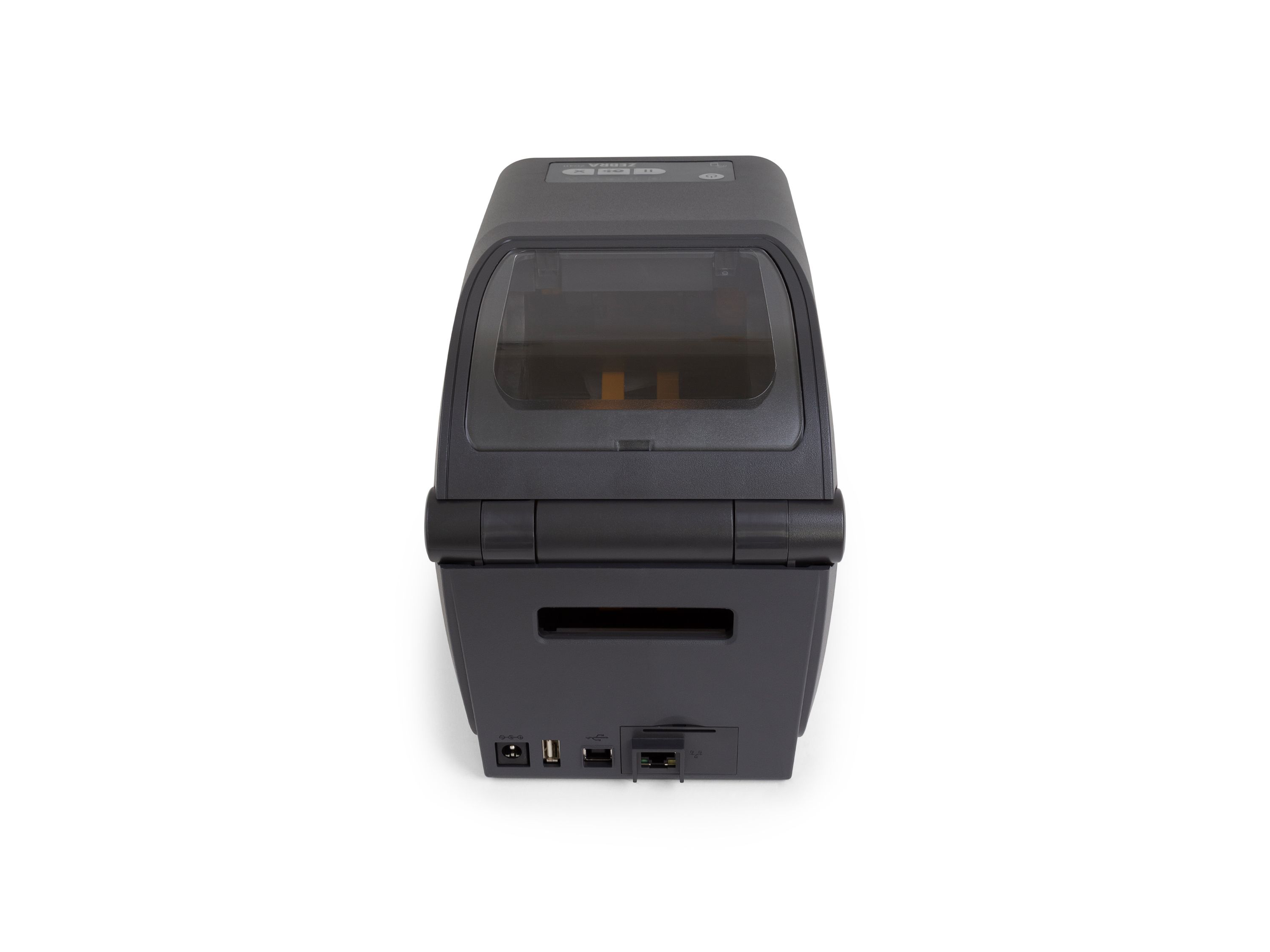

You can connect ZD400 series printers to your existing wireless or wired network, or directly to a PC. USB and USB host are standard on every ZD411. Ethernet, a serial port, and two wireless options for high-speed Wi-Fi™ and Bluetooth® are available.

Technical specifications
Technical values
Label length
991 mm
Printing process
Thermal transfer and thermal direct
Print width
56 mm
Printhead resolution
203 dpi, 300 dpi
Print speed up to
152
Label width
15 - 108 mm
Features
Flash memory expansion as an option
PDF direct printing
Display
no display
Printhead technology
Flathead
Emulations
ZPL
Programming language
ZPL, EPL
ROM / flash memory
512 MB
SD memory card slot
Print media
Material width max (labels and liner)
57 mm
Material width min (labels and liner)
15 mm
Maximum material thickness
0.19 mm
Ribbon
Width
33 - 58 mm
Inner core diameter
12.7 mm
Maximum length
74 m
Winding
Outside
Physical aspects
Printer dimensions (HxWxL)
169 mm x 138 mm x 243 mm
Weight
1,6 kg
Authorisations
CE, CCC, FCC, ICES-003
Rel. humidity non-condensing
10 - 90 %
Ambient temperature
4.4 - 41°C
Supply voltage
100 - 240 V
Frequency
50 - 60 Hz
