Desktop label printer

Zebra ZD611

Premium print performance with innovative security & flexibility

Print speed up to 203 mm/s for fast production
Resolutions of 203 or 300 dpi with two print technologies
Wide range of models: healthcare, RFID, linerless, etc.
Color touch display & color-coded touch points
Extensive connectivity: Wi-Fi, Bluetooth, USB, LAN
Security & remote management through the Zebra Print DNA suite

The Zebra ZD611 is a state-of-the-art 2-inch desktop printer that combines performance, security, and flexibility in a compact design. It supports both direct thermal and thermal transfer technology and is available in versions with healthcare features, RFID, or linerless operation. With print resolutions of 203 dpi or optional 300 dpi and speeds of up to 203 mm/s, it delivers sharp print results even at high speeds. Features such as a full-color touch display, color-coded touch points, and a newly designed media path make media changes intuitive and fast. The integrated Zebra Print DNA software suite enables easy setup, remote management, secure integration, and compatibility with existing environments. Whether in hospitals, warehouses, logistics, or shipping, the ZD611 is ready to meet your labeling requirements efficiently and reliably.

Zebra ZD611 printer for sample labeling in the medical laboratory

The ZD611 features a modern architecture with Zebra Print DNA that not only simplifies setup but also integrates security. Functions such as emulations (ZPL, EPL, etc.), firmware updates, remote management tools, and protection features help effectively safeguard sensitive data and networks. This makes it ideal for applications with high requirements for security and compliance.

With options such as direct thermal or thermal transfer printing, an RFID module, a healthcare version, or linerless media, the ZD611 covers a wide range of applications. The media dancer arm ensures consistently high print quality even at high speeds. The movable media sensor allows the use of various media types and formats—from labels and tags to wristbands.

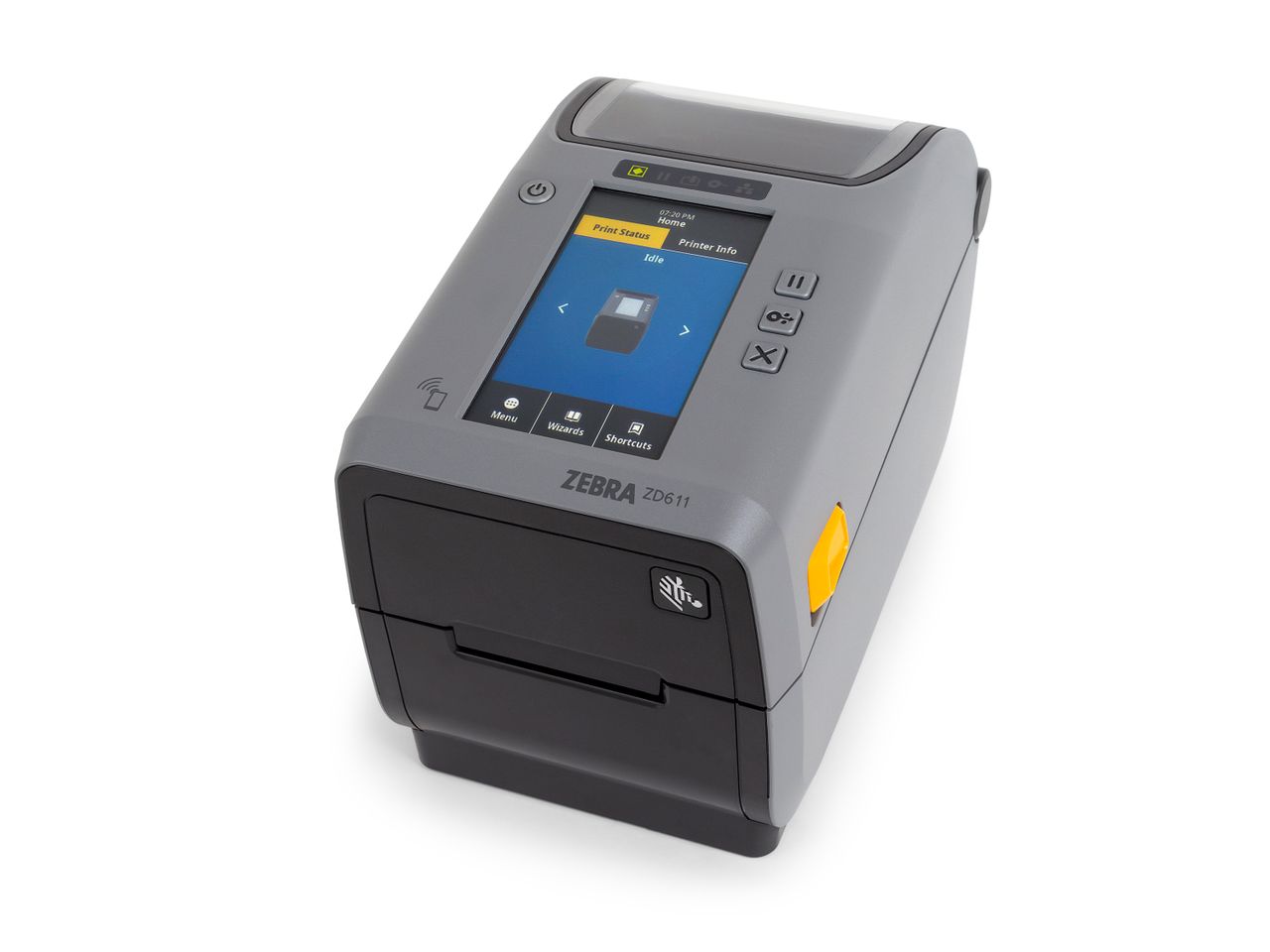

The full-color touch display (4.3 inches on thermal transfer models) offers intuitive menus and step-by-step wizards. Color-coded touch points indicate where media and ribbon need to be changed. Error and status indicators are animated or color-coded, allowing operators to quickly see when action is required—without lengthy training.

Serial, USB, and Ethernet ports are available as standard, while Bluetooth and Wi-Fi (802.11ac or optional 802.11ax/Bluetooth 5.3) round out the networking capabilities. NFC (Print Touch) enables easy pairing with mobile devices. Optional accessories such as a cutter or workstation battery make the printer flexible for different use scenarios. The new architecture also ensures future expandability.

Technical specifications

Printing specifications

Printing process

Thermal transfer, Thermal direct

Print width up to

56 mm

Print length max.

991 mm

Printhead resolution

203 dpi, 300 dpi

Print speed up to

203 mm/sec

Printhead technology

Flathead

PDF direct printing

Print media

Material width (labels and liner material)

15 - 57 mm

Material thickness

0.06 - 0.19 mm

Ribbon

Ribbon width

33 - 58 mm

Core diameter

12.7 mm

Maximum length

74 m

Winding

Outside

Hardware

Display

4,3" Farb-Touchdisplay

RAM

256 MB

ROM / flash memory

512 MB

Flash memory expansion as an option

–

SD memory card slot

–

USB memory stick slot

Interfaces

RS232, Bluetooth 4.1, WLAN 802.11 a/b/g/n/ac (retrofit option), Ethernet IPv4, USB host dual, Ethernet IPv6

Software

Emulations

ZPL

Programming language

ZPL, EPL

Physical aspects

System dimensions (HxWxL)

169 x 138 x 243 mm

Weight

1.6 kg

Authorisations

CE, CCC, FCC, ICES-003

Ambient temperature

4.4 - 41°C

Rel. humidity non-condensing

10 - 90 %

Frequency

50 - 60 Hz

Datasheet Zebra ZD611 (PDF)
