Desktop label printer

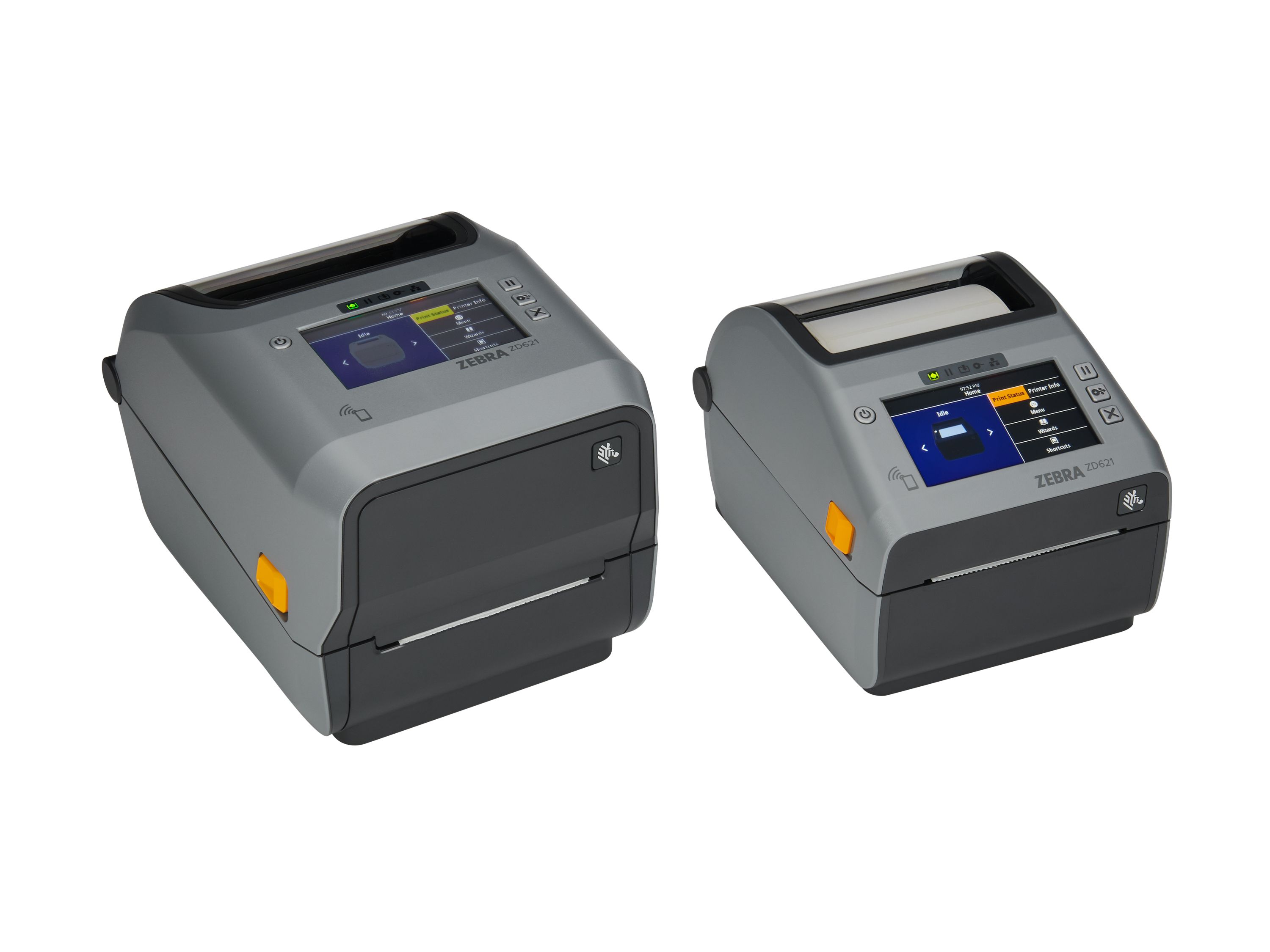

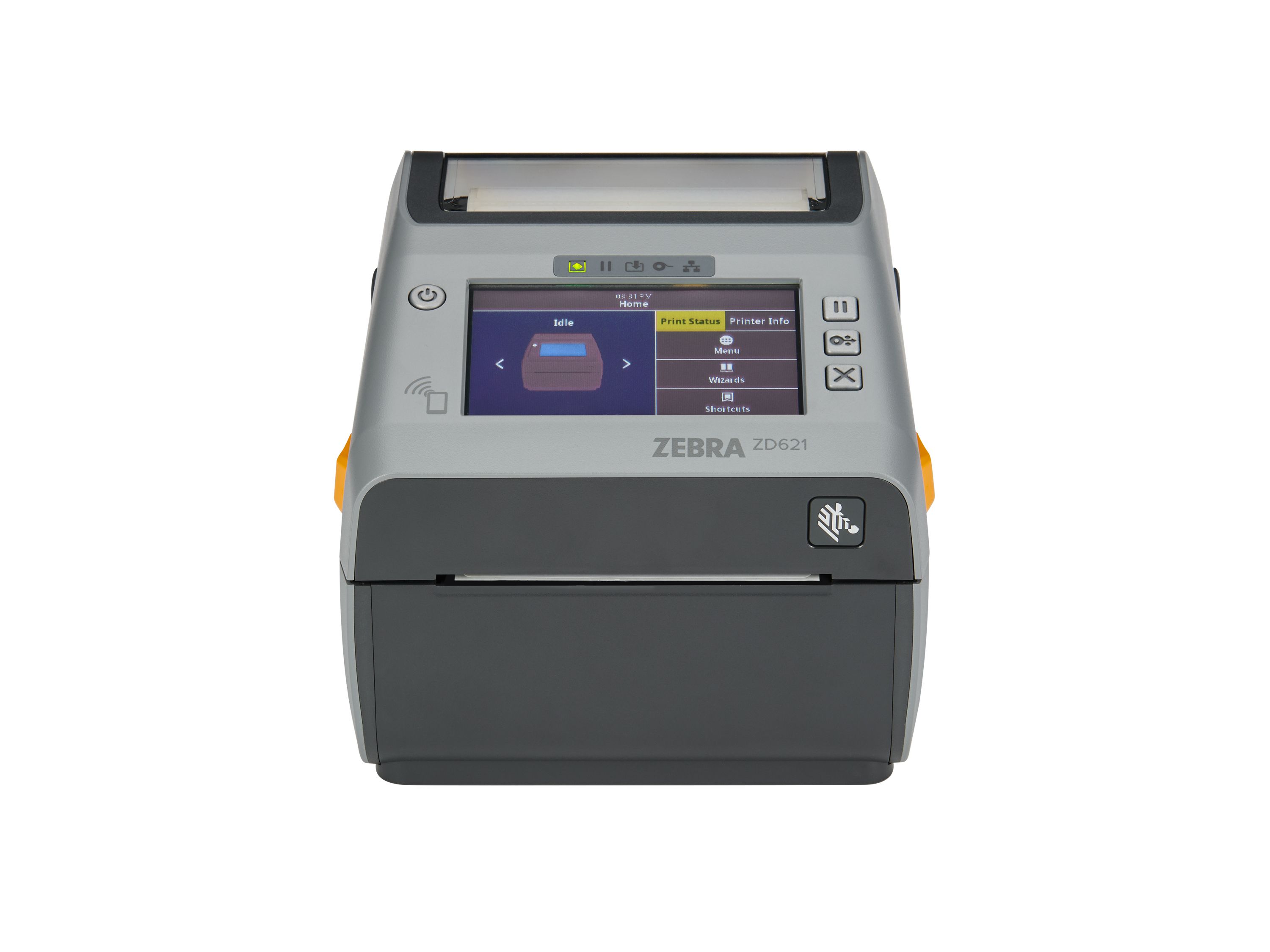

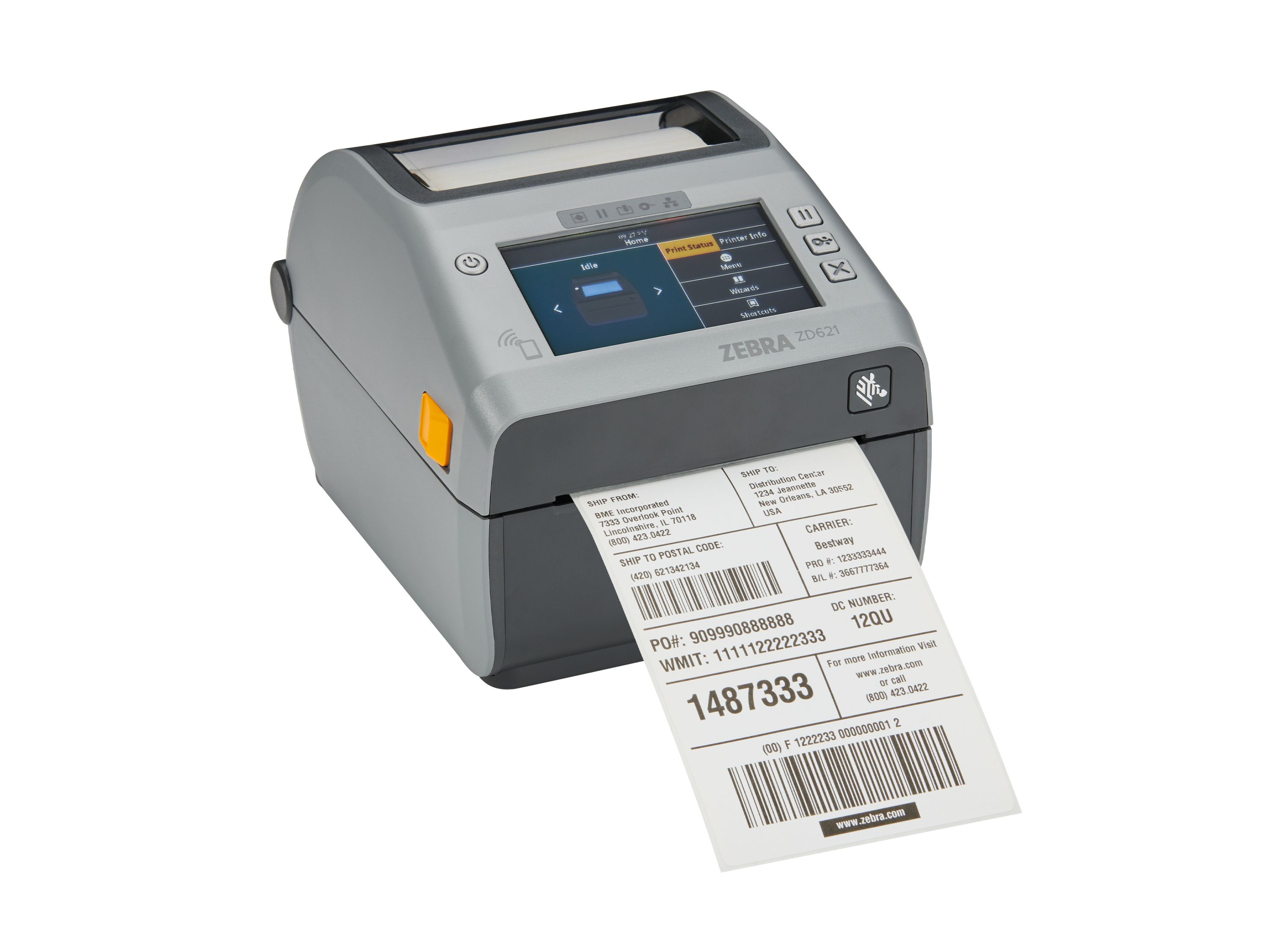

Zebra ZD621

Premium features, maximum performance

  • Print speed up to 203 mm/s
  • Industry-leading reliability, intelligence, and security
  • Movable media sensor allows more flexible use cases
  • Effortless ribbon installation
  • Easily portable with optional battery and carry case

Compact printer with many premium features

Zebra’s powerful ZD621 desktop printer is an evolution for more demanding applications. As an advanced 4-inch printer, it features innovations that set it apart: a user-friendly interface, a powerful system architecture, and the ability to add wireless functions in the field. The media guide and intake design have been redesigned to make operation even easier. The 4-inch model is available in two resolutions, offers numerous configurations, and fits virtually any workspace. The ZD621 is available as a direct thermal or thermal transfer printer. There is also a linerless model specially designed and tested for use with Zebra ZeroLiner labels.

Applications

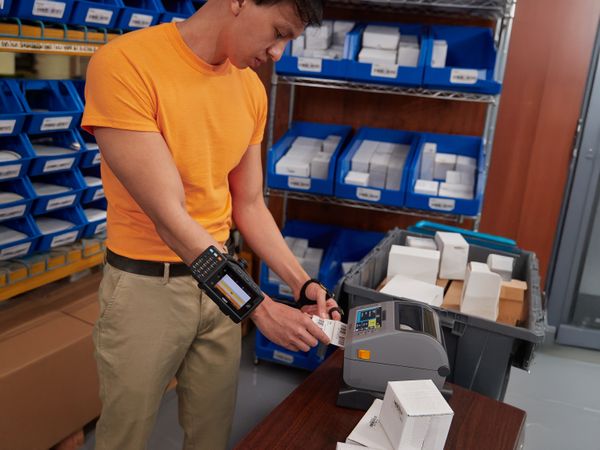

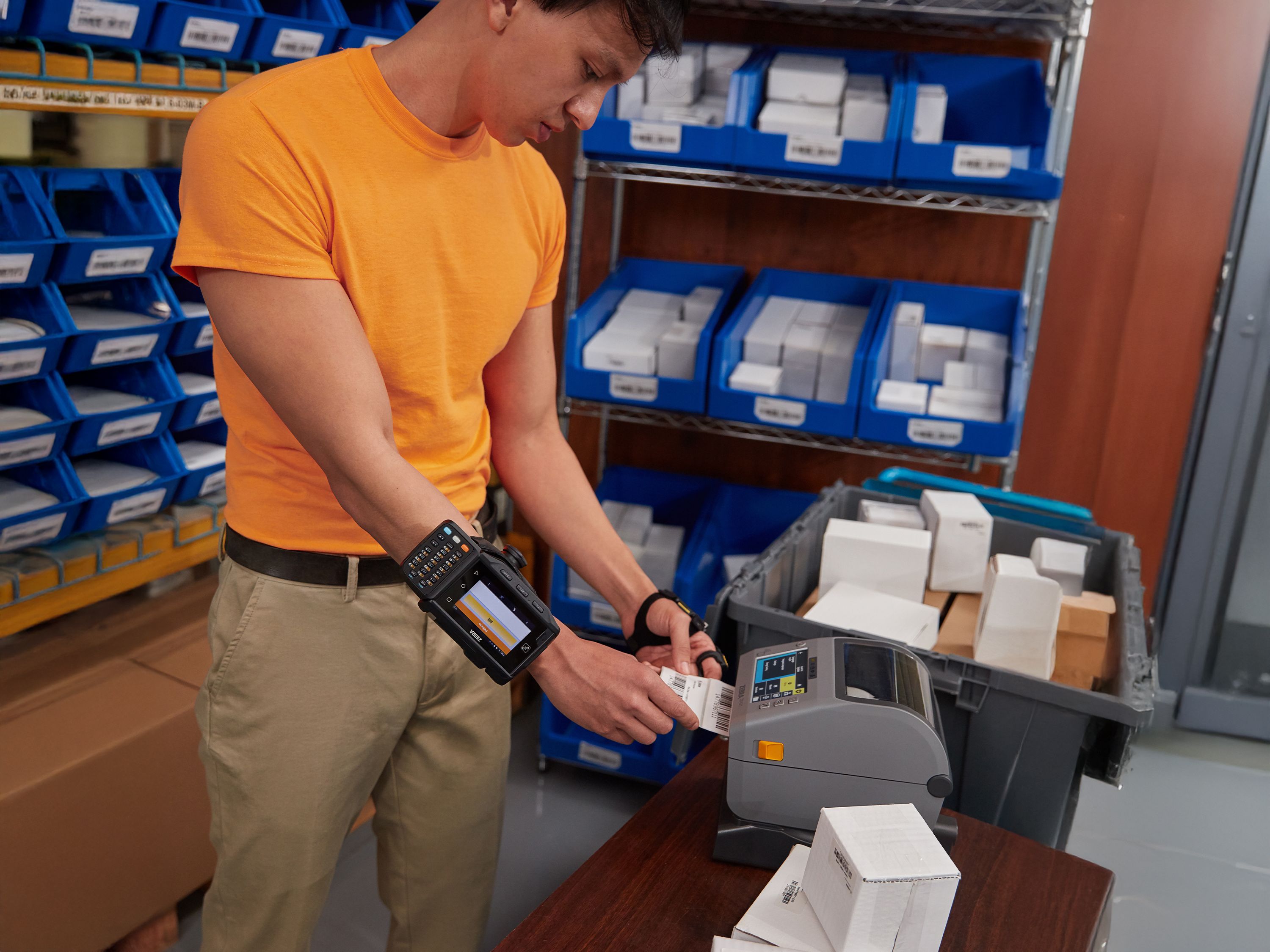

Zebra ZD621 printer for order picking in the warehouse

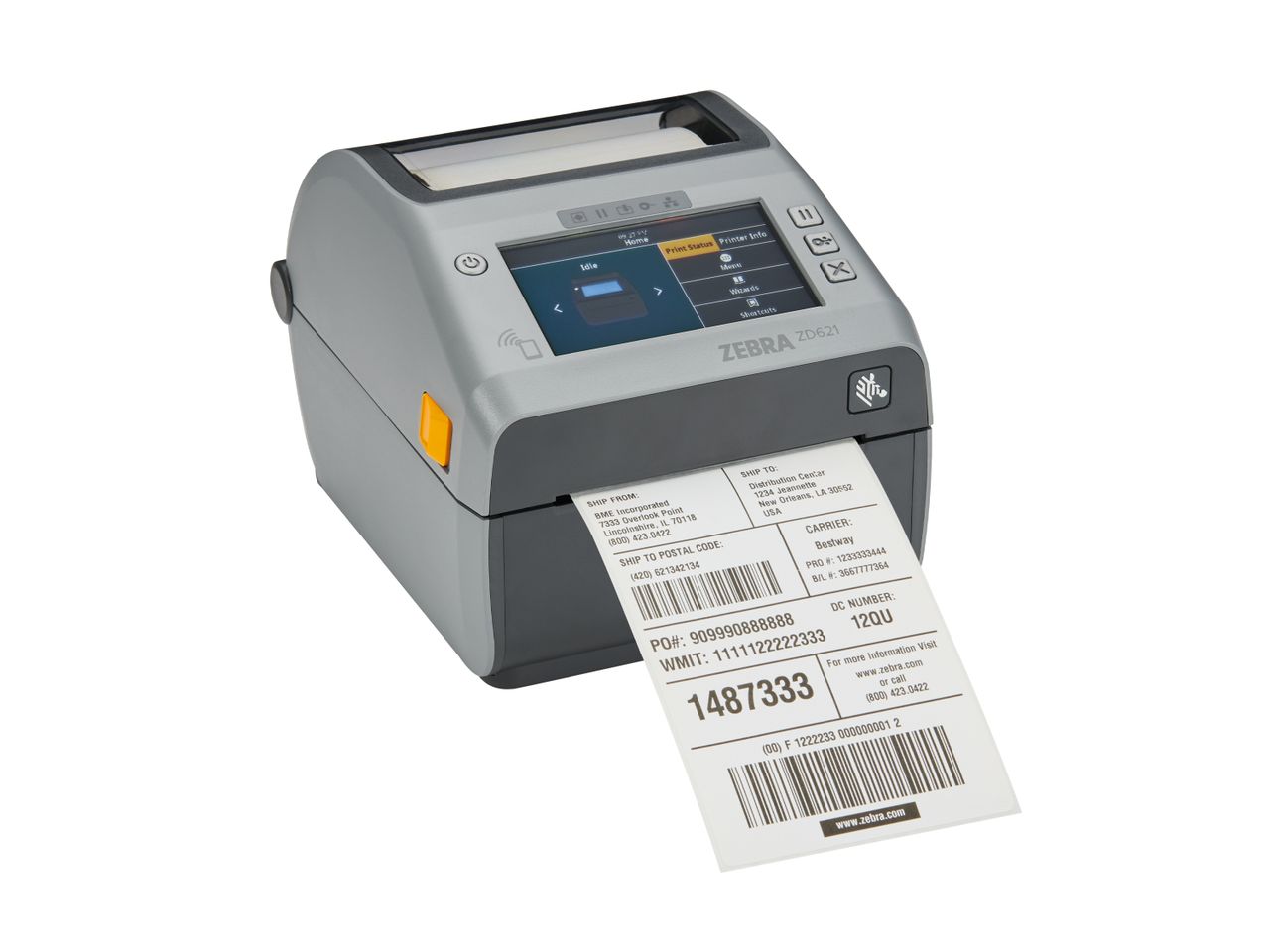

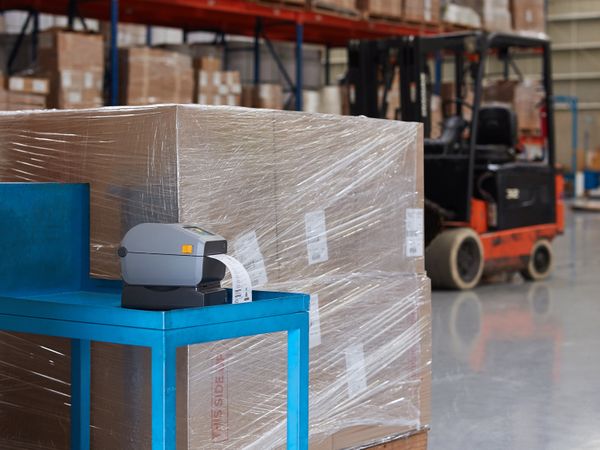

Zebra ZD421 for printing shipping labels in logistics

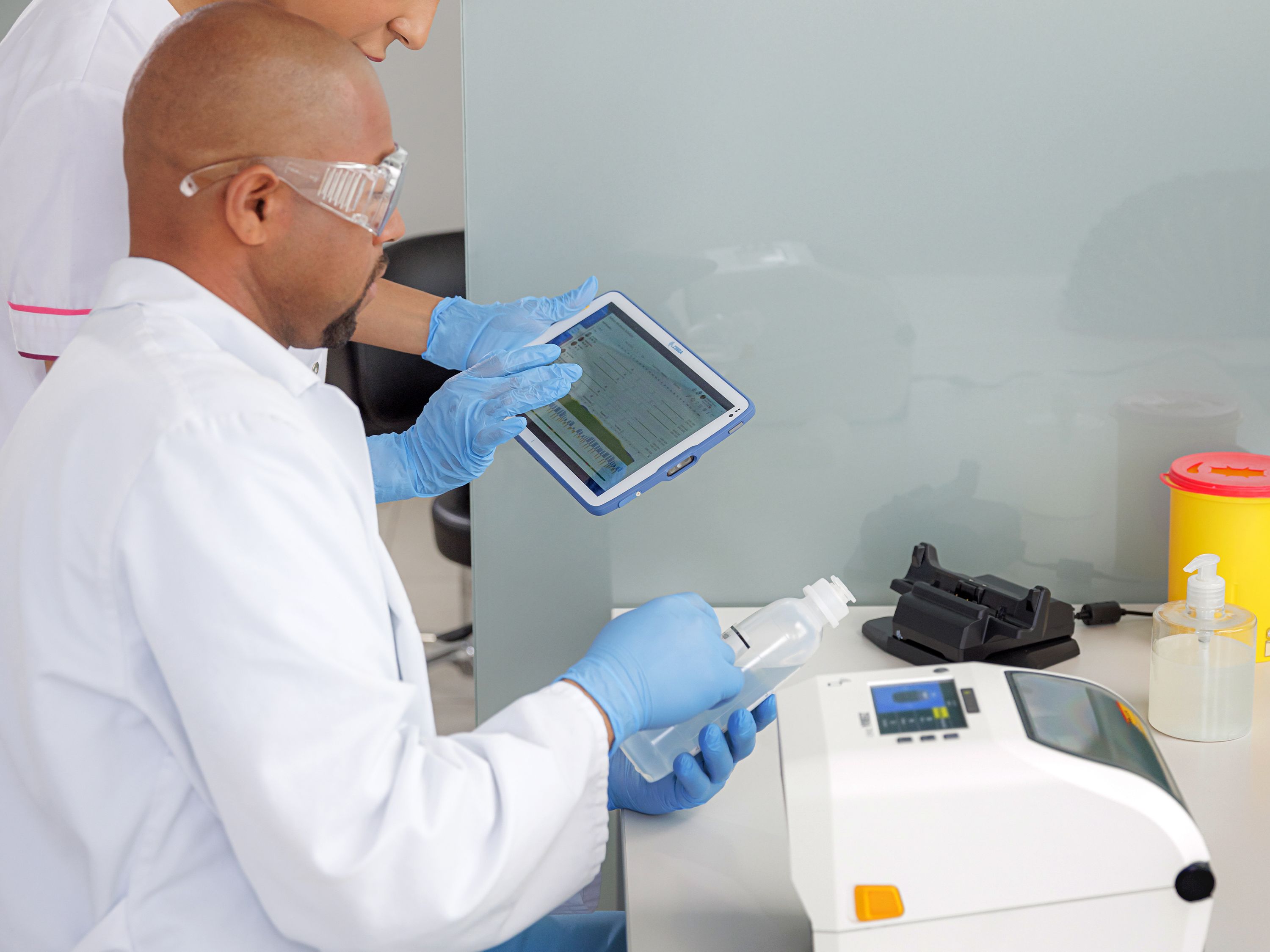

Zebra ZD621 printer in the healthcare laboratory

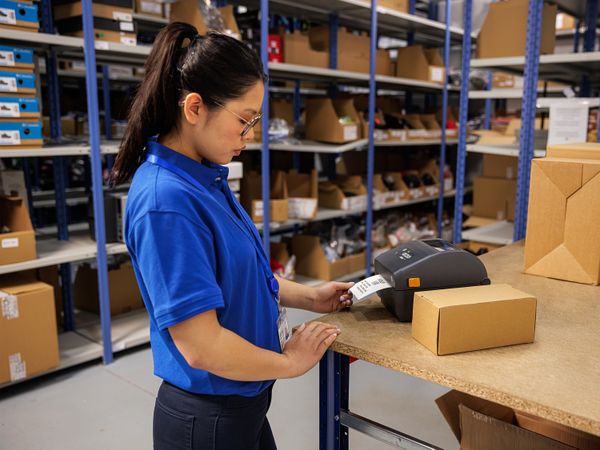

Zebra ZD421 printer in a shop warehouse

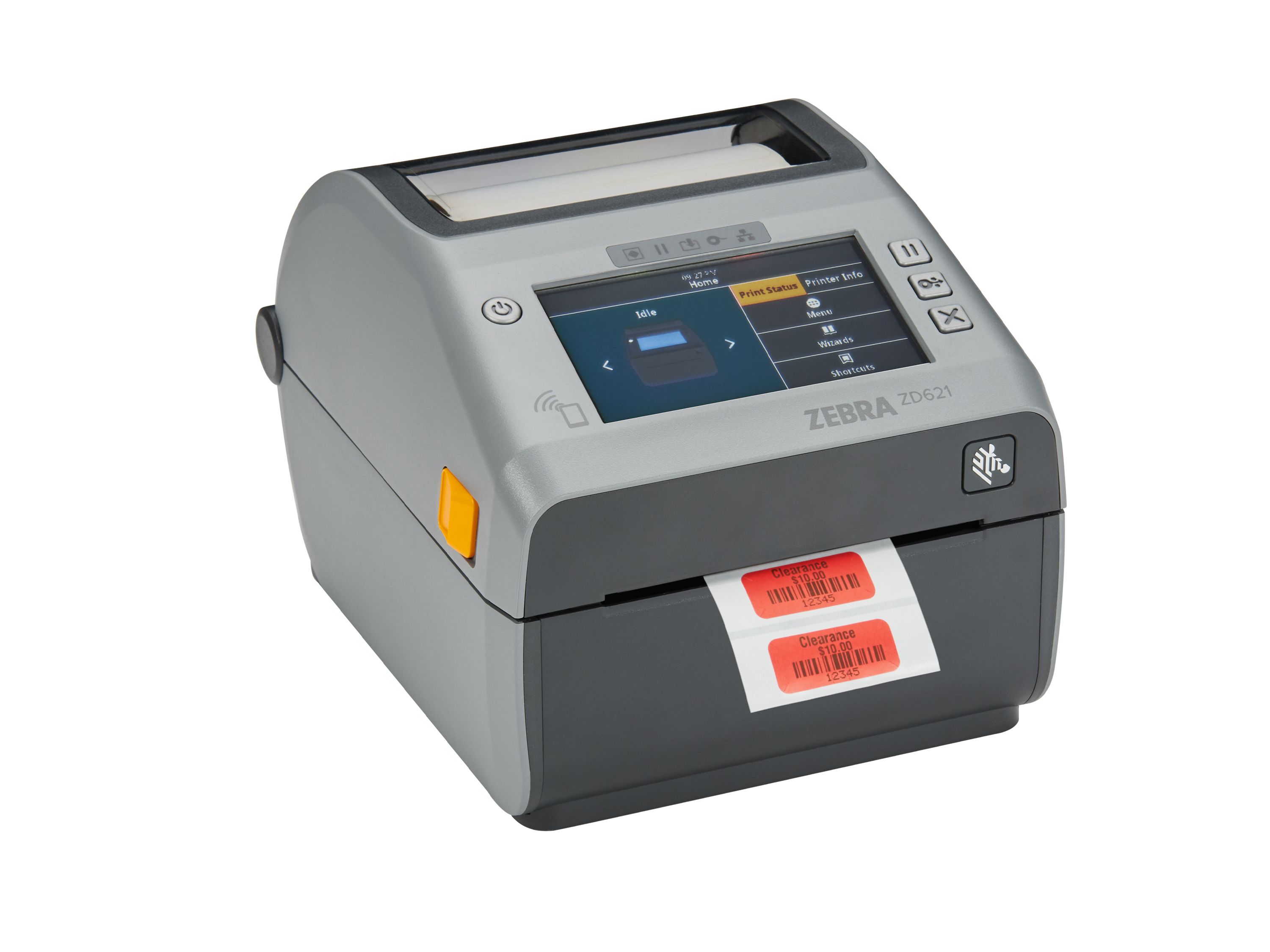

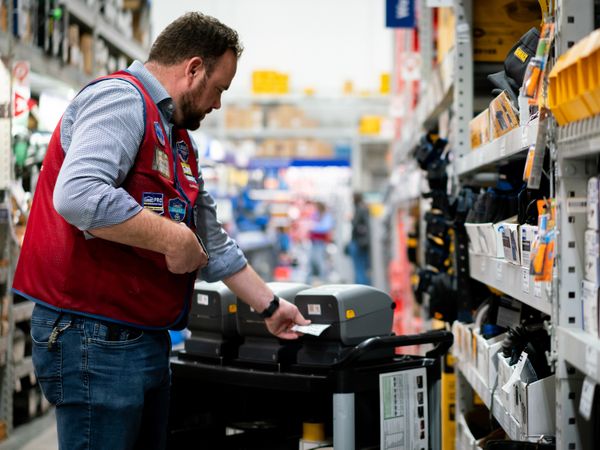

Zebra ZD421 for printing shelf labels in the retail sector

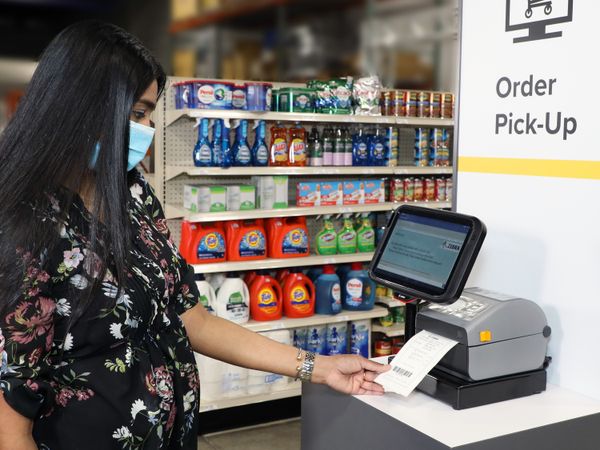

Zebra ZD421 printer for self-checkout in the retail sector

Special features

Engineered for outstanding print quality

Like Zebra’s industrial printers, the ZD621 thermal transfer model has a media dancer arm to ensure maximum quality on every label and tag at any print speed. The optional 300-dpi resolution provides even higher print quality.

Easy setup, effortless media changes

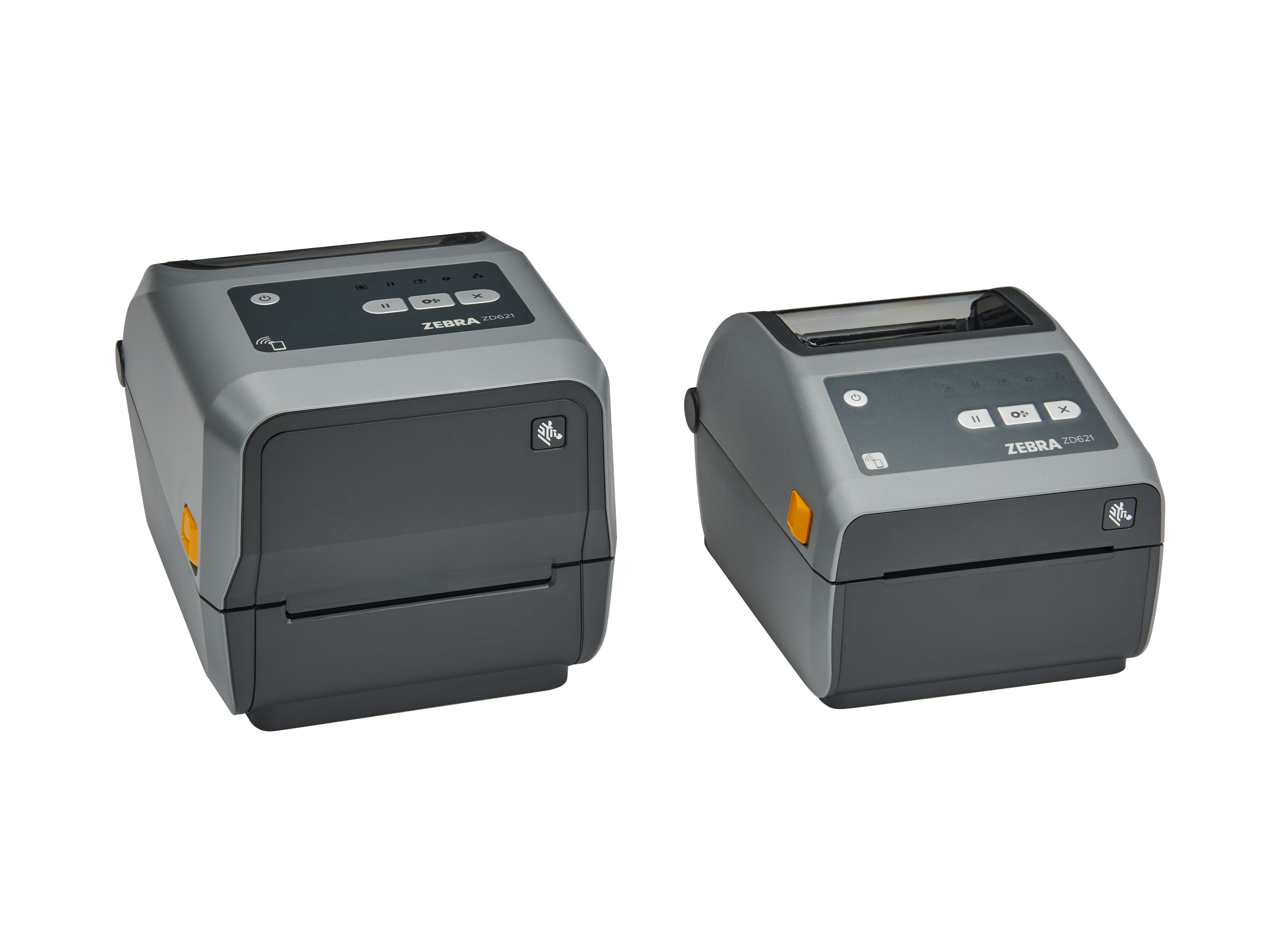

Thanks to setup tools, wizards, and emulation features, the printer can be quickly deployed anywhere. The intuitive UI requires minimal training, and 5 LED icons allow at-a-glance status checks. Color-coded touchpoints and a new media-handling design enable effortless media changes, keeping your printers ready and work uninterrupted.

Networking connectivity options

Connect the printer to your existing wireless or wired network, or directly to a PC. USB and USB host are standard. Ethernet, a serial port, and two wireless options for high-speed Wi-Fi™ and Bluetooth® are available.

Centralized access and robust printer security

With Zebra’s Printer Profile Manager Enterprise, part of the Zebra DNA Suite, you can manage and secure your networked printers worldwide from one location and troubleshoot remotely. Zebra PrintSecure, also part of the suite, helps protect your printers from cyberattacks. Configure your printer over secure connections, identify vulnerabilities, block unauthorized access, and more.

More mobility and flexibility

With the battery option, you can easily mount the printer on a cart or carry it with the matching bag to print at the point of use, saving steps and increasing accuracy. The high-capacity battery powers a full shift. The movable media sensor also enables the use of virtually any media, providing flexibility for different applications.

Technical specifications
Technical values
Label length
991 mm
Printing process
Thermal transfer, thermal direct, RFID
Print width
108 mm
Printhead resolution
203 dpi, 300 dpi
Print speed up to
203
Label width
15 - 118 mm
Features
Flash memory expansion as an option
PDF direct printing

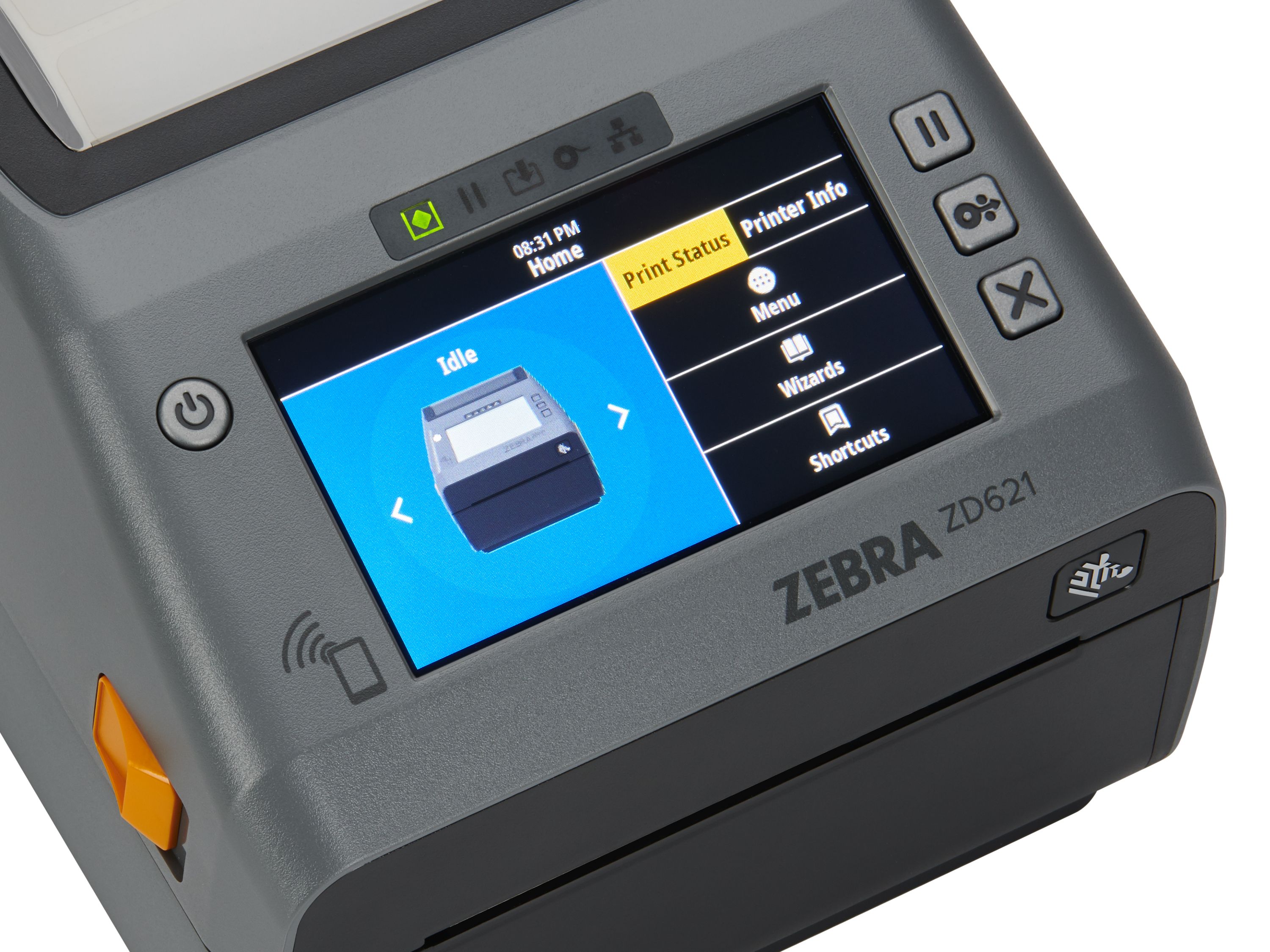

Display
optional colour touch LCD
Printhead technology
Flathead
Emulations
ZPL
Programming language
ZPL II; EPL 2; XML; ZBI
ROM / flash memory
512 MB
SD memory card slot
Print media
Material width max (labels and liner)
118 mm
Material width min (labels and liner)
15 mm
Maximum material thickness
0.19 mm
Ribbon
Width
33 - 109.2 mm
Inner core diameter
25.4 mm
Maximum length
74 m (1/2" core) / 300 m (1" core)
Winding
Outside
Physical aspects
Printer dimensions (HxWxL)
192 mm x 202 mm x 267 mm
Weight
2,5 kg
Authorisations
CE, FCC, CCC, ICES-003
Rel. humidity non-condensing
10 - 90 %
Ambient temperature
4.4 - 41°C
Frequency
50 - 60 Hz
