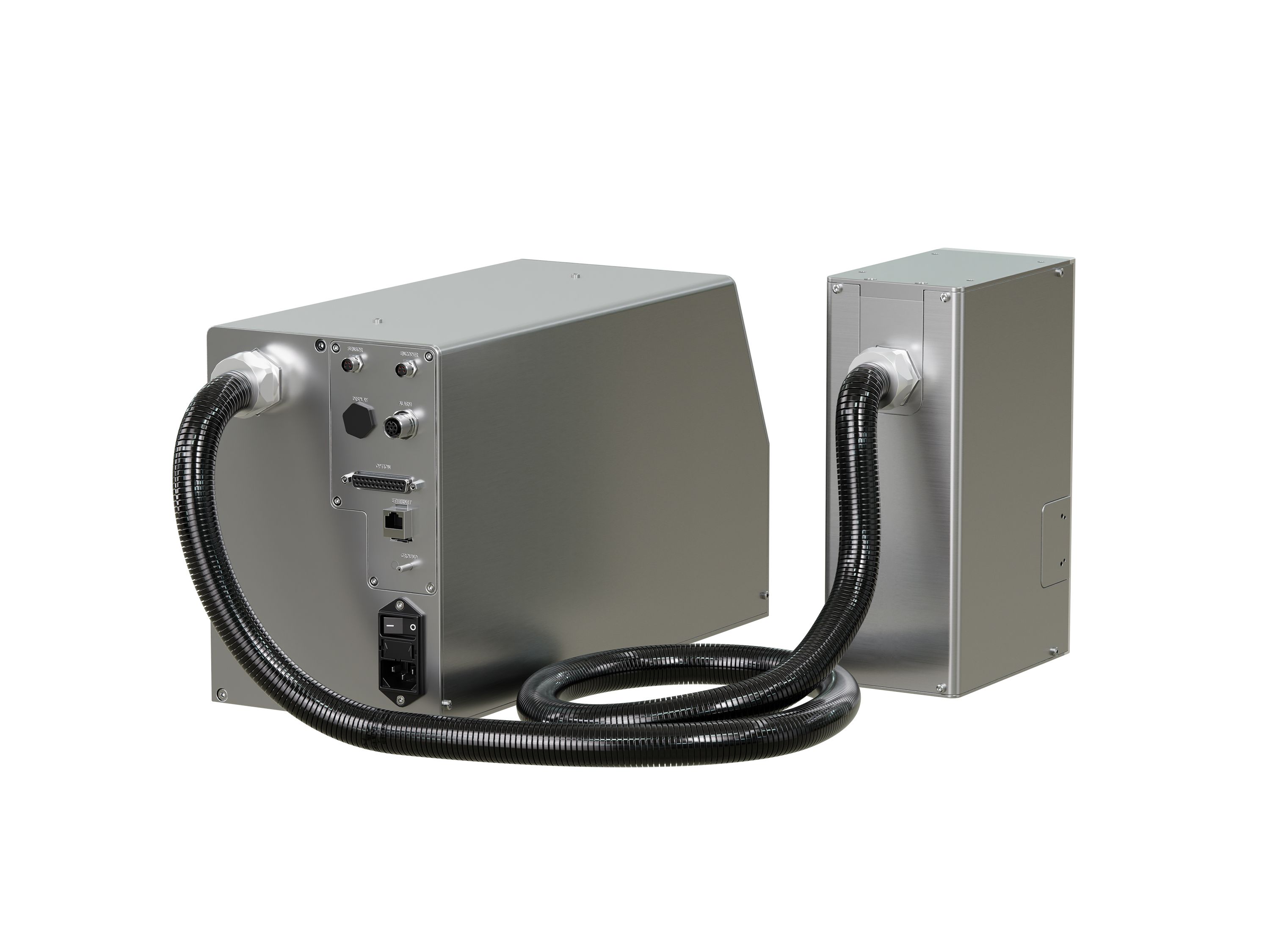

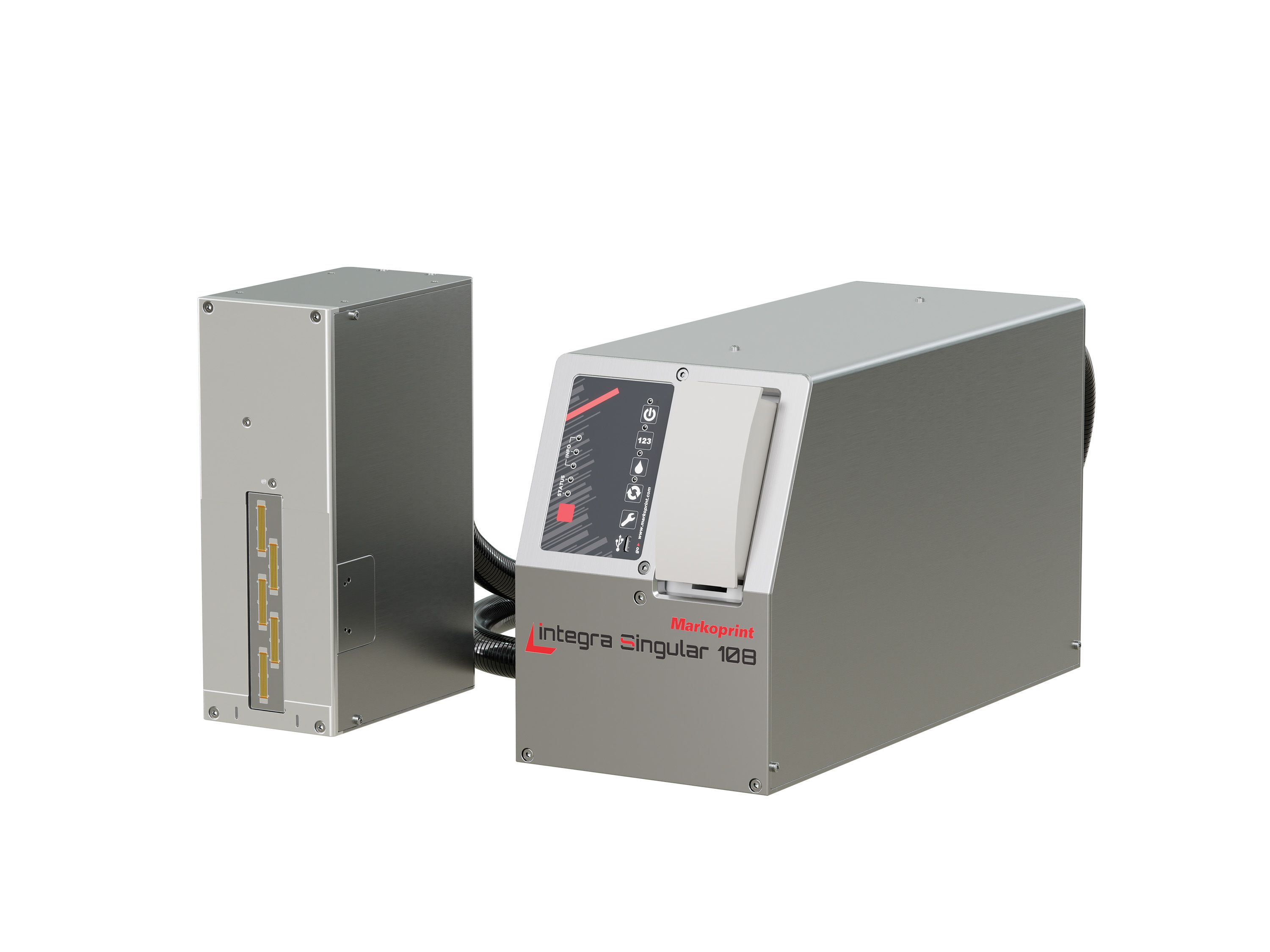

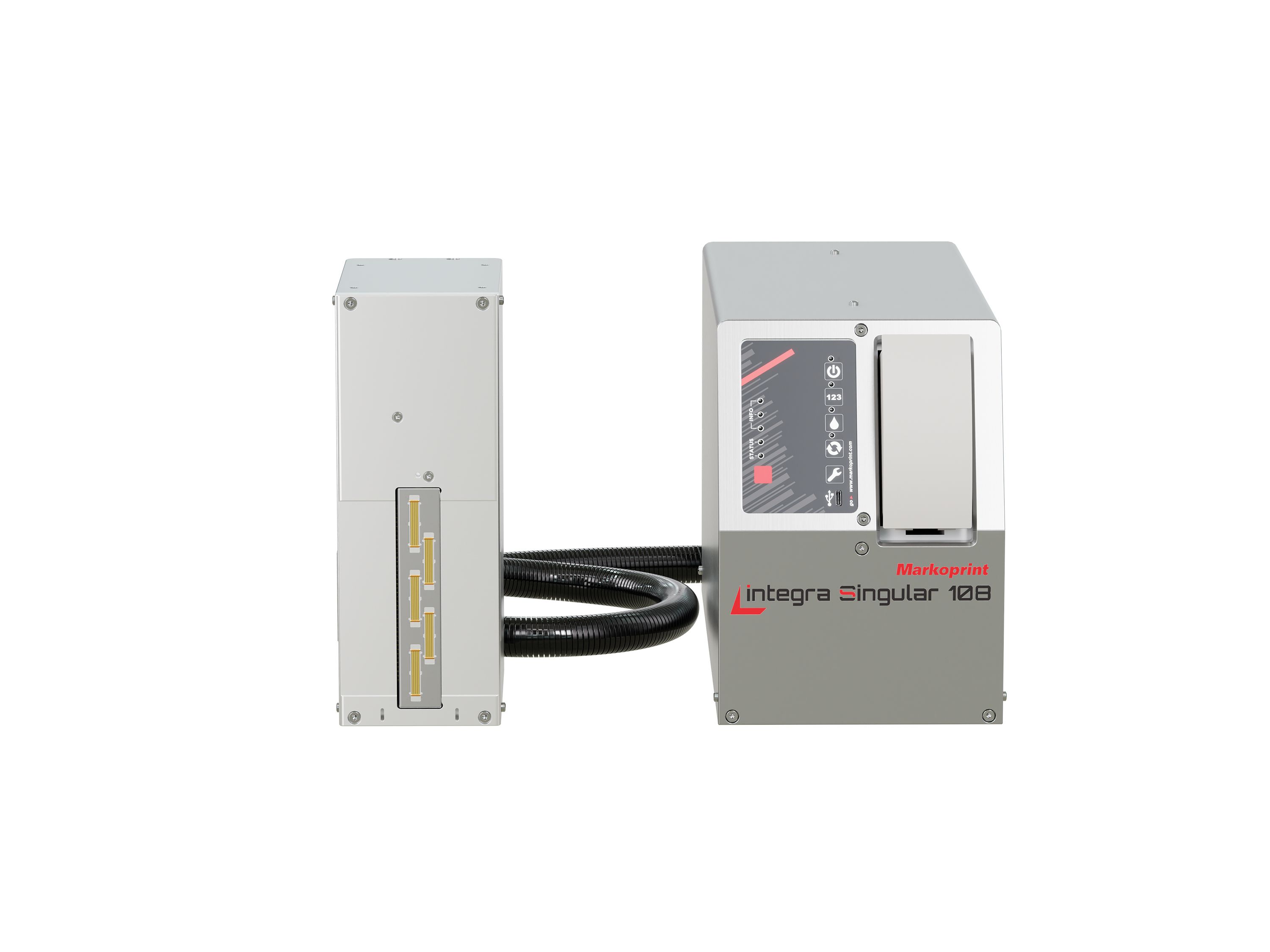

Industrial inkjet printer

Markoprint integra Singular 108

Ideal for cost-effective printing with large print runs on absorbent surfaces

  • Print height up to 108 mm, print resolution up to 600 dpi
  • Greater distance to the product (up to 10 mm) possible
  • Achieves print speeds of up to 90 m/min
  • Ink cartridge with large ink supply (750 ml)
  • Robust and flexible design for industrial environments
  • Ideal for absorbent surfaces, e.g. cardboard packaging

Robust large character printer as a labeling alternative

The name of the Markoprint integra Singular 108 already reveals its maximum print height of 108 mm. The thermal inkjet printer with HP cartridge technology realises the large character printing required in many industries on absorbent surfaces without offset. It prints high-resolution text, 1D barcodes, 2D codes and graphics. This makes it ideal as an alternative to adhesive labels and solid ink or hot melt (wax) printers. On request, it can also print very small, with a minimum print height of one millimetre.

The Markoprint integra Singular 108 is designed for printing with water-based inks. Water-based inks have better drying properties and a higher degree of blackness on absorbent materials. They are therefore ideal for high-contrast and sharp-edged printing on carton, paperboard and paper as well as for use in the food industry. The smart card technology integrated in the cartridges synchronises all important consumption data in real time. Thanks to its compact and flexible design, it can be easily integrated into existing production lines.

Food packaging board printed with Markoprint integra Singular 108 inkjet printer

Applications

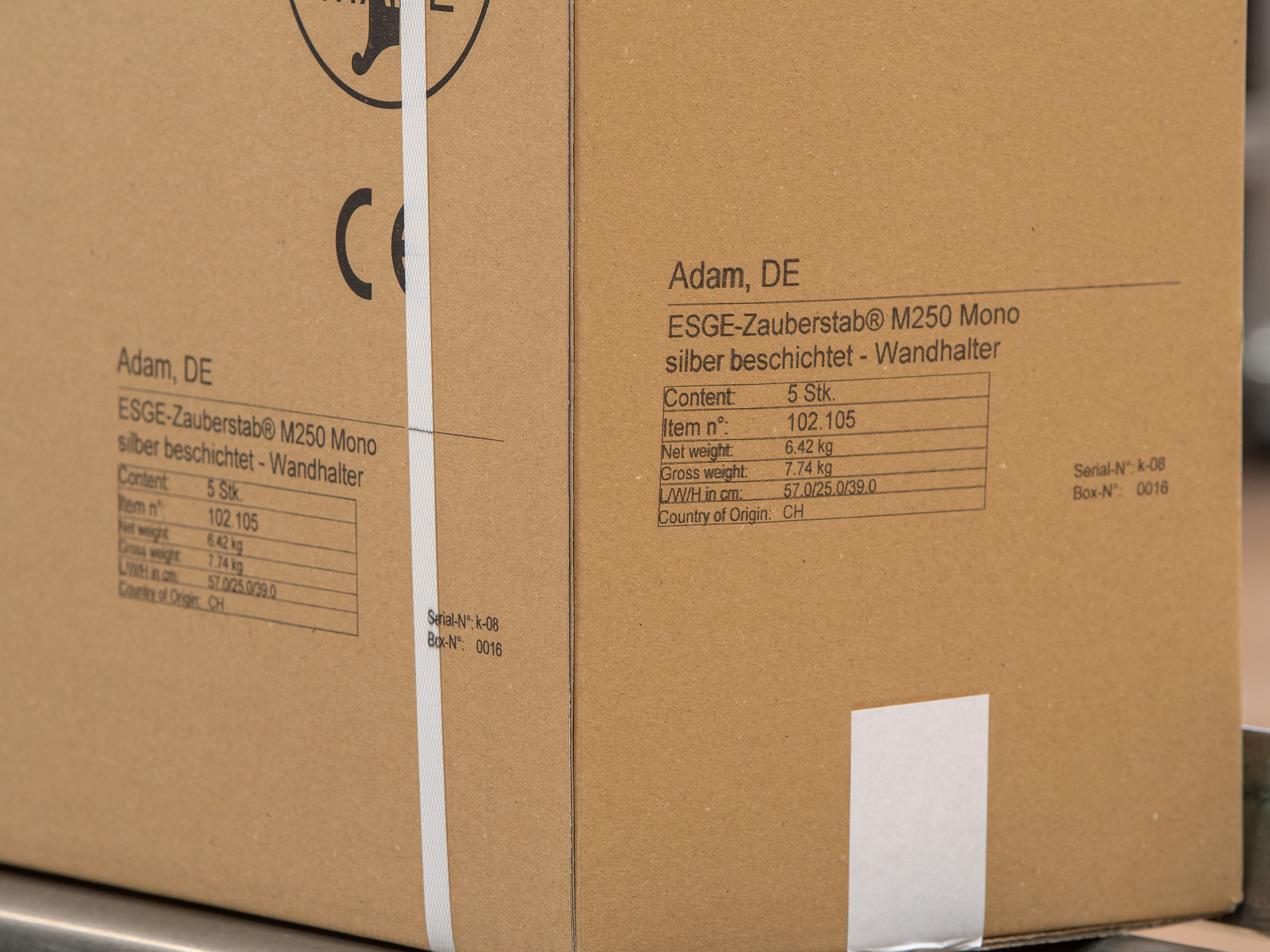

Carton printed with Markoprint integra Singular 108 inkjet printer

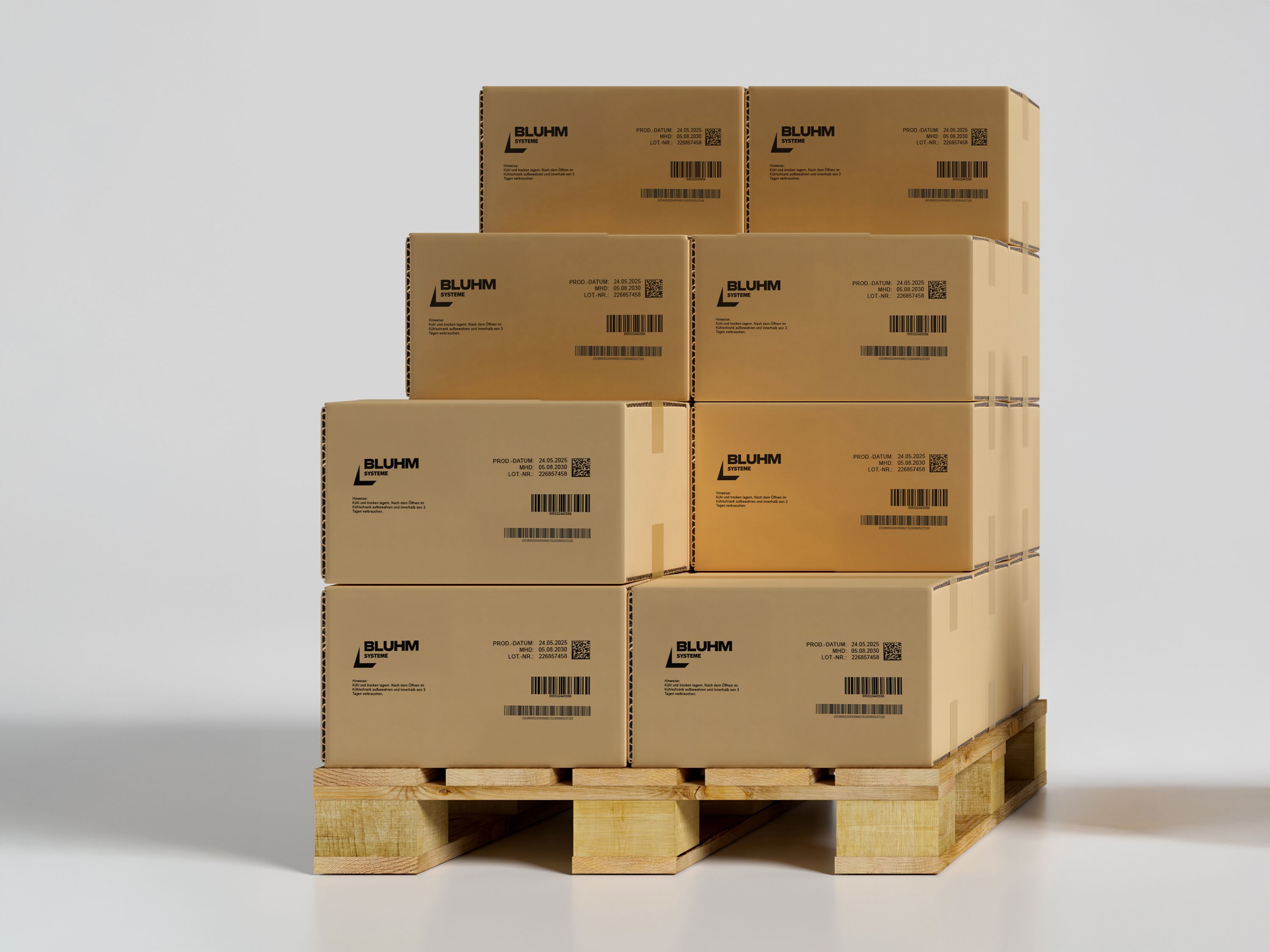

Cartons printed with Markoprint integra Singular 108 inkjet printer on a pallet

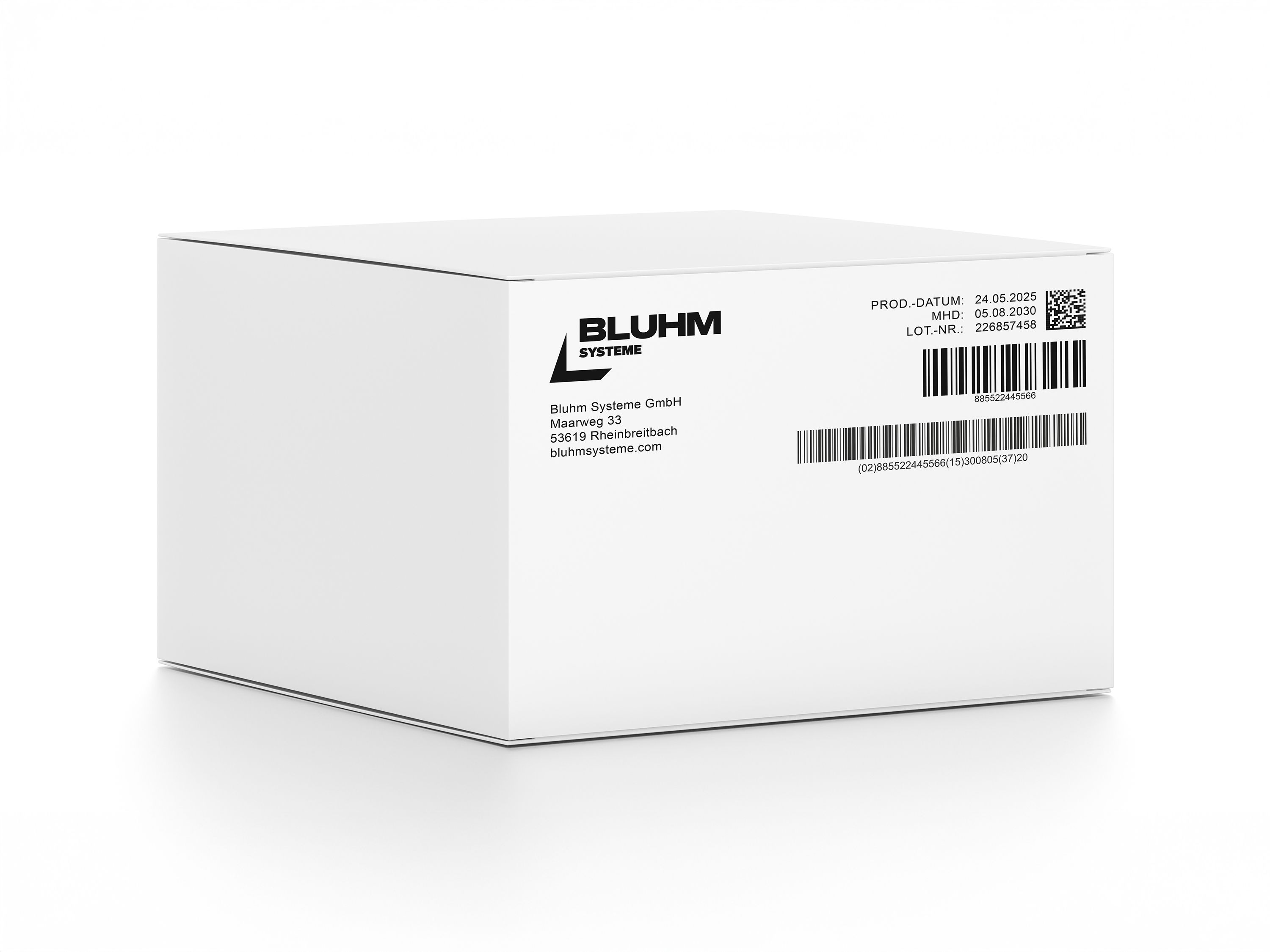

Carton printed with Markoprint integra Singular 108 inkjet printer
Carton printed with Markoprint integra Singular 108 inkjet printer
Carton printed with Markoprint integra Singular 108 inkjet printer
Paper bag printed with Markoprint integra Singular 108 inkjet printer

Special features

Markoprint 10 mm product distance

Greater print distance to the product: up to 10 mm

The generous printing distance of up to 10 mm between the printhead and the product provides greater flexibility and tolerance in marking. Even on uneven, rough, or slightly varying surfaces, the print quality remains consistently high. This feature facilitates use in a wide range of production environments and ensures reliable marking without the need for complex line adjustments.

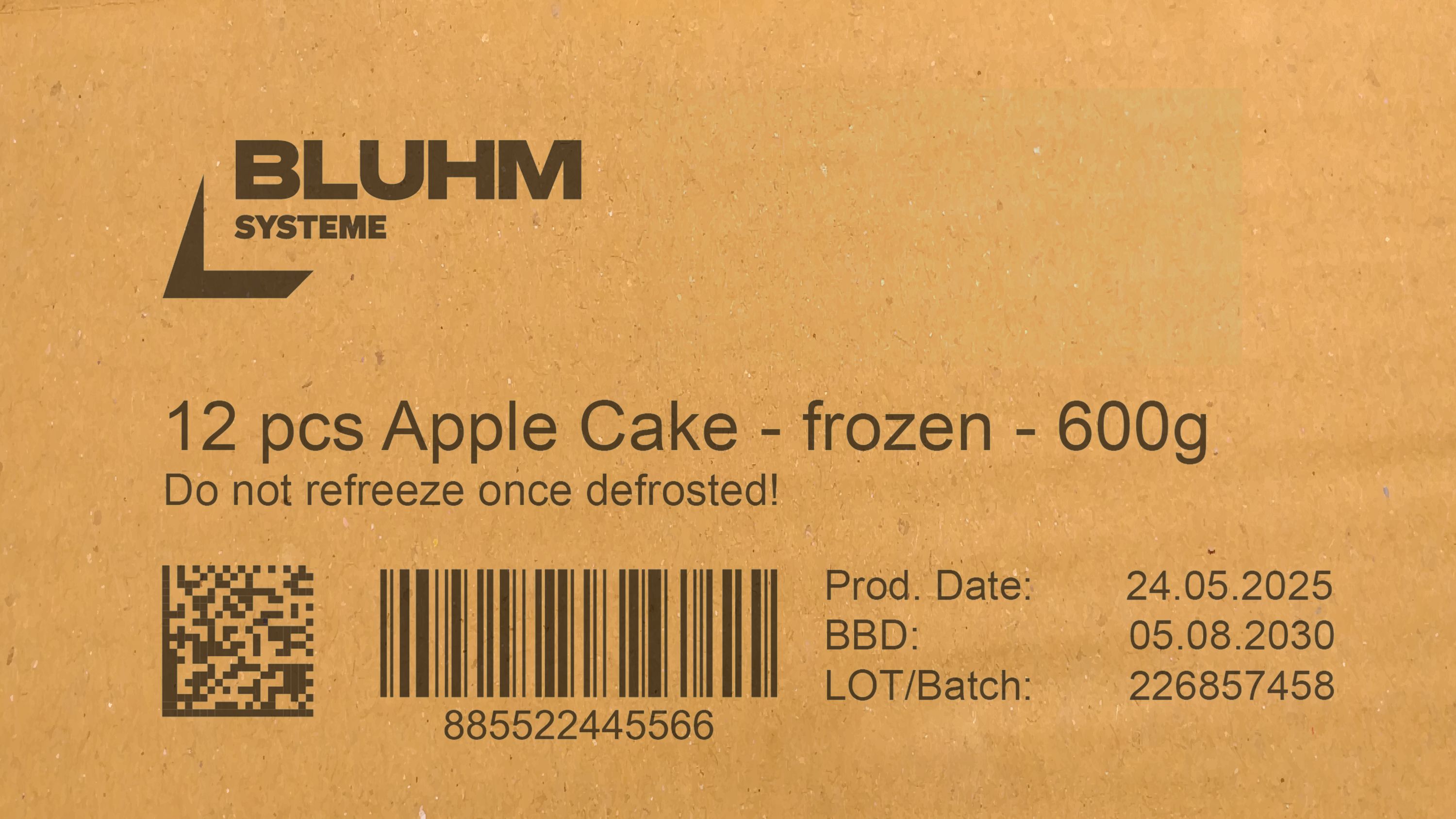

High-contrast printing with Markoprint inkjet printers on absorbent material

High-contrast and sharp-edged print on absorbent material

The water-based inks deliver high-contrast and clear prints on absorbent materials, ensuring excellent readability at all times. This guarantees high print quality even during fast production. Their properties make them ideal for applications in the food industry, where precise marking is essential, as well as in logistics, where reliable and permanently recognizable markings are required.

Markoprint inkjet printing as a label alternative

Ideal as a labeling alternative

The solid print image with a height of 108 mm enables clean marking without offset and ensures consistently high quality. At the same time, variable data can be processed in real time and applied precisely. This makes the inkjet printer an excellent, cost-saving, and waste-reducing alternative to conventional labels and solid ink or hot melt printers—a clear advantage for sustainable production processes.

Markoprint IQ Supplies

Smartcard technology controls ink type and fill level

The smart card technology of the ink cartridges ensures consistently good prints. A chip identifies the current ink type and automatically sets the corresponding parameters. There is no need to switch over manually when changing the ink. The ink level is also recorded and displayed in real time. This enables controlled cartridge replacement and prevents unplanned production downtimes. Thanks to the Click'n Print cartridge holder, ink changes are quick and easy.

Markoprint Coding Score

Clear performance levels for flexible and scalable printing solutions

The specially developed Coding Score makes it easier to select and configure Markoprint printing systems. The performance levels – PRINT, BASIC, ADVANCED, PRO, and ULTIMATE – are clearly defined, easy to compare, and vary depending on the system. This creates transparency in decision-making and ensures investment security in a marking solution that can be flexibly expanded at any time. New requirements for production, efficiency, or sustainability can be easily integrated, securing consistently powerful and economical processes.

Technical specifications
Printing specifications
Print
Basic
Advanced
Pro
Printer type
Thermal Ink Jet (TIJ)
Supported printing technology
HP
Print height
Print
1 mm - 108 mm
Basic
1 mm - 108 mm
Advanced
1 mm - 108 mm
Pro
1 mm - 108 mm
Vertical print resolution up to
Print
600 dpi
Basic
600 dpi
Advanced
600 dpi
Pro
600 dpi
Print speed up to
Print
30 m/min
Basic
30 m/min
Advanced
60 m/min
Pro
90 m/min
Recommended distance printhead to product
Print
1 mm
Basic
1 mm
Advanced
1 mm
Pro
1 mm
Orientation
From left to right, From right to left
Function
Top printing, Lateral printing
Number of printheads up to
1
Maximum number of production lines
1
Printable content
Print
Text fields, BMP graphics
Basic
Text fields, BMP graphics, Time indication, Date field
Advanced
Barcodes, Text fields, BMP graphics, Counter, Time indication, Date field, Date offset, Fields of action
Pro
Fields of action, Date offset, Date field, Time indication, Counter, BMP graphics, Text fields, 2D codes, Barcodes
Barcodes
Print
Basic
Advanced
more on request, UPC-E, UPC-A, GS1 Databar, EAN 13, EAN 8, Code 128, Code 39, Code 2 out of 5
Pro
more on request, UPC-E, UPC-A, QR code, GS1 Databar, GS1 DataMatrix, EAN 13, EAN 8, DataMatrix, Code 128, Code 39, Code 2 out of 5
Fonts
Customized fonts, All Windows fonts
PDF direct printing
DBPrint
Print
Basic
Advanced
Pro
Spitting
Print
Basic
Advanced
Pro
Interpreter software
integra Command
Software requirements
Processor with at least 1 GHz, Interface for connecting the printing device, PC mouse or touchscreen, DirectX 9 or higher with WDDM 1.0 driver, Min. 30 GB hard disk space, 2 GB for 32-bit or 4 GB for 64-bit, Windows 7, 8, 10
Ink
Colour
Black
Composition
Water-based
Hardware
Print
Basic
Advanced
Pro
Display
no display
Internal sensor
Shaft encoder signal
Frequency max.150 kHz, Switching threshold 7 V, 24 V voltage, Push-pull or NPN
Sensor signal
NPN, Switching threshold 7V
interfaces
Ethernet (TCP/IP), RS-232, M8 connector for shaft encoder and sensor, M12 connector for PoE and inputs and outputs
USB memory stick slot
PCMCIA slot
Flash memory expansion as an option
SD memory card slot
Status/ Alarm outputs
Print
4
Basic
4
Advanced
4
Pro
4
WIFI
Print
Basic
Advanced
Pro
Physical aspects
Print
Basic
Advanced
Pro
Printhead dimensions
Print
92 mm x 156 mm x 248 mm
Basic
92 mm x 156 mm x 248 mm
Advanced
92 mm x 156 mm x 248 mm
Pro
92 mm x 156 mm x 248 mm
System dimensions (HxWxL)
226 mm x 162 mm x 390 mm
Weight
10.2 kg
IP ingress protection
IP 40
Rel. humidity non-condensing
30 - 85 %
Ambient temperature
10 - 40°C
Supply voltage
90-240 V
Mains frequency
50-60 Hz
Amperage
4.2 A
