Markoprint X1JET HP Standard

Industrial inkjet printer

Markoprint X1JET HP Standard

Cost-effective entry-level system and compact all-rounder for system integration

Print height up to 12.7 mm, print resolution up to 600 dpi
Achieves print speeds of up to 60 m/min
Particularly compact design with low space requirements
Low maintenance and easy to operate
Integrated photo sensor for product detection

The Markoprint X1JET HP Standard labels flat absorbent and semi-absorbent surfaces precisely and reliably. The thermal inkjet printer with HP cartridge technology combines a printhead and controller in a robust enclosure made of anodised aluminium. This makes the printer extremely compact and therefore easy to integrate. Where space is limited, for integration into existing production systems or for the development of new system concepts - the Markoprint X1JET HP Standard offers maximum planning freedom.

The printhead is also part of the ink cartridge. This means that the printhead is also replaced every time the cartridge is changed. This saves time-consuming maintenance and cleaning work and ensures optimum printing results. The Markoprint X1JET HP Standard prints text, 1D barcodes, 2D codes and graphics in high resolution and delivers brilliant print results on products and packaging. The labeling is smudge-proof, easy to read and durable and is suitable for the food, chemical, building materials and pharmaceutical industries, among others.

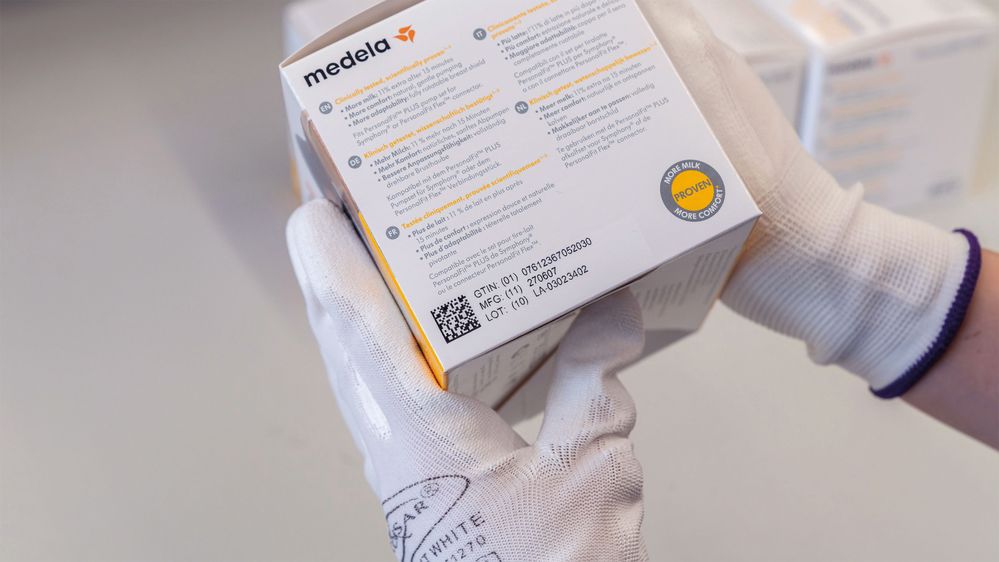

Folding carton for pharmaceuticals printed with Markoprint X1JET HP Standard inkjet printer

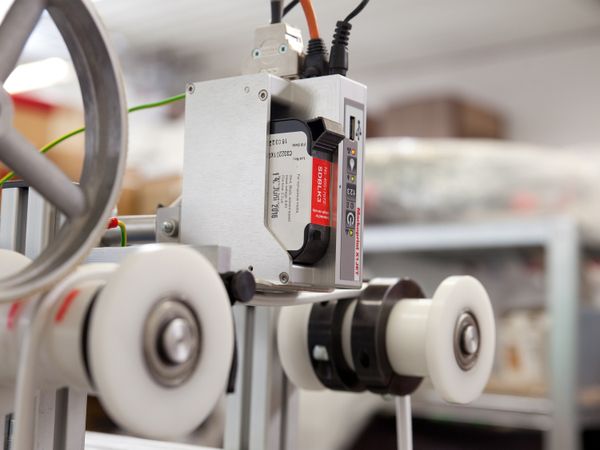

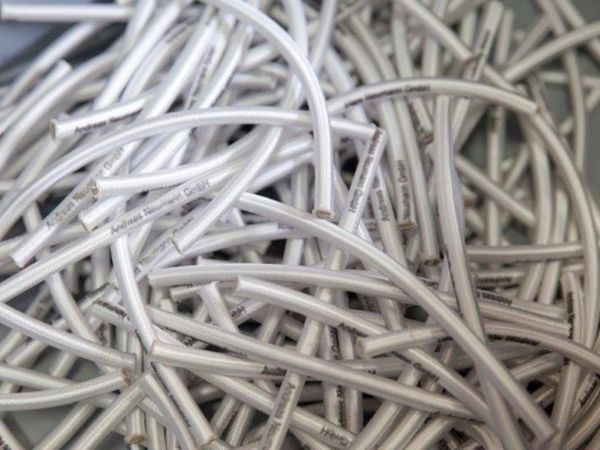

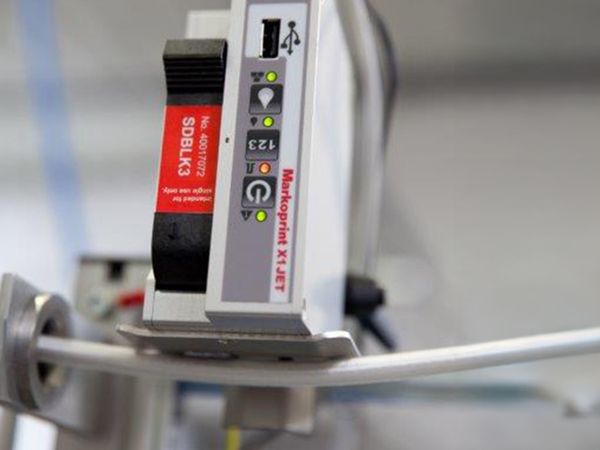

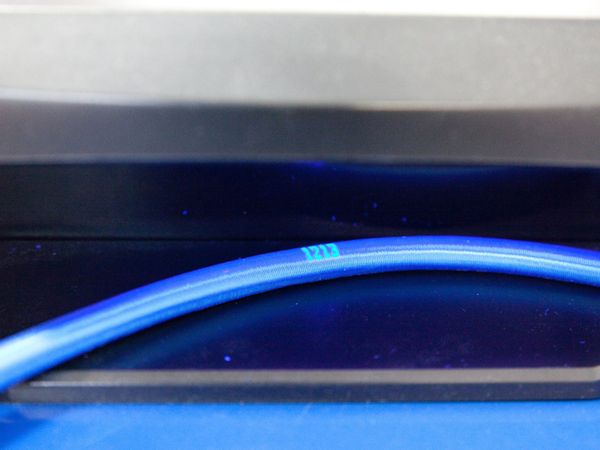

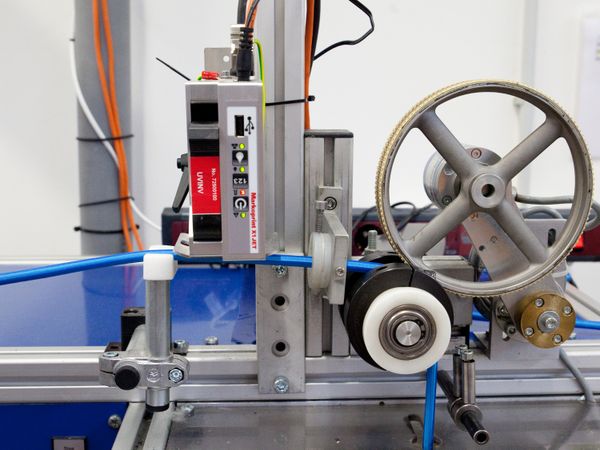

Rubber cord printed with inkjet printer Markoprint X1JET HP Standard

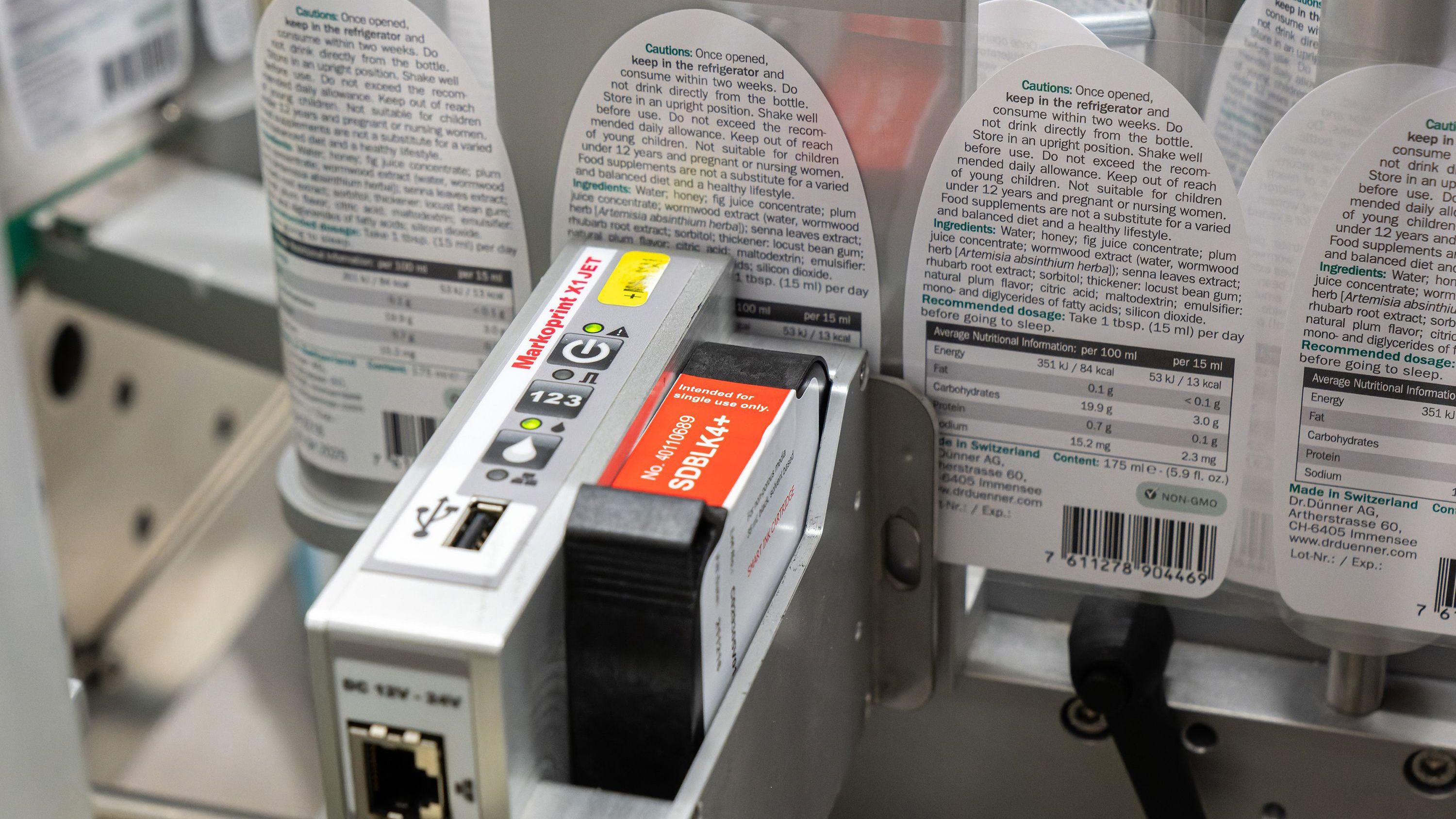

Label printed with Markoprint X1JET HP Standard inkjet printer

The photo sensor precisely detects when a product is in the exact right position to reliably trigger the printing process. This ensures that every label or print is executed with pinpoint accuracy and consistent quality. The sensor continuously monitors the process and plays a key role in maintaining consistently high print quality as well as exact positioning directly on the production line.

Markoprint 3 logic buttons for intuitive operation

Simple operation via 3 logic keys with LED indicator lights on the top of the housing ensures user-friendly system control. This means that even untrained employees can operate the Markoprint X1JET HP Standard and carry out print jobs safely.

A chip in the ink cartridge identifies the current ink type and automatically sets the corresponding parameters. There is no need to switch over manually when changing the ink. The ink level is also recorded and displayed in real time. This enables controlled cartridge replacement and prevents unplanned production downtimes. Thanks to the Click'n Print cartridge holder, ink changes are quick and easy.

The specially developed Coding Score makes it easier to select and configure Markoprint printing systems. The performance levels – PRINT, BASIC, ADVANCED, PRO, and ULTIMATE – are clearly defined, easy to compare, and vary depending on the system. This creates transparency in decision-making and ensures investment security in a marking solution that can be flexibly expanded at any time. New requirements for production, efficiency, or sustainability can be easily integrated, securing consistently powerful and economical processes.

Technical specifications

Printing specifications

Basic

Advanced

Pro

Printer type

Thermal Ink Jet (TIJ)

Supported printing technology

Print height

1 - 12.7 mm

Vertical print resolution up to

300 dpi

Basic

300 dpi

Advanced

600 dpi

Pro

600 dpi

Print speed up to

30 m/min

Basic

30 m/min

Advanced

60 m/min

Pro

90 m/min

Recommended distance printhead to product

1 mm

Distance from printhead to product

1 - 4 mm

Number of printheads up to

Maximum number of production lines

Orientation

From left to right, From right to left

Function

Top printing, Lateral printing

Printable content

Text fields, BMP graphics

Basic

Text fields, BMP graphics, Time indication, Date field

Advanced

Barcodes, Text fields, BMP graphics, Counter, Time indication, Date field, Date offset, Input of variables, Fields of action

Pro

Barcodes, 2D codes, Text fields, BMP graphics, Counter, Time indication, Date field, Date offset, Input of variables, Fields of action

Barcodes

Basic

Advanced

Code 2 out of 5, Code 39, Code 128, EAN 8, EAN 13, UPC-A, UPC-E

Pro

Code 2 out of 5, Code 39, Code 128, DataMatrix, EAN 8, EAN 13, GS1 DataMatrix, QR code

DBPrint

–

Basic

–

Advanced

–

Pro

PDF direct printing

Software requirements

Windows 7, 8, 10, Processor with at least 1 GHz, Interface for connecting the printing device, PC mouse or touchscreen, DirectX 9 or higher with WDDM 1.0 driver, Min. 30 GB hard disk space, 2 GB for 32-bit or 4 GB for 64-bit

Interpreter software

integra Command

Spitting

Ink

Colour

Blue, Yellow, White, Red, Black, UV-visible, UV-curing, Green

Composition

Solvent-based, Water-based

Hardware

Basic

Advanced

Pro

Display

no display

External control panel/display

External Vivid Display, External HMI display

Password protection

–

Basic

–

Advanced

–

Pro

–

Internal sensor

Sensor signal

NPN, Switching threshold 7V

Shaft encoder signal

Frequency max.150 kHz, Switching threshold 7 V, 24 V voltage, Push-pull or NPN

Status/ Alarm outputs

Basic

Advanced

Pro

Flash memory expansion as an option

–

USB memory stick slot

SD memory card slot

–

PCMCIA slot

–

WIFI

–

Basic

–

Advanced

–

Pro

–

interfaces

Ethernet (TCP/IP), RS-232, 15-pin SUB-D (connection shaft encoder/sensor/inputs and outputs and optional power supply)

Physical aspects

System dimensions (HxWxL)

95 x 75 x 119 mm

Weight

0.55 kg

IP ingress protection

IP 40

Authorisations

Rel. humidity non-condensing

10 - 90 %

Ambient temperature

5 - 40°C

Supply voltage

100-230 V

Mains frequency

50-60 Hz

Amperage

1.25 A

Power consumption

15 W

integra Vivid

The 7″ high-resolution HMI color touchscreen of integra Vivid provides a visual display of print jobs and the status of X1JET and PP Class printing systems. At a glance, you can see whether the printing system is operating, the cartridge ink levels, and the current print speed. The innovative swipe-based UI makes editing printer settings and changing print jobs directly on the display especially easy. With its IP52 rating, it is protected in dusty production environments and against dripping water.

Learn more

HMI display

The high-resolution OLED display provides visual representation of functions and settings for Markoprint inkjet printers in the X1JET series. Various printer settings can be checked and changed, and the current printer status is shown. In addition, different print images can be selected and populated with data. The start/stop buttons greatly simplify operation. With intuitive control, the printer can be activated and the label printed. The compact, robust system can be easily integrated into the production line thanks to its small footprint. A bracket allows placement on a table or mounting on a wall. Because the device supports hot plugging, it can be removed during operation and used on other compatible systems. The system starts automatically with the connected printing system. An iLOGIK rotary controller operates the HMI and is used to navigate the various menus. If the selected print image contains a variable field, an input option for the variable text appears after selecting the print job.

Learn more

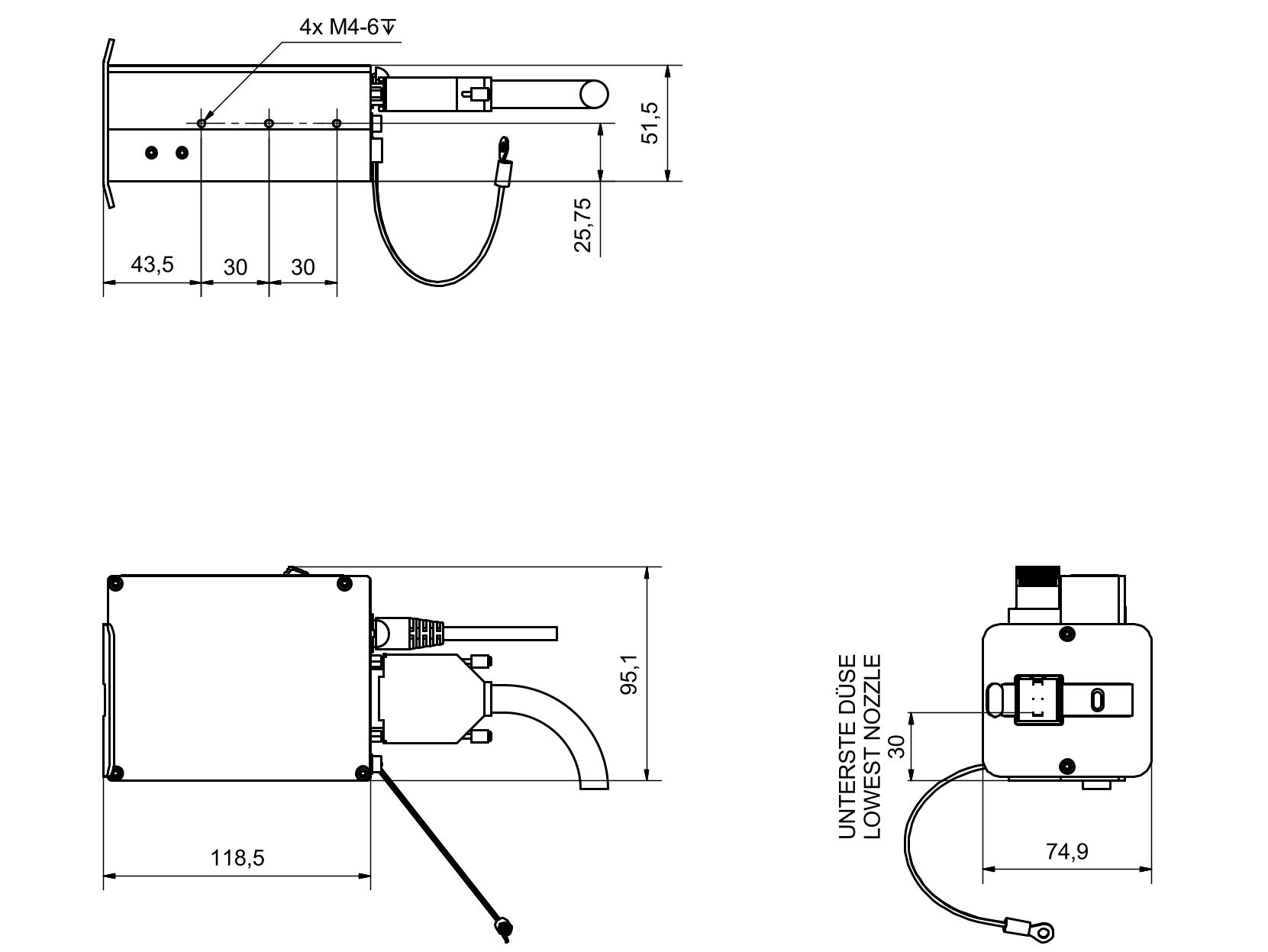

Technical Drawing Markoprint X1JET HP Standard (326.2 kB)

Markoprint product overview (PDF) (10.5 MB)
