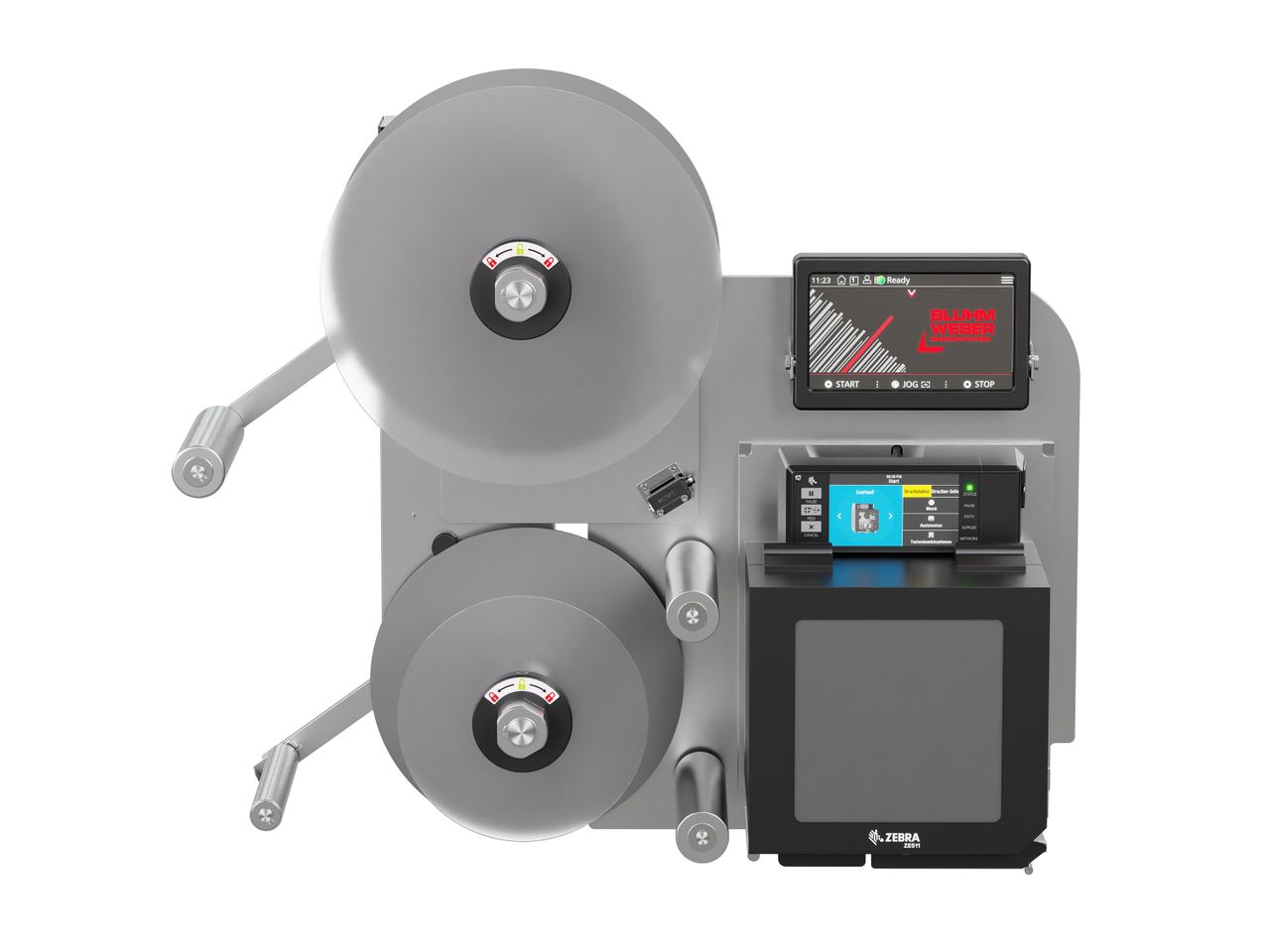

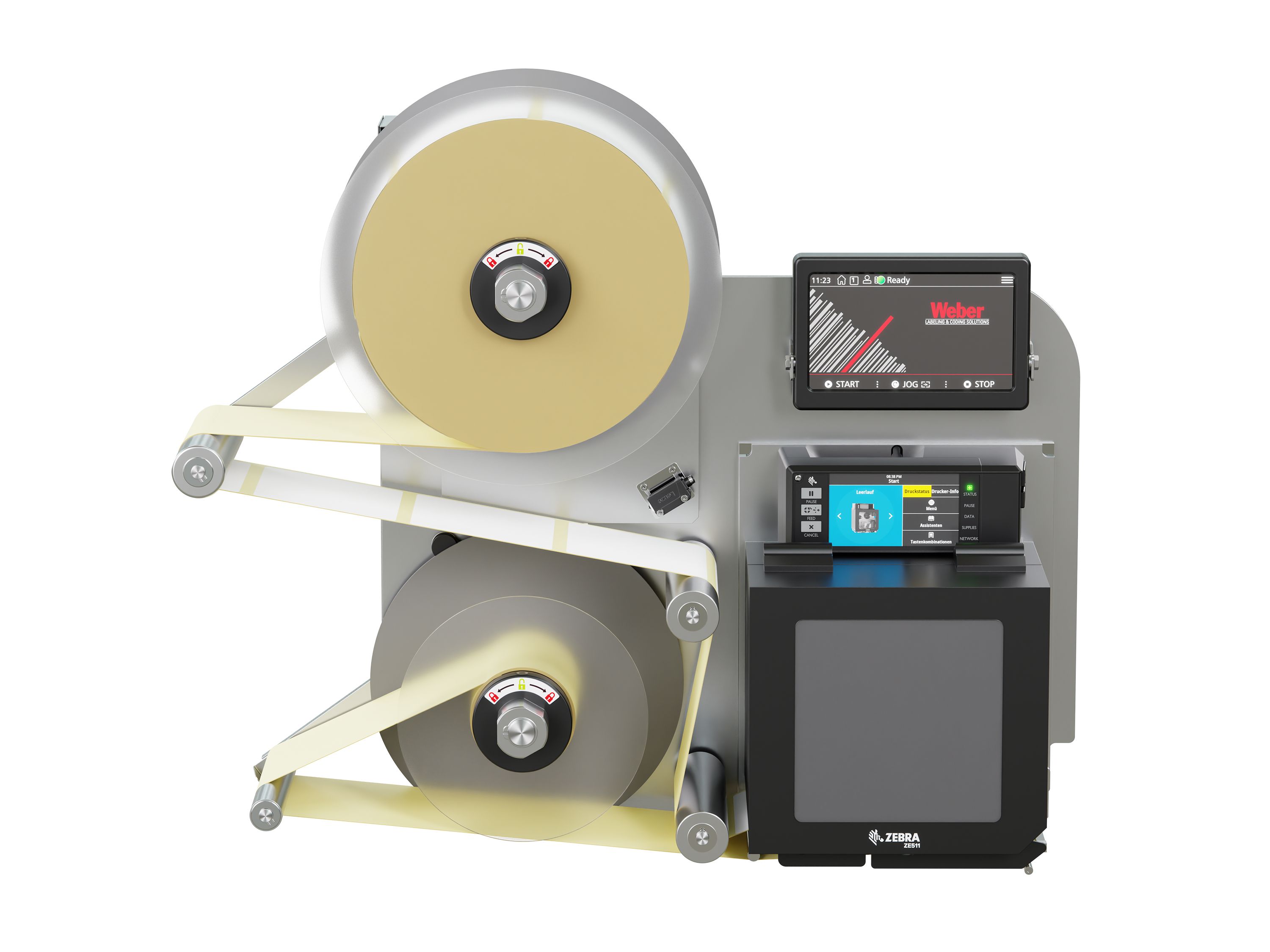

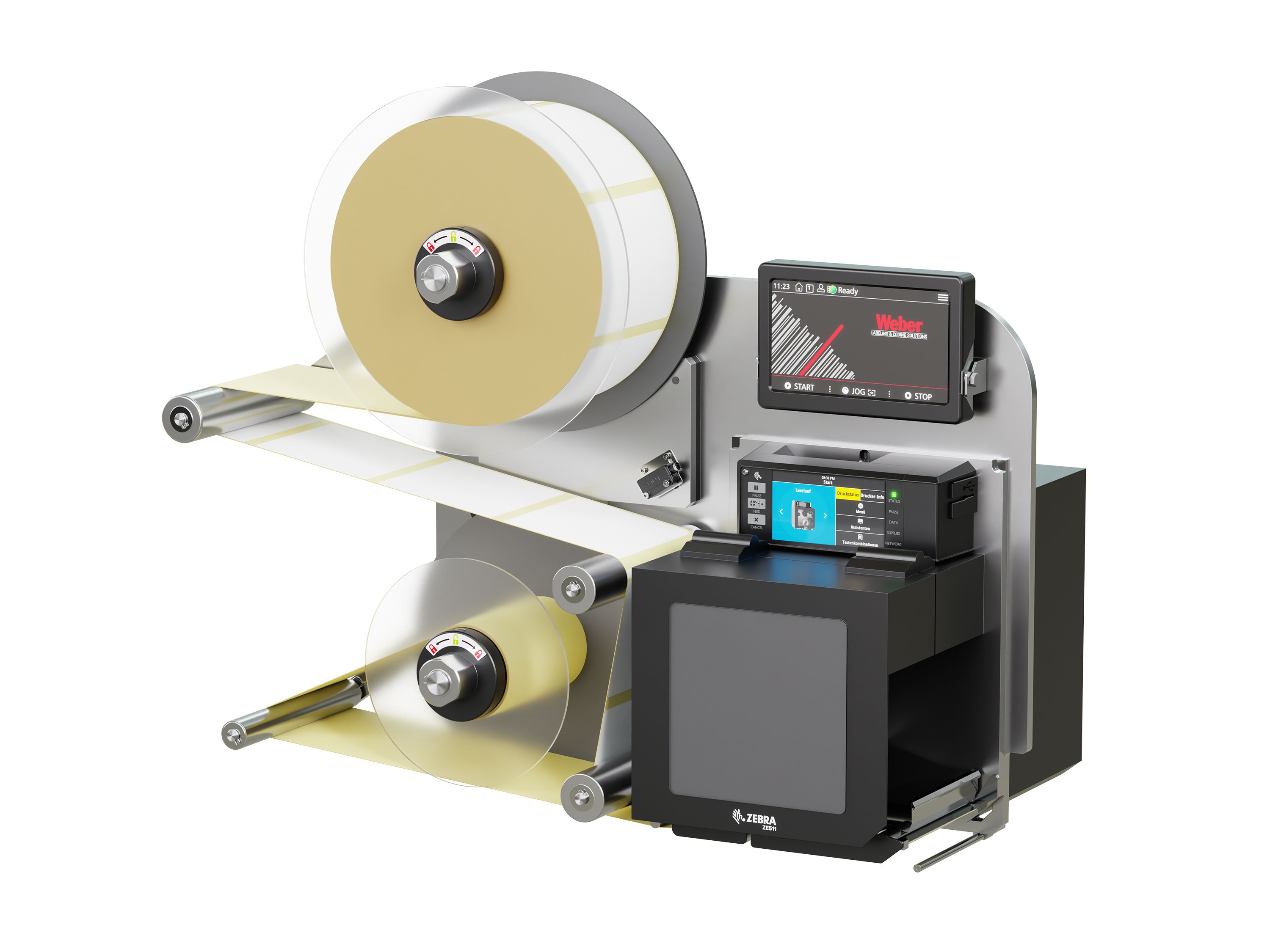

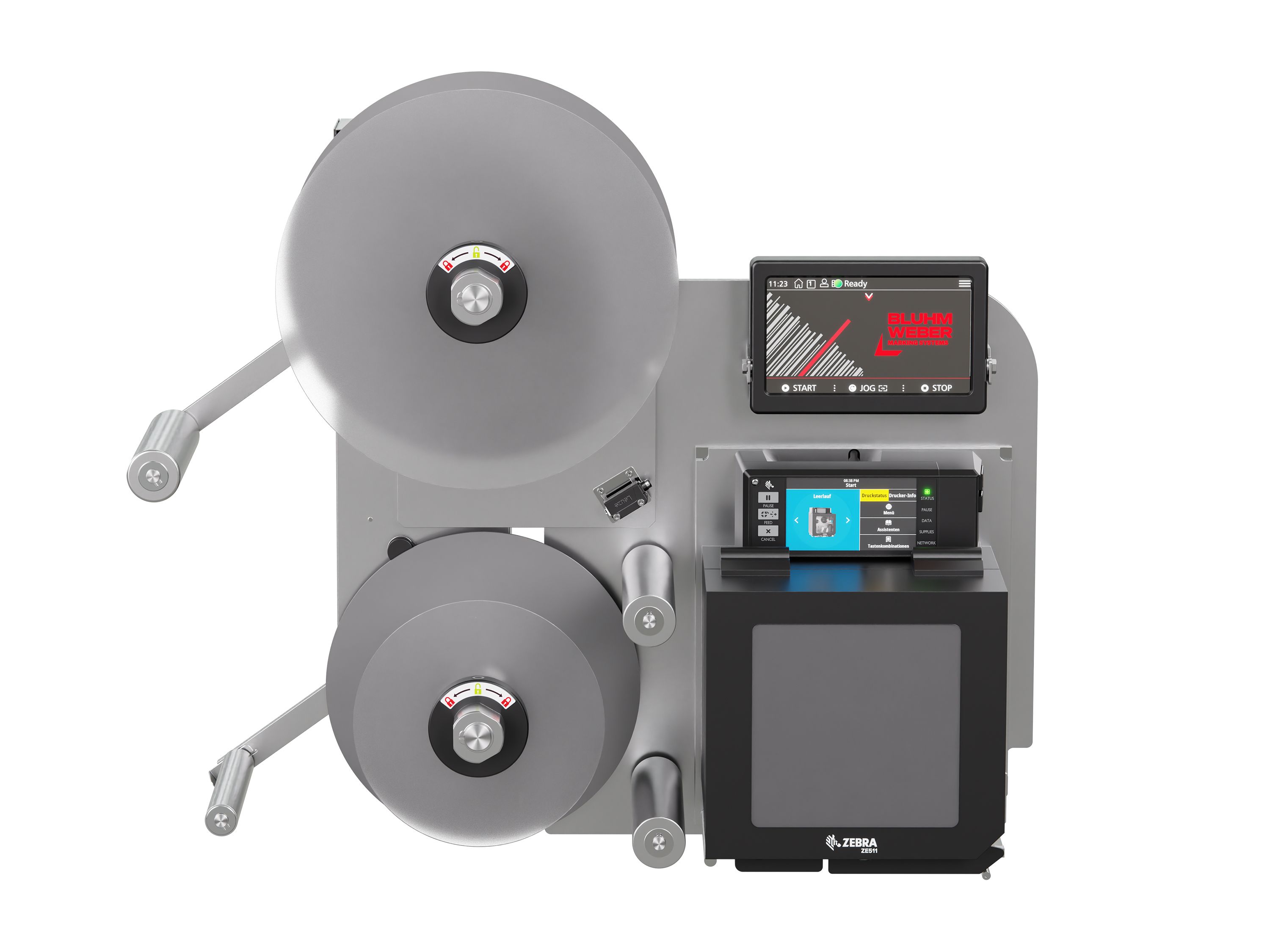

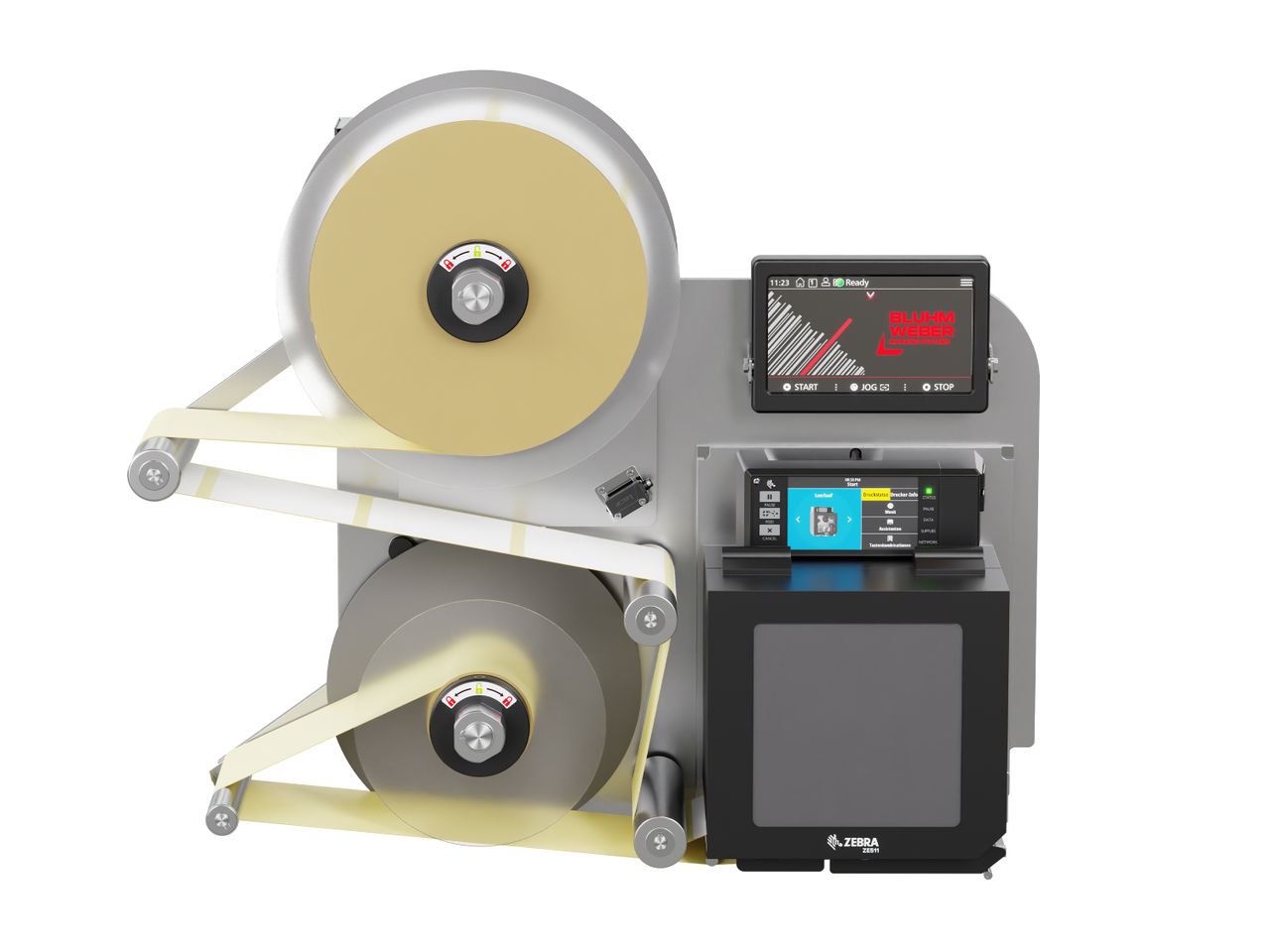

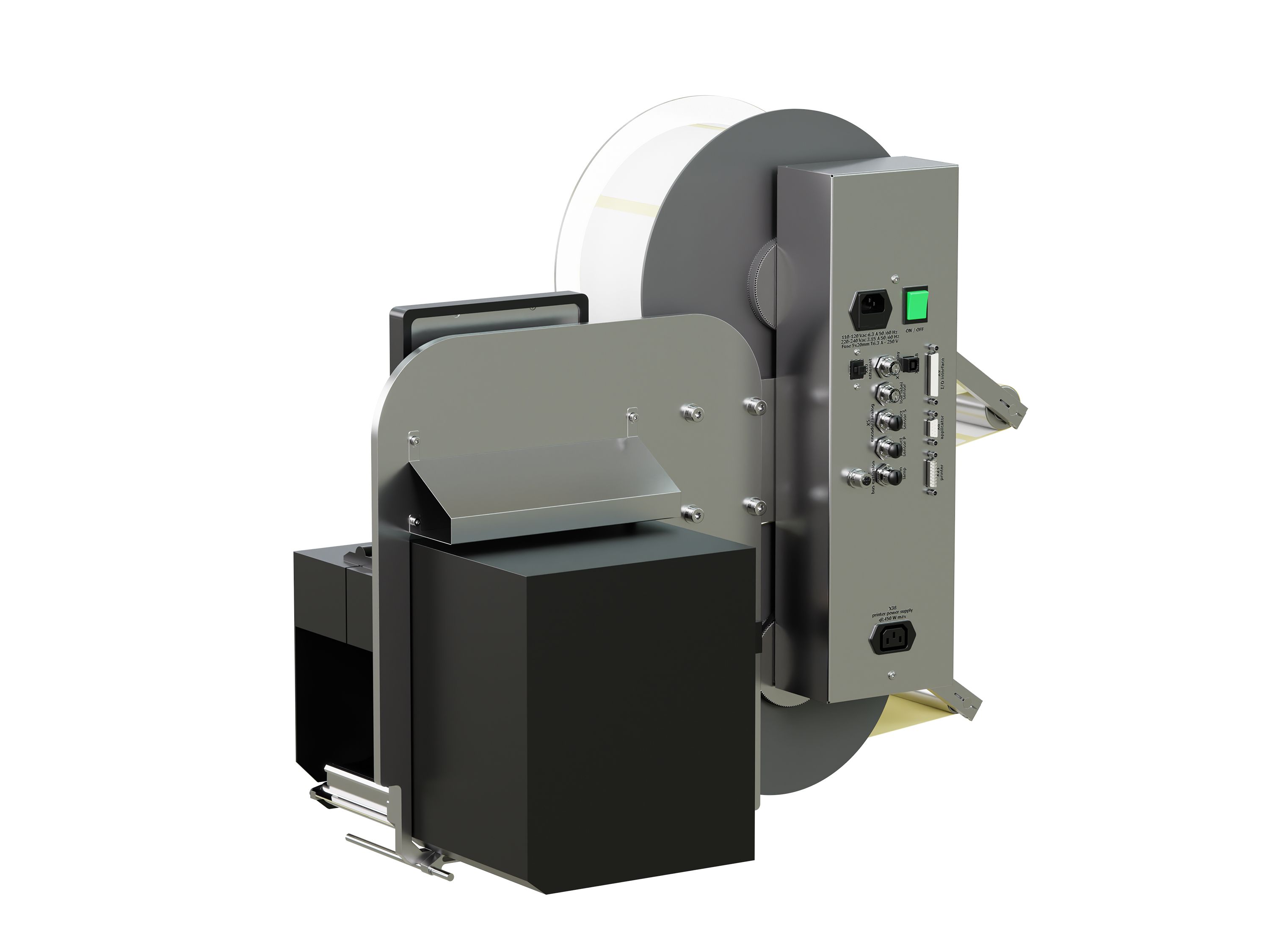

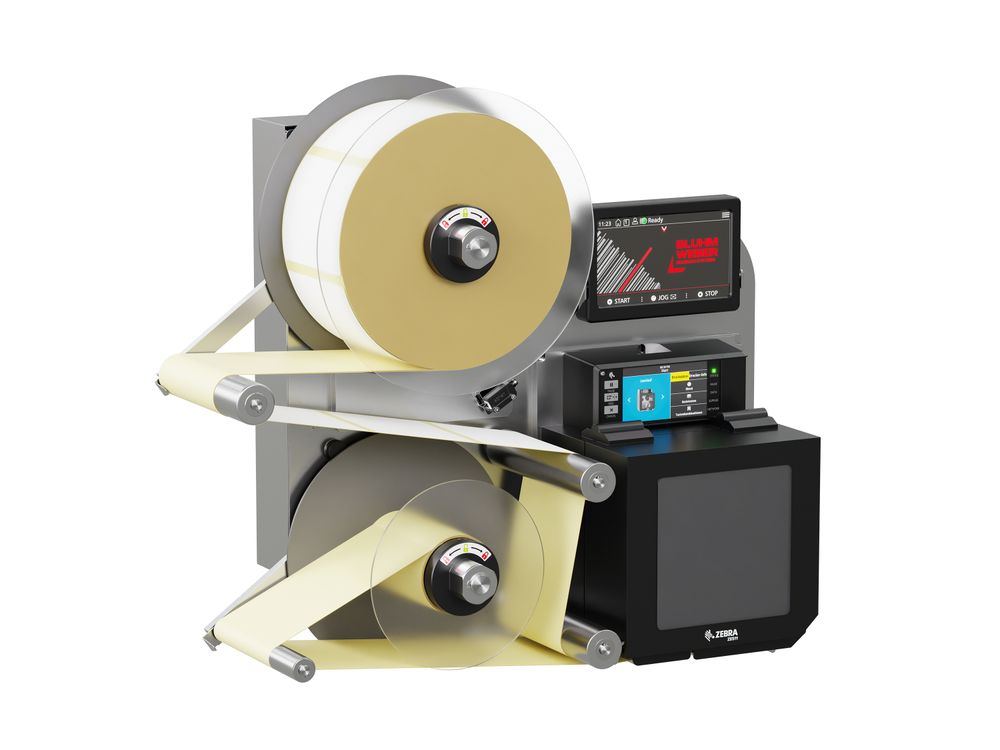

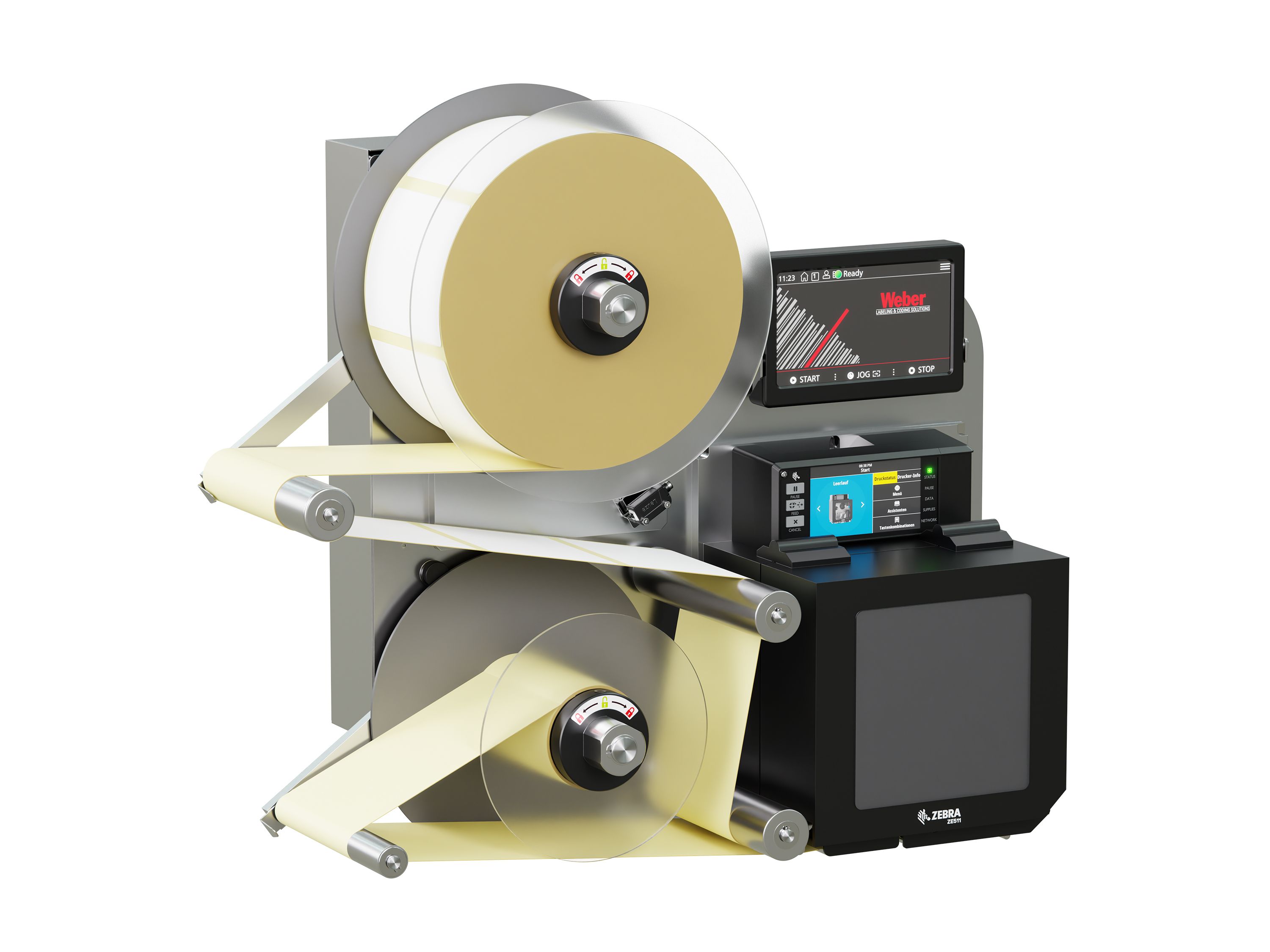

Print-Apply Labeling System

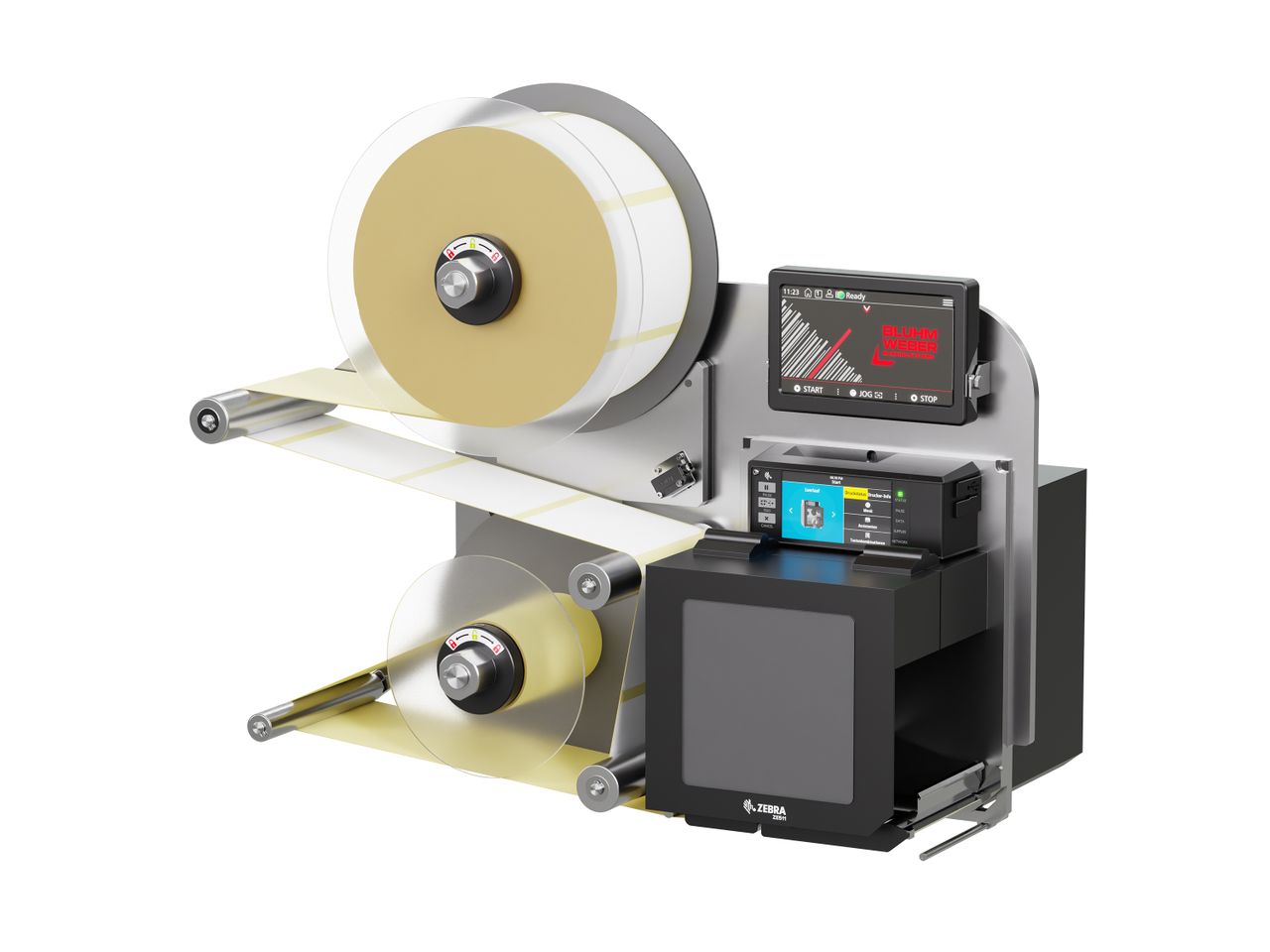

Legi-Air 4050B-R

Flexible print-&-apply system for robot-supported, fully automatic labeling

  • Specially developed for collaboration with robots
  • Space-saving and flexible label print applicator
  • Low compressed air consumption, saves energy costs
  • Achieves print speeds of up to 400 mm/s
  • Very compact design with a wide range of extensions

Automation solution for Industry 4.0

The Legi-Air 4050B-R is a special robot variant designed to work together with multi-axis robot systems. The proven Legi-Air 4050B series serves as the basis. In this configuration, a shortened base plate enables unrestricted accessibility at the peel bar of the print module for several robot applicator and tamp variants.

With the Legi-Air 4050B-R, you benefit from proven technology from large-scale production: The robot-compatible label print applicator is particularly easy to integrate into existing processes. It prints using either thermal transfer or direct thermal technology. High-performance print modules from leading manufacturers that are designed for continuous operation in industrial environments are available.

Legi-Air 4050B-R labeling with robots 2

Applications

Legi-Air 4050B-R labeling with robots 5
Legi-Air 4050B-R labeling with robots 7
Legi-Air 4050B-R labeling with robots 8
Legi-Air 4050B-R labeling with robots 4

Special features

Legi-Air 4050B-R labeling with robot

Perfect labeler-robot collaboration

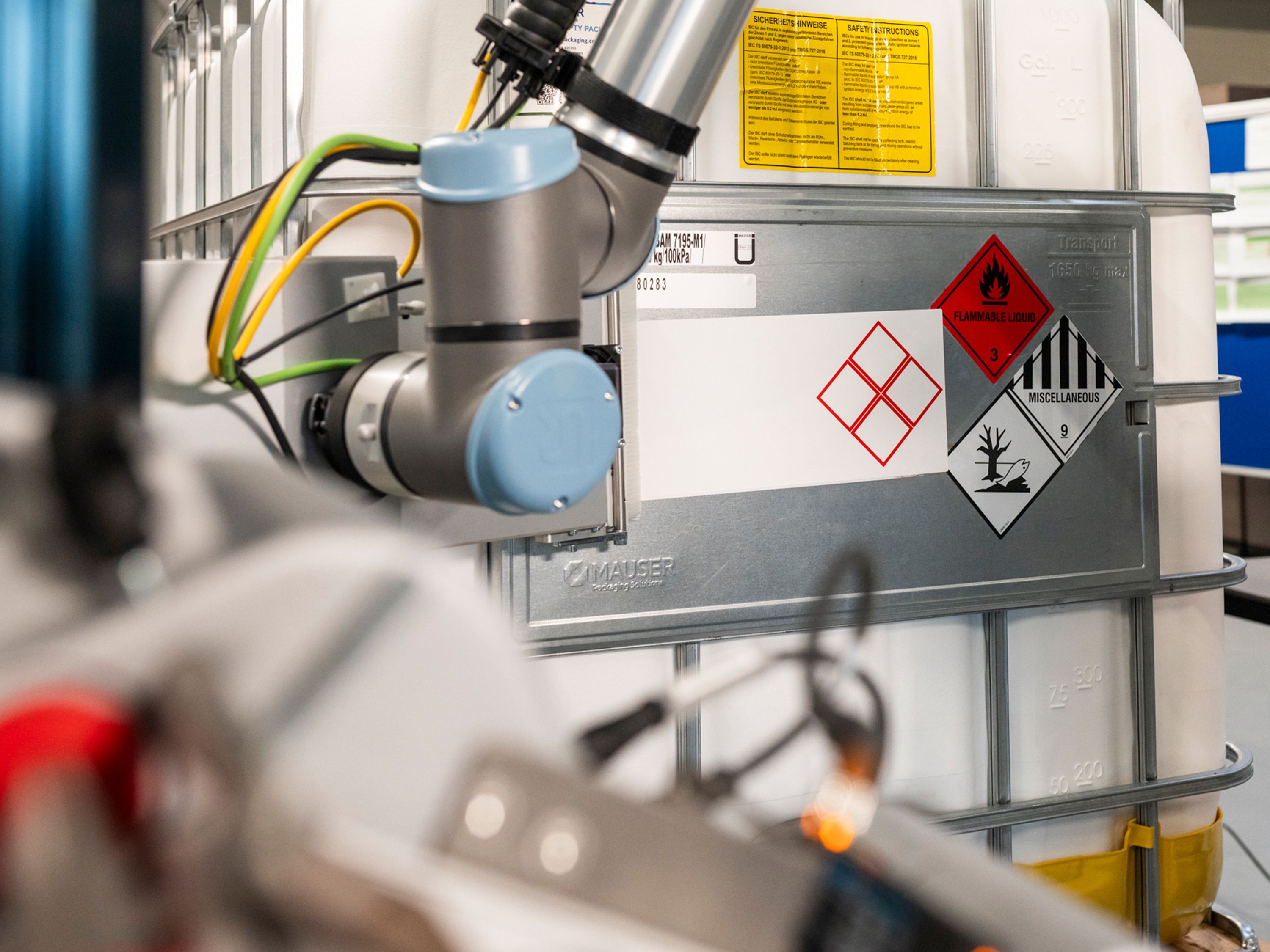

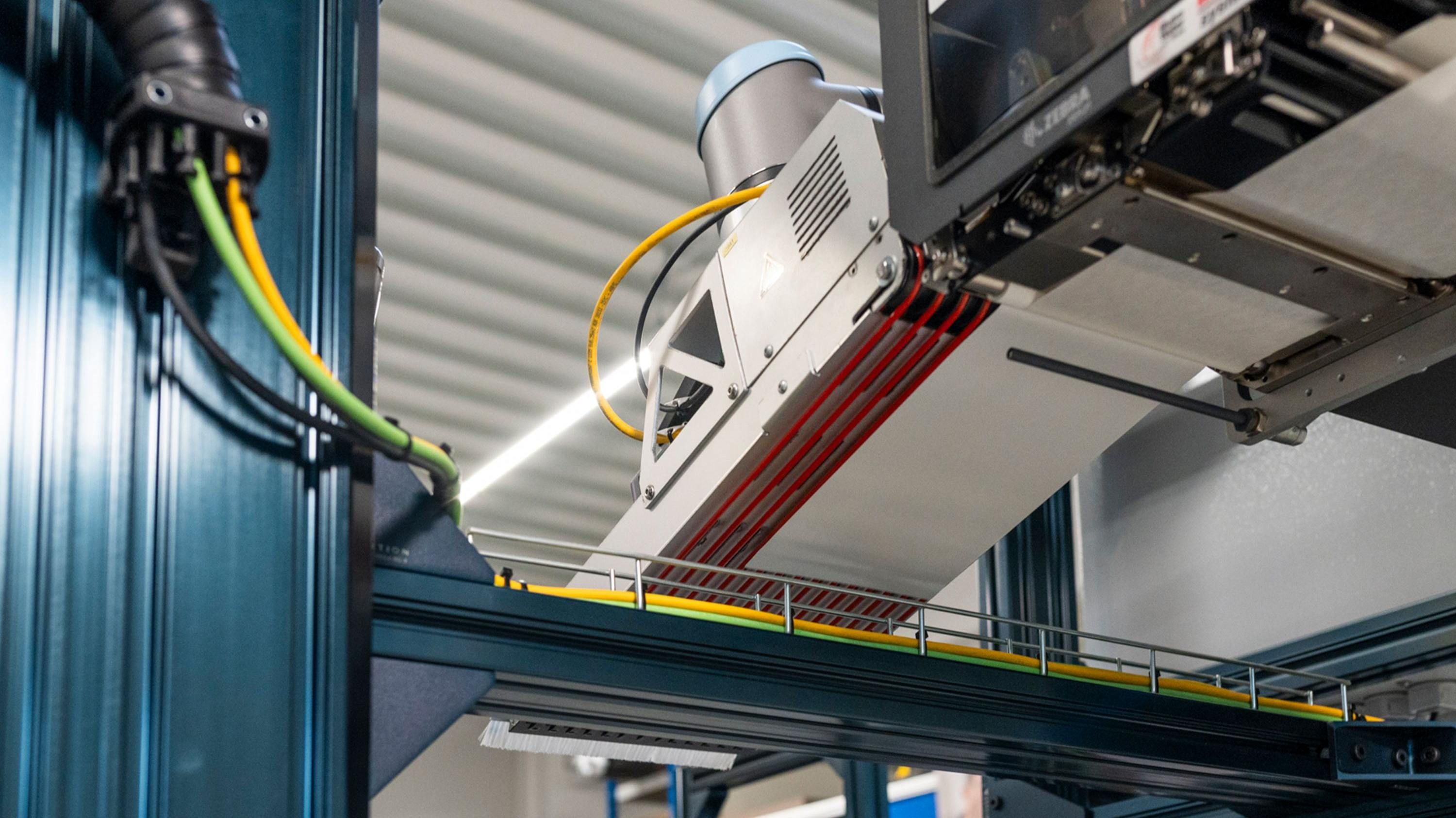

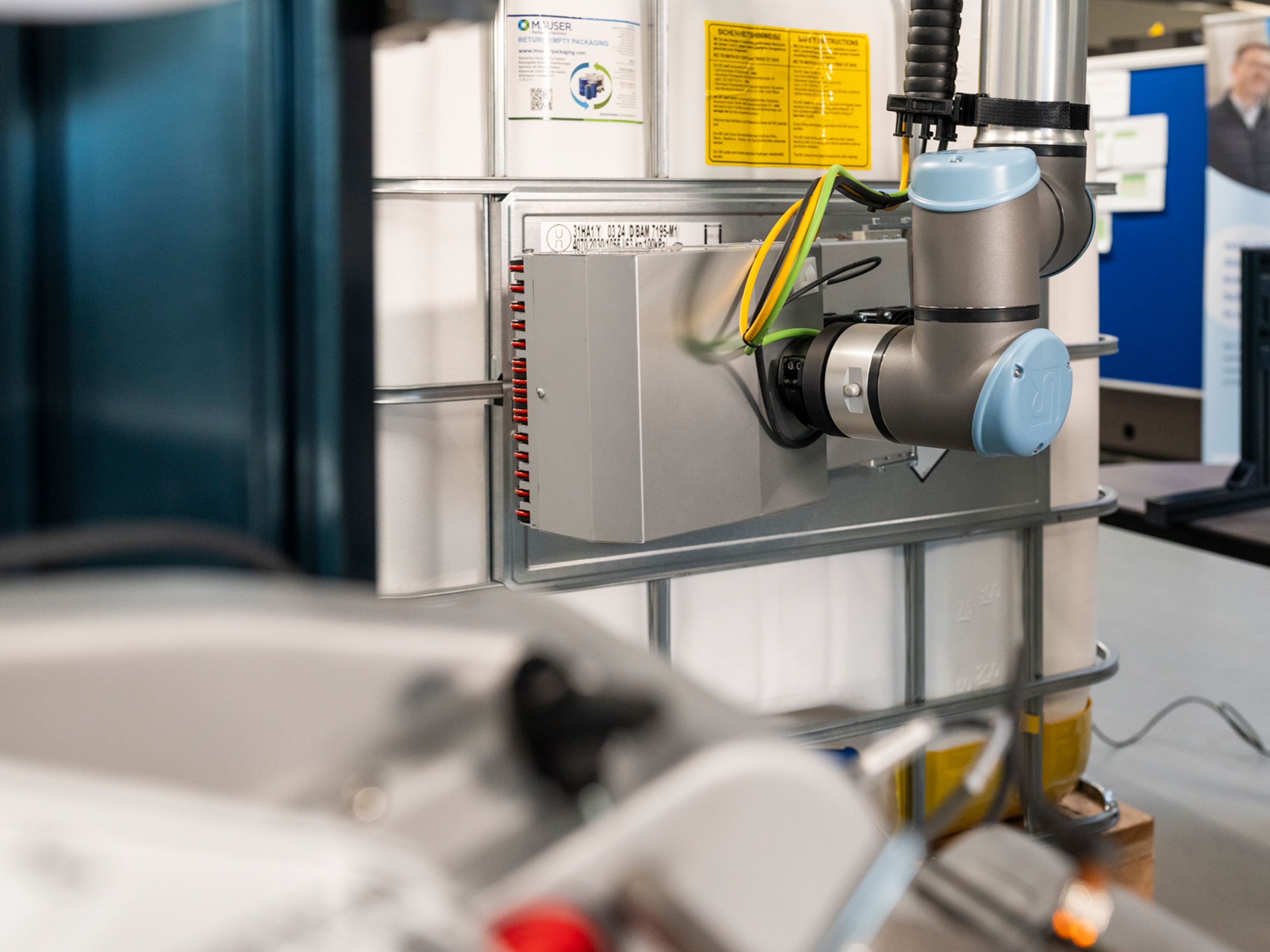

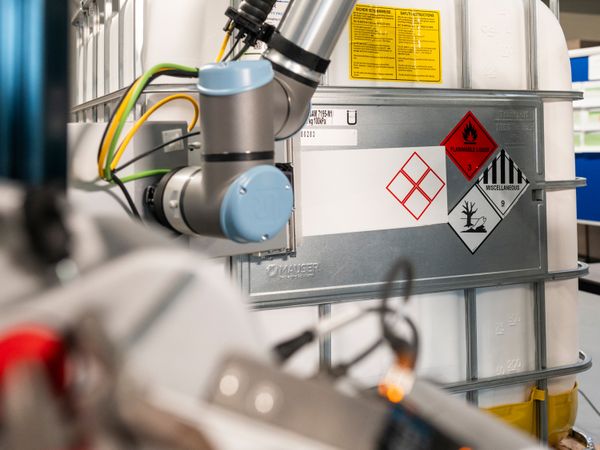

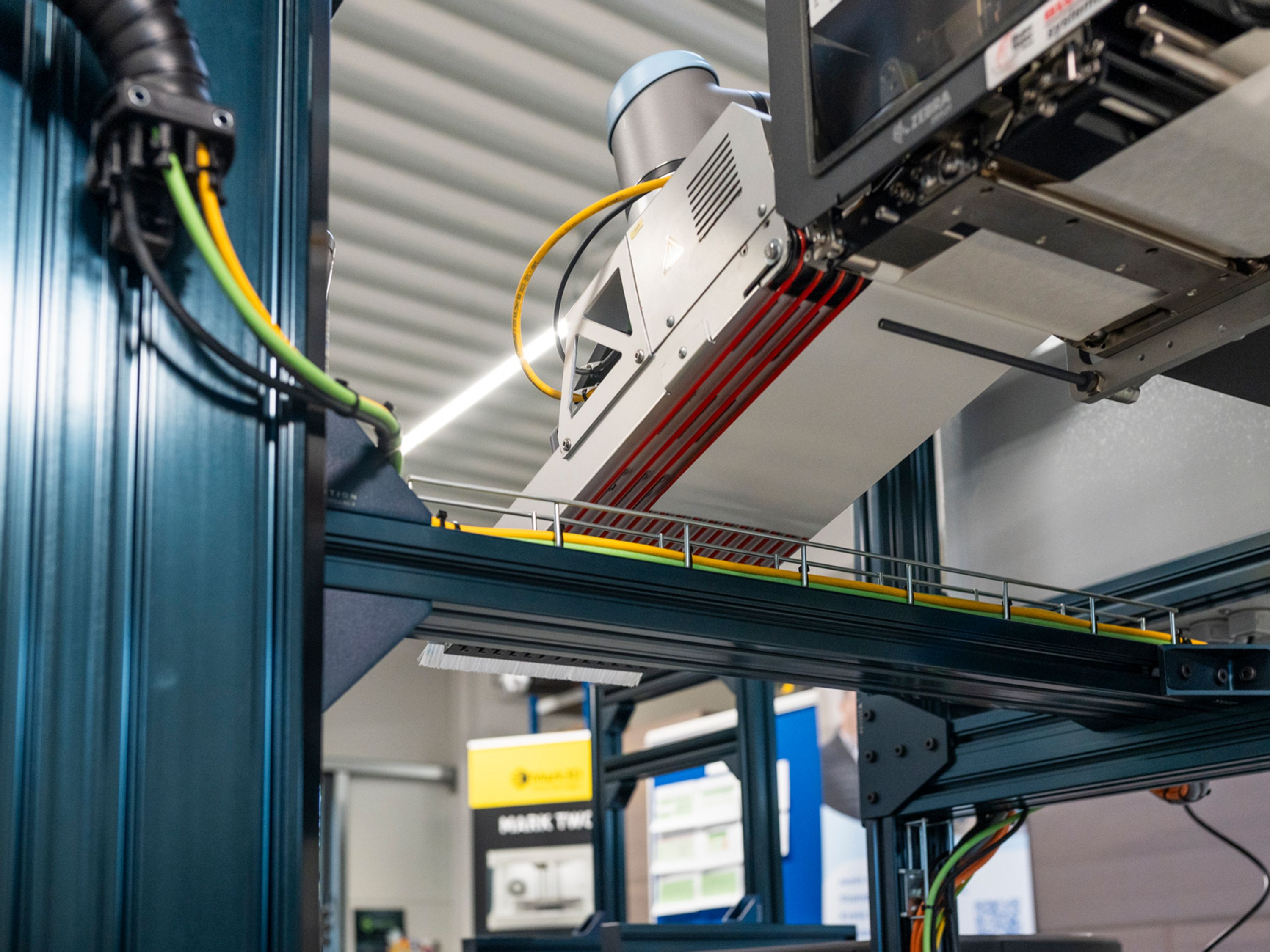

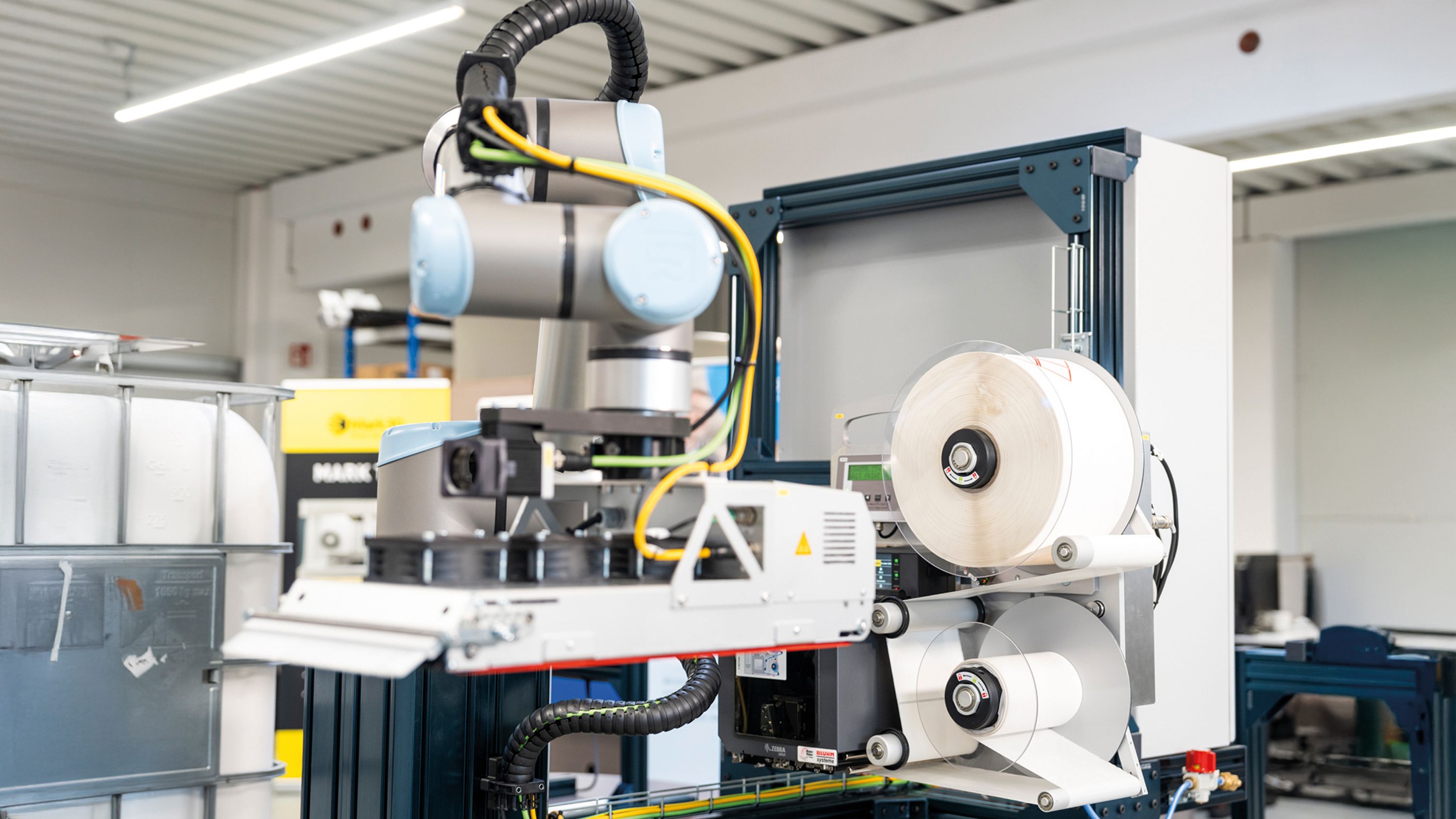

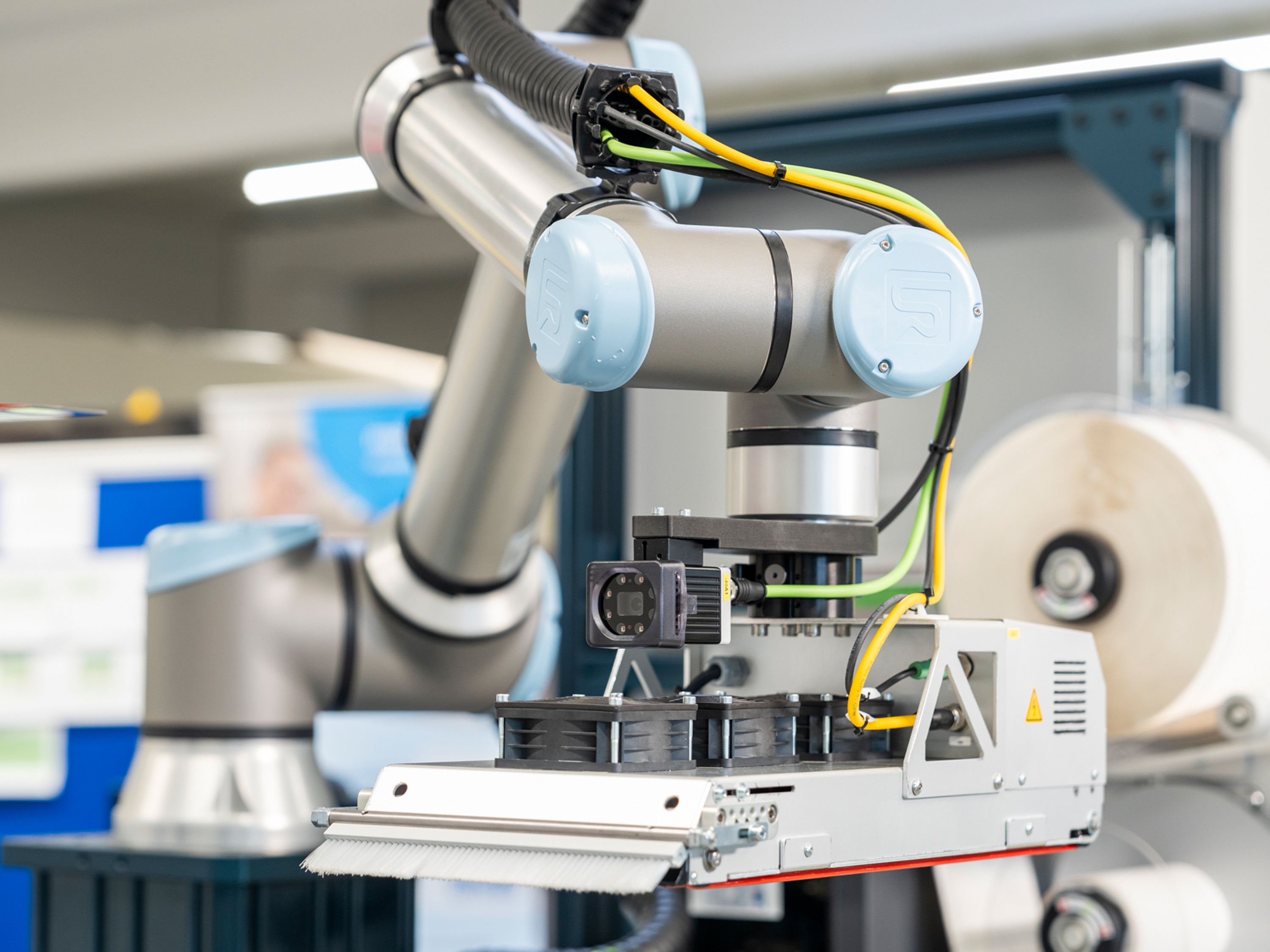

The Legi-Air 4050B-R works with a robot that is equipped with a custom-designed applicator pad. The robot moves into the pick-up position in front of the print & apply unit, triggers the printing process, and takes over the freshly printed label. It then applies the label precisely to the previously defined position on the product. This interaction between print & apply system and robotics ensures highly precise, repeatable labeling – even with complex product geometries or hard-to-reach areas.

Legi-Air 4050E print modules

Modular print module concept

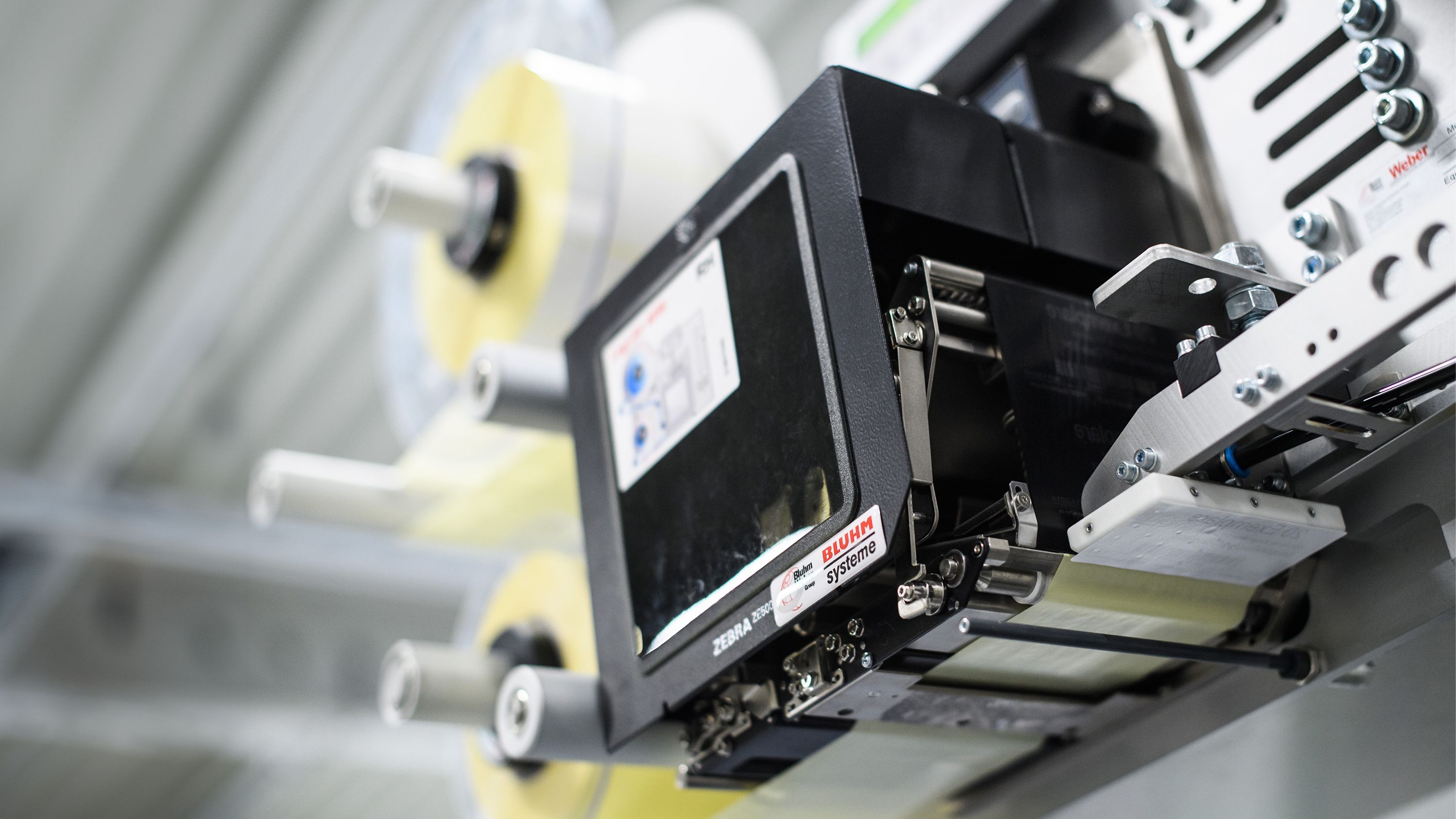

The label print applicator can be combined with a wide range of print modules from well-known manufacturers (Zebra, Sato, Novexx, CAB). It is possible to replace one print module with another at any time without any problems.

Legi-Air 4050 display

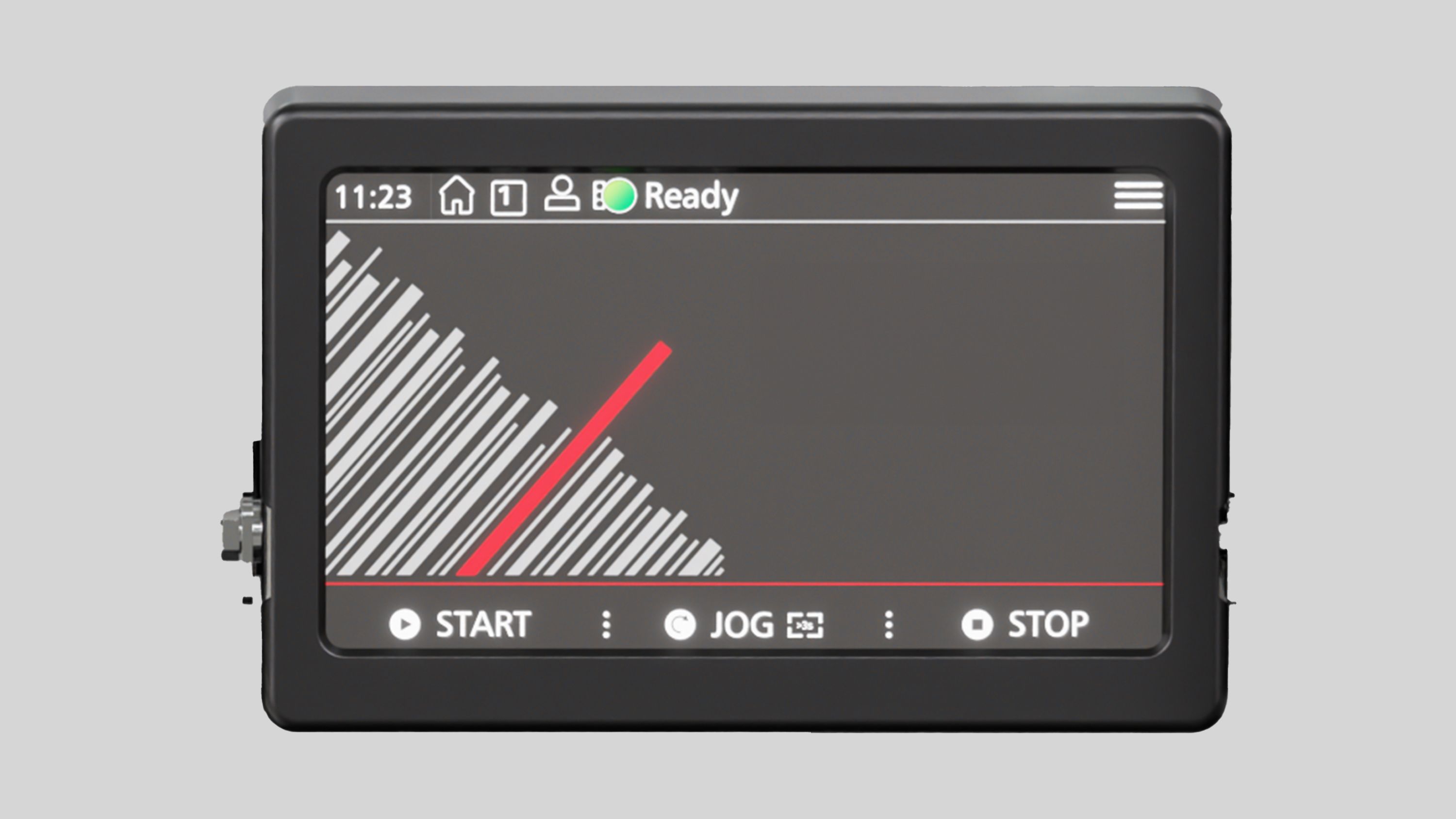

Comfortable handling via touch display

The print & apply labeling system can be combined with a wide range of print modules from well-known manufacturers (Zebra, Sato, Novexx, CAB). Replacing one print module with another is possible at any time without difficulty.

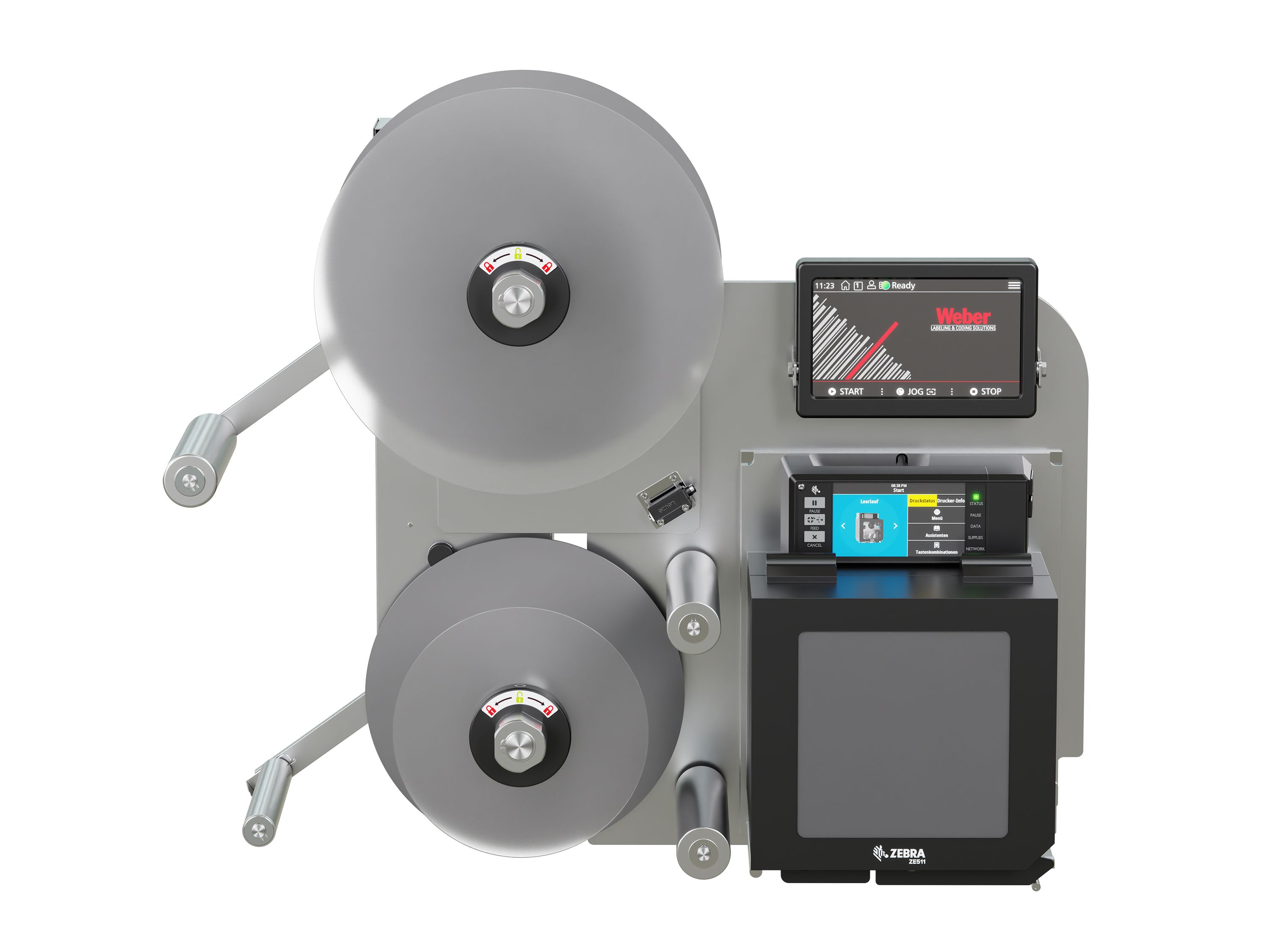

Legi-Air 4050B-R compact design

Compact and easy to integrate

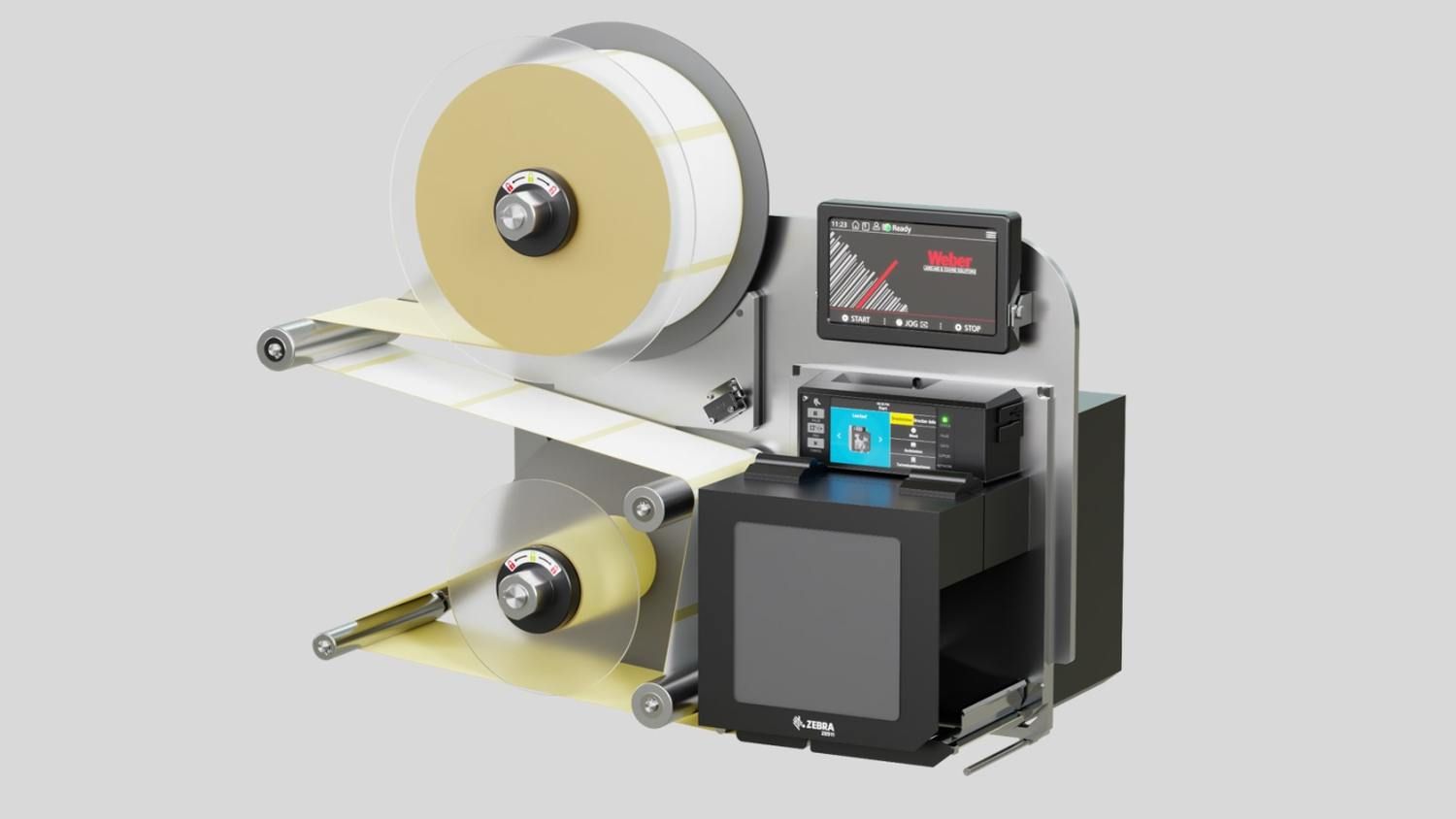

Thanks to its extremely space-saving dimensions, the print & apply labeling system can be integrated without difficulty. Compared to the Legi-Air 4050B, the device has a shortened base plate that allows unrestricted access to the dispensing edge, enabling the robot to interact optimally with its applicator pad.

Printer options

Zebra ZE511

Zebra ZE511

Highest printing performance for industrial applications

Print width 104 mm
Print speed up to 457
Printhead resolution 203 dpi, 305 dpi, 609 dpi
Printing process Thermal transfer, thermal direct, RFID
Zebra ZE521

Zebra ZE521

Highest printing performance for industrial applications

Print width 168 mm
Print speed up to 356
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer, thermal direct, RFID
Sato S84NX

Sato S84NX

Precise, fast and reliable industrial printing

Print width 104 mm
Print speed up to 406
Printhead resolution 203 dpi / 305 dpi / 609 dpi
Printing process Thermal transfer, thermal direct, RFID
Sato S86NX

Sato S86NX

Precise, fast and reliable industrial printing

Print width 167.5 mm
Print speed up to 355.6
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer, thermal direct, RFID
CAB PX Q4

CAB PX Q4

High-precision print module for automated labeling in industry and logistics

Print width 108.4 mm
Print speed up to 300
Printhead resolution 203 dpi / 305 dpi / 609 dpi
Printing process Thermal transfer and thermal direct
CAB PX Q6

CAB PX Q6

High-precision print module for automated labeling in industry and logistics

Print width 168 mm
Print speed up to 250
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 944

Novexx XDM 944

Maximum speed for industrial labeling

Print width 106 mm
Print speed up to 400
Printhead resolution 300 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 945

Novexx XDM 945

Maximum speed for industrial labeling

Print width 128 mm
Print speed up to 350
Printhead resolution 305 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 946

Novexx XDM 946

Maximum speed for industrial labeling

Print width 160 mm
Print speed up to 300
Printhead resolution 305 dpi
Printing process Thermal transfer and thermal direct
LDM 180

LDM 180

Efficient dispensing module for use without printing

Technical specifications
Application data
Label application rate max.
70 1/min
Label roll diameter max.
300 mm
Features
Technology
Pneumatic
Mounting orientation independence
yes
Label unwinding
Stepper motor
Label rewinding
Stepper motor
Label shortage warning
optional
Web break detection
No
HMI
HMI version
Text display
Physical aspects

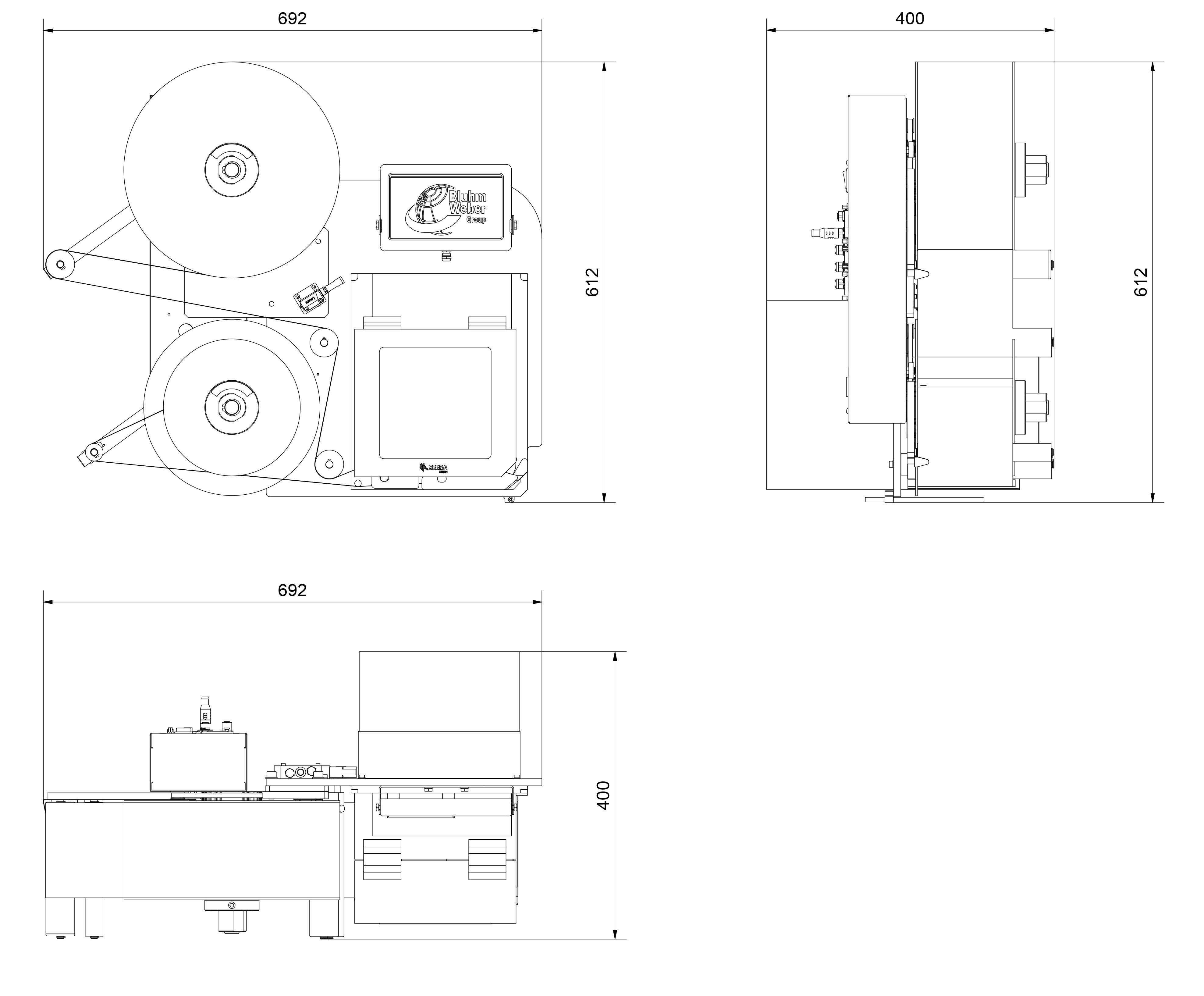

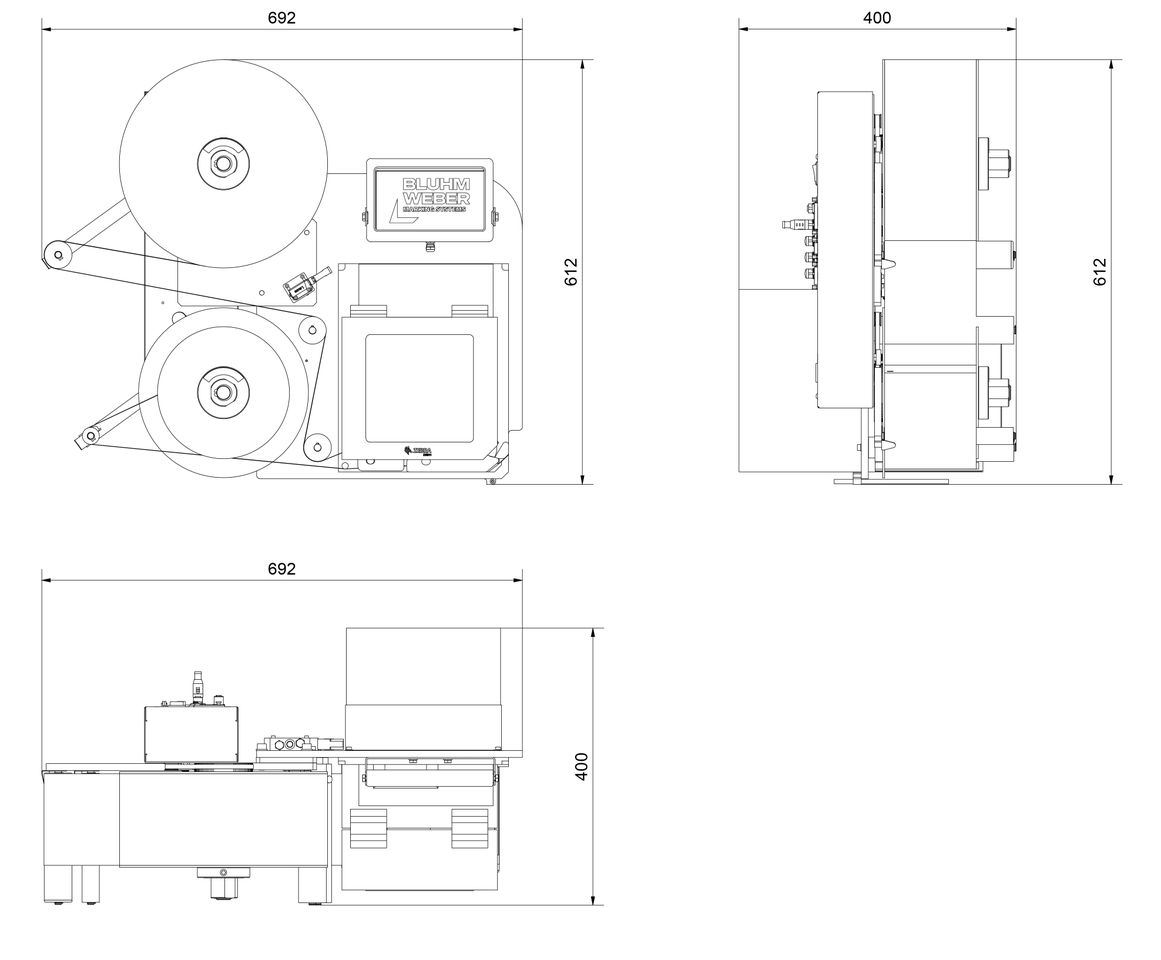

System dimensions (HxWxL)
612 mm x 400 mm x 692 mm
Weight
35 kg
Approvals
CE
Rel. humidity non-condensing
15 - 95 %
Ambient temperature
2 - 35°C
Noise level
70 dB
Connections
Supply voltage
90 - 263 V
Current
5 A
Compressed air connection
6 bar
Interfaces
USB, WLAN 802.11 a/b/g/n/ac (retrofit option), Applicator port, RS232, Ethernet IPv4
