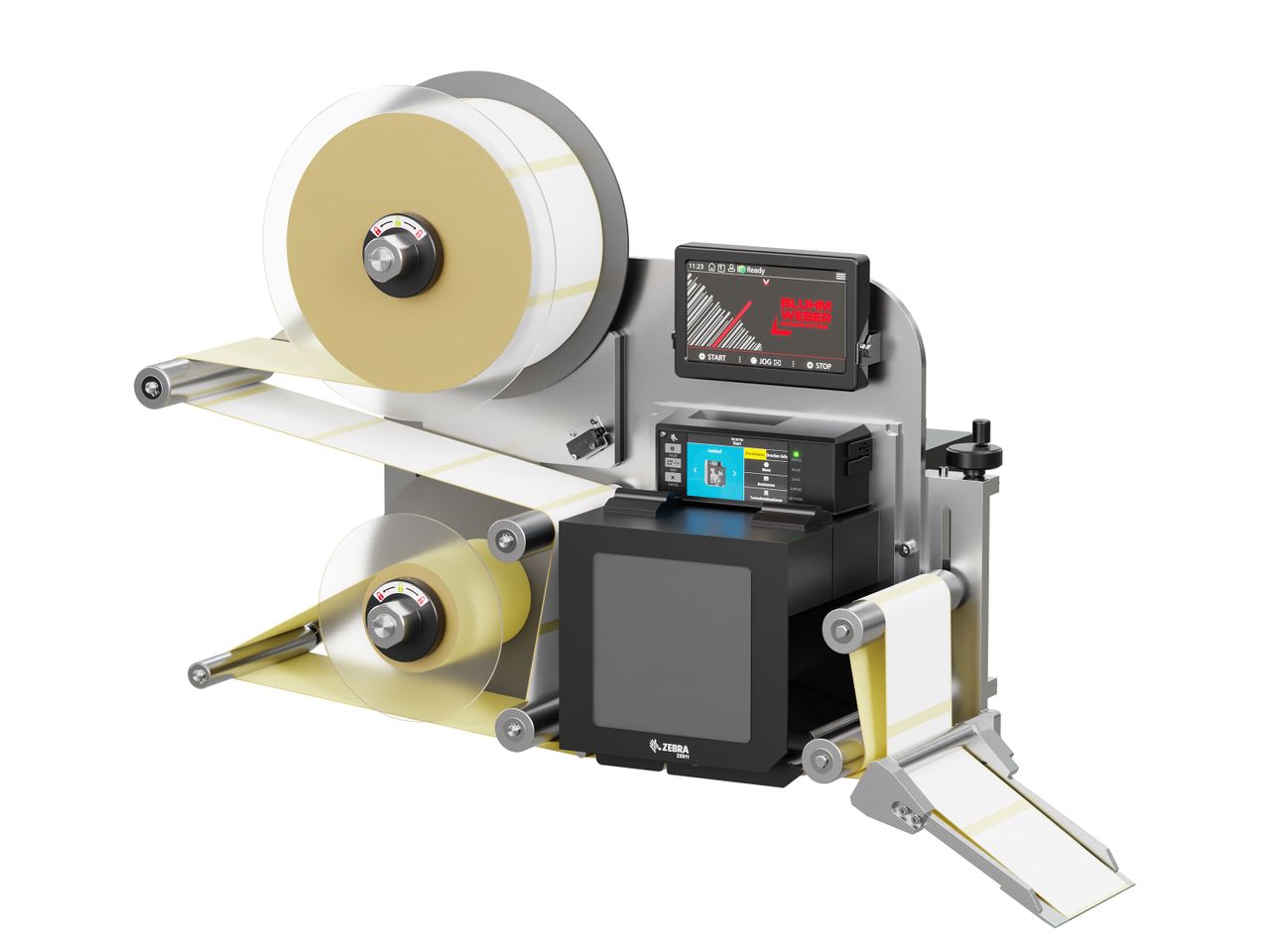

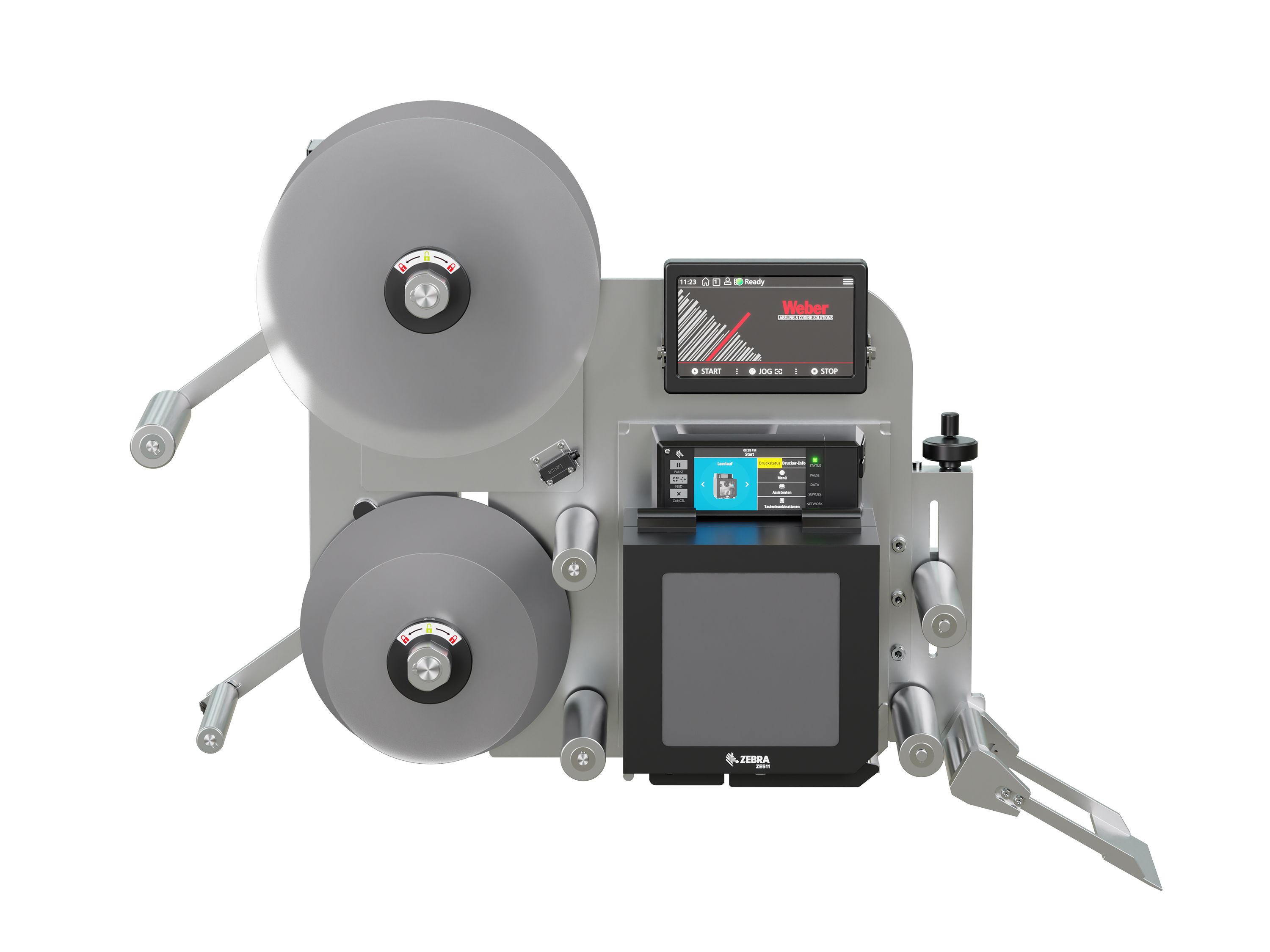

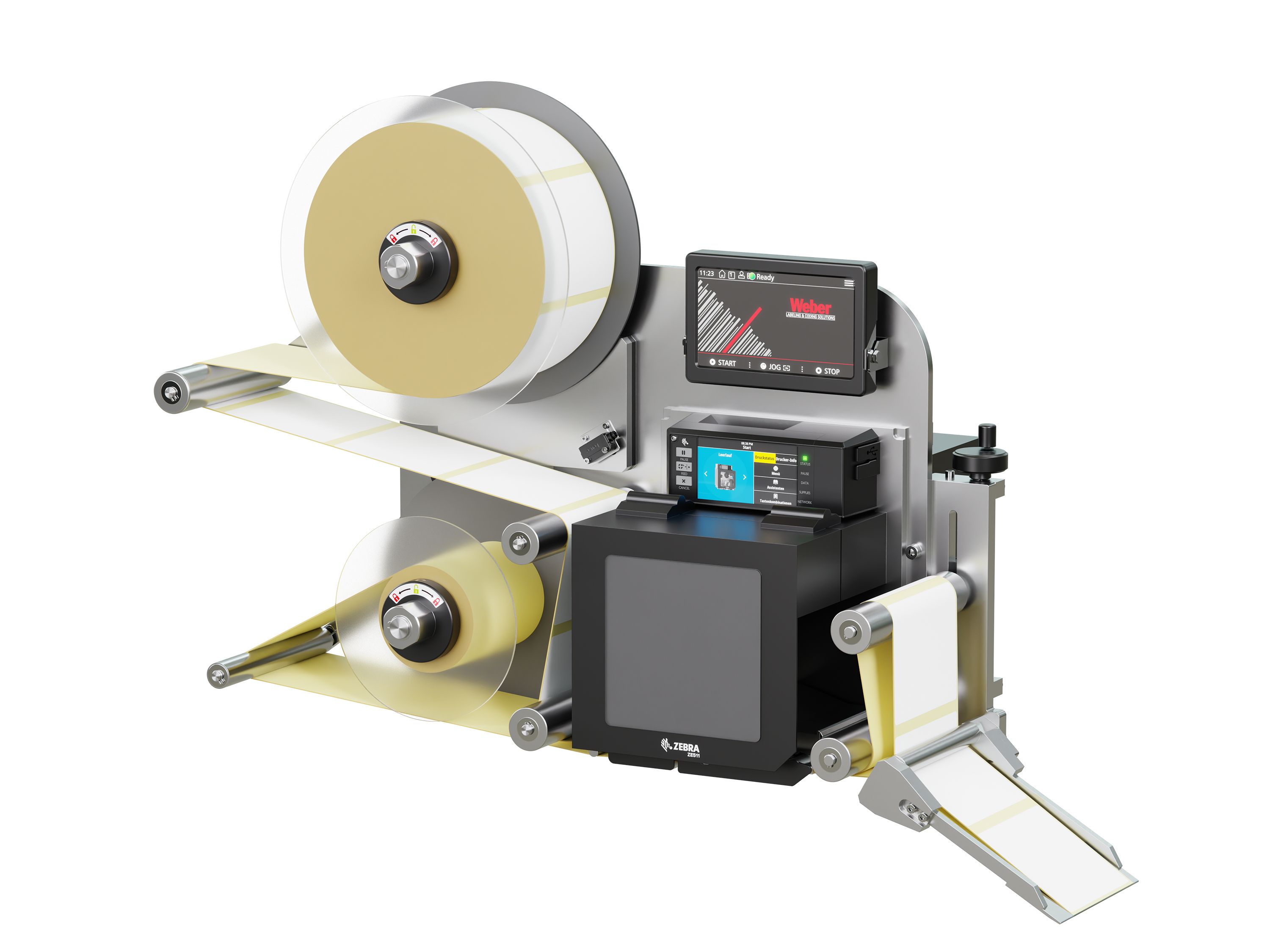

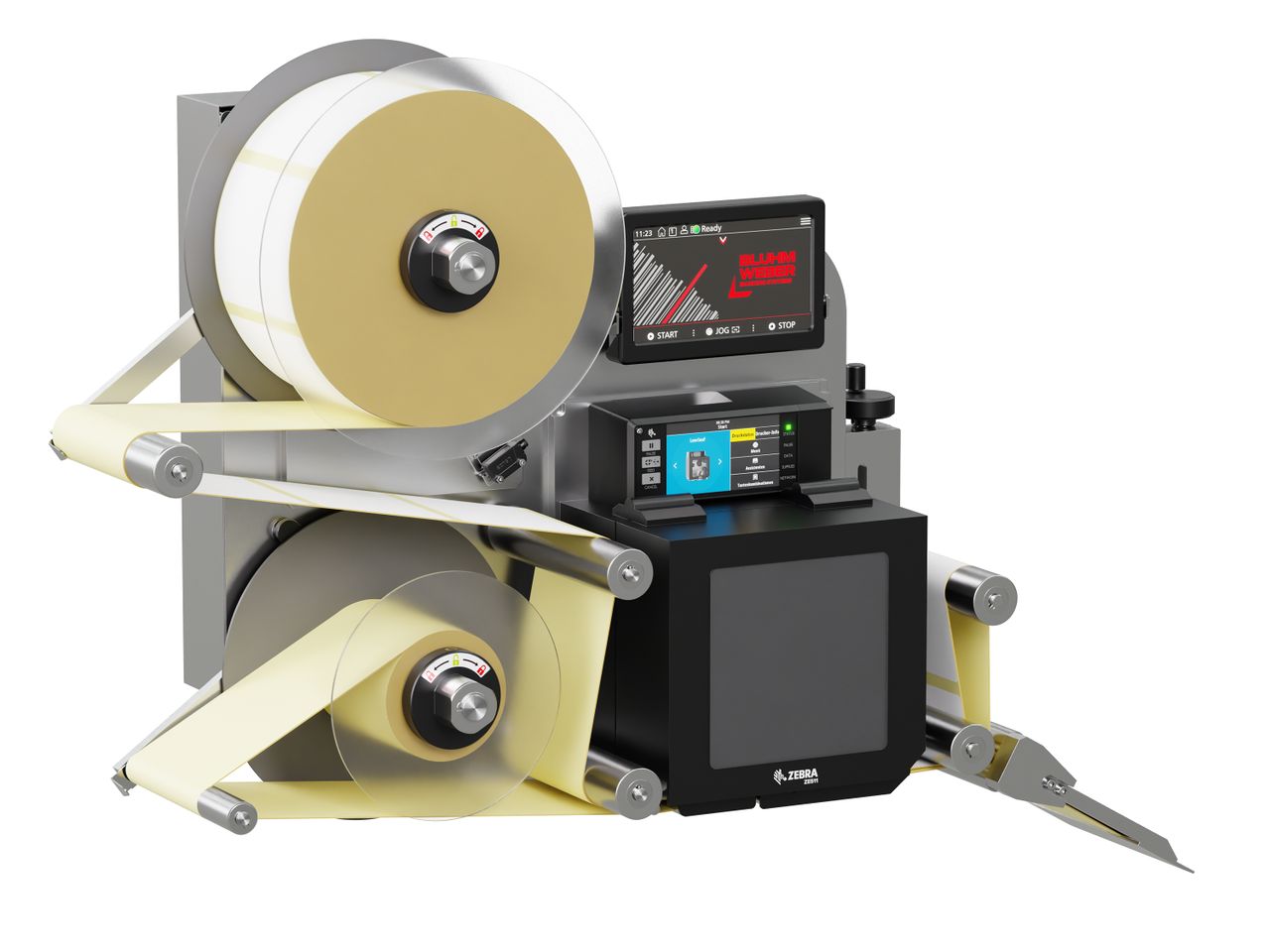

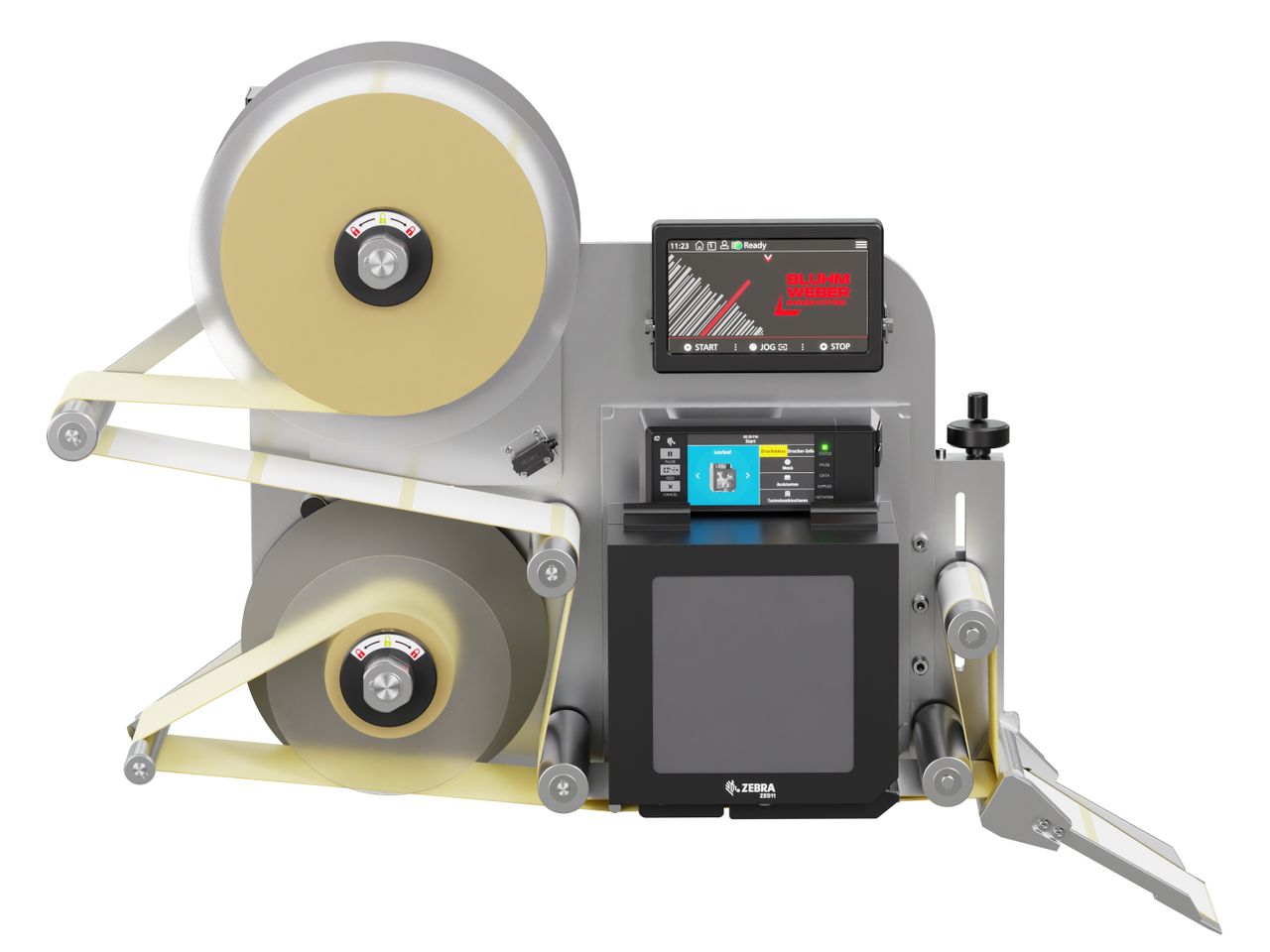

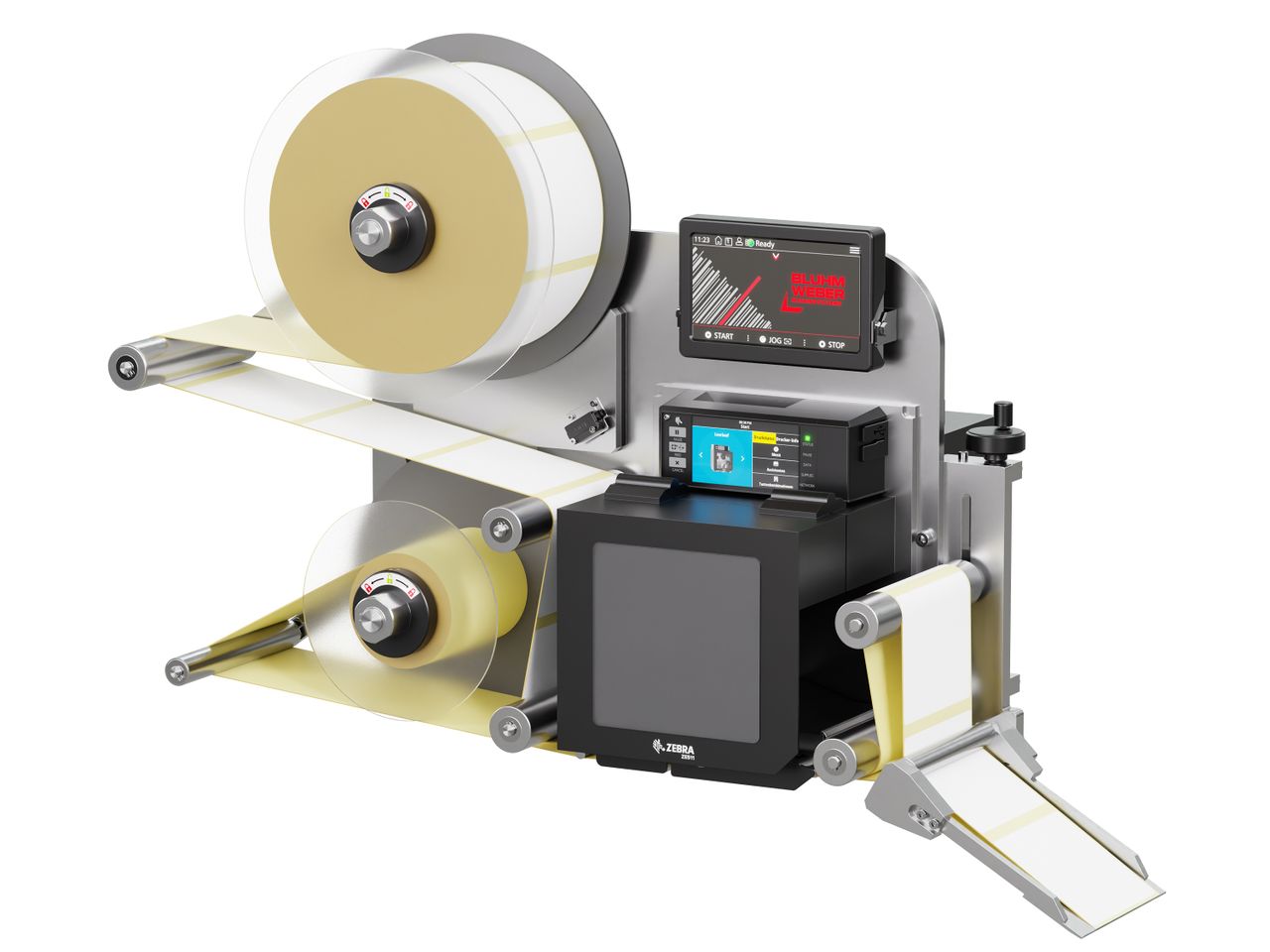

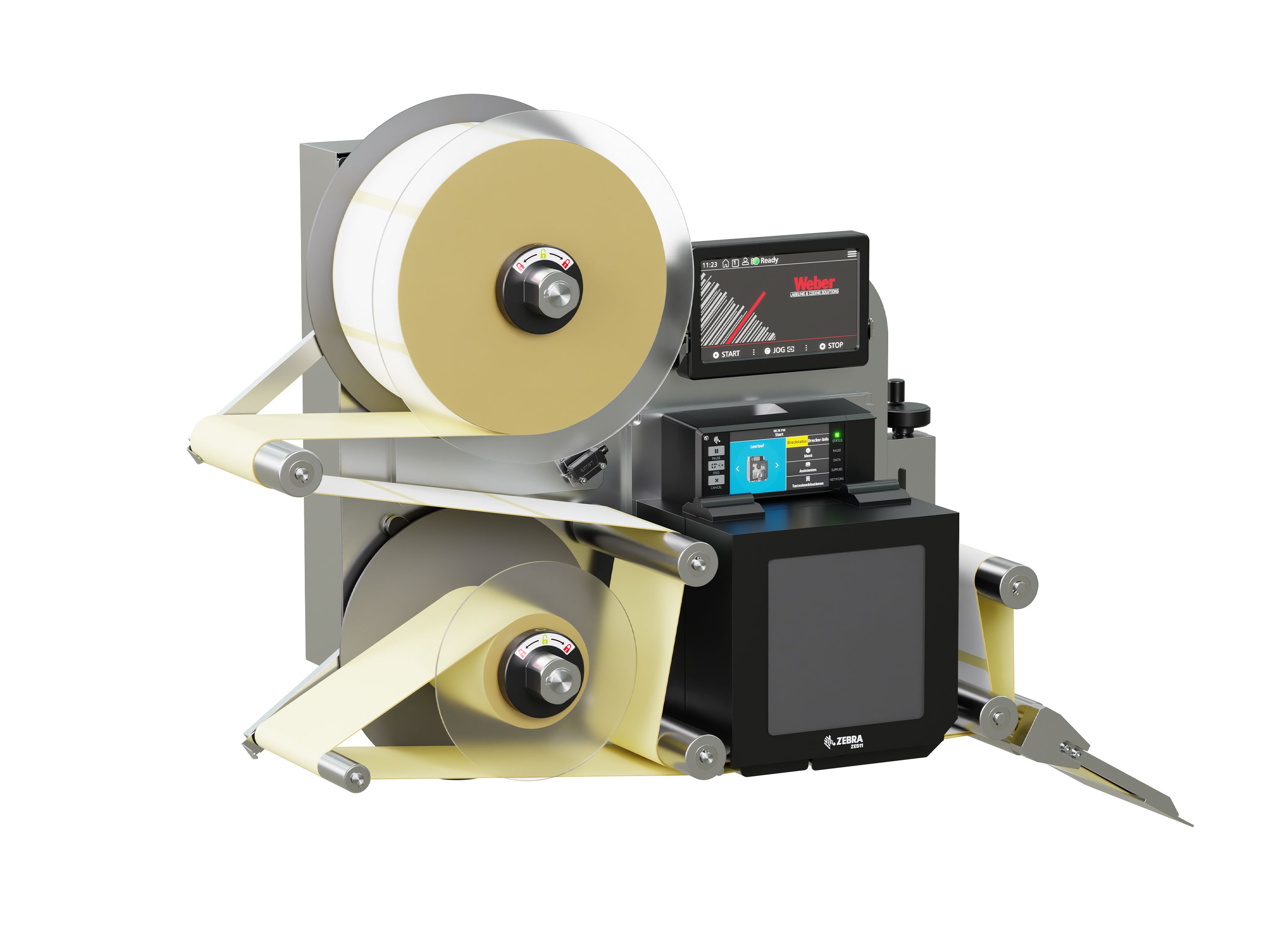

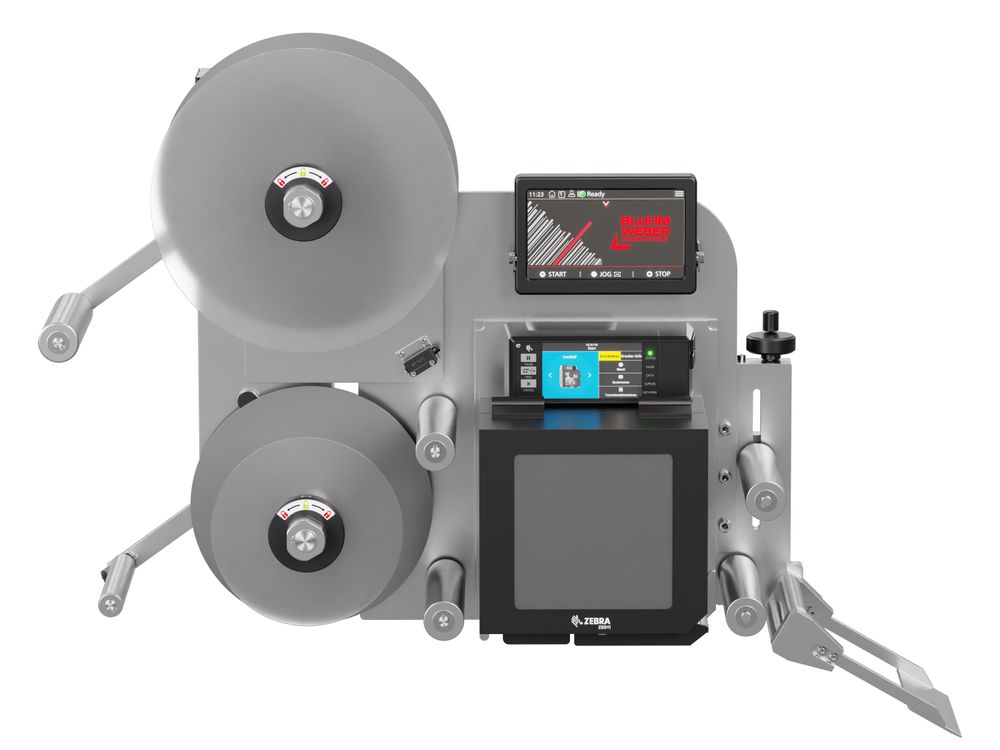

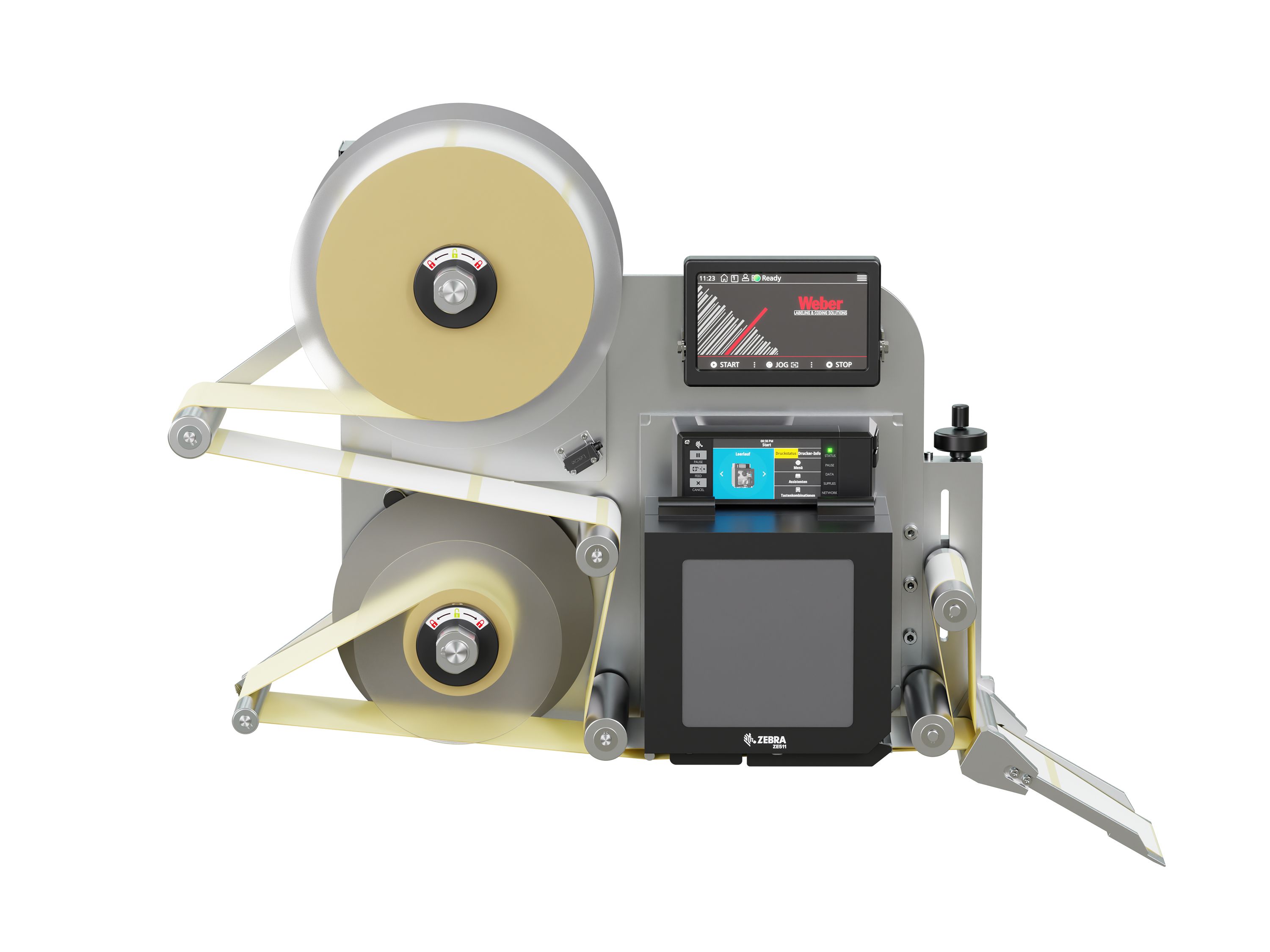

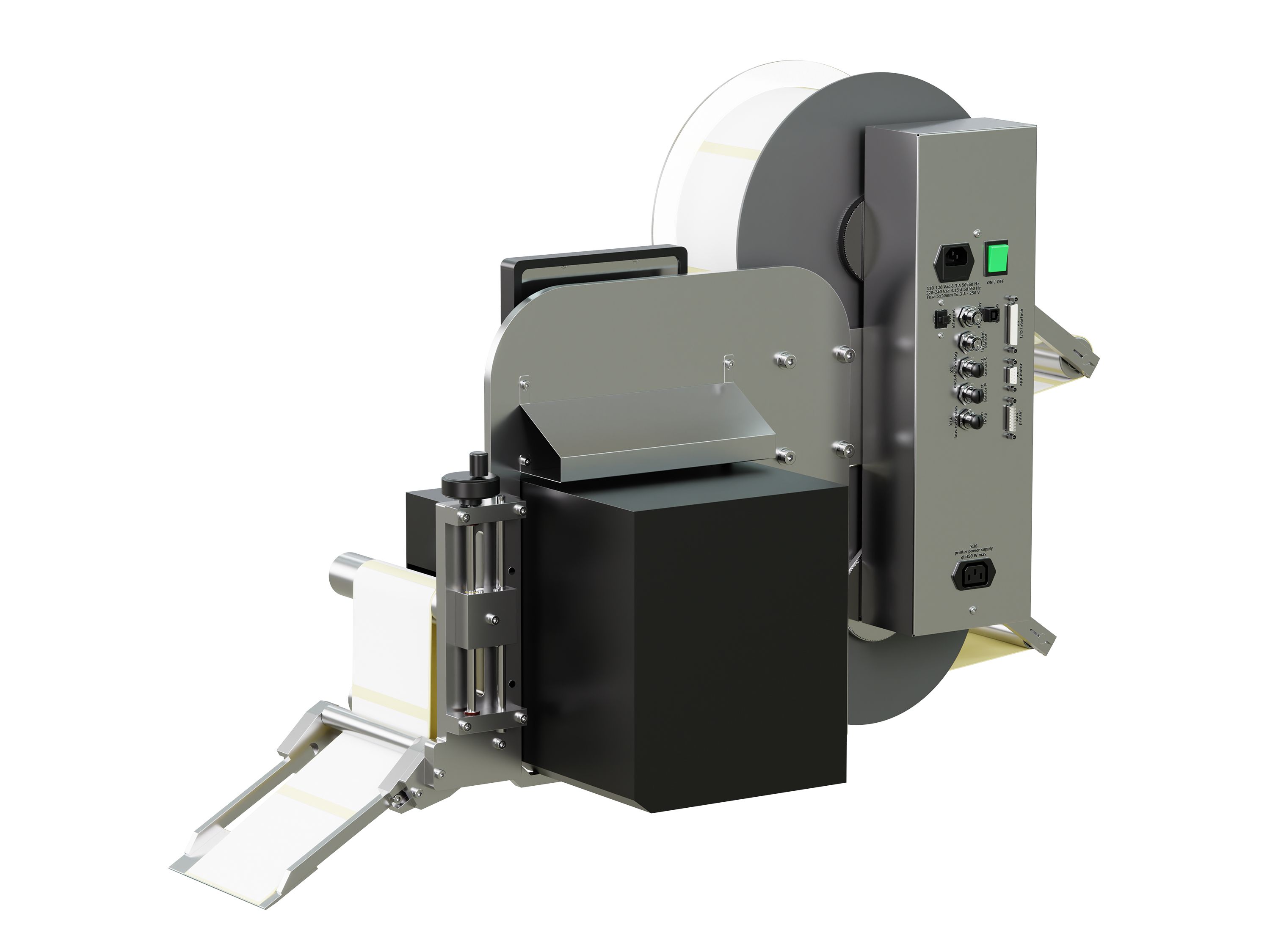

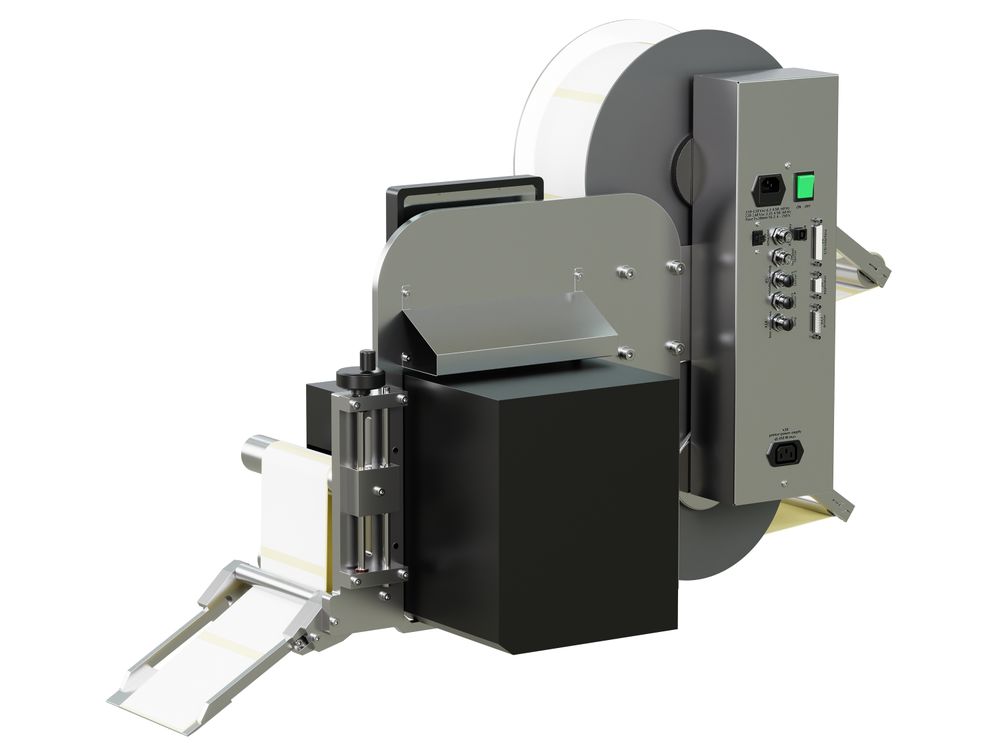

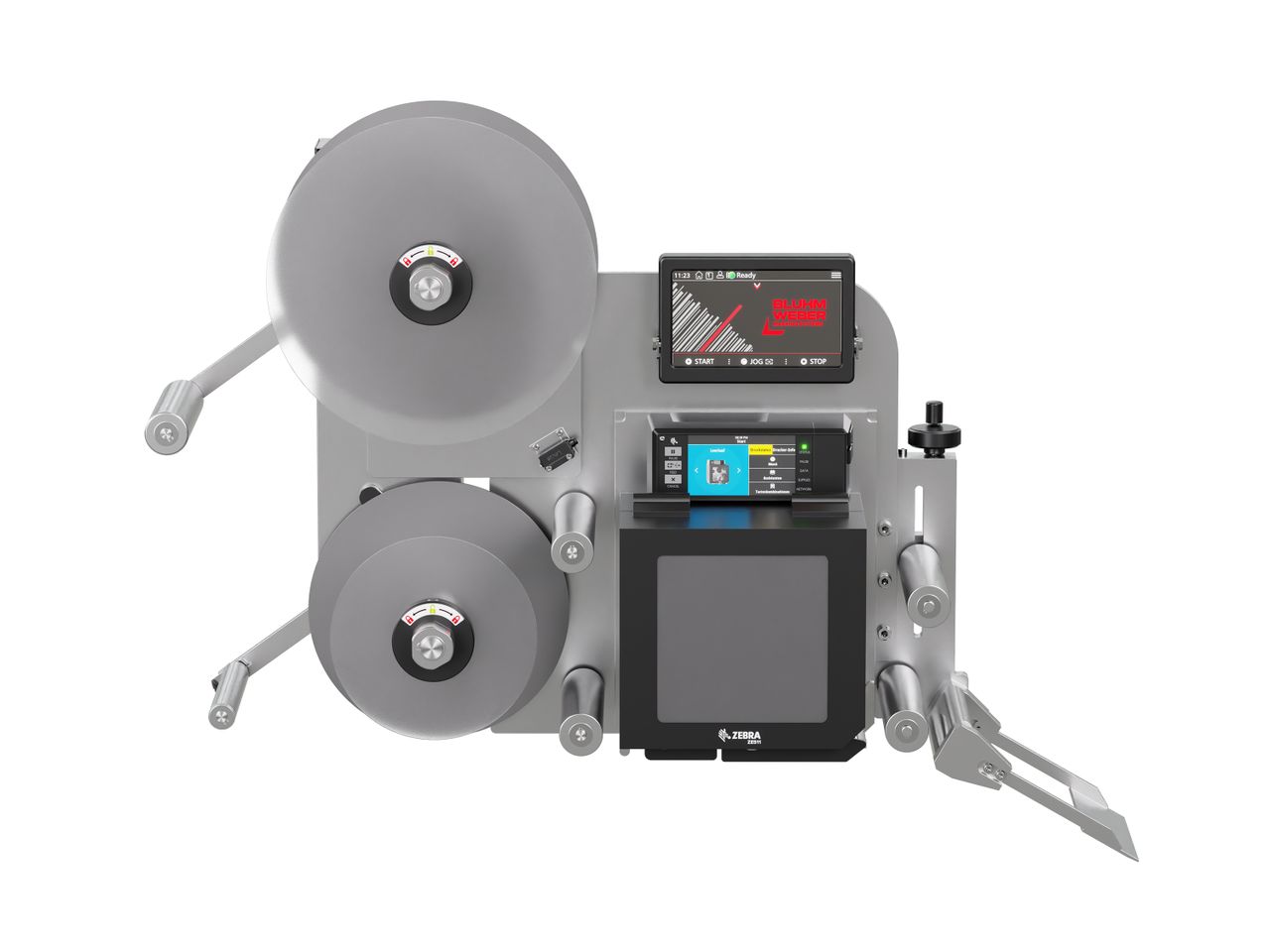

Print-Apply Labeling System

Legi-E 4050WO

Economical labeling without compressed air

  • Purely electrical print applicator system
  • Dispensing cycle rate up to 250 labels/min

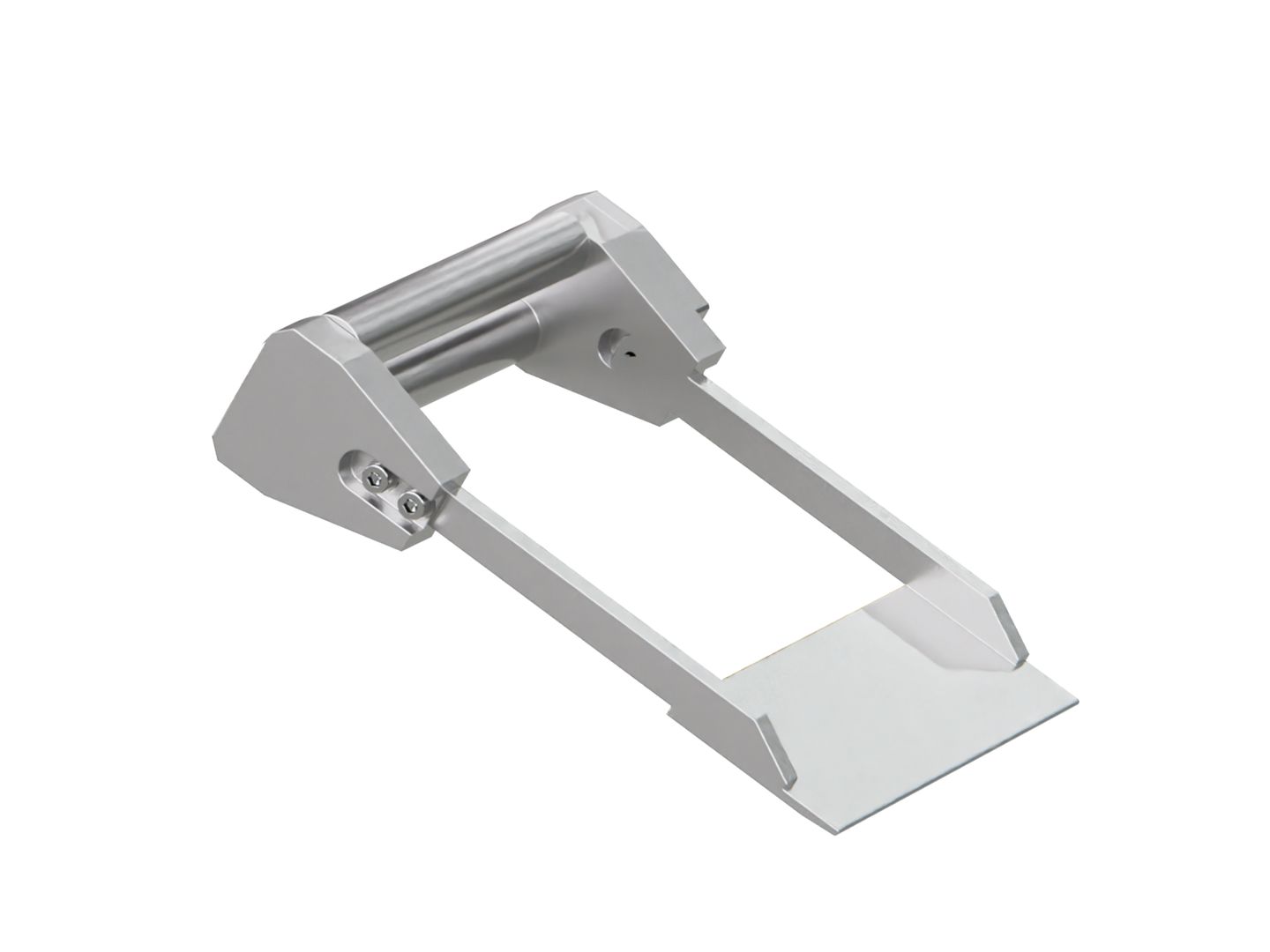

  • Wipe-on dispensing process for gentle application
  • Compact design
  • Simple integration
  • Label size min. 14 x 20 mm, max. 173 x 1000 mm

Electric labeling all-rounder for production

The Legi-E 4050WO is economical to purchase and impresses with its high efficiency. The print applicator system applies labels completely free of compressed air and processes large rolls with a diameter of up to 300 mm. Thanks to precise sensor technology and finely adjustable mechanics, labels are dispensed reliably even at high speeds.

All components come from our standardised mass production, which guarantees high availability and keeps costs low. The well-structured system design facilitates operation and enables maintenance without external technicians. With its compact design, the Legi-E 4050WO can be easily integrated into a wide variety of production environments.

Applications

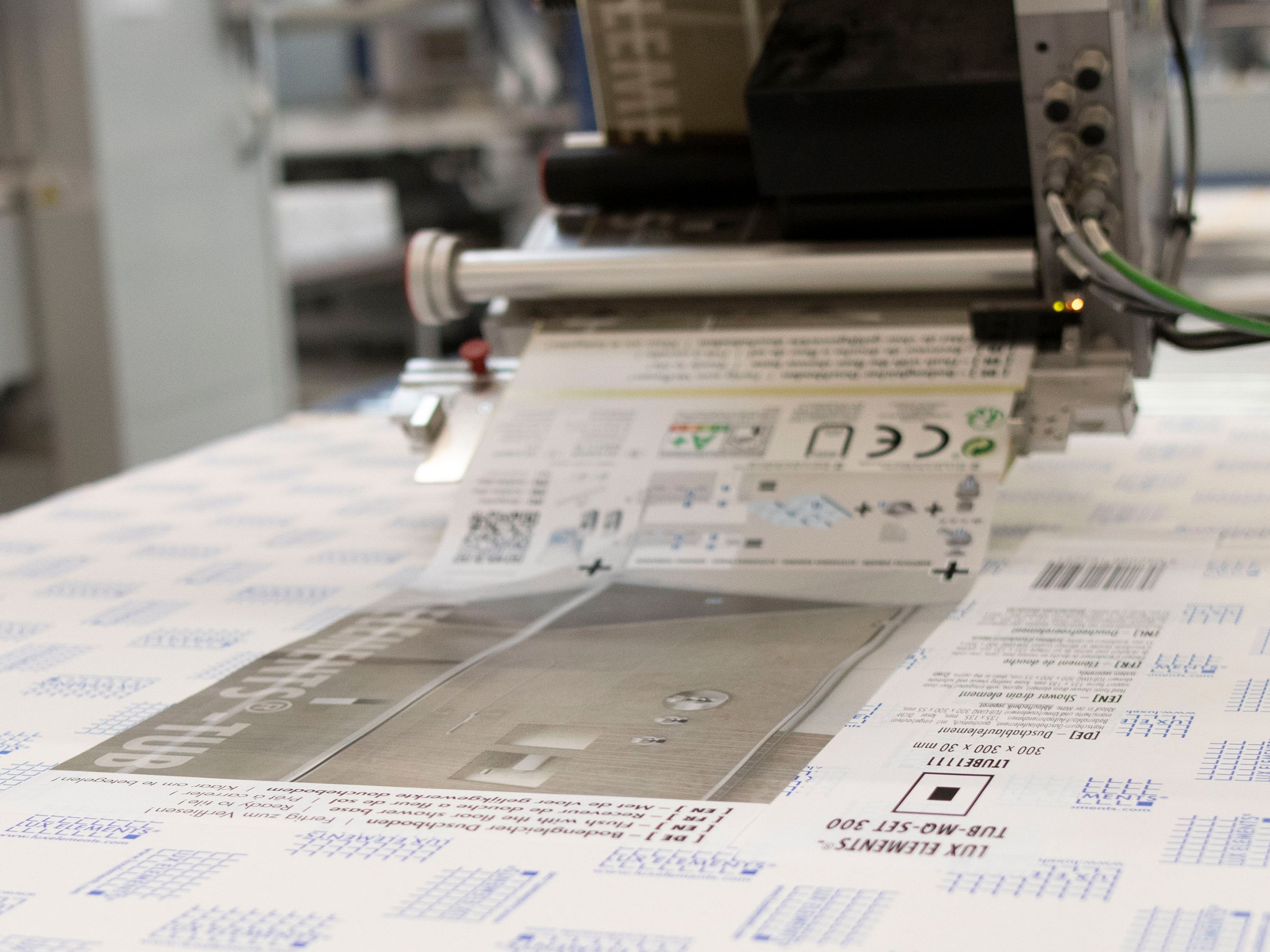

Label on top of carton 3
Legi-Air 4050WO topside labeling

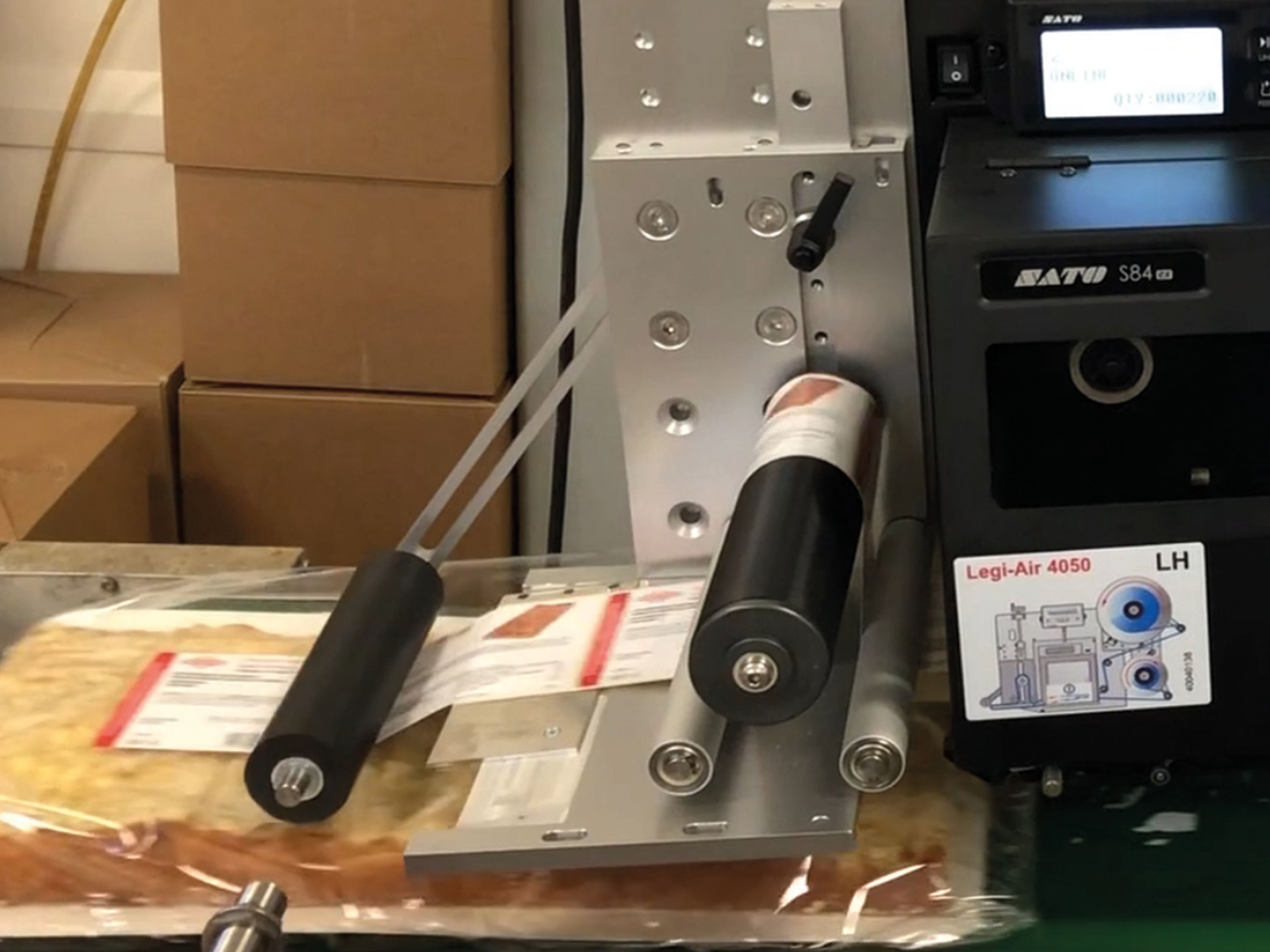

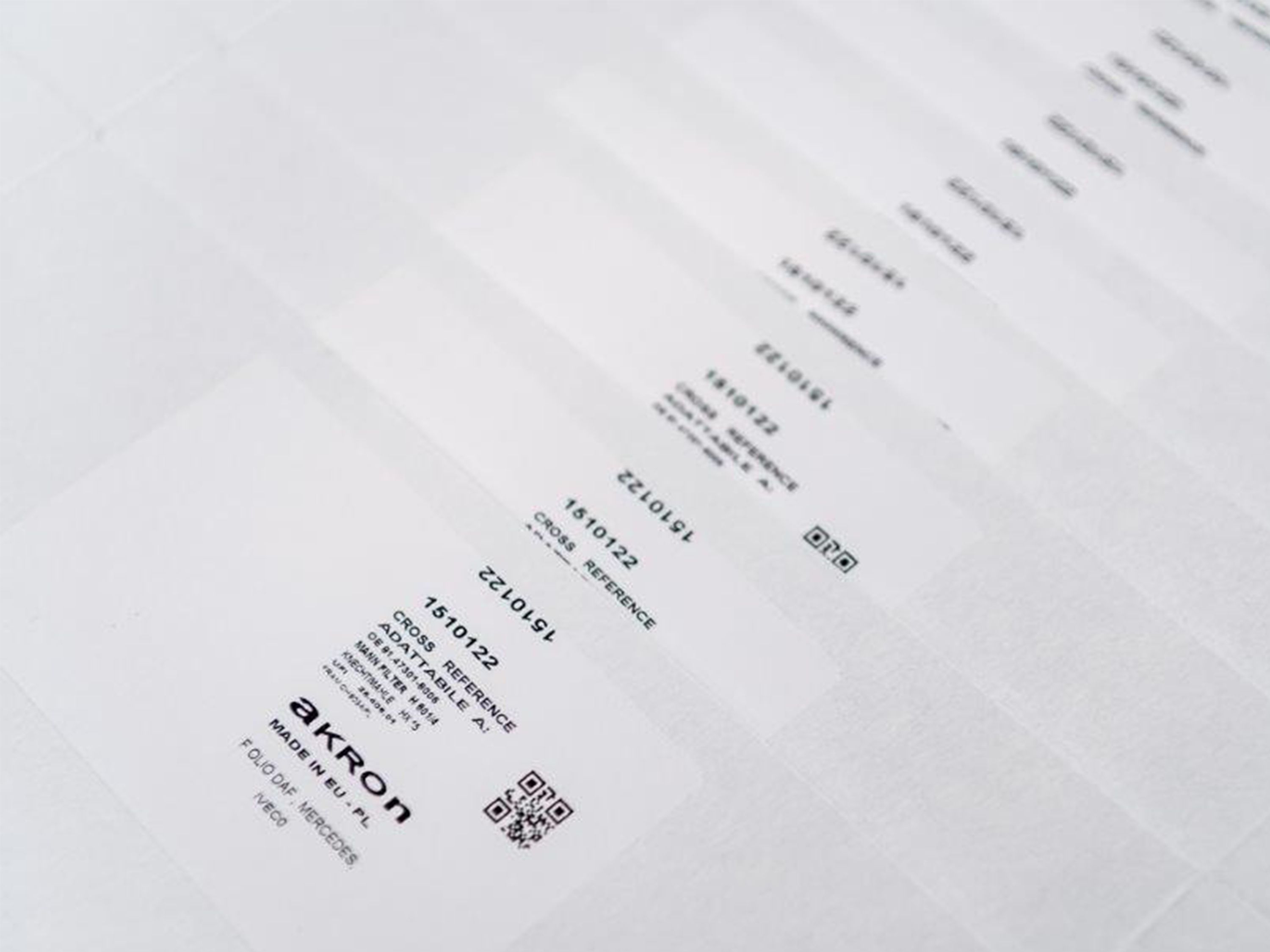

Label on carton

Special features

100 % electric - without compressed air

The Legi-E 4050WO operates fully electrically and completely eliminates the need for compressed air, which not only sustainably reduces operating costs but also makes installation significantly easier and more flexible. At the same time, the technology contributes to substantial energy savings and makes production processes more efficient, quieter, and more environmentally friendly. This reduces maintenance requirements and increases sustainability.

Compact design and easy integration

The compact construction of the Legi-E 4050WO allows for space-saving installation even in production environments with limited space. Thanks to its intelligent design, the system can be easily integrated into existing production lines without the need for extensive modifications. In this way, the device supports modern, automated manufacturing processes and increases overall efficiency in the long term.

Sophisticated modular concept

Thanks to its modular design, individual components can be easily maintained, replaced, or expanded without long interruptions to the entire production process. Downtime is minimized while ensuring operational reliability. The high flexibility of the concept ensures that the system can always be adapted to new requirements and guarantees consistently high availability.

Printer options

Zebra ZE511

Zebra ZE511

Highest printing performance for industrial applications

Print width 104 mm
Print speed up to 457
Printhead resolution 203 dpi, 305 dpi, 609 dpi
Printing process Thermal transfer, thermal direct, RFID
Zebra ZE521

Zebra ZE521

Highest printing performance for industrial applications

Print width 168 mm
Print speed up to 356
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer, thermal direct, RFID
Sato S86NX

Sato S86NX

Precise, fast and reliable industrial printing

Print width 167.5 mm
Print speed up to 355.6
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer, thermal direct, RFID
Sato S84NX

Sato S84NX

Precise, fast and reliable industrial printing

Print width 104 mm
Print speed up to 406
Printhead resolution 203 dpi / 305 dpi / 609 dpi
Printing process Thermal transfer, thermal direct, RFID
CAB PX Q4

CAB PX Q4

High-precision print module for automated labeling in industry and logistics

Print width 108.4 mm
Print speed up to 300
Printhead resolution 203 dpi / 305 dpi / 609 dpi
Printing process Thermal transfer and thermal direct
CAB PX Q6

CAB PX Q6

High-precision print module for automated labeling in industry and logistics

Print width 168 mm
Print speed up to 250
Printhead resolution 203 dpi / 305 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 944

Novexx XDM 944

Maximum speed for industrial labeling

Print width 106 mm
Print speed up to 400
Printhead resolution 300 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 945

Novexx XDM 945

Maximum speed for industrial labeling

Print width 128 mm
Print speed up to 350
Printhead resolution 305 dpi
Printing process Thermal transfer and thermal direct
Novexx XDM 946

Novexx XDM 946

Maximum speed for industrial labeling

Print width 160 mm
Print speed up to 300
Printhead resolution 305 dpi
Printing process Thermal transfer and thermal direct
Technical specifications
Application data
Label position
Top, Side
Product speed up to
16 m/min
Label size min
14 mm x 20 mm
Label size max
173 mm x 1000 mm
Features
Technology
Fully electric
Mounting orientation independence
No
Label unwinding
Stepper motor
Label rewinding
Stepper motor
Label shortage warning
optional
Web break detection
No
HMI
HMI version
Touch display
Physical aspects

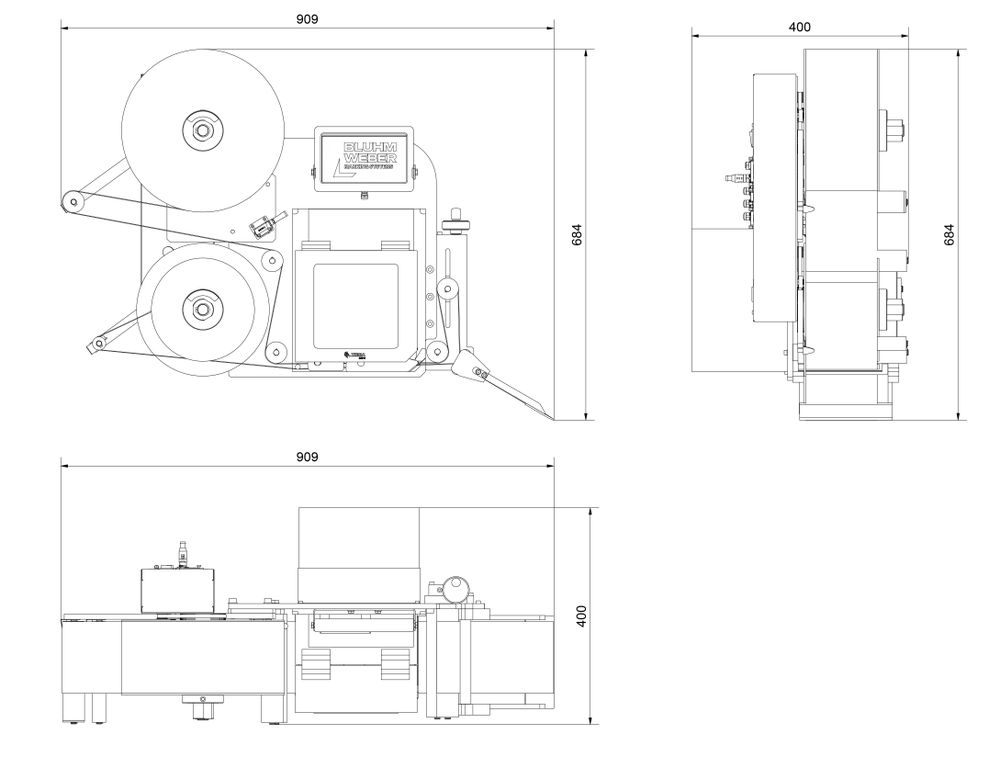

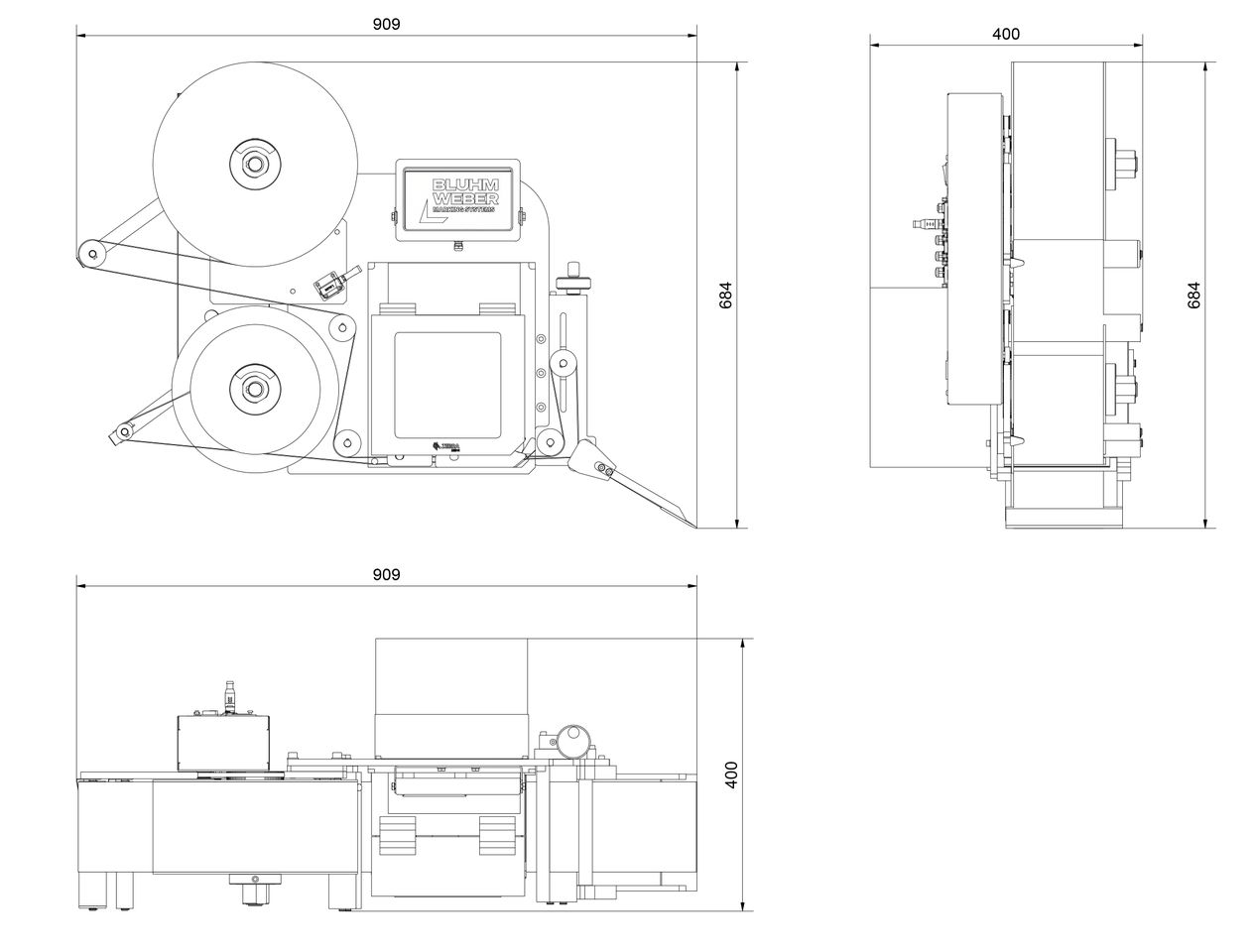

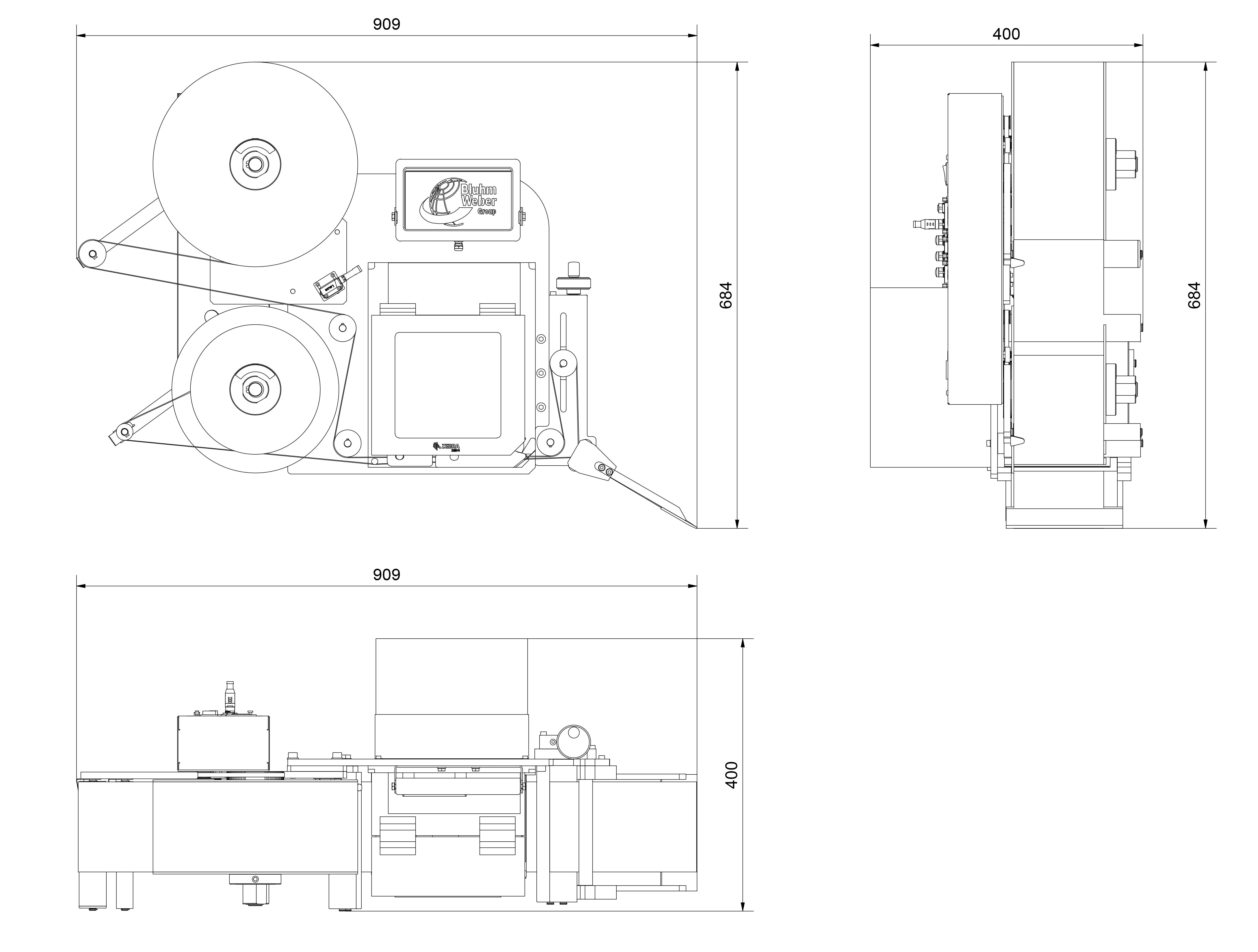

System dimensions (HxWxL)
684 mm x 400 mm x 909 mm
Weight
35 kg
Approvals
CE
Rel. humidity non-condensing
15 - 95 %
Ambient temperature
10 - 35°C
Noise level
70 dB
Connections
Supply voltage
90 - 263 V
Frequency
50 - 60 Hz
Current
5 A
Interfaces
USB, RS232, Ethernet IPv4
